DC12V 3W/PCS 8PCS Dual Color Color Temperature Changeable Aluminum Alloy Slim Under Cabinet LED Puck Lights Kit

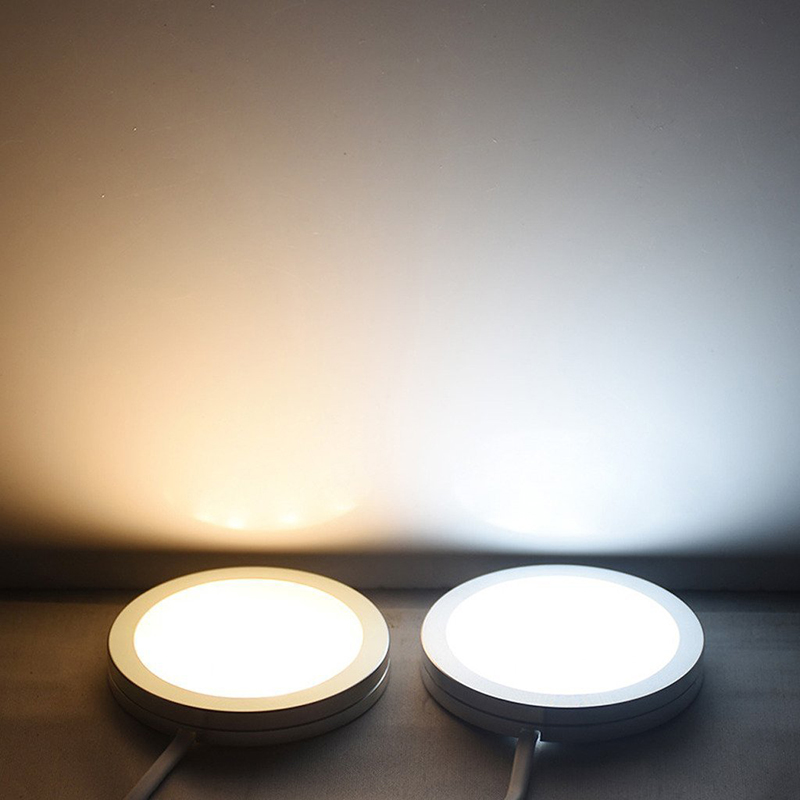

Under-cabinet LED puck lights can be changed from 3000K to 6500K, warm white to cold white. The user can define warm white or day white, or the mix of warm and cold white, or 24 key IR remote controller any colour temperature between 3000K to 6500K to use, by using a 24-key IR remote controller. 24 key IR remote controller provides dimming, flashing, CCT changing operations. Easy installation, either installed by screws or adhesive tapes, for protecting your furniture. DC12V input, very safe to use. 90% energy saving, each LED puck light to replace 30W traditional incandescent or halogen lamps.
Input voltage: AC100-240V, 50/60HZ
Output voltage: DC12V/1A
LEDs: SMD 5050 + 2835 LEDs
Power: Max. 3W per lamp (when a full load, 100% brightness, 3W), totally 12W.
Lumen: 300lm per lamp

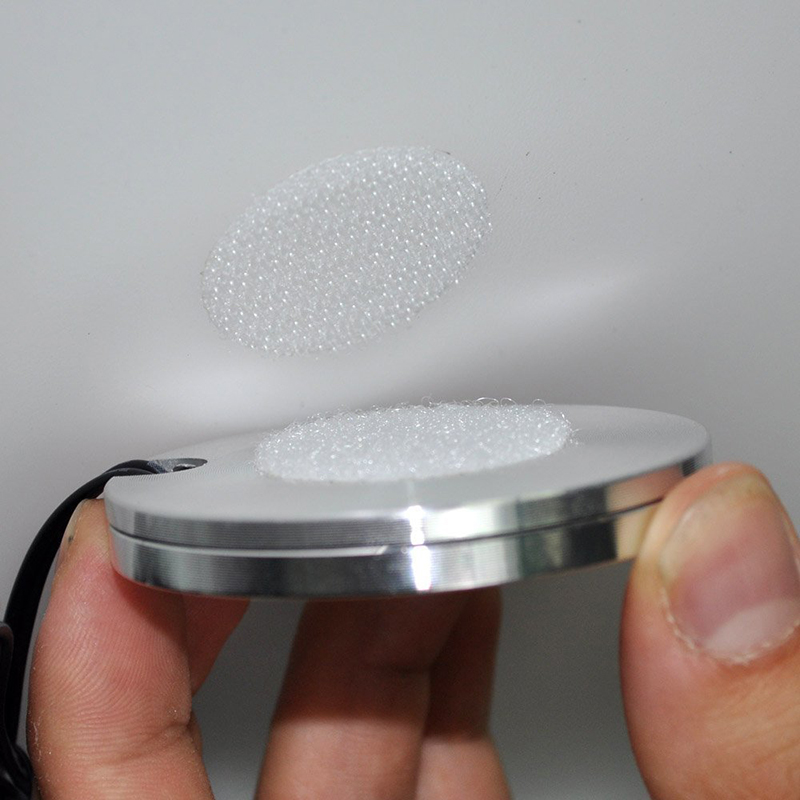

Installation: Using 3M adhesive tape or screws
Control Distance: 3–5 meter.

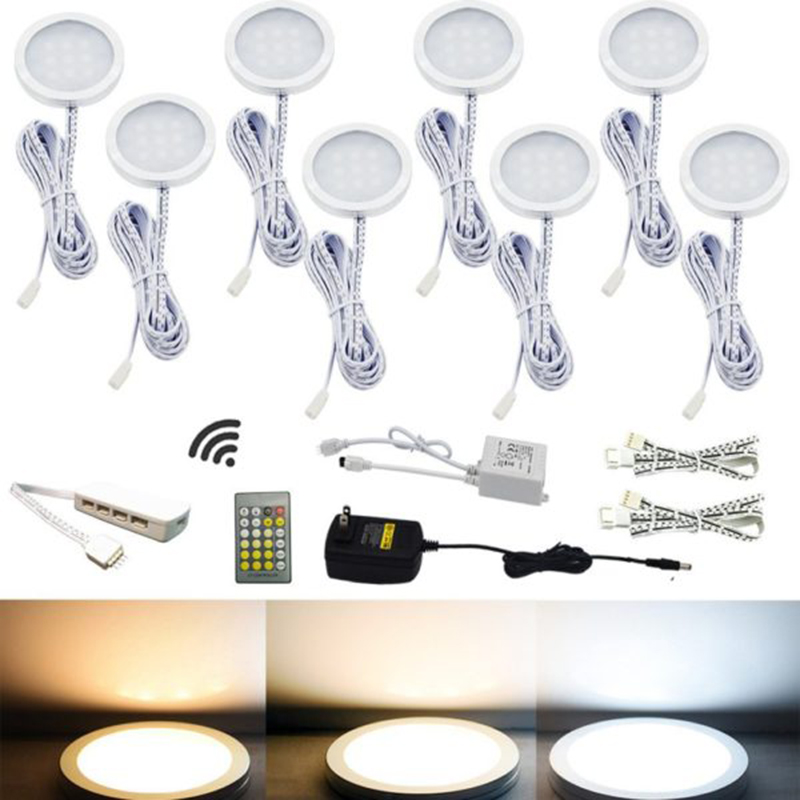

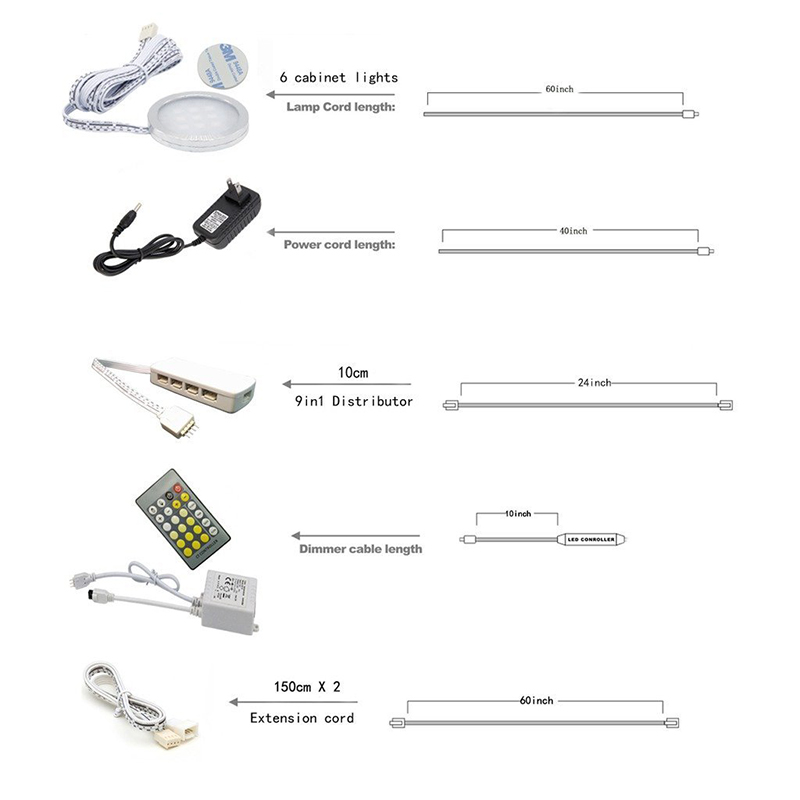

AC/DC Power Adapter(X1)
IR controller (x1)
24-key IR remote control (x1 without battery)
Dual colour under cabinet LED puck light (X8)
3M adhesive tapes (X8)
