DC12V Triple Row RGBCCT Rigid Linear LED Light Bar For Home Lighting - 55LEDs per Foot - 5pcs by sales
This is our newest rigid linear LED light bar, suitable for a variety of LED backlight lighting projects, such as for under cabinet lighting, cove lighting, task lighting, and some other indoor lighting projects.
The total length of this non-waterproof LED light bar is 1m/3.28Ft by default, support 12 volt low voltage input, triple row arranging structure, total 180pcs high lumen 5050SMD LEDs per 1meter, 60 RGB LEDs, 60 warm white LED and 60 daylight white LEDs.

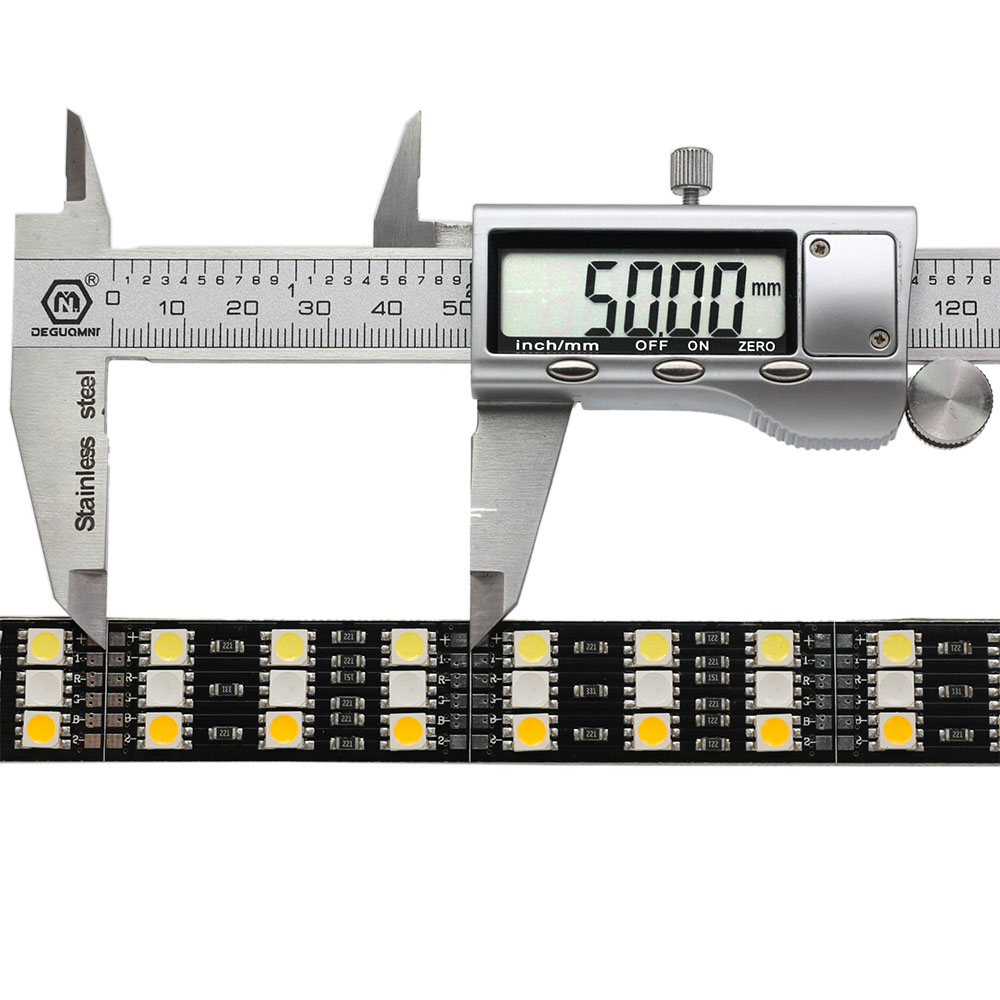

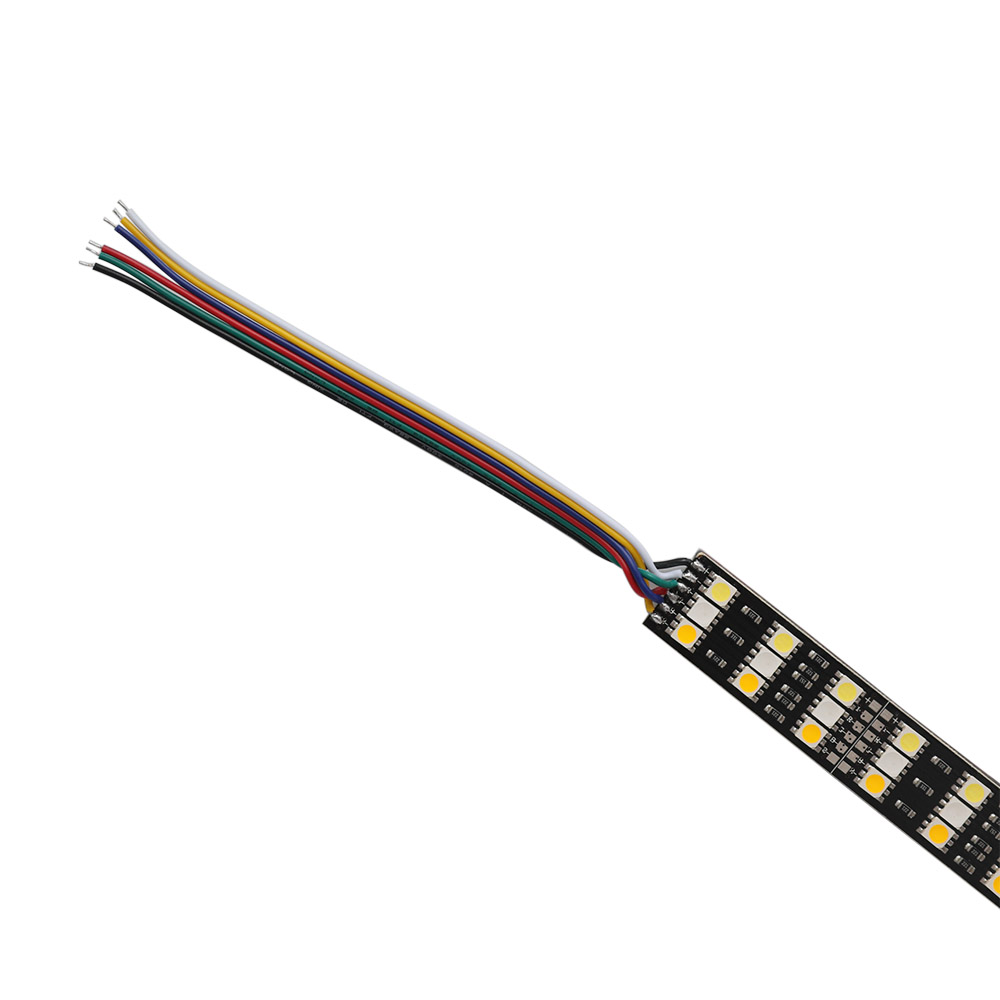

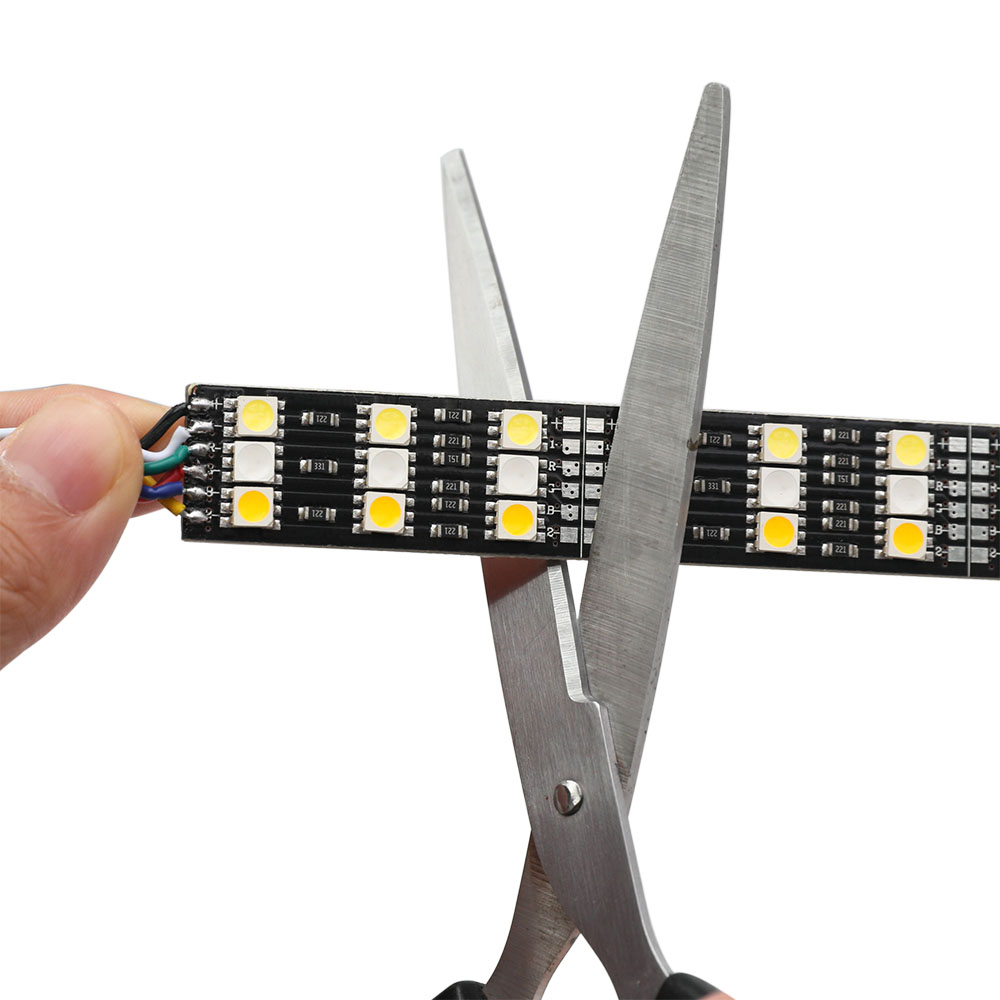

Per 50mm cuttable, you can customize the length by yourself, end with a 10-15cm bare wire, which is connected to the RGBCCT LED controller to control the led hard strip light to display a perfect lighting effect, back with high quality 3M tape, you can paste the RGBCCT led light bar anywhere.
The width of this hard LED light bar is 20mm, you can use it with LED aluminum channel, which is an extremely versatile solution for home lighting.
Triple Row rigid LED light bar
High density 55LEDs/Ft

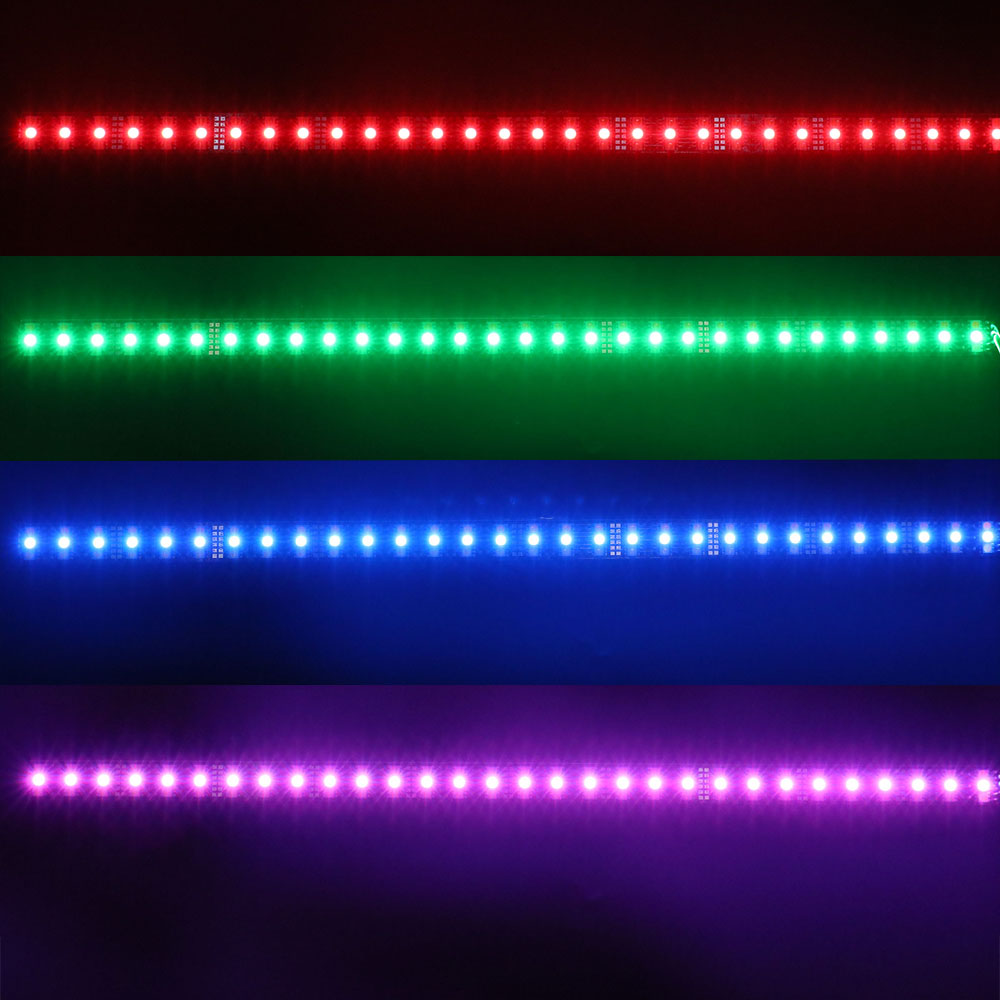

RGB/Warm White/Daylight White SMD5050 LED
5 channels RGBCCT hard light bar
3M tape, easy to install
DC12V safety voltage input
Standards and Certifications
Beam Angle: 120 degree
LED Quantity: 55LEDs/Ft; 180LEDs per meter
Dimmable Range: 2800-6500K
Operating Voltage: 12VDC
Waterproof Rating: IP20 non-waterproof
Power Consumption: 30W/m
Channel Quantity: 5channels RGB+Tunable White
LED Lifetime: 30000 Hours
LED Type: 5050 SMD

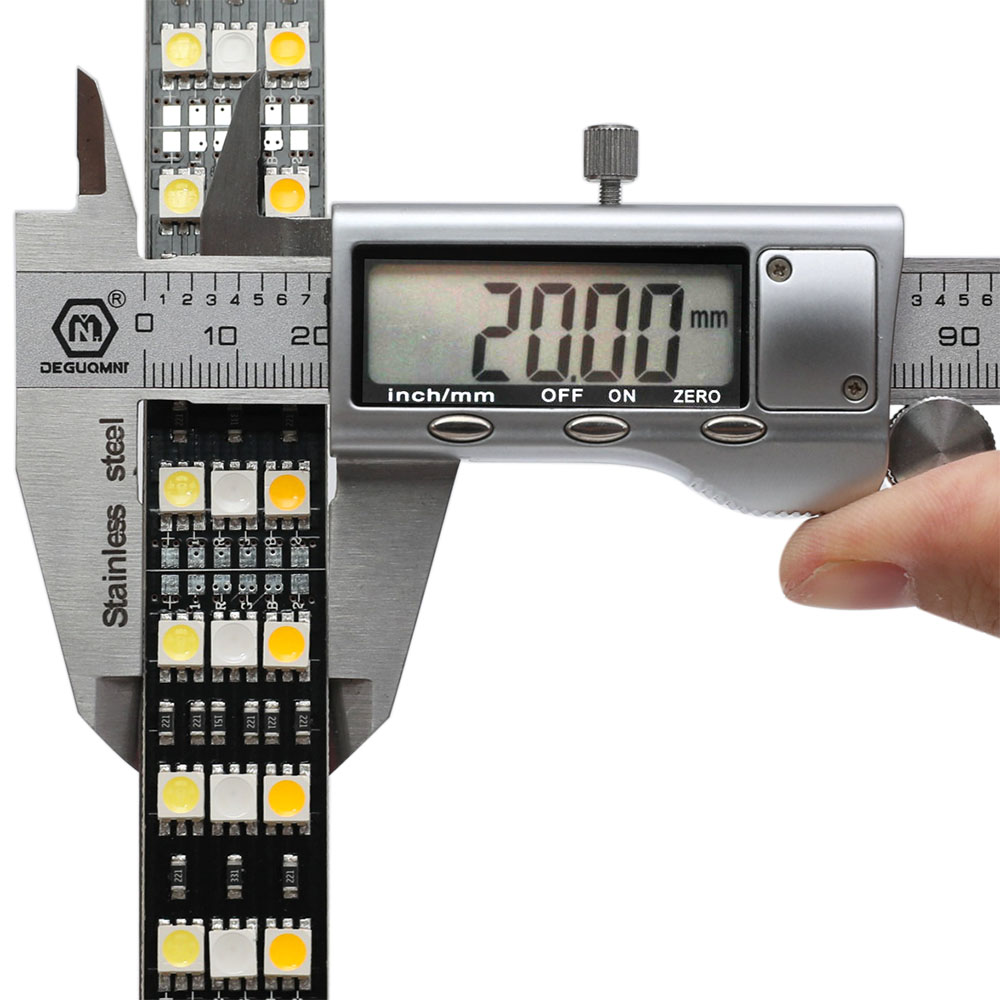

LED Light Bar Width: 20mm/0.79in
Wavelength NM(RGBY): 2000-2500mcd

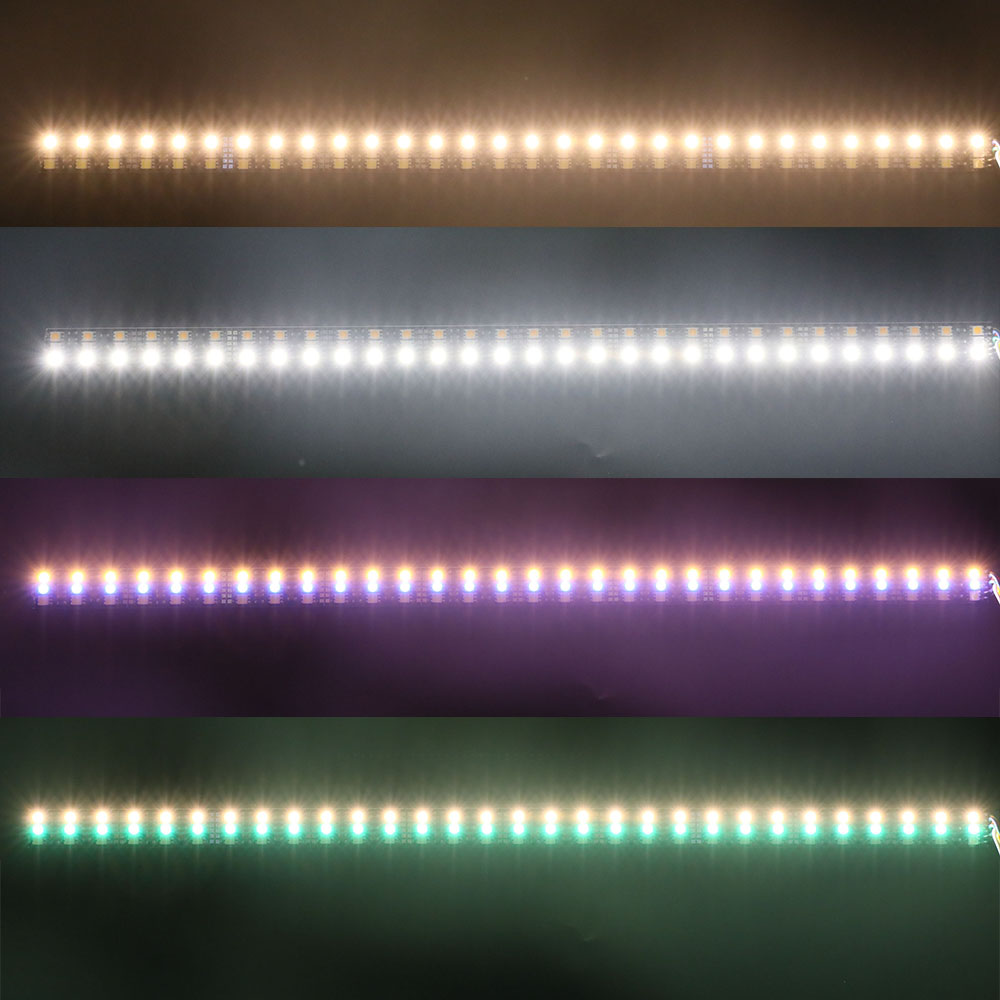

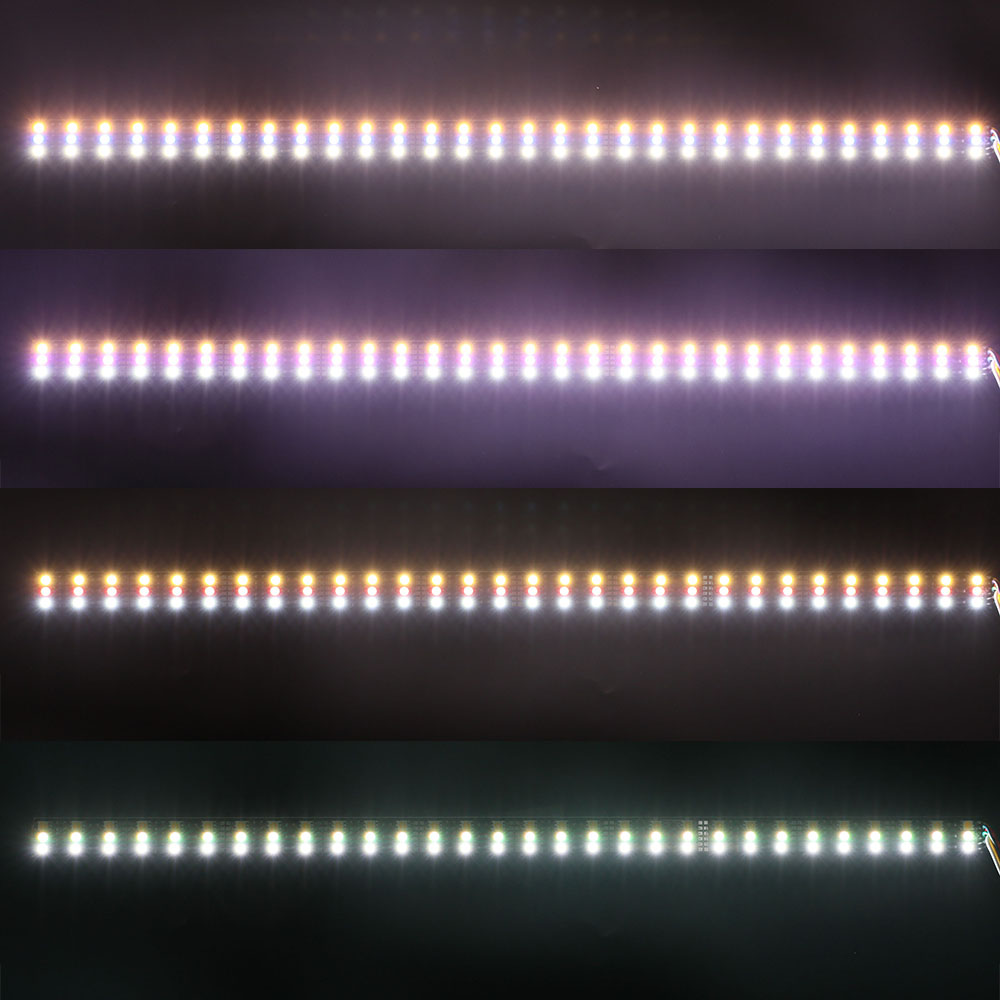

Color Temperature CCT(White): Warm White(2800-3200k), Daylight White(6000-6500k)
5* 1m/3.28Ft 12V led light bar (by default)
If you want to choose a LED controller to control the hard LED light bar, you can visit our RGBCCT controller series.
If you want to choose a LED power supply, you can visit our DC12V plastic shell LED power adater. For the 30W LED light, you need to choose at least 36W LED power adapter.
How to install the LED light bar?
1. Keep the installation surface clean

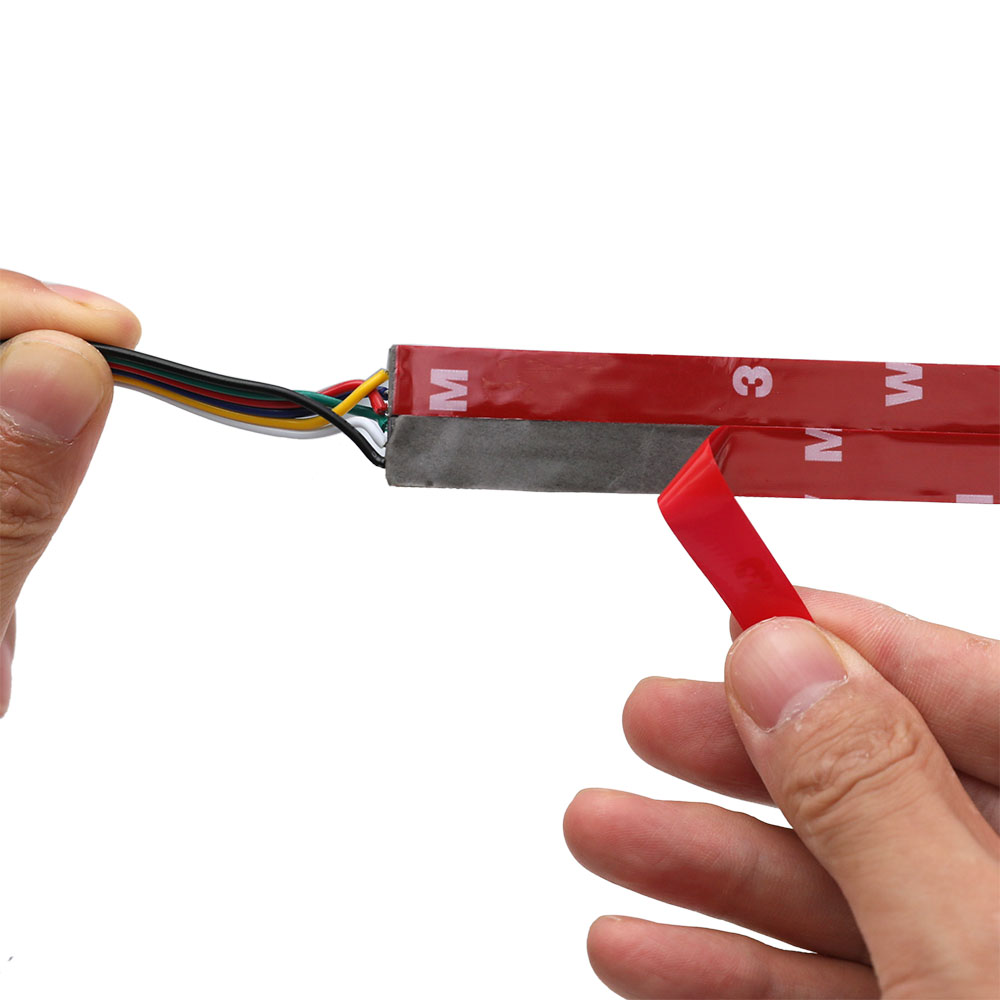

2. Tear off the 3M tape on the back of the hard LED light bar, paste it on the surface, and press it down firmly to keep the Rigid LED light bar in perfect fit with the mounting surface

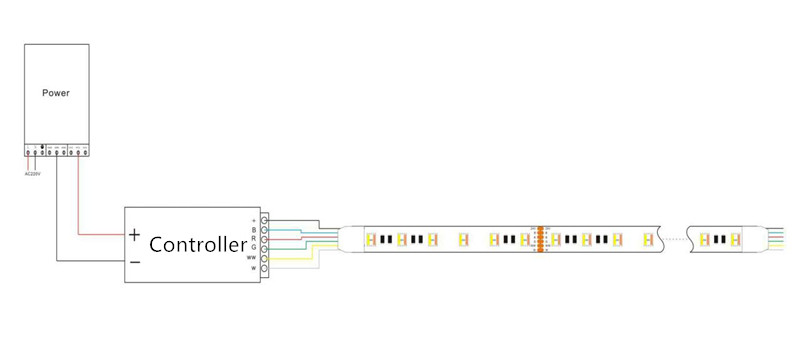

Less than 16.4ft(5 meters) led strip lights connection diagram
LED Task Lighting
Retail LED lighting
Sign illumination LEDs
Automotive accent lighting
Display case and accent lighting
