5050 3in1 RGB+CCT 2in1 Multi Color LED Lights - 12mm/10mm 12V/24V LED Strip - 60LEDs/m
RGB+CCT color changing led strip lights with both RGB color and dimmable CCT white light color, use 5050 RGB LEDs plus 5050 CCT LEDs, have purer white light with a wider color temperature range (2700K-6500K, warm white to cool white) than multi color RGB led strip lights and RGBW led strips, compatible with mood lighting and task lighting. You can freely change the LED light colors by using wireless control method via an RGB CCT controller, use low-voltage 12V/24V led power supply.

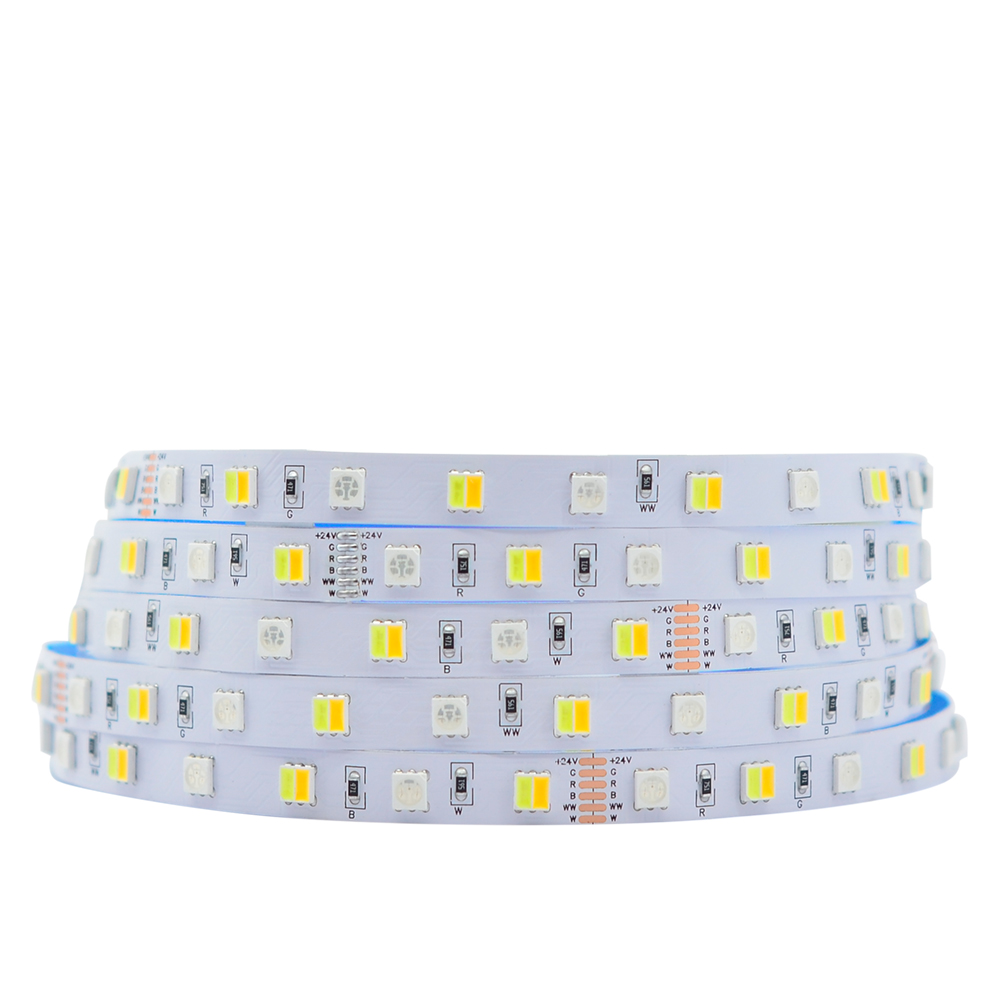

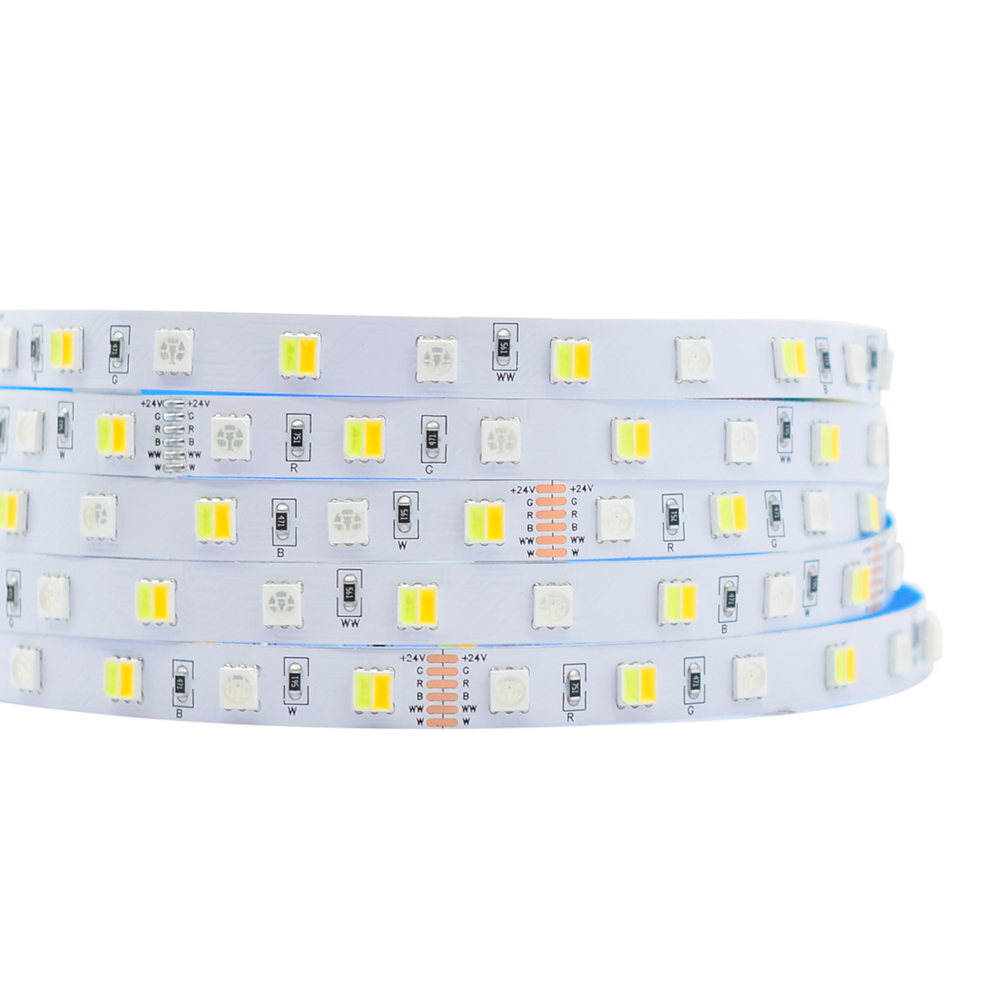

5050 3in1 RGB LED + 5050 2in1 CCT LED
Cut into 12-LED segments
IP20/IP65/IP67 three waterprof ratings for indoor and outdoor lighting
12V RGB+CCT LED strip vs 24V RGB+CCT LED strip:

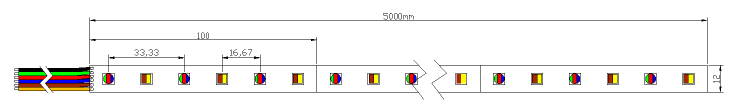

12V RGB+CCT led strip has a cut unit with 6 lights (3 RGB lights + 3 CCT lights), 100mm can be cut; 24V RGB+CCT led strip has a cut unit with 12 lights (6 RGB lights + 6 CCT lights), 200mm can be cut.
Standards and Certifications
|LED Strip Type:||SMD 5050 RGB+CCT 300LEDs/16.4ft|
|LED Chip:||Epistar Chip (SMD5050 LED chip)|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||RGB+CCT (2700K-6500K color temperature)|
|Dimension:||16.4ft/roll, every 6/12 PCS LED can be cut|
|LED Quantity:||60 LEDs per 1meter (3.28 ft)|
|Strip Width:||10mm (0.39in), 12mm (0.47in)|
|Input Voltage(V):||12/24 VDC|
|Working Power:||90W /16.4ft Max → Informations About LED Power Supply|
|Lamp Luminous Flux(lm):||20-22Lumen 9240lm Max /16.4ft 563lm/feet 69lm/watt|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Non-waterproof IP20, waterproof IP65 IP67 IP68|
1. RGB+CCT led strip wiring diagram:

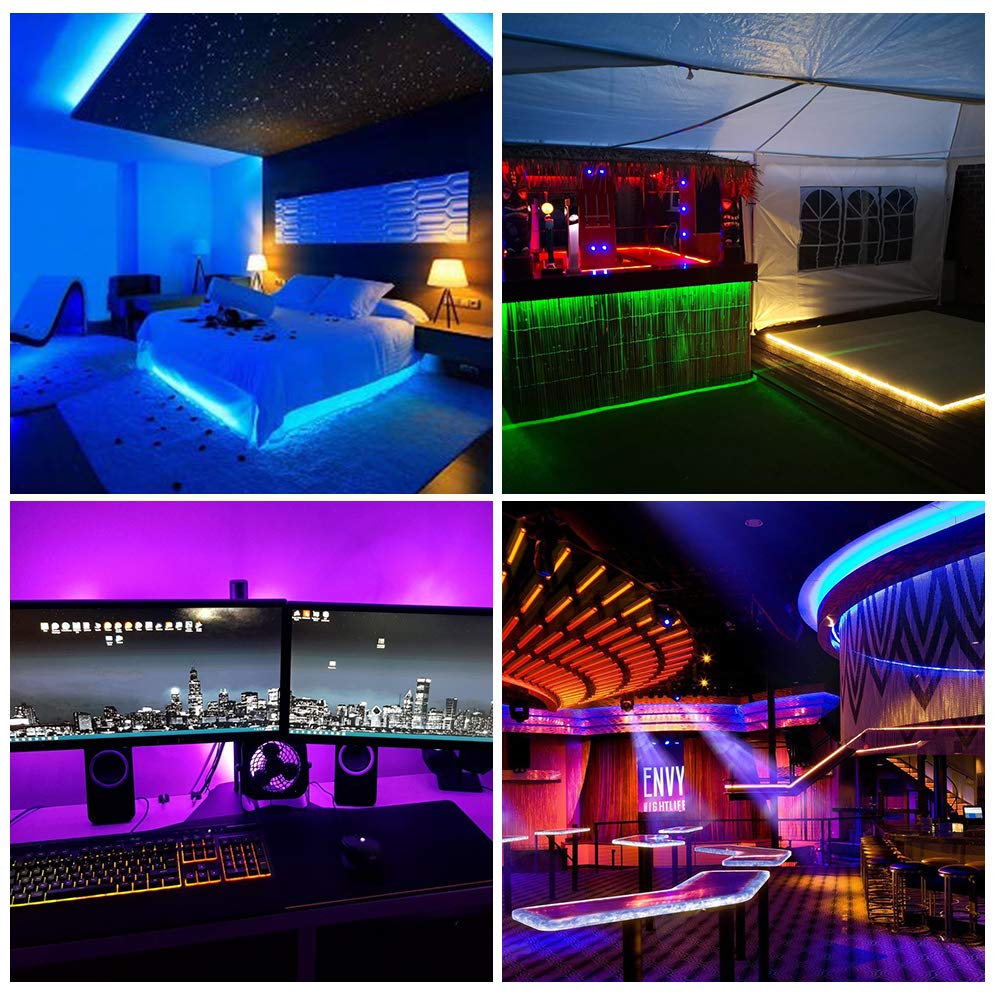

LED Task Lighting
Retail LED lighting
Sign illumination LEDs
Automotive accent lighting
Display case and accent lighting
