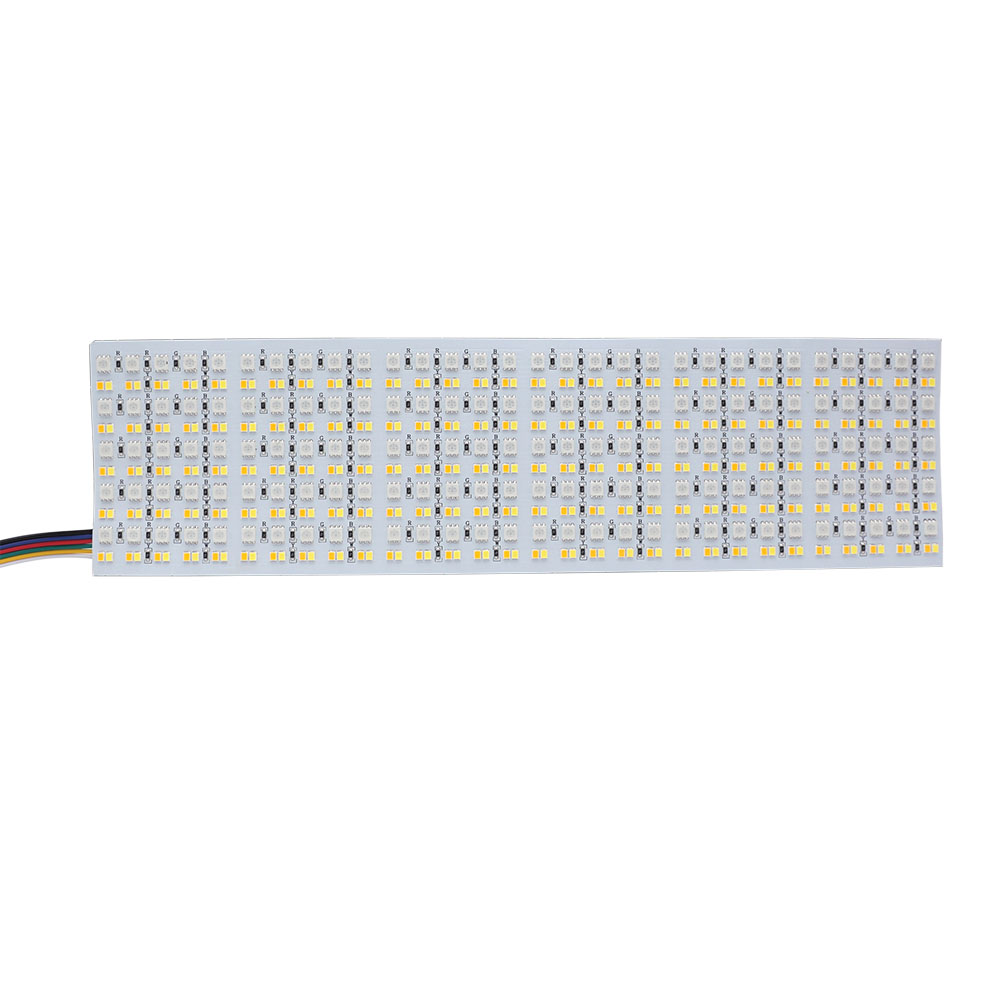

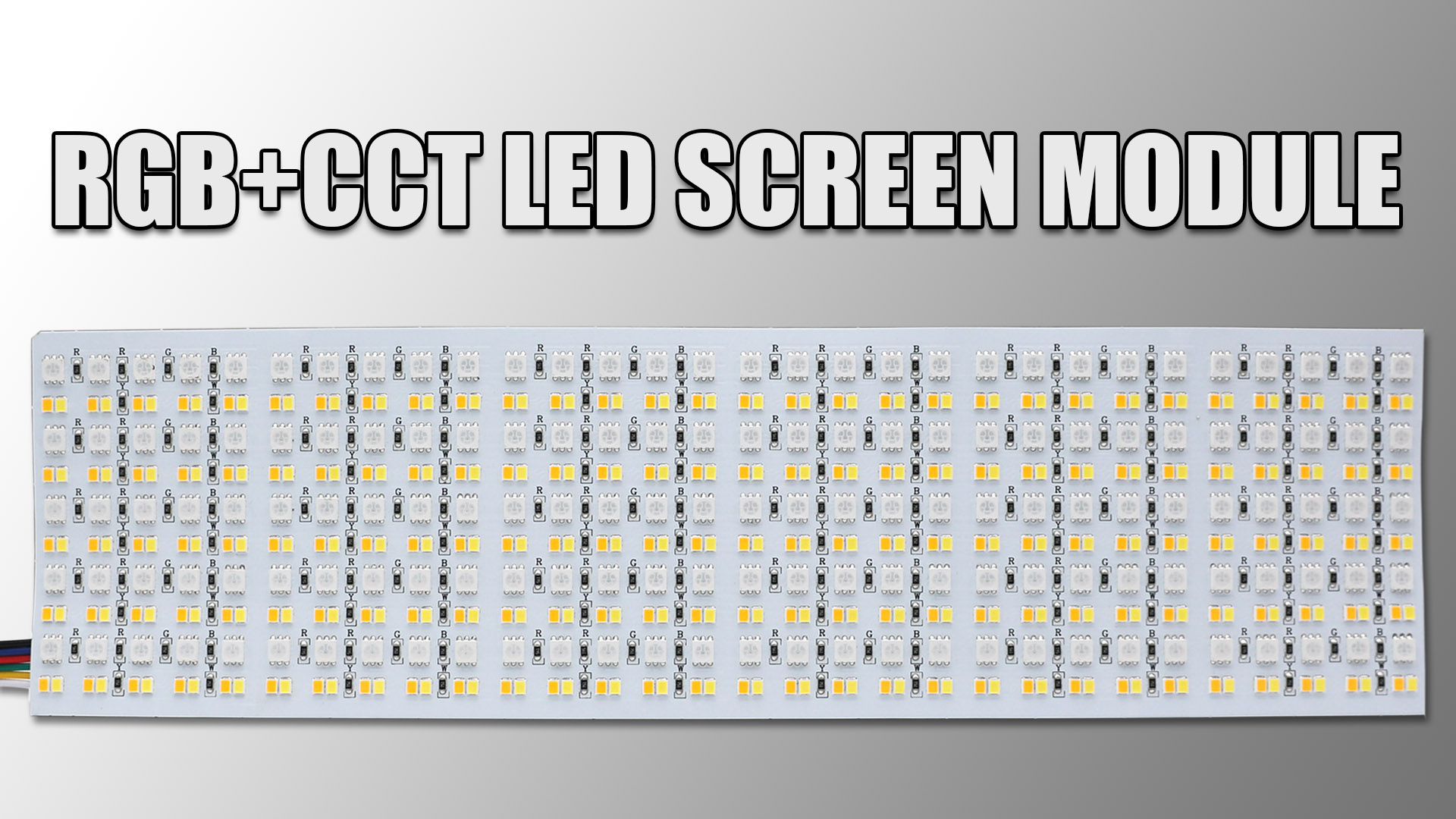

DC24V RGB+CCT 450LEDs Customize Flexible LED Screen Module

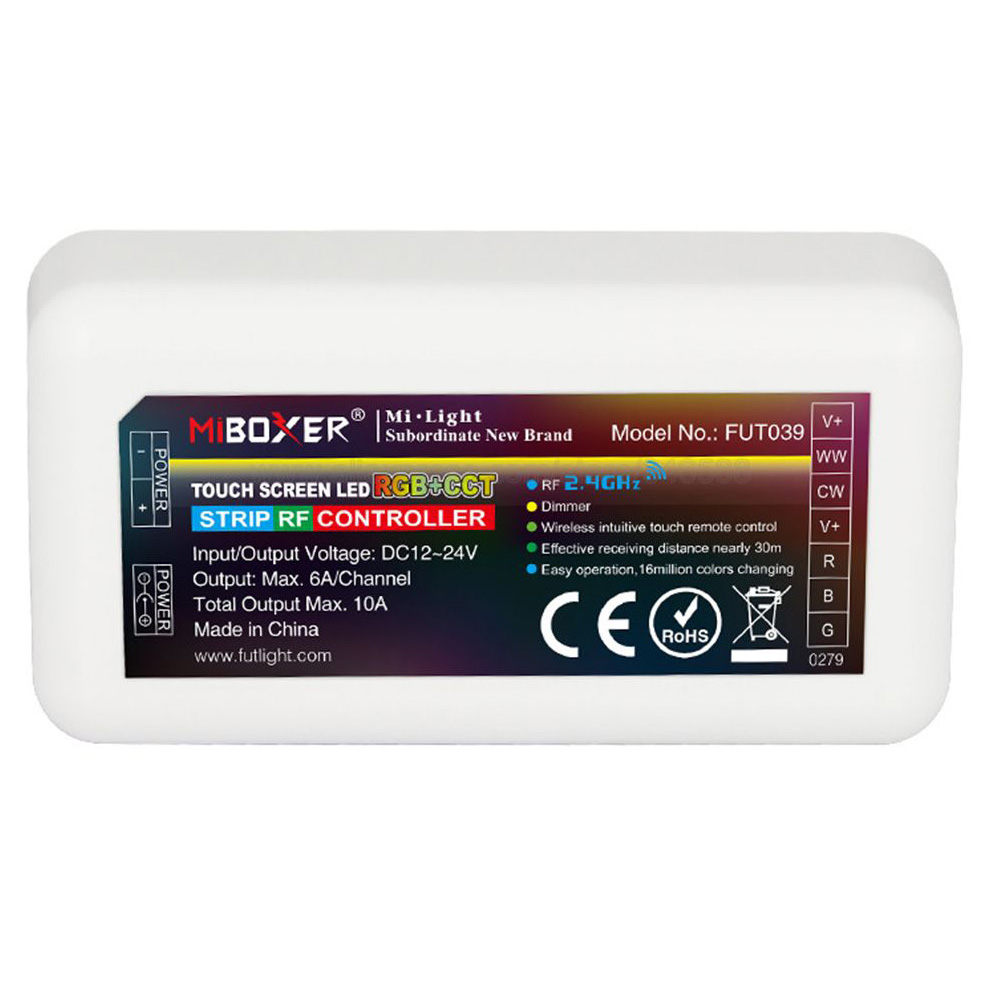

This DC24V RGB+CCT 450LEDs LED screen module can apply for advertising signs、hotel、KTV、computer machine box, mechanical equipment, car, etc. It is very popular used in daily life for easy install and control. It has three years warranty, please order it without worry, we only offer good quality led screen, led controllers and related led accessories. This is brightest DC12/24V RGBCCT 5 colors flexible led display. please see RGB+CCT control system

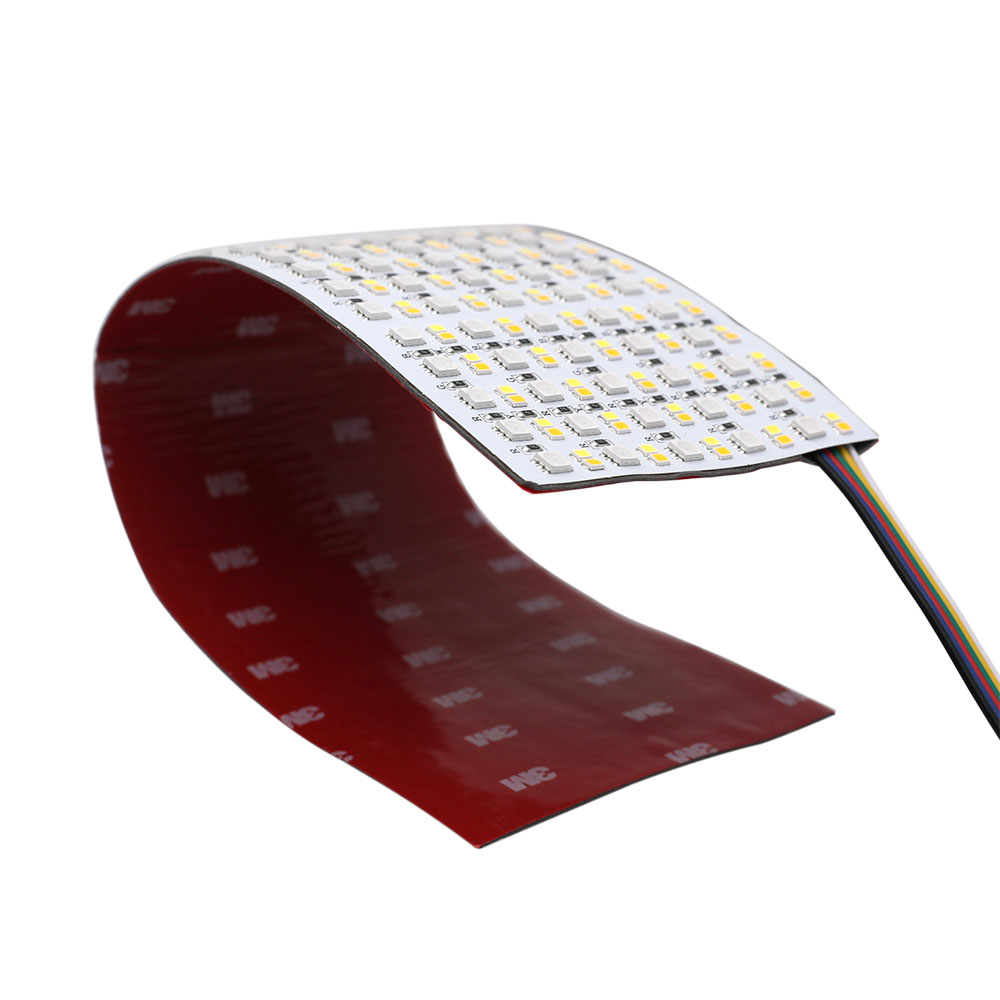

The use of the best flexibility FPC as a substrate, FPC has good electrical conductivity, heat fast, resistant to bending;

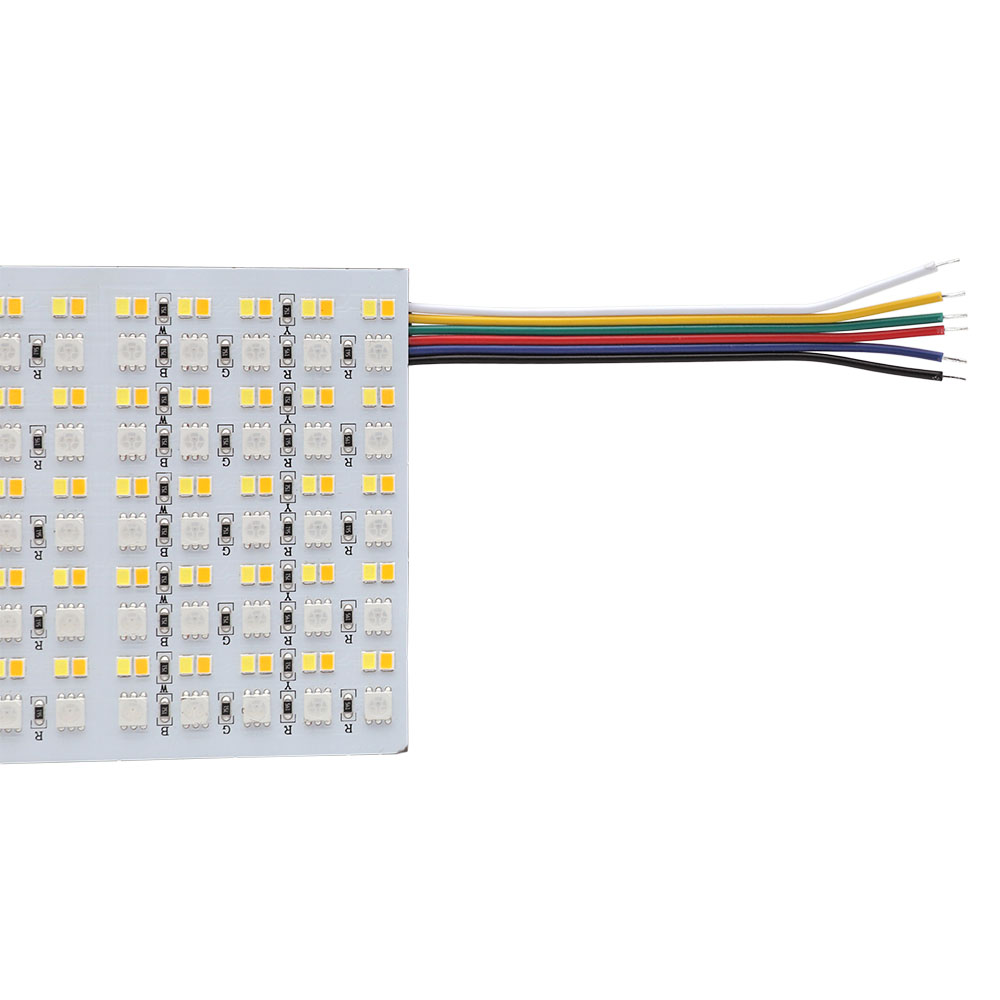

Using SMD 5050 RGB + 2835 WW lamp beads, 5050RGB + 2835 Warm White +2835 White color;

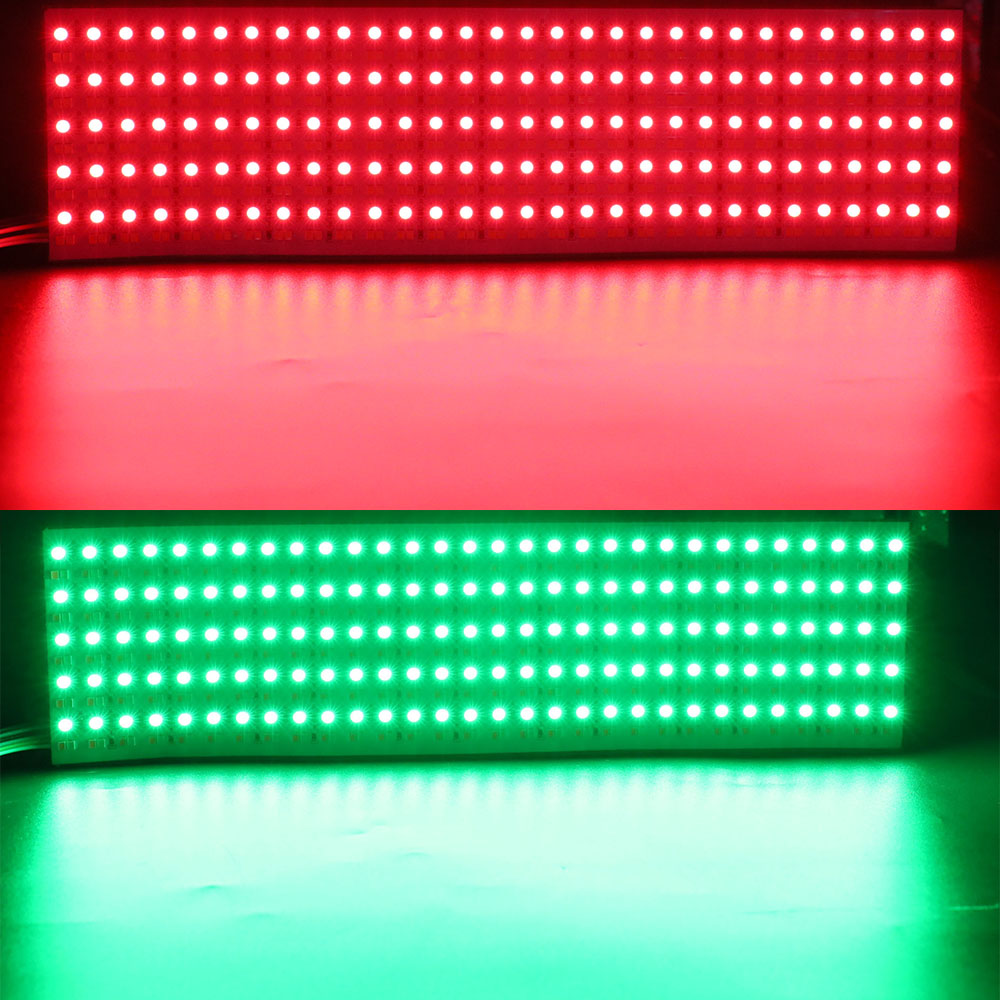

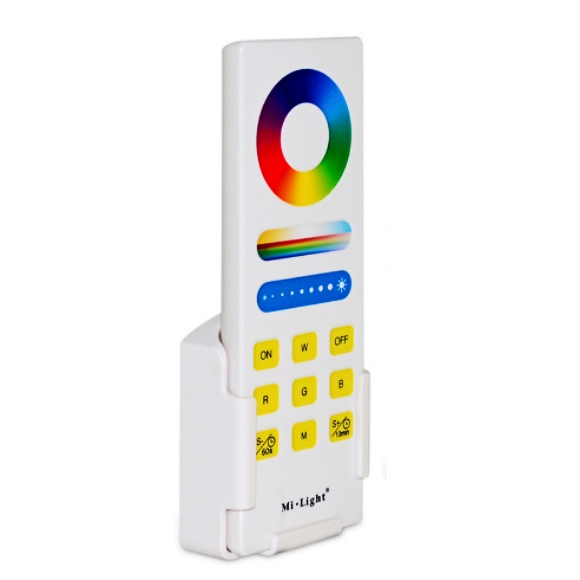

Through the RGBWW Remote controller programming to achieve any of Flashing effects;
The use of low-voltage DC24V power supply, the user is more secure when used;

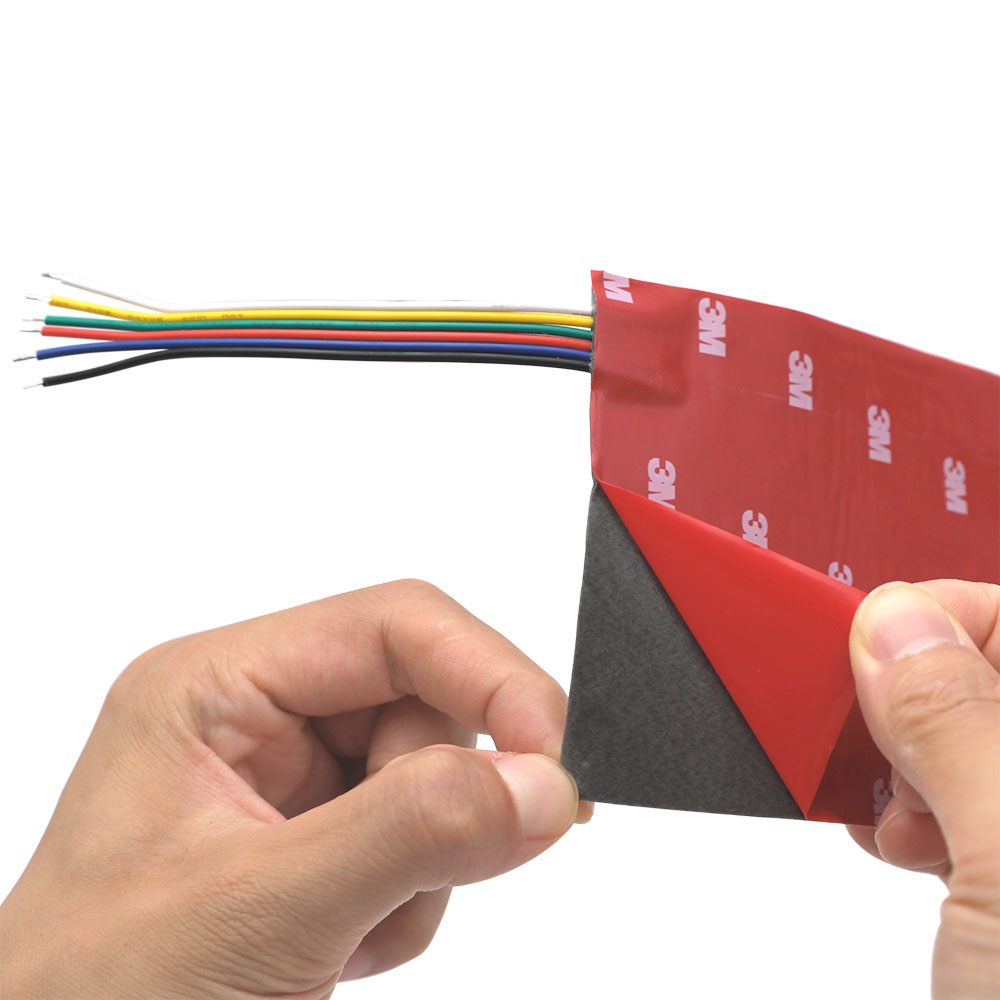

Strong 3M VHB Dark Gray Acrylic Adhesive;
Standards and Certifications
LED Type: SMD 5050 RGBWW
LED Chip: Epistar super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
LED Quantity: 450Leds /pcs
Warranty: 3 Years
Dimensions: L33.3cm(13.1 in ) x W9.08cm(3.57 in ) x H0.20cm(0.08 in )
Input Voltage(V): 24VDC
Working Power: 50W/pcs Max,
Lumen Per LED: 9,900lm/pcs, 198lm/watt
Wavelength NM(RGBY): 2000-2500mcd

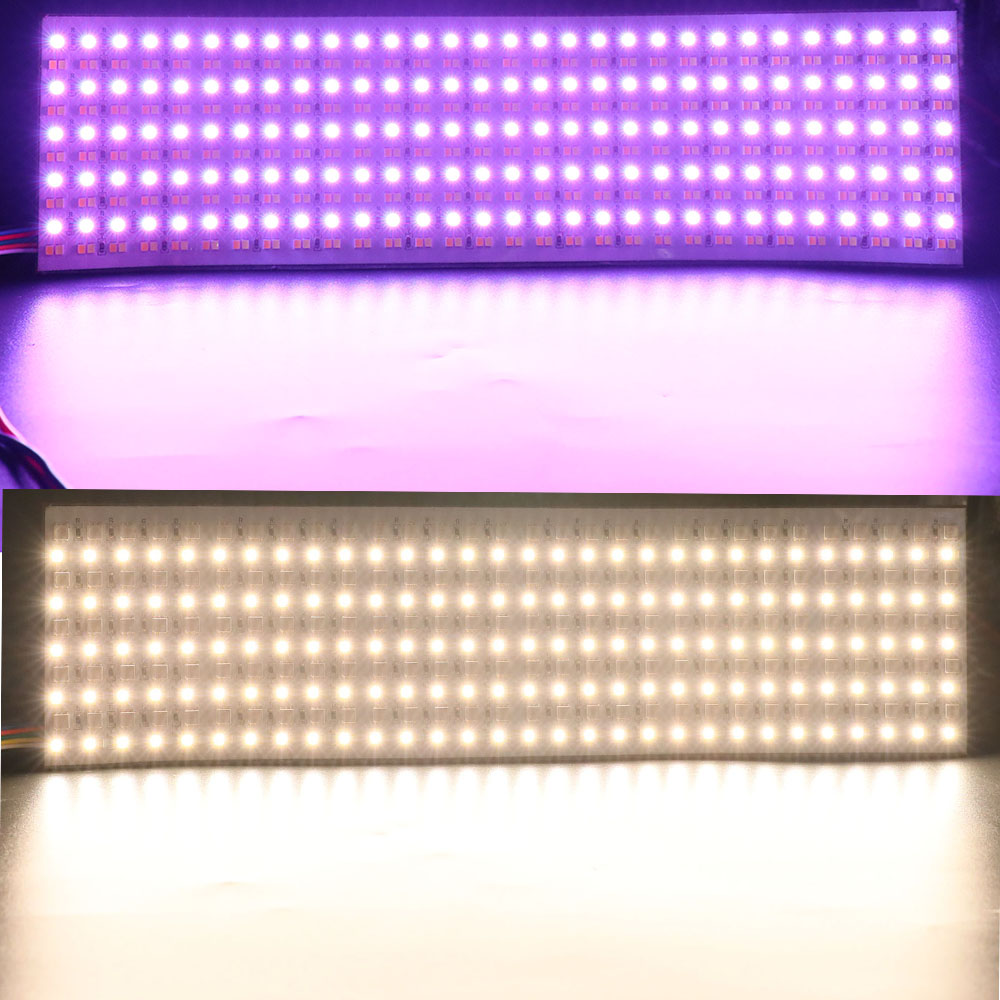

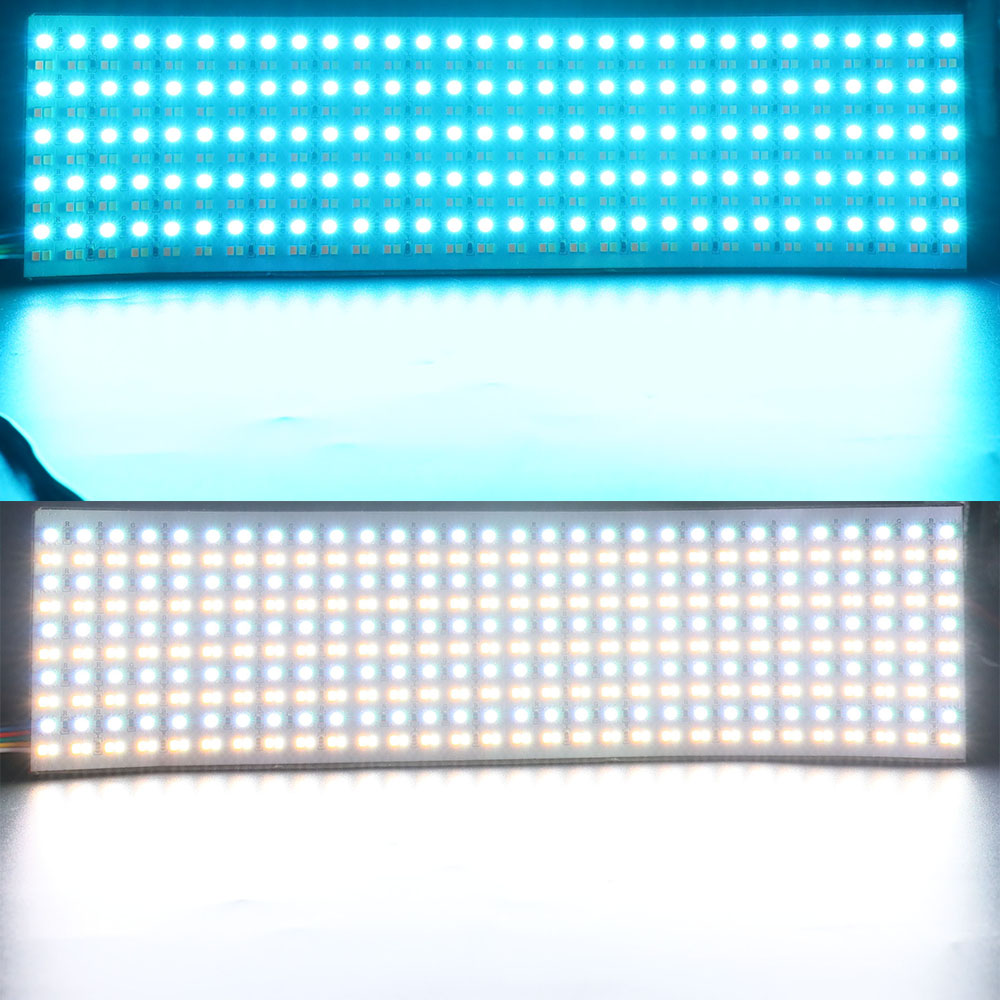

Color Temperature CCT(White): Warm White(3000k), Daylight White(6200k)
Beam Pattern: 120 degree
Water Proof: Non-Waterproof;
LED Task Lighting
Retail LED lighting
Sign illumination LEDs
Automotive accent lighting
Display case and accent lighting
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
the power must be output to DC24V
is strictly prohibited the live operation
prohibit the use of any acidic or alkaline adhesive type of glue and contact with the goods
forced to press the LED surface
installation, maintenance, maintenance must be a professional operation, prohibit non-professional operations
before the power to ensure that the cable without error
