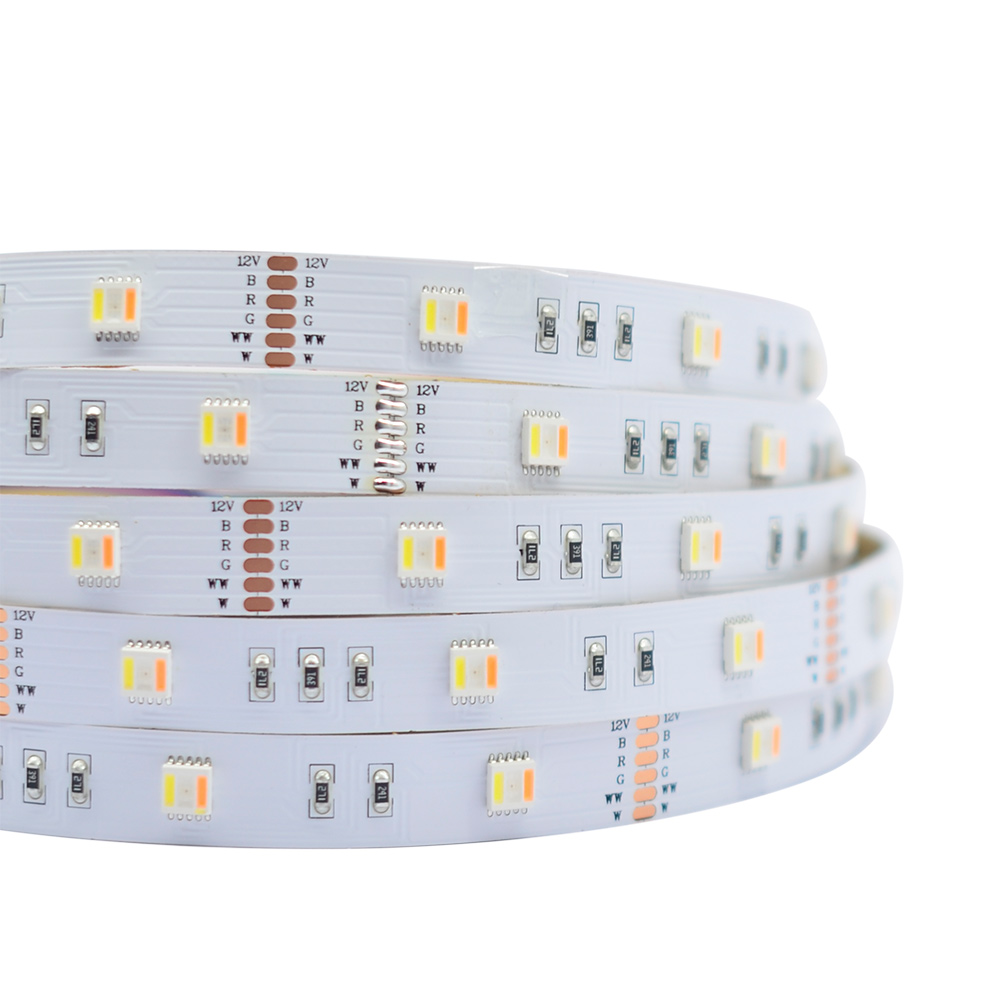

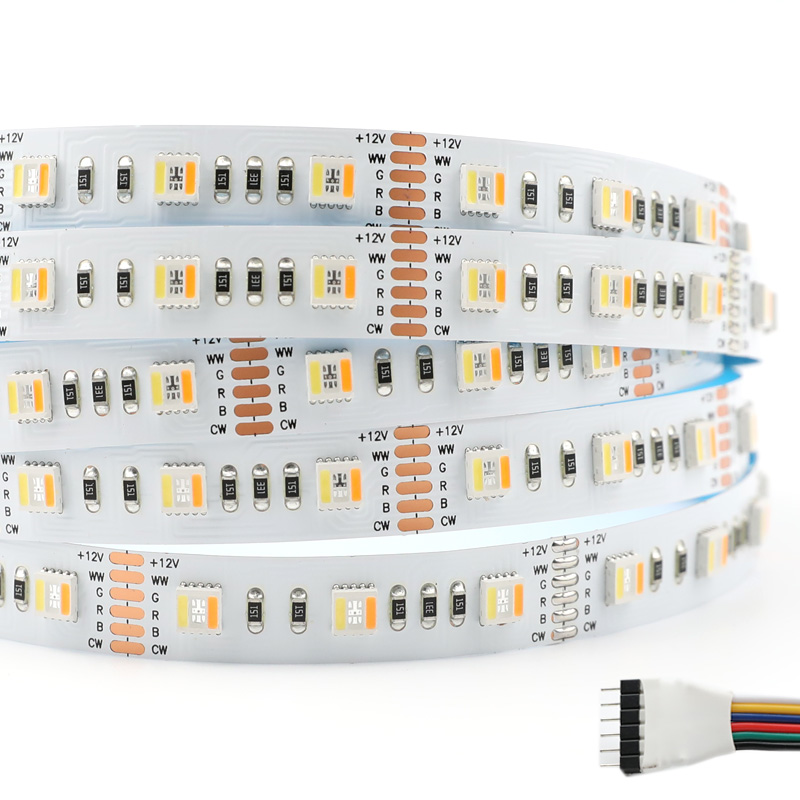

RGBCCT 5in1 5050 Color Changing LED Strip Lights - 12mm 12V LED Strip - 30LEDs/m
RGBCCT color changing led strip lights with 5in1 5050 SMD LEDs have both RGB color and dimmable white light color, integrate red color, green color, blue color, 3000K warm white color, and 6000K daylight white color five colors in one LED. They have purer white light with a wider color temperature range (2700K-6500K, warm white to cool white) than multi color RGB led strip lights and RGBW led strips, compatible with mood lighting and task lighting. You can freely change the LED light colors by using wireless control method via an RGB CCT controller, use low-voltage 12V power supply.
Use flexibility FPC, good electrical conductivity, heat fast, resistant to bending.

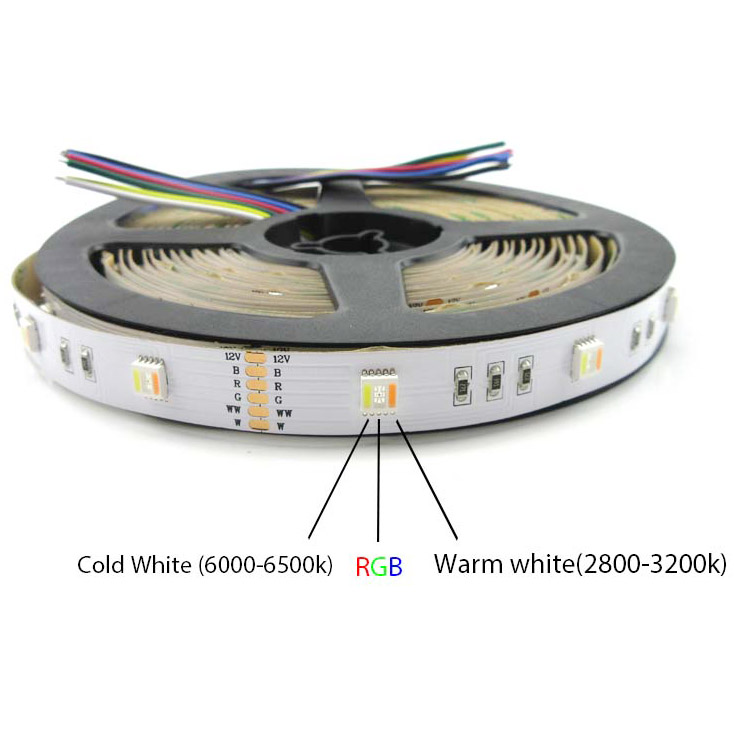

5050 RGB +Warm White + Daylight White color.
4 waterproof rating options, Glue Cover waterproof (IP65), all-inclusive casing waterproof (IP67), casing injection (IP68), as well as the latest process extrusion (IP68) .
RGBCCT Color Change LED Light Kit:

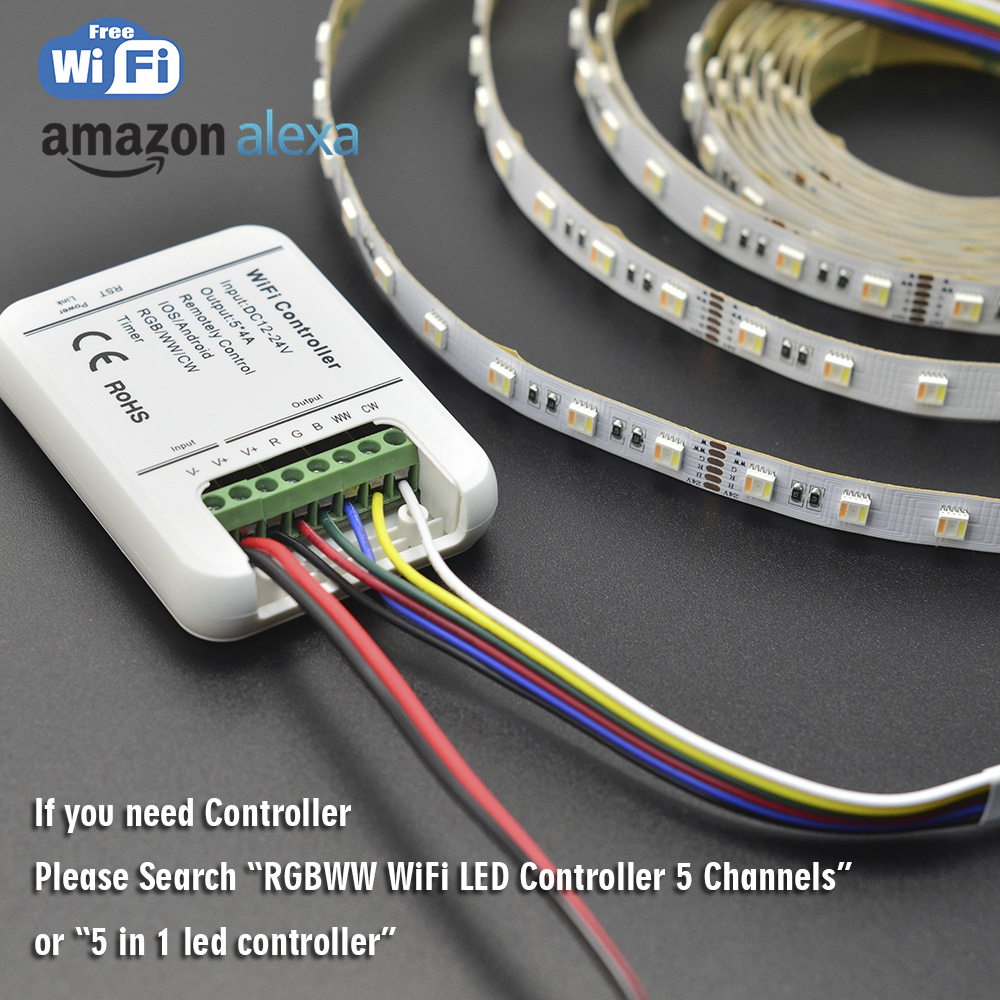

if you have some requrements of smartphone APP control and work with Amazon Alexa and Google Assistant, you can choose WIFI-372
Standards and Certifications
|LED Strip Type:||SMD 5050 RGBWW 150LEDs/16.4ft|

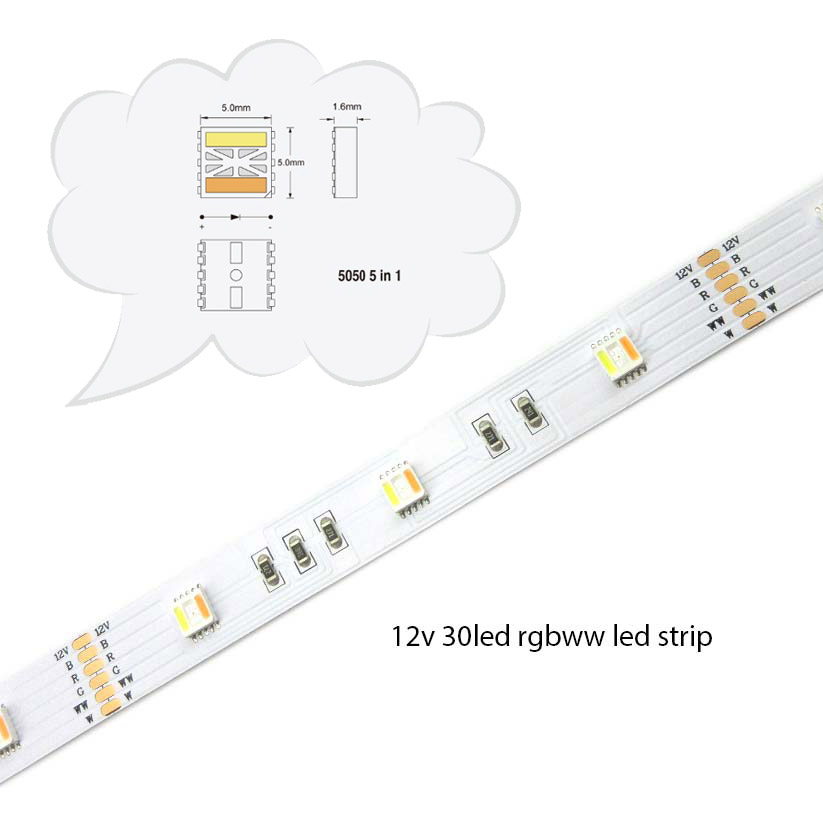

|LED Chip:||Epistar Chip (SMD5050 5 IN 1 LED chip)|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||RGBCCT (RGB multi color + 2700K-6500K CCT white light color)|
|Dimension:||16.4ft/roll, every 3 PCS LED can be cut|
|LED Quantity:||30 LEDs per 1meter (3.28 ft)|
|Strip Width:||12mm (0.47in)|
|Input Voltage(V):||12 VDC|

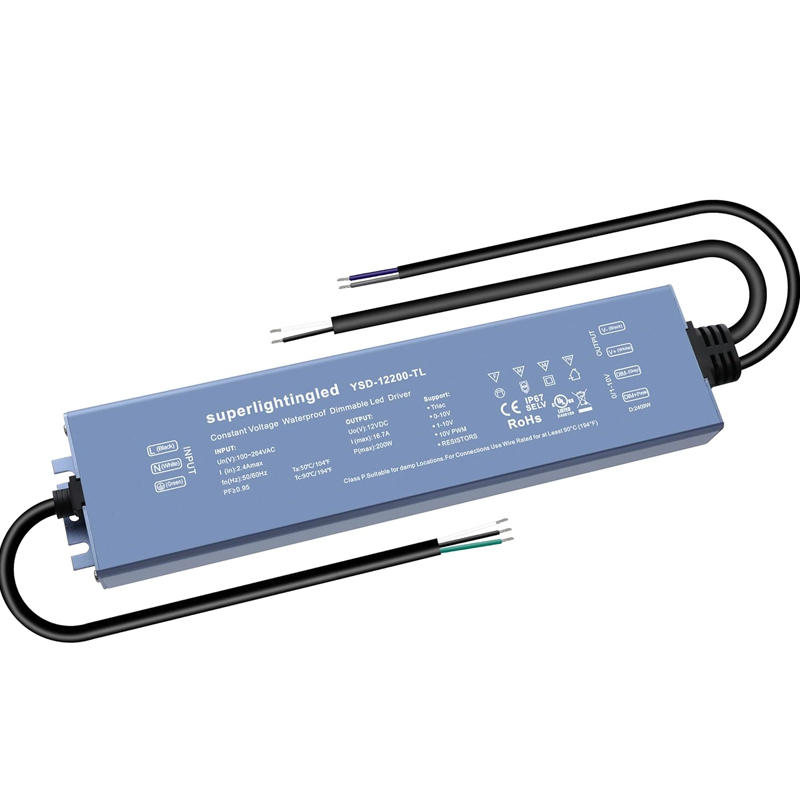

|Working Power:||3.5A 42W /16.4ft Max → Informations About LED Power Supply|
|Lamp Luminous Flux(lm):||20-22Lumen 9240lm Max /16.4ft 563lm/feet 69lm/watt|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Non-waterproof IP20, waterproof IP65 IP67 IP68|
1. RGBCCT led strip wiring diagram:
LED Task Lighting
Retail LED lighting
Sign illumination LEDs
Automotive accent lighting
Display case and accent lighting
