HC100 DC5-24V Single Channel Full-color Signal Amplifier for Extending The Signal Transmission Distance

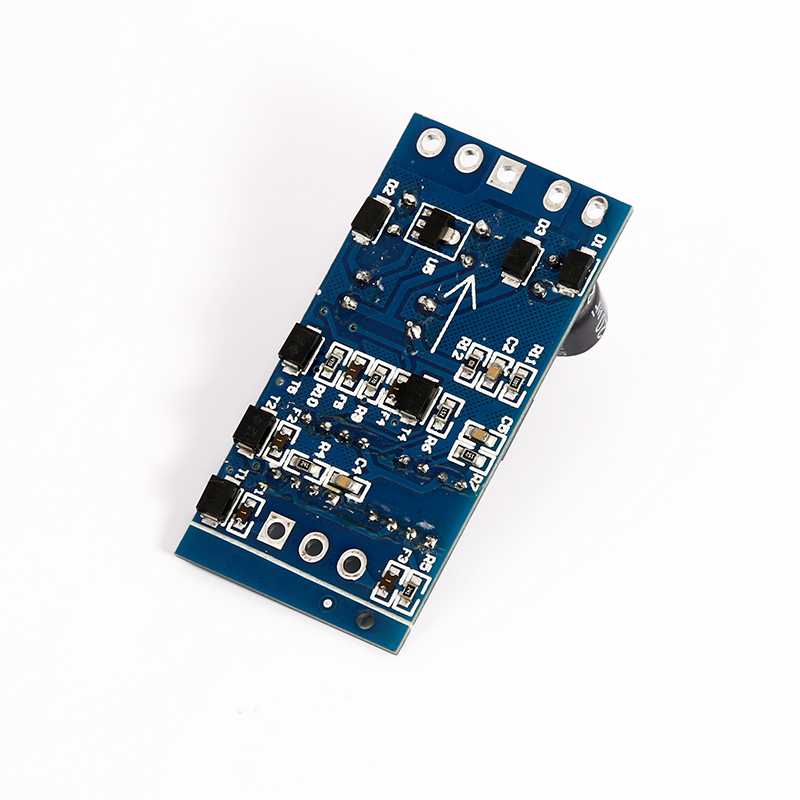

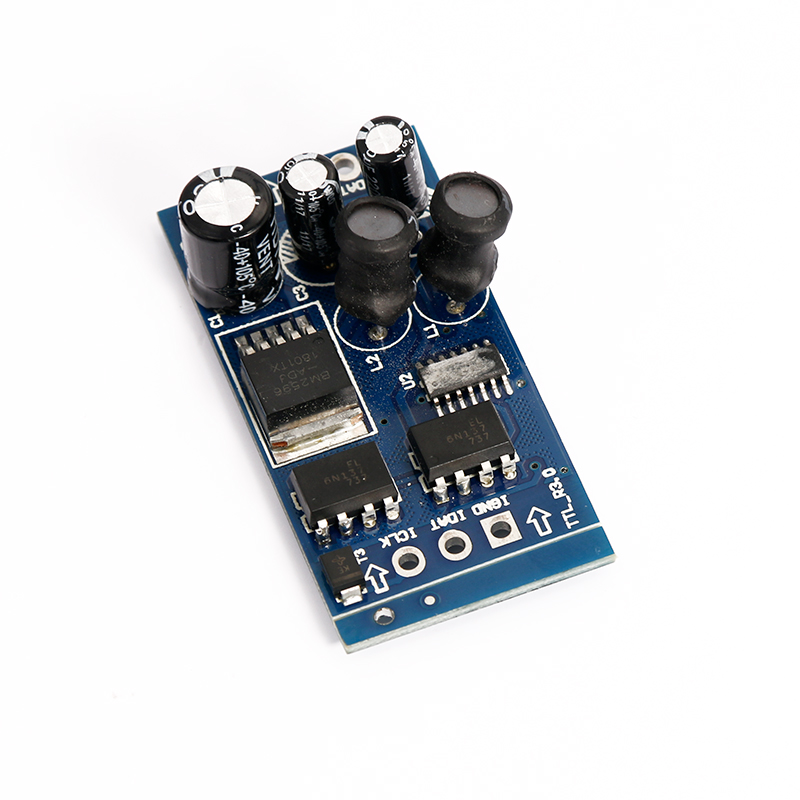

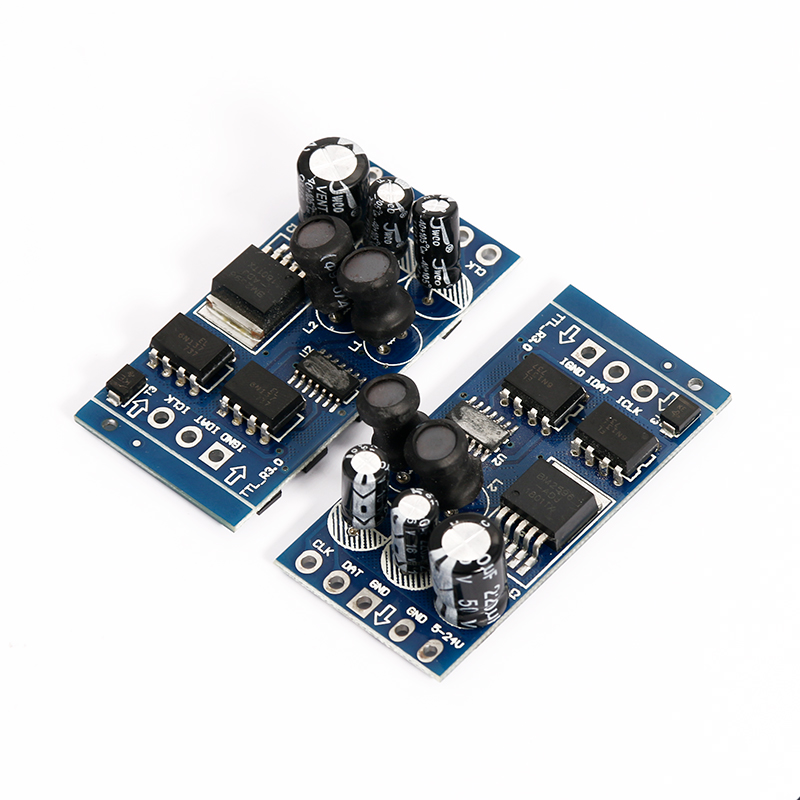

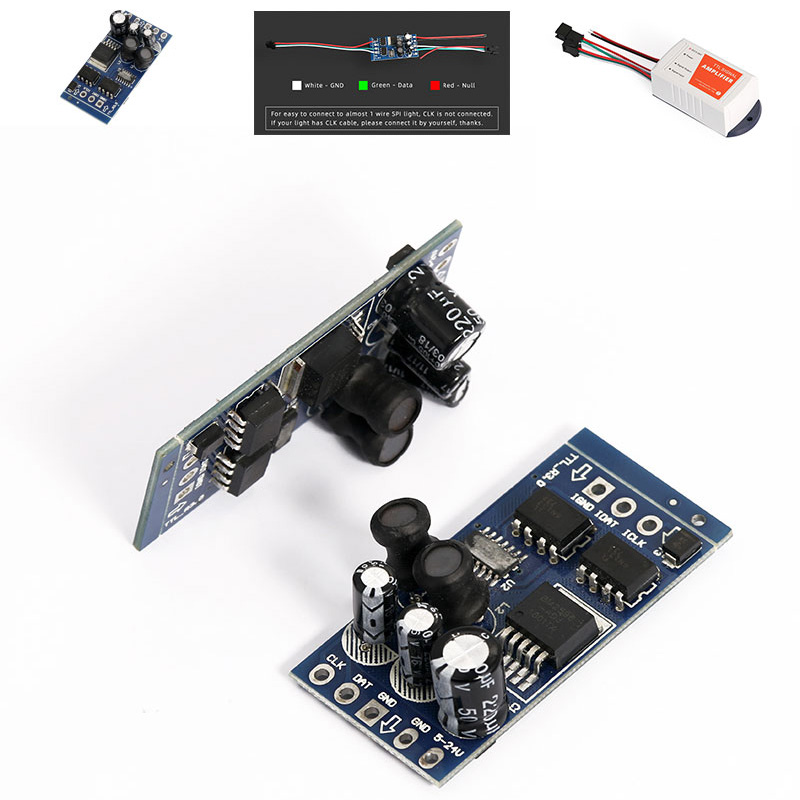

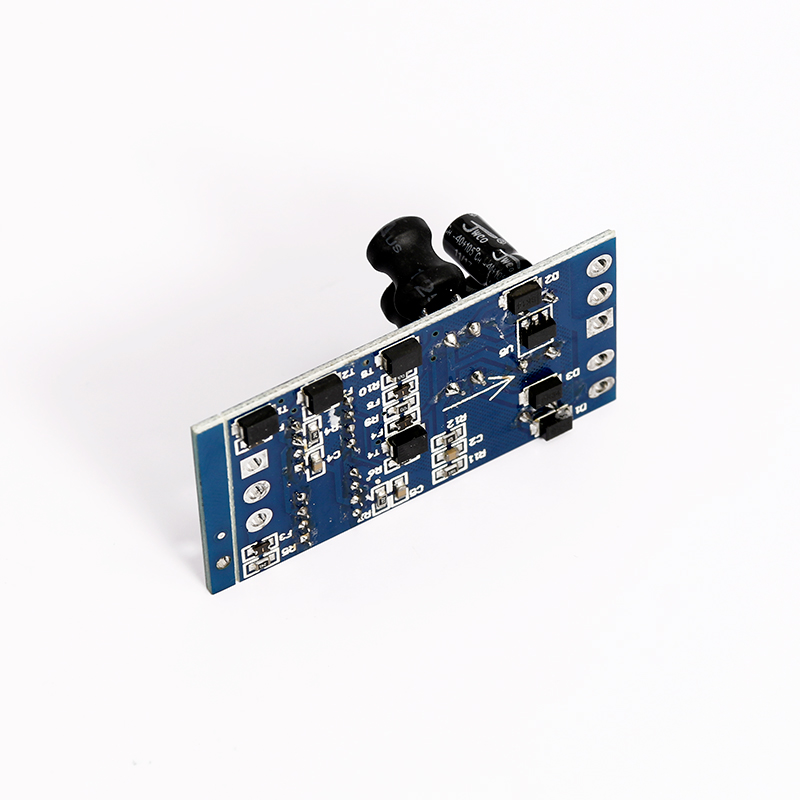

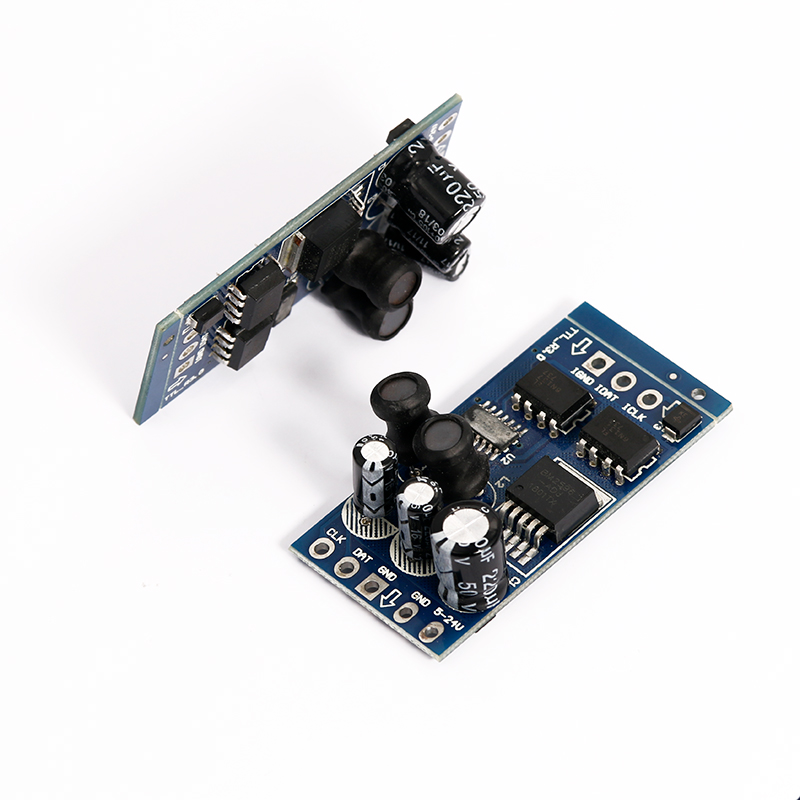

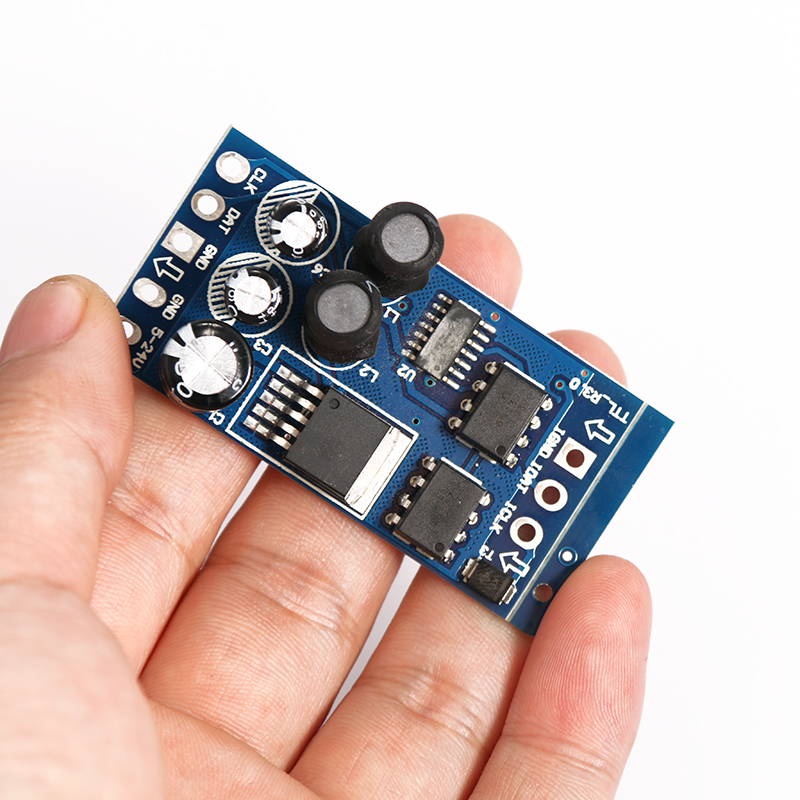

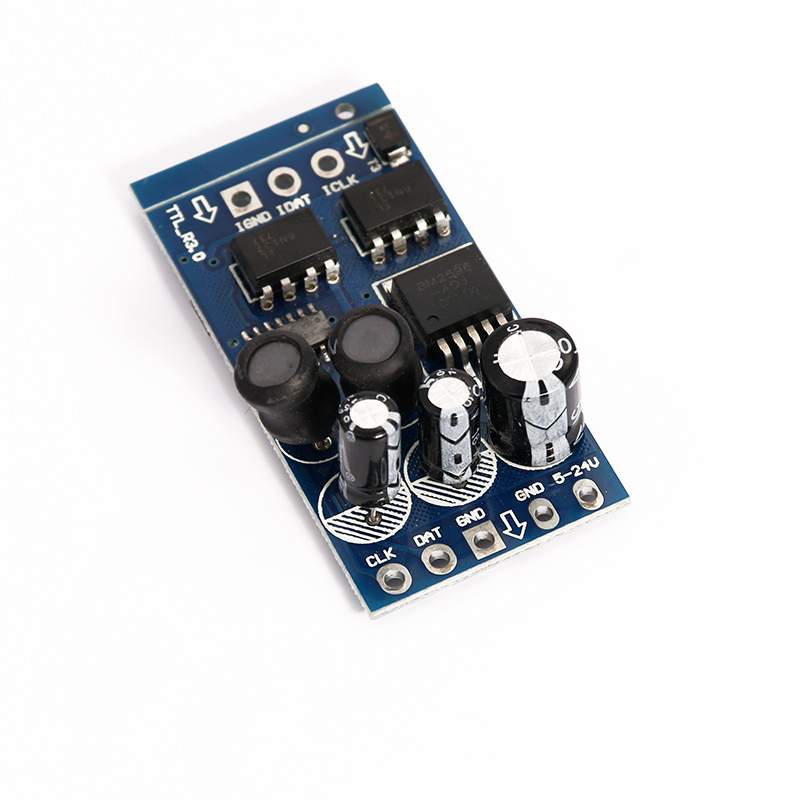

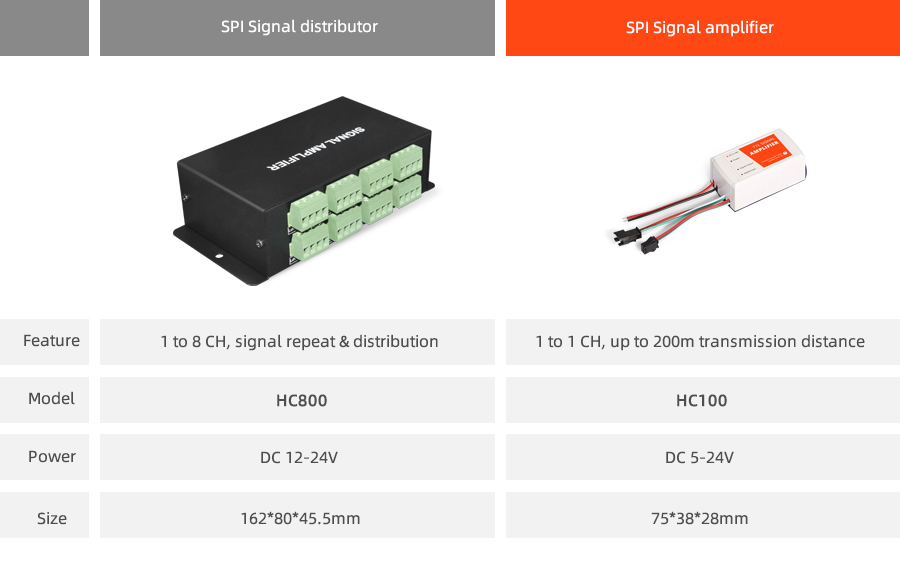

HC100 signal amplifier, widely used for digital pixel light project.In the main picture, we show you the internal structure of the signal amplifier, which is divided into parts, the power interface, which is the amplifier power supply, the signal input terminal and the signal output terminal. The main function of this amplifier is the problem of signal weakening during transmission. It has a gain effect and can be used for large and medium-sized LED projects for long-distance transmission.It is suitable for addressable led strip light
Standards and Certifications
Working temperature: -20-60℃
Supply voltage: DC5-24V
Output: 1 SPI signal output channel
ICLK -input clock signal, if your light is single cable type, like 2811, 2812, 6812, 1903, 1903, 16703, etc., no need to use this socket.
IDAT -input data signal
CLK -output clock
DAT -output DATA
GND -output GND
GND( beside 5-24V) -power negative
5-24V -power positive
1. The maximum line length of the controller output port and the amplifier input port is 200 meters. If it exceeds 200 meters, please test or use the fiber.
2. The length of the input port of the amplifier and the input of the lamp should not exceed 5 meters.
3. When the lamp group is 12V-24V, the RT is open, and when the lamp group is 5V, the RT is connected.
4. It is forbidden to operate with electricity. Before installation, it must be powered off and the joints should be waterproof.
