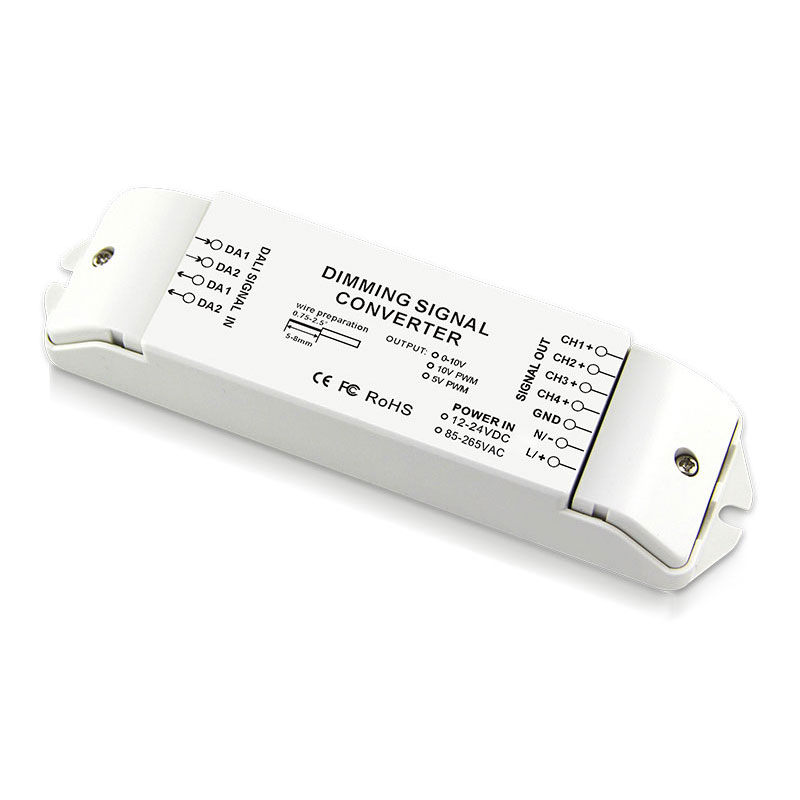

DC12V-24V DALI Signal Converter BC-344-HV-PWM/010V
DALI signal converter, there are two versions for customer choice: DC input or AC input. It adapts most advanced DALI protocol IEC62386, it can work with any equipment which drives by DALI protocol in a bus control, and converts DALI signals into 0 to 10V analog signal, 5V PWM or 10V PWM.
1. DC input version: Automatically adapts input voltage DC12V-24V.
2. AC input version: Automatically adapts input voltage AC85-265V.
3. Work with any equipment which drives by DALI protocol in a bus control.
4. DALI signal optical isolation protection at the input port.
5. AC input version: Adopted Power supply isolation protection.
Standards and Certifications
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction, and quality problems occur, we provide free
repair or replacement services except the following cases:
1.Any defects caused by wrong operations.
2.Any damages caused by inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike etc force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment or near harmful chemicals.
7.Product has been updated.
Please don’t install this controller in lightening, intense magnetic, and high-voltage fields.
1.To reduce the risk of component damage and fire caused by a short circuit, make sure correct connection
2.Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
3.Check if the voltage and power adapter suit the controller
(please select DC12-24V power supply with constant voltage)
4.Donot connect cables with power on; make sure a correct connection and no short circuit checked with the instrument before power on.
5.Please don’t open the controller cover and operate if problems occur. The manual is only suitable for this model; any update is subject to change without prior notice.
