DC12V-24V DALI Signal Converter BC-345-010V-DIN
DALI signal converter, it inputs standard DALI signal, and adapts most advanced DALI protocol IEC62386, it can work with any equipment which drives by DALI protocol in a bus control and converts DALI signals into 0 to 10V analog signal, 5V PWM or 10V PWM.
1. Automatically adapts input voltage DC12V-24V.
2. Work with any equipment which drives by DALI protocol in a bus control.
3. DALI signal optical isolation protection at the input port.
4. With the function of the display and manually change the device address.

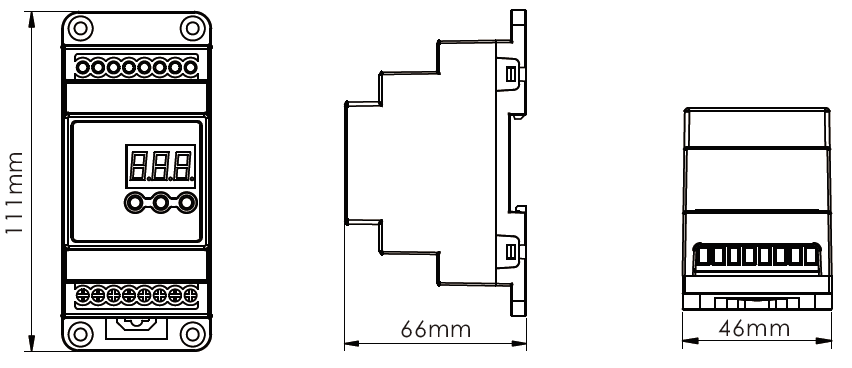

5. The DIN rail style facilitates the installation of large-scale projects.
Standards and Certifications

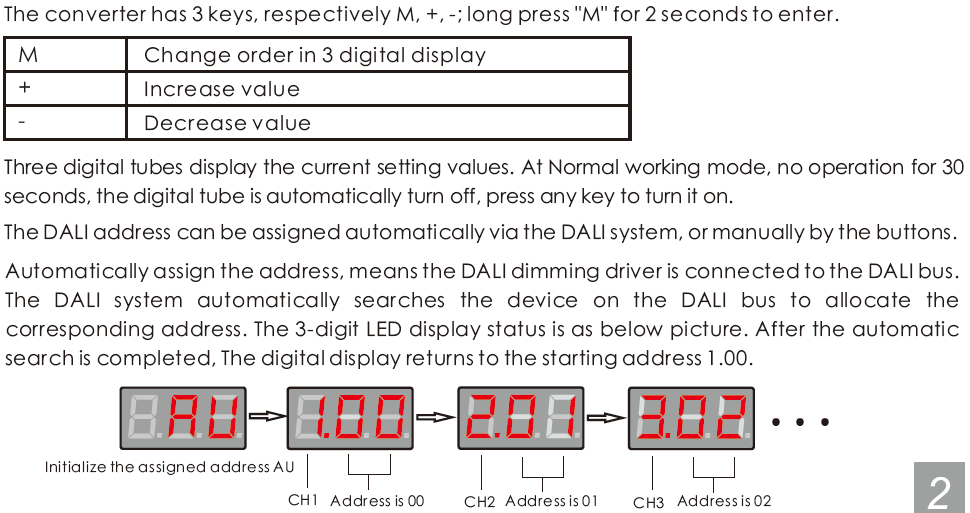

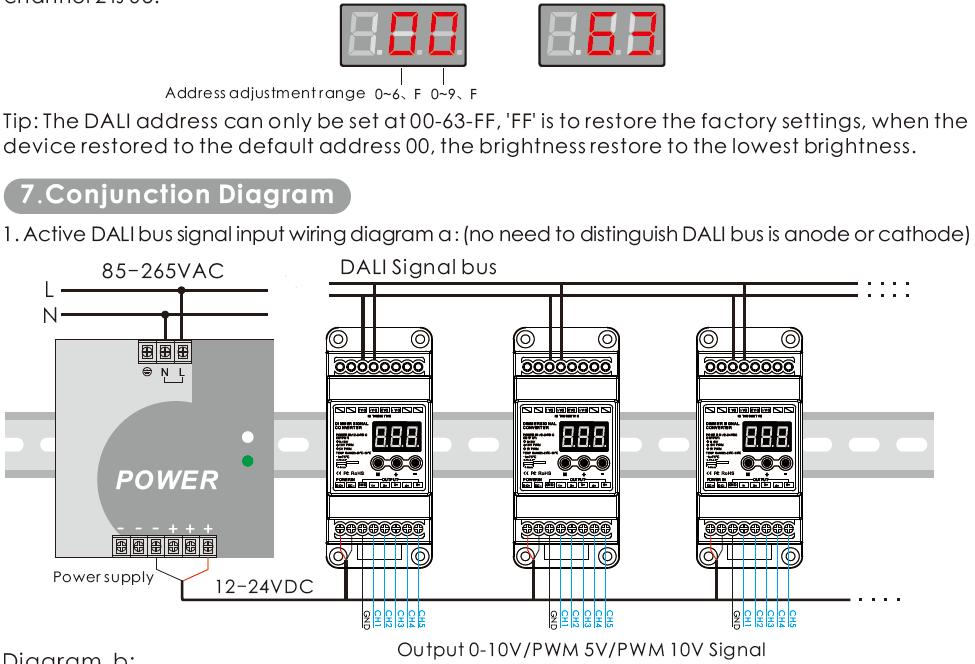

Press and hold the M key for 2 seconds to assign the address manually. The default display is '00'. As shown in below picture, press the M key to switch the bit sequence. When the bit sequence is switched, the corresponding bit sequence will flash, press the + and - keys. Change the address value, DALI address setting range is 0-63. After changed the address, the displayed value is the address of channel 1, and the other channel addresses will increase by one. If the setting address is 02, the address of channel 1 is 02, and the address of
channel 2 is 03.
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction, and quality problems occur, we provide free
repair or replacement services except the following cases:
1.Any defects caused by wrong operations.
2.Any damages caused by inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike etc force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment or near harmful chemicals.
7.Product has been updated.
Please don’t install this controller in lightening, intense magnetic, and high-voltage fields.
1.To reduce the risk of component damage and fire caused by a short circuit, make sure correct connection
2.Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
3.Check if the voltage and power adapter suit the controller
(please select DC12-24V power supply with constant voltage)
4.Donot connect cables with power on; make sure a correct connection and no short circuit checked with the instrument before power on.
5.Please don’t open the controller cover and operate if problems occur. The manual is only suitable for this model; any update is subject to change without prior notice.
