DC12V-24V Mini Multi-Zone CCT Controller T7+R3M
these series of LED controllers. These are the universal controllers for entire color changing, which adopted high-performance microchip and the most advanced PWM (Pulse-Width Modulation) controlling technology. It can control all 4-pin 3-loop LED full-color lights. With 433.92M frequency RF remote control, it can accept the control of multiple remote controls, no limit to direction or obstacles. And it is available only within the valid range. With one remote control, it can control 4 zone’s controllers without interfering each other.
1. Automatically adapt to LED light which works from DC12V-24V.
2. The receiver can implement features such as dimming, RGB and color temperature control.
3. Using RF remote control, the wireless signal is with strong penetrating power, not limited to direction or obstacles, and can control the multi-function of ON/OFF, pause, change mode, brightness, and speed, etc.
4. 10 strobes & fade change mode, with 4096 grey scales per channel, led lamp is more rich and vivid without flash.
Standards and Certifications
Model: Wireless Remote（T7)
Working Voltage: 3V(CR2032)
Working Frequency: 433.92MHz
Remote Distance: 40m-50m
Working Temp: -20-55℃
Compatible Remote: T6/T7/T8

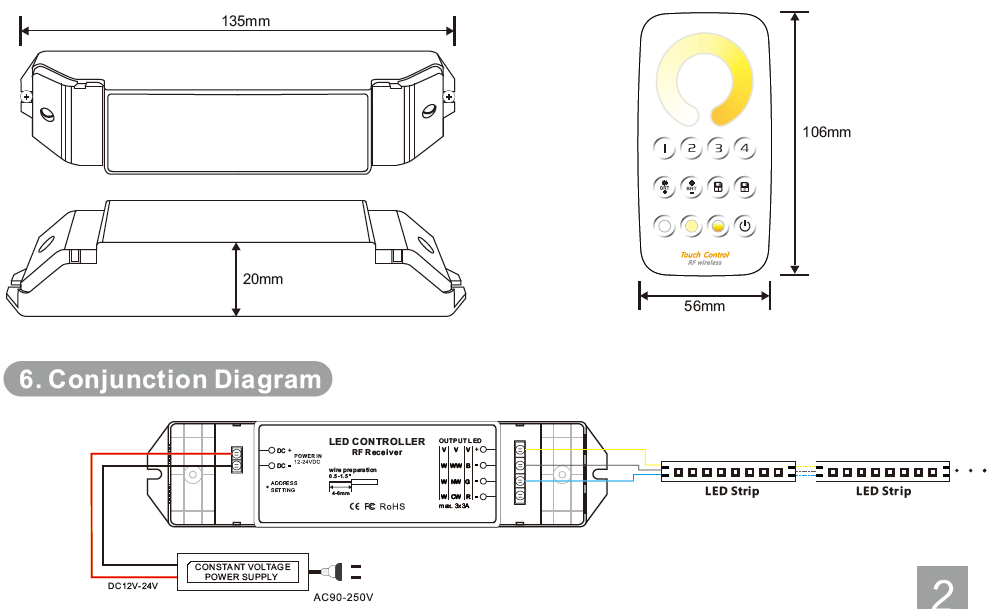

Working Voltage: DC12V-24V
Output Current: Max 3A×3CH
Output Power: Max 108W(12V)/214W(24V)
Working Temp: -30℃-55℃

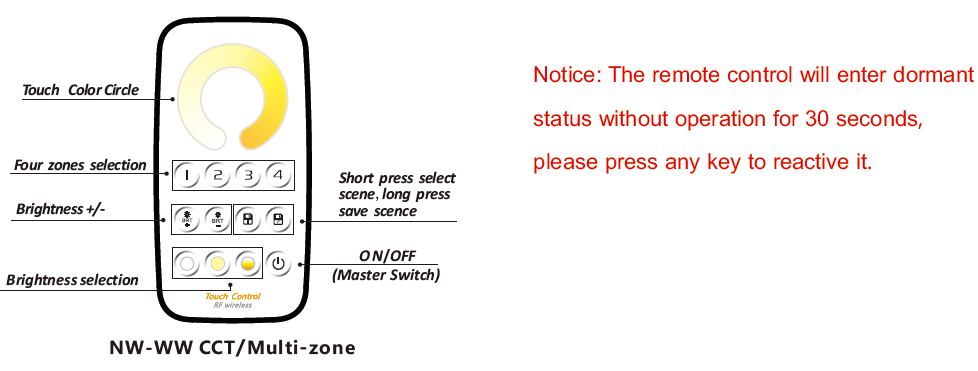

The Learning ID Method of Remote Control:
Learning ID: Press the ID learning button on the receiver for 3 seconds, when the running light is on, then press any key of “1”、“2”、“3”、“4” on the remote control, the running light
flashes several times, activated. Each receiver can learn 4 remote controllers, but each remote control can only record the first learning zone. If you want to change the zone ID, pls delete the ID first, and relearning.
Cancel ID: Press the ID learning button on the receiver for 5 seconds.
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction, and quality problems occur, we provide free repair or replacement services except the following
1.Any defects caused by wrong operations.
2.Any damages caused by an inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections, and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike, etc force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment, or near harmful chemicals.
7.Product has been updated.
Please don’t install this controller in lightening, intense magnetic, and high-voltage fields.
1.reduce the risk of component damage and fire caused by a short circuit, make sure correct connection.
2.Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
3.Check if the voltage and power adapter suit the controller.
(please select DC12-24V power supply with constant voltage)
4.Donot connect cables with power on; make sure a correct connection and no short circuit checked with the instrument before power on.
5.Please don’t open the controller cover and operate if problems occur.
