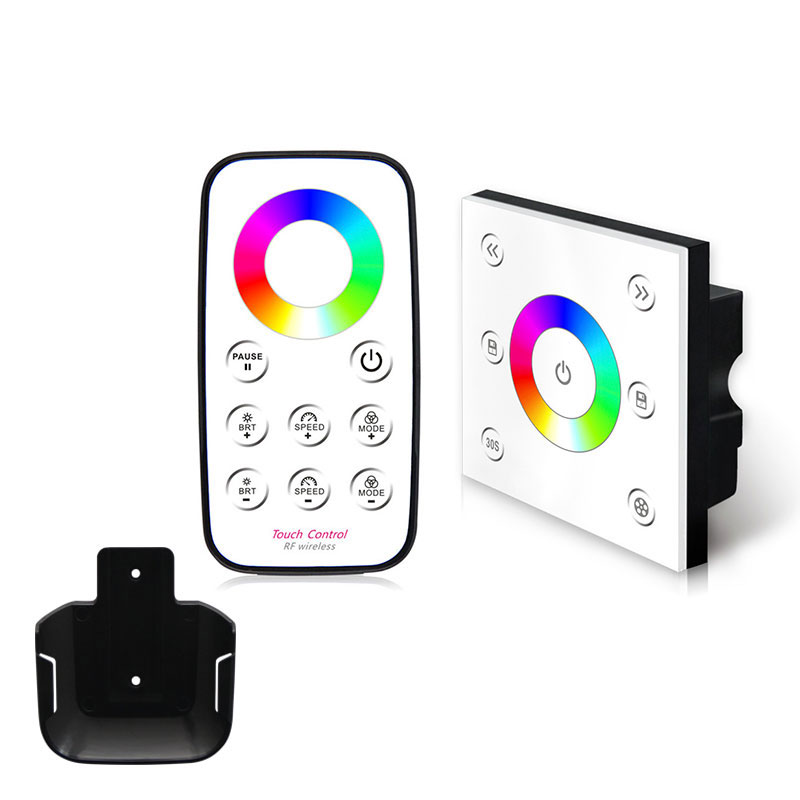

DC12V-24V Wireless Remote Single-Zone RGB Controller P3+T3
this P series touch panel controller, it is wildly used for commercial/office/household lighting, workable for dimming, color temperature, RGB and RGBW control. It compatible with our T1, T2, T3 wireless remote control, realize remote control function, thus can meet the demand of various occasions.

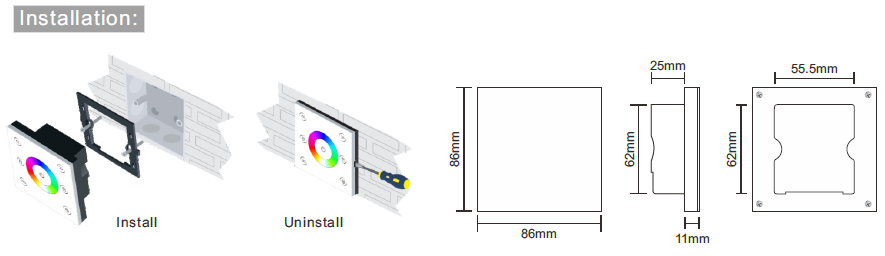

1、Fashionable appearance, simple operation, standardly 86 style socket, easy to install and disassemble.
2、Workable for dimming, color temperature, RGB/RGBW control.

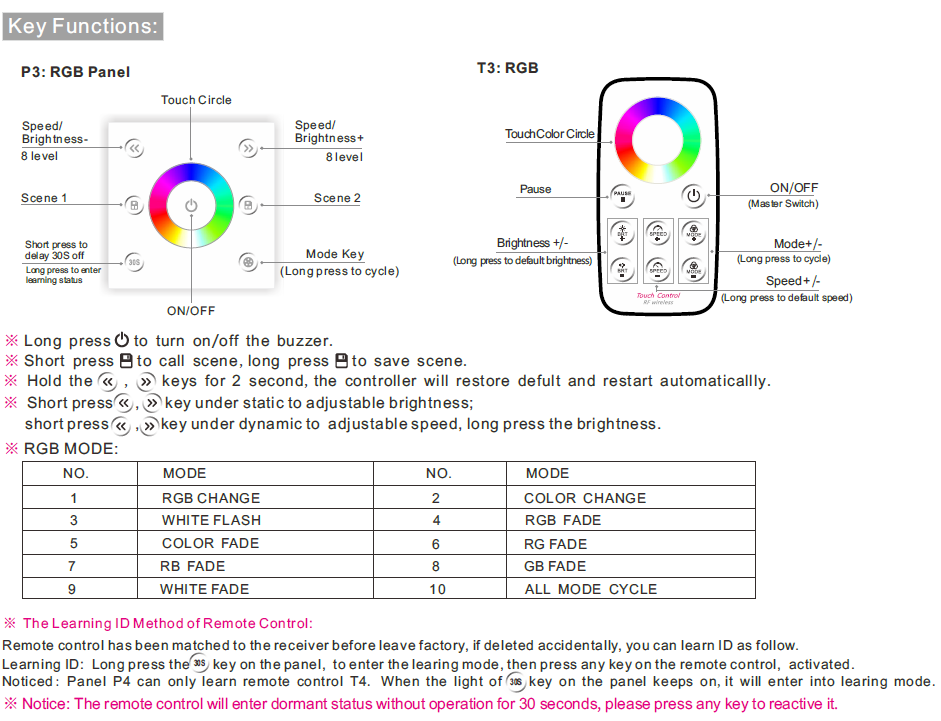

3、RGB/RGBW panel controller with the 10 built-in changing modes, with 4096 grey scales per channel, the led lamp is more rich and vivid without flash.
Standards and Certifications
Model: P3 RGB Panel

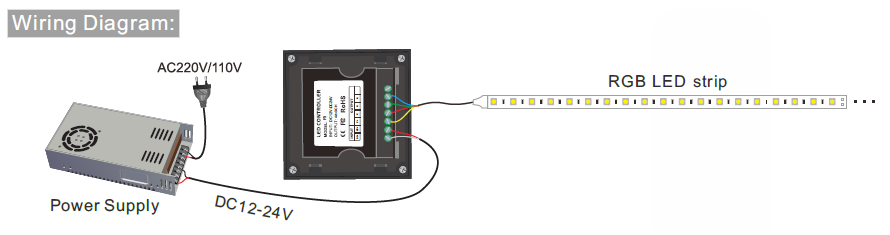

Input Voltage: DC12V-24V
Load Current: 4A×3CH Max 12A
Grey Scale Level: 4096×3
Max Output Power: 144W/288W(12V/24V)
Working Temperature: -20°C~55°C
Model: Wireless Remote（T3）
Working Voltage: 3V(CR2032)
Working Frequency: 433.92MHz
Remote Distance: 40m-50m
Working Temp: -20-55℃
