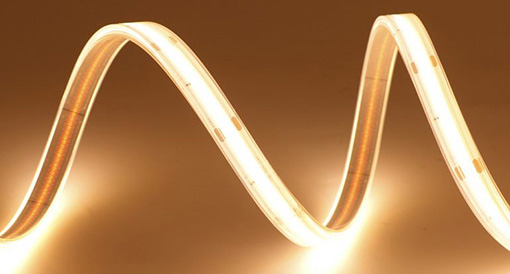

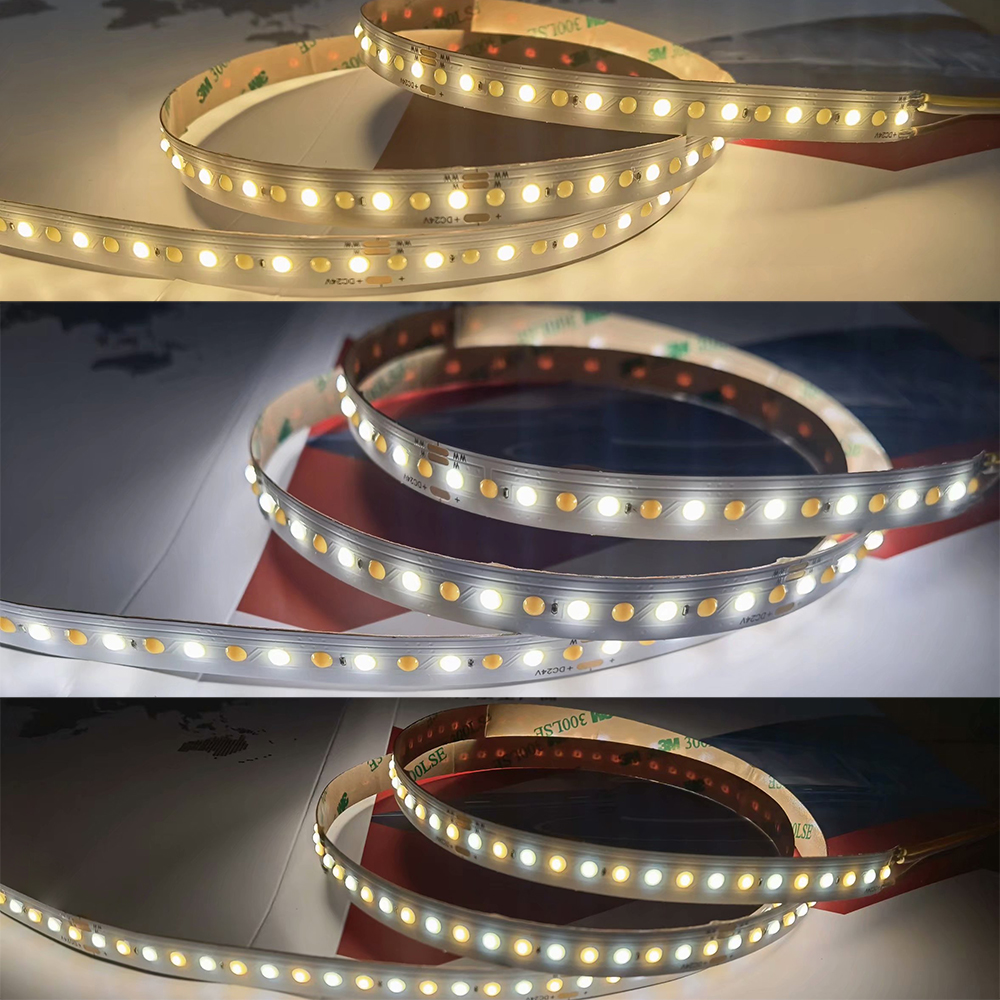

DC24V 10mm Wide 90 CRI 16.4Ft 800LEDs Flexible Tunable White COB LED Strip Light

Model: FSLCCT-24V-160X10
DC24V 10mm Wide 90 CRI 16.4Ft 800LEDs Flexible Tunable White COB LED Strip Light
  • DC24V 10mm Wide 90 CRI 16.4Ft 800LEDs Flexible Tunable White COB LED Strip Light
  • DC24V 10mm Wide 90 CRI 16.4Ft 800LEDs Flexible Tunable White COB LED Strip Light
  • DC24V 10mm Wide 90 CRI 16.4Ft 800LEDs Flexible Tunable White COB LED Strip Light
  • DC24V 10mm Wide 90 CRI 16.4Ft 800LEDs Flexible Tunable White COB LED Strip Light
  • DC24V 10mm Wide 90 CRI 16.4Ft 800LEDs Flexible Tunable White COB LED Strip Light
  • DC24V 10mm Wide 90 CRI 16.4Ft 800LEDs Flexible Tunable White COB LED Strip Light
  • DC24V 10mm Wide 90 CRI 16.4Ft 800LEDs Flexible Tunable White COB LED Strip Light

Select Specifications:

Starting at: $25.00 $17.9828% off

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
10
$17.98
10-49
$17.62
50-99
$17.08
100+
$16.36
* Discounts may vary based on options above
Qty: -+Min:  10

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    If you are troubled by the flexible lighting brightness and a light spot of a normal LED strip, COB LED strips will perfectly solve your problem. COB LEDs are called chip-on-board LEDs or flip-chips. Super narrow LEDs are packaged on PCB and combined with the phosphor layer on the LED strip lights to create smooth and uniform LED strip lighting.

    Compared with traditional LED strips, it is constantly updated in LED density and lighting brightness, providing high-quality lighting light while reducing heat accumulation; flex LED light strips have superior flexibility and are denser and more flexible than ordinary 5050 SMD LEDs, and high CRI COB LED with good reflectivity and backlighting, making it ideal lighting for granite and other environments.

    We are committed to providing customers with more diversified products. This CCT COB LED strip uses a distributed arrangement structure to separate warm white LEDs and daylight white LEDs and arrange them evenly. The color temperature range of warm white LEDs is 2800-3200k; the color temperature range of daylight white LED is 6000-6500k, 0-100% dimmable.

    160 LEDs per meter super density LED, it is easy to realize the whole roll without light spot, high-quality LED light, lumens efficiency is 125LM/W, this tunable white strip lights support DC24V low voltage input, compared with DC12V COB LED strips, increase the maximum operating length of flexible LED strip lighting; measuring wide of this  LED strip light is only 10mm/0.39in, providing sufficient lighting brightness for small spaces such as display cabinets and kitchen counters.

    DIY length service available, you can get any length by your demands, cutting along the cuttable line; IP67 customized options are available, good waterproof, provide safety lighting for indoor & outdoor environment, 3M adhesive-backed, easy to install.



    Product Feature and Application:

      ►DC24V low voltage input

      ►High CRI COB LED

      ►160LEDs per meter super density

      ►125LM/W high lumens

      ►2800-6500K adjustment

      ►the whole roll without light spot

      ►0-100% dimmable

      ►10mm strip wide

      ►30000+ hours lifespan

      ►IP67 for outdoor lighting

      ►5m/16.4Ft by sales

      LED Task Lighting

      Art Gallery Lighting

      Off-Grid Lighting

      Indoor Photography Lighting

      Exhibition Lighting

      Studio Office Lighting

      Retail Shop Lighting

      Cove Lighting

      Museum Lighting

      Bias Lighting

      Trade Show Lighting



    Standards and Certifications

    24VDC CE FCC UL RoHS ISA SGS ISO LIFETIME warranty led factory



    Product Specification

    LED Strip Type

    COB Flexible led strip light specification PDF

    LED Chip Epistar Chip
    Input Voltage DC24V

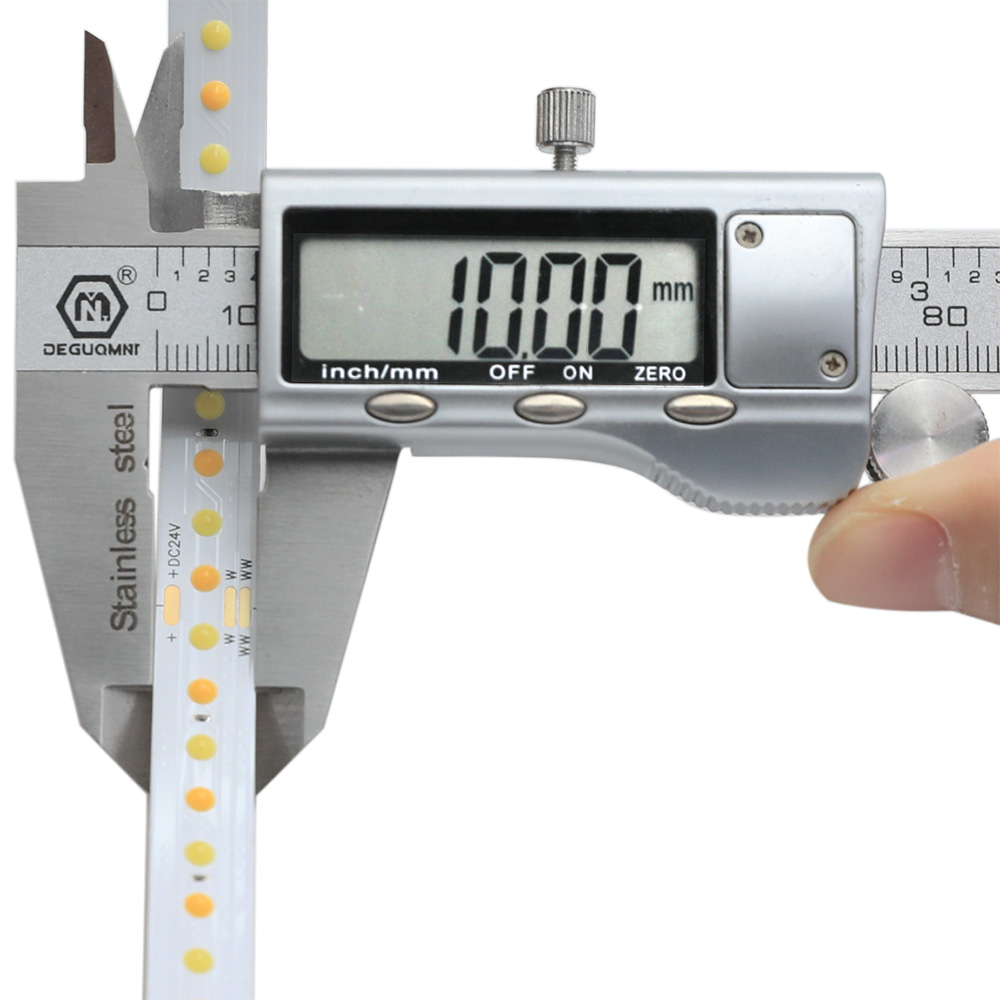

    PCB Width 10mm/0.39 in
    Working Temperature -20℃~+45℃
    Storage Temperature -20℃~+60℃
    Power 20W per meter, 100W per roll
    Length 5m/16.4Ft
    LED Quantity 160LEDs per meter
    White Color Warm white(2800-3200K); Daylight white(6000-6500K)

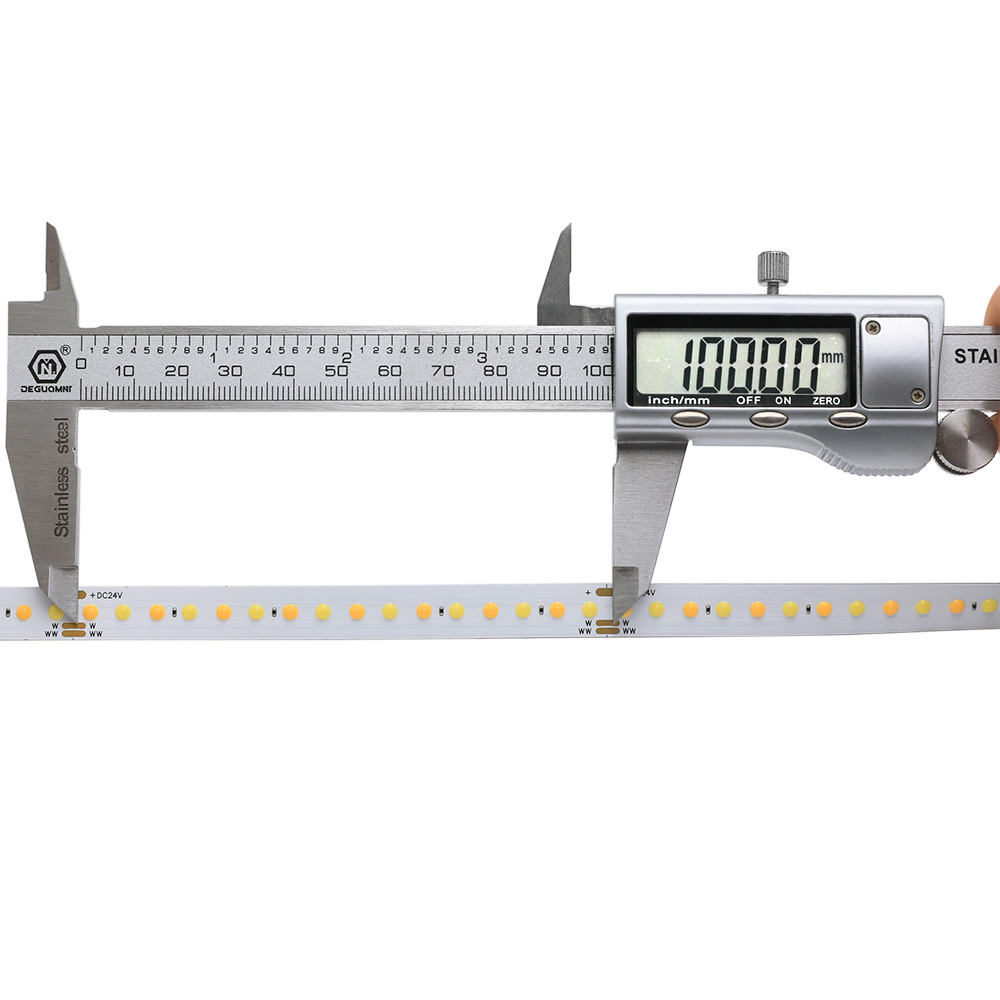

    Cut Length 100mm/3.94in
    Luminous Color 125LM/W
    CRI 90+
    Beam Angle 180°
    Lifespan 30,000+hours
    Dimmable 0-100%
    Waterproof Rating

    IP20 IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

    IP67 IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);






    How to choose LED strip lights kit?

    You can choose the controller or power supply or controller plus power option for this COB LED strip. Of course, only the COB LED light is also completely possible. The difference is whether you need to control the LED brightness change of the COB strip and whether you can supply power to the light strip.

    In the following table, we list for you which products you will get if you choose the kit. If you have other needs, please check our product categories.

    LED Strip Kit Knowledge
    5m/16.4Ft

    Indoor Controller: V2 + RT2

    Power supply: 24V 150W MW power supply + AC Plug

    How to choose led strip light controllers?

    How to calculate power for led strip lights?

    How to choose led strip light power supply?

    Outdoor Controller: V4-WP

    Waterproof Power supply: 24V 120W power supply

    If the LED controller is far away from the LED power supply, you can purchase the non-waterproof LED extension wire or waterproof LED extension wire.






    Installation InstructionHow to Install LED Strip Lights?

    how to cut led strip led strip adhesive tape led strip light mounting brackets

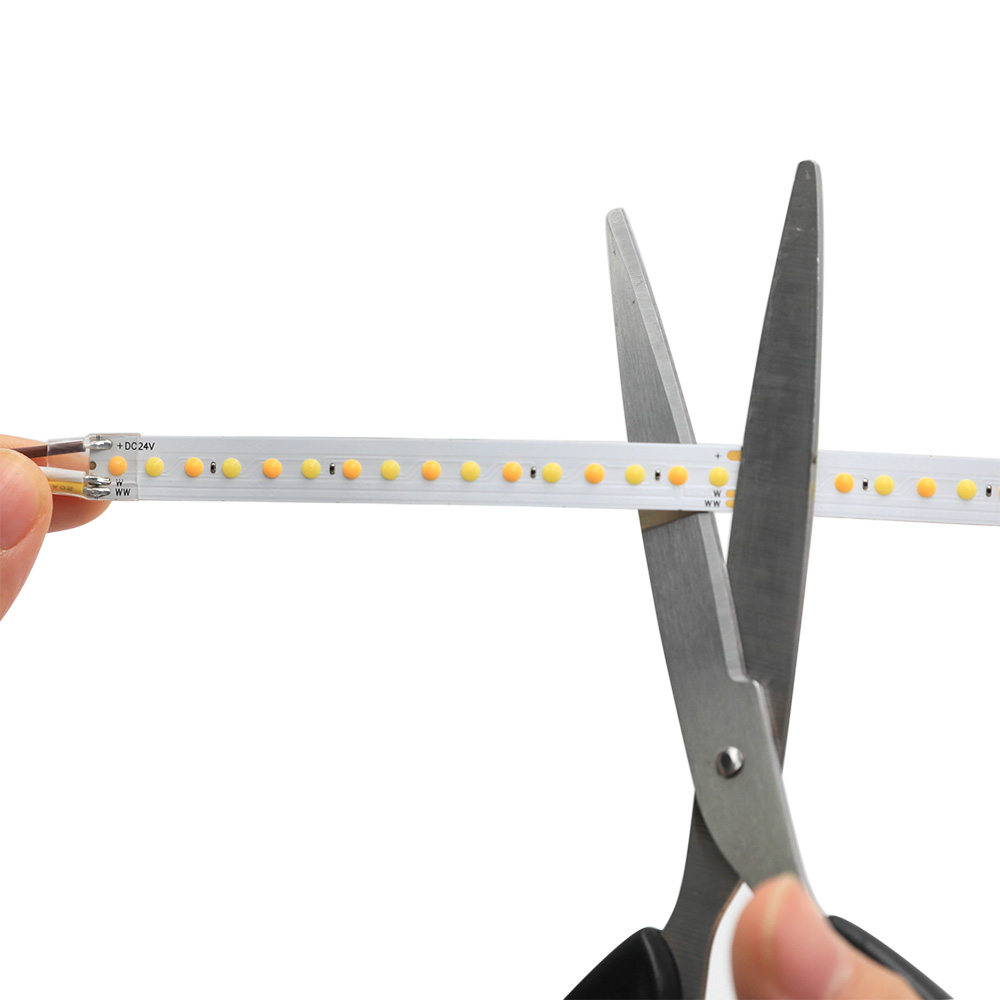

    arrow You can cut the strip every few inches, allowing you to freely design your project, without worrying about space requirements to many different surfaces.  arrow The back of the strip is fitted with a strong 3M tape, allowing you to peel and stick lights   arrow IP67/IP68 waterproof type which will needs LED mounting brackets





    Wiring DiagramHow to Wire Tunable White LED Strip Light?

    cct dual color led strip light wiring diagram




    What is the feature of this CCT COB LED strip light?

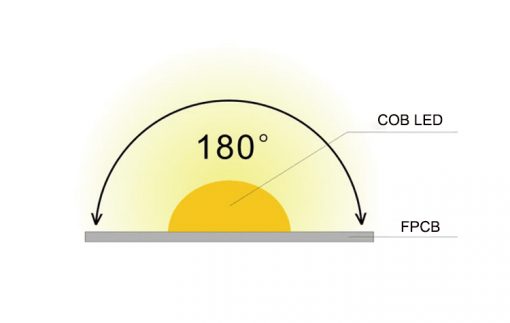

    1.180-degree light-emitting angle can cover a large range of lighting areas and provide easy lighting for complex environments

    2.CRI (Color Rendering Index) is a measure of the vivid and natural color of a specific light source. 90 CRI can truly restore the original appearance of the object



    3.Good flexibility, LED chips are closely arranged and can be bent at any angle



    4.2800-6500K warm white to daylight white adjustment, meet your any requirements



    5.Waterproof IP67 available, silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener

    led strip waterproof level

    DC24V 10mm Wide 90 CRI 16.4Ft 800LEDs Flexible Tunable White COB LED Strip Light

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    DC24V 10mm Wide 90 CRI 16.4Ft 800LEDs Flexible Tunable White COB LED Strip LightDC24V 10mm Wide 90 CRI 16.4Ft 800LEDs Flexible Tunable White COB LED Strip LightDC24V 10mm Wide 90 CRI 16.4Ft 800LEDs Flexible Tunable White COB LED Strip LightDC24V 10mm Wide 90 CRI 16.4Ft 800LEDs Flexible Tunable White COB LED Strip LightDC24V 10mm Wide 90 CRI 16.4Ft 800LEDs Flexible Tunable White COB LED Strip LightDC24V 10mm Wide 90 CRI 16.4Ft 800LEDs Flexible Tunable White COB LED Strip LightDC24V 10mm Wide 90 CRI 16.4Ft 800LEDs Flexible Tunable White COB LED Strip Light
