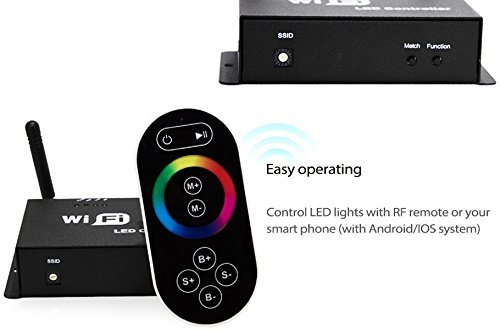

4Ax3CH, 2.4GHz WIFI RF Wireless Slave Controller Control Via IOS or Android Smart Phone Tablet PC Constant Current For SC,CCT,RGB LED Strips

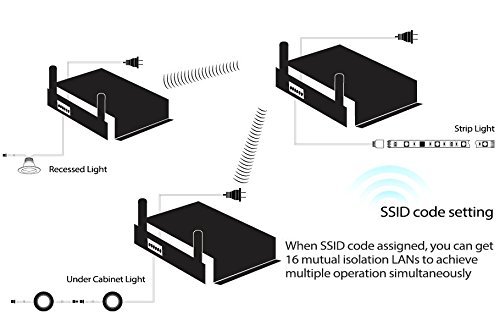

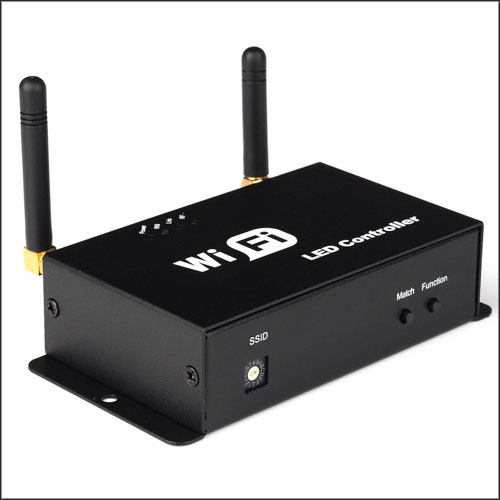

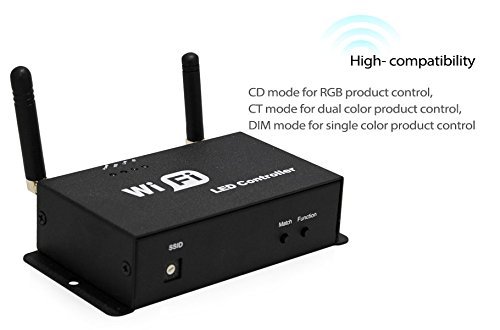

WF400 is another wifi controller independently developed by our company, following our WF100, compared with WF100, WF400 is more powerful, and more flexible to use, when using, you do not need to switch wireless networks, it is more convenient to be on internet. You can choose encrypt network, can also open network. It’s more convenient for you to choose wireless network with WiFiManager network management software, WF400 network configuration. Combined our independently developed mobile software Touchhome with controller, this makes the function of WF400 more better than WF100. Supporting the use of software with WF400, it can achieve single point control and group control, in addition, it includes some features, such as re-name of controller, set the location, timing control and other function. This makes the function of WF400 more powerful.
Trough the use of WIFI technology, it provides more comfortable, safer and more convenient intelligent lighting control than traditional lighting control, optimizes the lighting control methods, which brings a new, comfortable lighting environment to users.
This Wifi RGB LED Controller Wireless For RGB color change LED Strip Iphone Ipad IOS Android. 100% brand new and high quality Mini powerful led controller Support both wifi control of iOS products(such as iPod, iPad, iPhone, iMac), and Android mobile devices such as Samsung, HTC, Nokia, etc. This controller is designed for led strip, module etc. After easy installation and settings, you can use you Phone (Ios or Android system) to control the light. You can get apps free from the Apple App Store and from the Google Play or you can connect one or more than one LED RGB WIFI CONTROLLER to an existing network. The remote control distance reach 50 meters indoor and more than 100 meters outdoor. Switch freely via phone between stand-alone and on-line modes. Strong compatability with Android 2.3 version or above with wifi function, with iOS 4.3 or above. Built-in 20 fixed modes, infinite changes mixed by the three primary colours--red, green and blue. Small-sized, energy-efficient, environmental protection, great convenience and humanized design.
Controller technical parameters

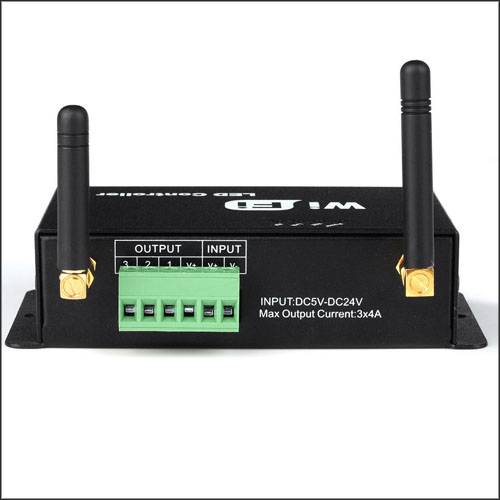

Working voltage: DC5-24V
Working temperature: -20-60℃
Working Power consumption: about 1.6W

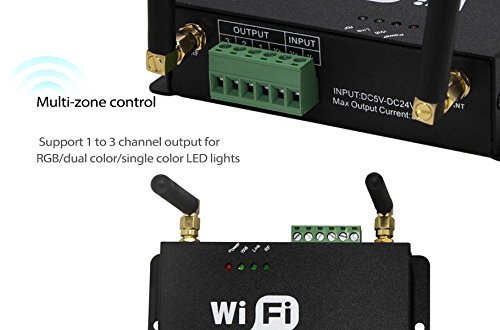

Output: 3 channel common anode, Max. current4A/each channel, with over current protection
Packing dimension: L215 * W165 * H55(mm)
External dimension: L107 * W65 * H30（mm）
Controller weight: 340g
Remote control weight: 85g
Gross weight: 460g
Receiving sensitivity: 802.11b/g DSSS(-5dBm)，802.11b CCK (-10dBm)，802.11g OFDM(-15dBm)m)
Remote control technical parameters
Power supply method:AAA*3
Supply voltage: 1.5V*3
Standby power: 0.015mW
Standby current:: 3uA
Working current: 200uA
Emission current: 10mA
Remote control distance: about 30m
Software technical parameters
1. Name: Touch Home
2. Runtime platform: Android system (iphone, ipad), equipment must have WiFi function.
3. Language: English
4. Category: communications
5. Other: Free, no plug-ins
1. Name: WiFiManager
2. Runtime platform: Win 7/Windows Vista/Win2003/WinXP/Win2000
3. Language: English
4. Category: communications (USB)
5. Others: Free, no plug-ins

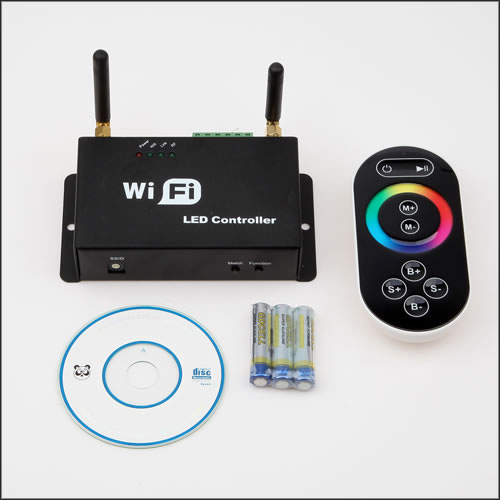

1 X WiFi controller
2 X Antenna
1 X CD
1 X User manual
