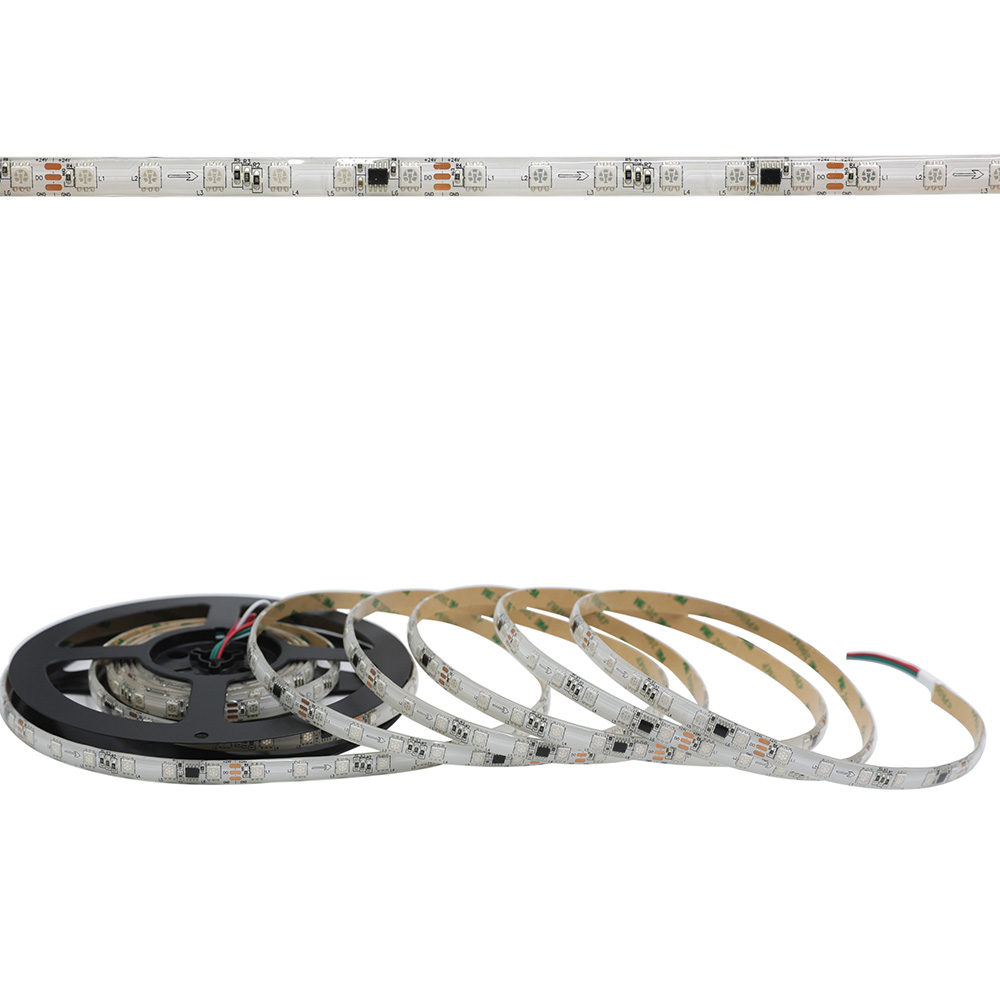

DC24V 300LEDs Waterproof Addressable WS2811 Color Chasing RGB LED Strip Lights
Dream Color Addressable RGB light strip series adopts the most advanced WS2811 chip technology, providing universal WS2811 dynamic color tracking, sorting, changing, and static color modes.
Integrated control circuit and RGB chip are packaged in the SMD5050 component, which includes a smart digital port data latch and a signal reshaping amplifier drive circuit. It also includes a precision internal oscillator and a DC24V voltage programmable constant current control part. Entire addressable light strip is composed of 300 LEDs/16.4ft, controlled by 50 ICs.
Addressable light strip adopts SMD5050 LED, energy saving, environmental protection, high brightness, and efficiency. Both ends adopt a 3pin JST connector design, compatible with a variety of Dream Color addressable controllers.
DC24V low voltage input, safe, stable, and efficient, every 6LEDs cuttable. IP65 waterproof, splash, wind, and dust,IP67 waterproof in outdoor rainy environment, IP68 swimming pool waterproof. The exterior is wrapped with Epoxy Resin. PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back,
Custom length, you can cut different lengths according to your needs. At the same time, we also provide a variety of length options. Addressable strip lights are widely used. LED screens and billboards can be made. Suitable for bars, KTVs, homes, and cars, etc LED decorative lighting
Customize brightness, sequence length, and tracking speed. Matching DC24V LED power supply, can be used as indoor environment lighting and mood lighting
The following is the description of the kit optional:
If you choose LED Strips, we will send you 1* DCFLS-IP65-WS2811X300
Note: If you choose 10m/65.5Ft, please remember to choose the 10m/65.5Ft power option, we will send you 24V 5A power supply, 10m no voltage drop, you only need to supply power at one end
Provide standard high-density and high-efficiency LEDs

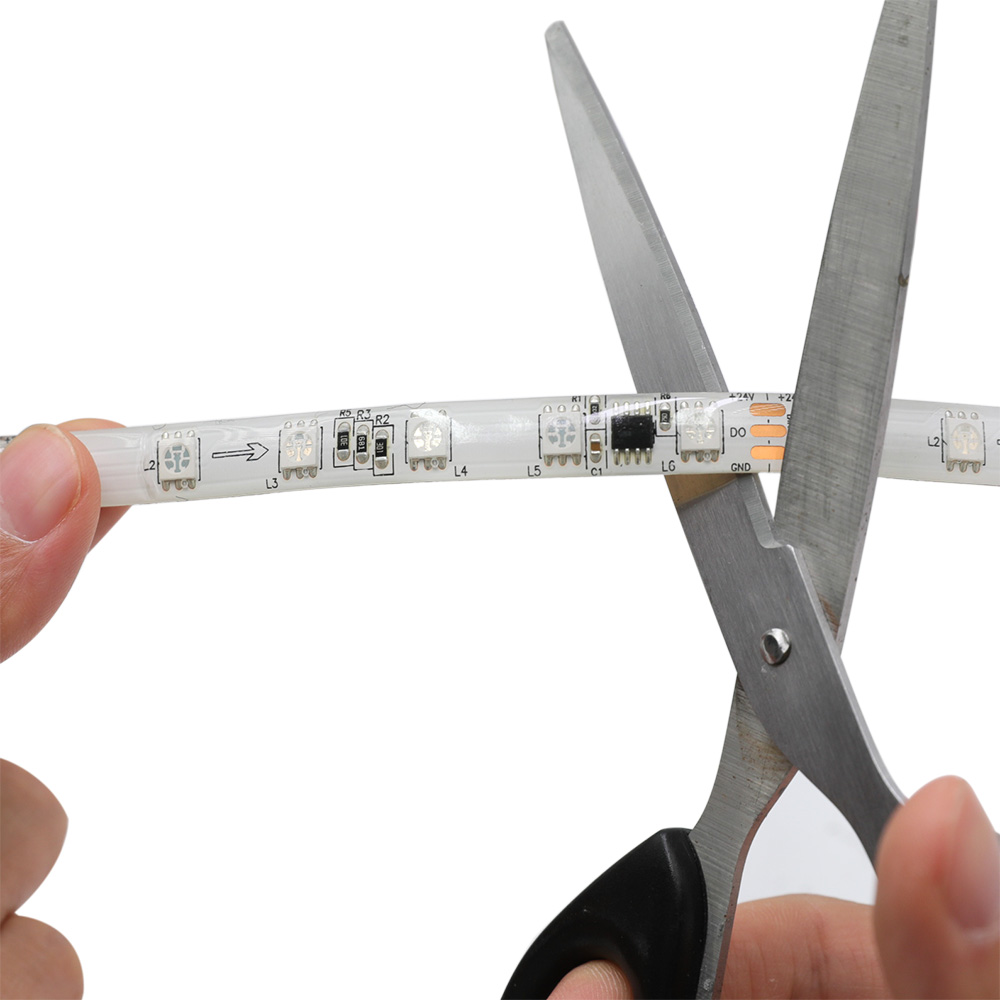

DC24V, 6LEDs can be cut, each IC controls 6 LEDs

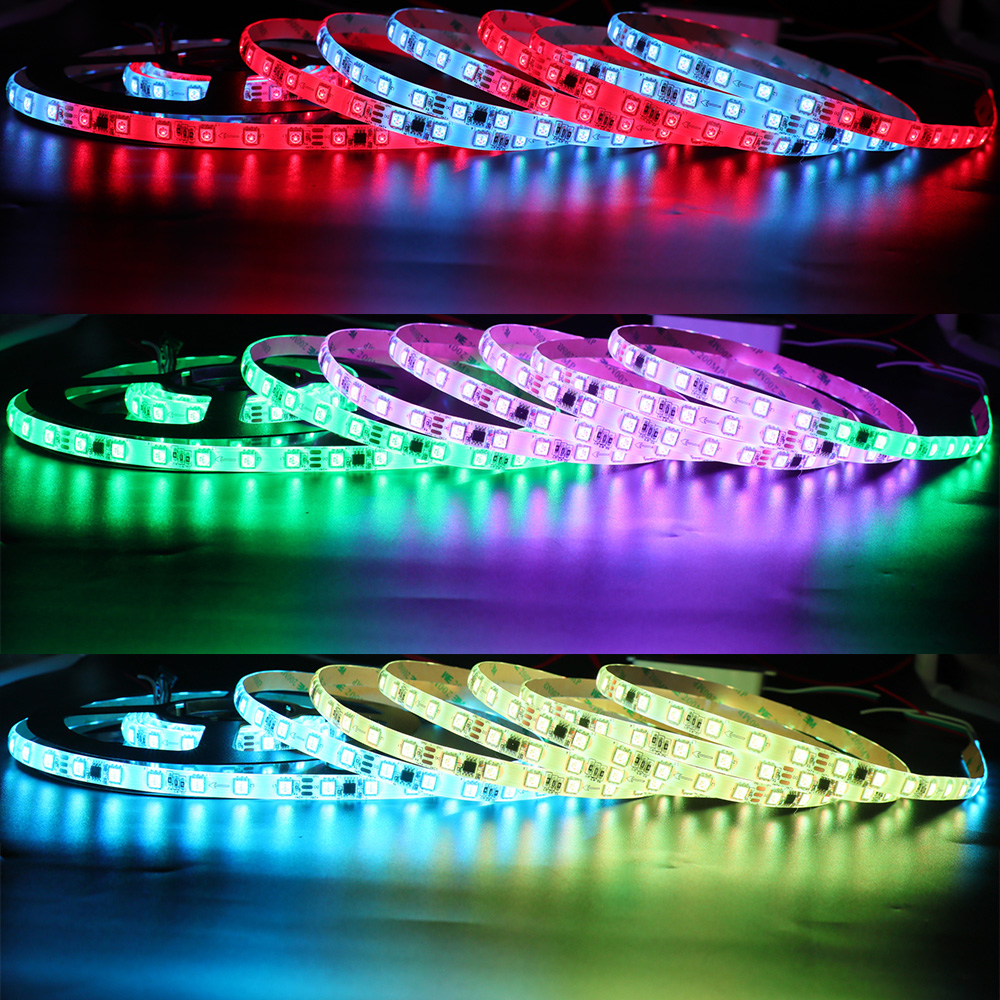

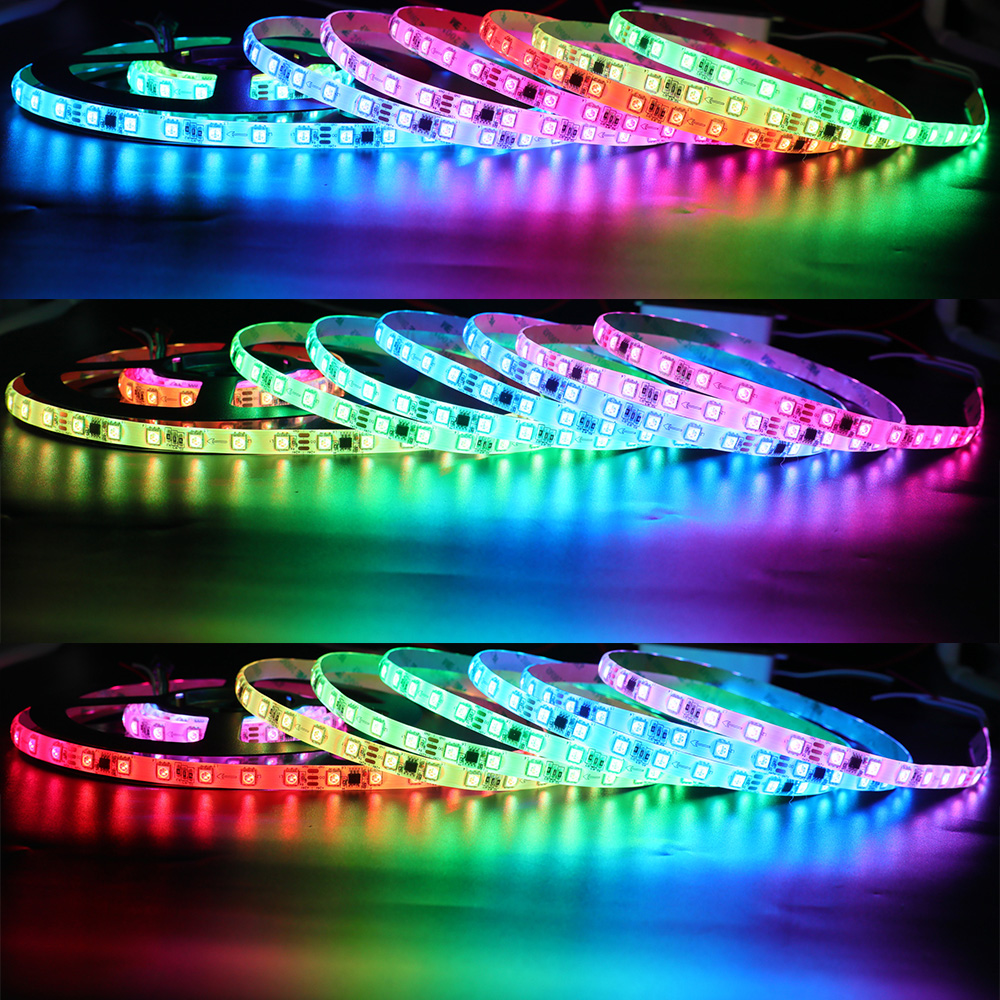

Color chasing, dynamic and static mode optional
IP65 waterproof rating, splashproof, windproof and dustproof
IP67 waterproof in outdoor rainy environment, IP68 swimming pool waterproof.
Customizable length 5m/16.4ft, 10m/32.8ft optional
Compatible with 98% of the SPI and Arduino controllers on the market.

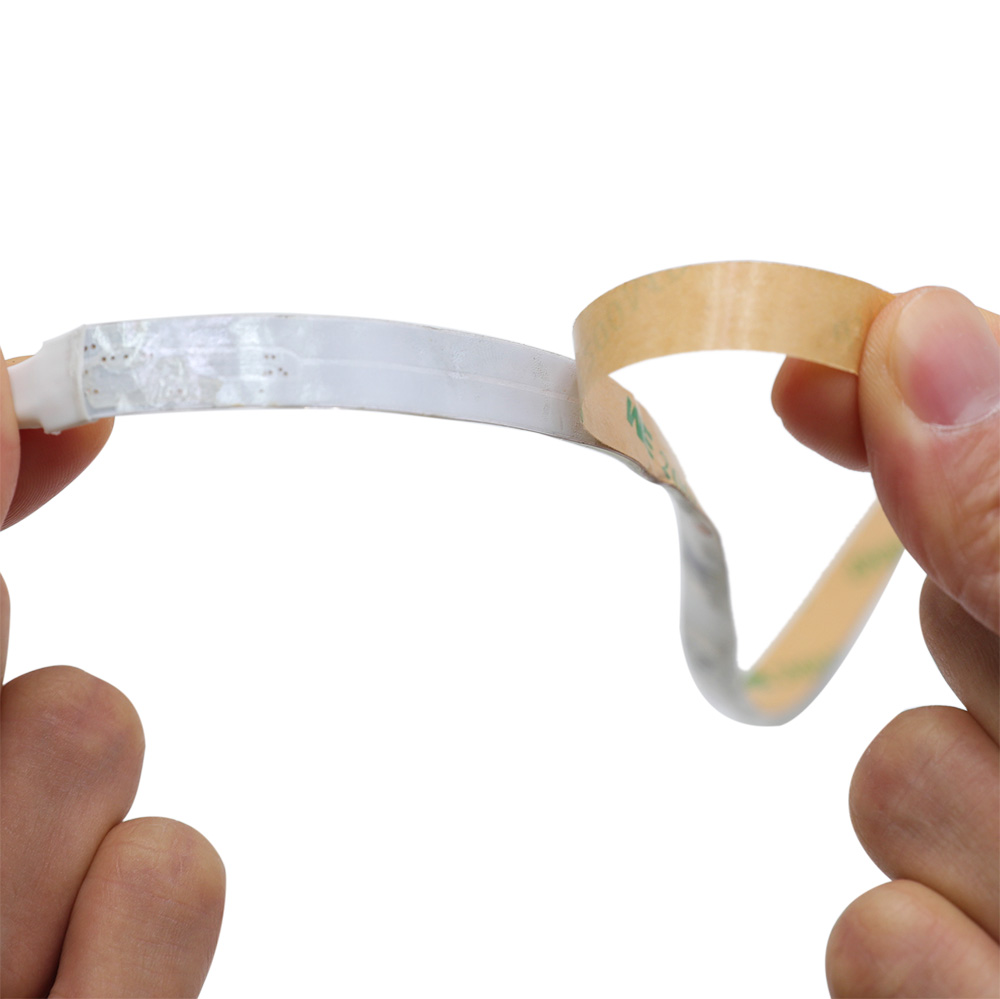

Standard 3M tape is used on the back for easy installation
Ends adopt a 3pin JST-SM connector design, which can be directly matched with the controller
Widely used, can make LED screens, billboards, suitable for decorative lighting in bars, KTVs, homes, and cars

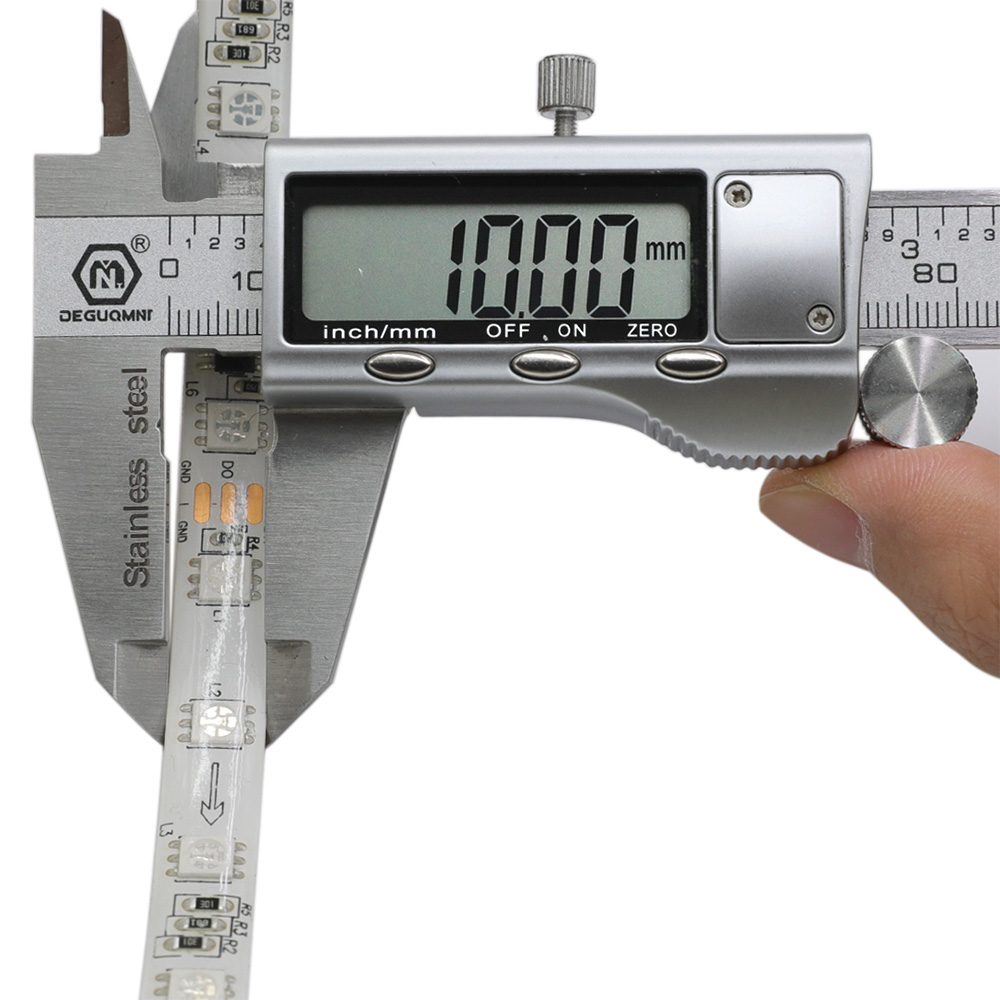

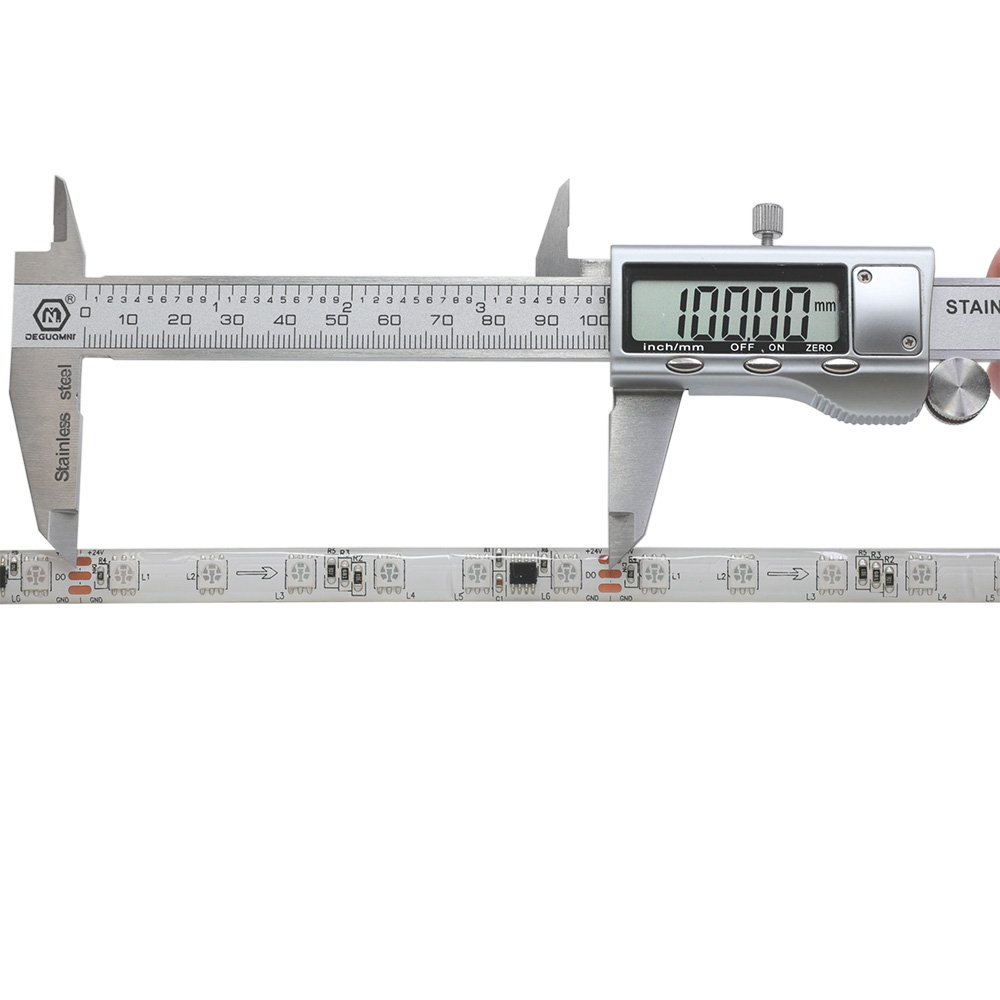

Maximum length is 10m/65.6ft per roll, 10mm/0.19in can cut a unit, you can get the length you need, or you can contact us to help you customize the length you want
When the length of the LED strip exceeds 10m, please supply power to both ends to avoid voltage drop
For each kit, we will only send you one power supply, if you need two, please specify when placing the order:
Indoor low-power environmental lighting use: it is recommended that you use DC24V Plastic Shell Power Adapter
Indoor high-power environmental lighting use: it is recommended that you use DC24V MW UL-Listed IP20 Power Supply
Outdoor waterproof lighting use: It is recommended that you use it DC24V Waterproof Power Supply. Please note that only the AC power cord is not waterproof.
If you have some requirements for LED Controller, you can visit our Addressable Dream Color Controller Series

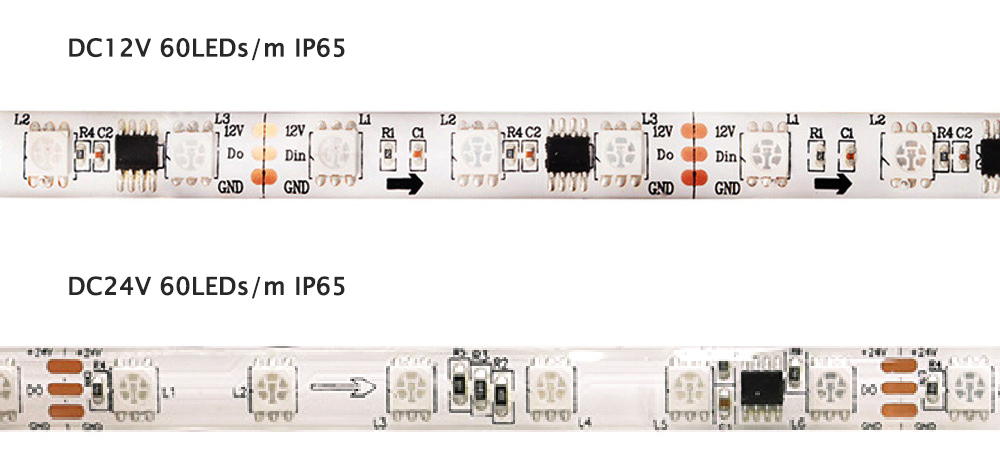

The Difference between DC12V and DC24V:
DC12V Addressable LED strip light: 3LEDs cuttable
DC24V Addressable LED strip light: 6LEDs cuttable
Standards and Certifications
LED Strip Type: SMD 5050 DreamColor 300LEDs/16.4ft
LED Chip: WS2811 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Dimension: 16.4ft/roll, every 6 PCS LED can be cut
LED Quantity: 60 LEDs per 1meter (3.28 ft)
IC Quantity: 10 ICs per 1meter (3.28 ft)
Length: 5m/16.4ft, 10m/32.8ft optional
Warantty: 3 years
PCB Width: 1.0cm/0.39 in
Input Voltage(V): 24VDC
Working Power: 144W/32.8ft 72W/16.4ft Max
Beam Pattern: 120 degree
Water Proof: Waterproof IP65/67/68
1 * 5m/16.4ft addressable LED strip light
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
