Product Information

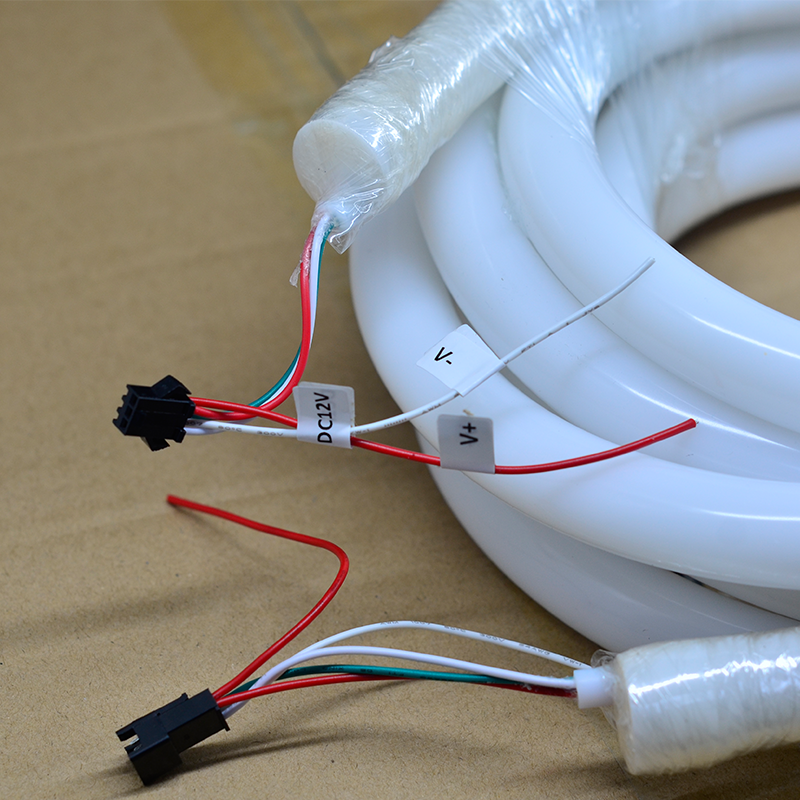

Streamline your lighting projects with our JST SM 3-Pin Male/Female Connector Set, uniquely designed with an integrated 2-pin power wire. This connector is the ideal solution for joining segments of 3-wire ddressable LED strip lights while simplifying power management. The primary 3-pin JST connector ensures a reliable data and power connection, while the additional 2-pin wire provides a convenient access point for power injection, effectively combating voltage drop in longer installations. The male connector features a robust external locking clip, preventing accidental disconnections and ensuring a stable, long-term connection for your dynamic lighting displays.
Key Features
Integrated Power Injection
Features a separate 2-pin wire alongside the standard 3-pin JST, making it easy to inject power and maintain consistent brightness over long strip runs.
Secure Locking Mechanism
The male connector is equipped with an external locking buckle that snaps firmly into the female housing, ensuring a secure, vibration-resistant connection.
Industry Standard JST-SM
Utilizes the common JST-SM connector type, ensuring wide compatibility with a variety of 3-wire addressable LED strip lights and controllers.
Clear Color-Coded Wires
Wires are color-coded for error-free installation: Red (V+), White (GND), and Green (Data) for the signal, plus separate Red/White wires for power.
Complete Male/Female Set
Sold as a complete matched pair, providing everything you need to create a reliable connection point between two strip segments or a strip and a controller.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | DC-ACCESSORIE-004 |
| Product Type | Connector Set (Male + Female) |
| Signal Connector | 3-Pin JST SM |
| Power Connector | 2-Pin Wire |
| Primary Application | 3-Wire Addressable LED Strips (e.g., WS2811, WS2812B, SK6812) |
| Signal Wire Colors | Red (Positive), White (Negative/Ground), Green (Data) |
| Power Wire Colors | Red (Positive), White (Negative/Ground) |
| Locking Mechanism | External Locking Clip on Male Connector |
Application Scenarios
How to Use This Connector Set
- Ensure the power is disconnected before making any connections.
- Identify the corresponding wires on your LED strips or controller. For the 3-pin connector, match the positive (V+), ground (GND), and data (DI/DAT) lines.
- Connect the wires by soldering or using appropriate wire connectors, ensuring a secure electrical connection. Follow the color code: Red to V+, White to GND, Green to Data.
- For power injection, connect the separate 2-pin red and white wires to your LED power supply, matching positive to positive and negative to negative.
- Firmly push the male and female JST connectors together until the external locking clip clicks into place.
- Restore power and test the connection and lighting effects.
- Always verify the voltage of your power supply matches the requirements of your addressable LED strip lights.
- Double-check wire polarity before applying power to avoid damaging your LEDs.
- This is not a waterproof connector. For outdoor or wet environments, ensure connections are properly sealed and protected.
- For complex setups, it is helpful to understand how to wire addressable LED strip lights to manage data and power correctly.
What's in the Box
- ✓1 x JST 3-Pin Male Connector with integrated 2-Pin Power Wire
- ✓1 x JST 3-Pin Female Connector with integrated 2-Pin Power Wire
Frequently Asked Questions
Q: What is the purpose of the extra 2-pin power wire?
A:The separate 2-pin wire is designed for power injection. It allows you to easily connect an additional power source mid-strip to counteract voltage drop and maintain consistent brightness on long runs.
Q: How do I connect the wires to my LED strip?
A:These connectors come with pre-stripped wire ends that are typically connected by soldering them to the copper pads on your LED strip for the most reliable connection.
