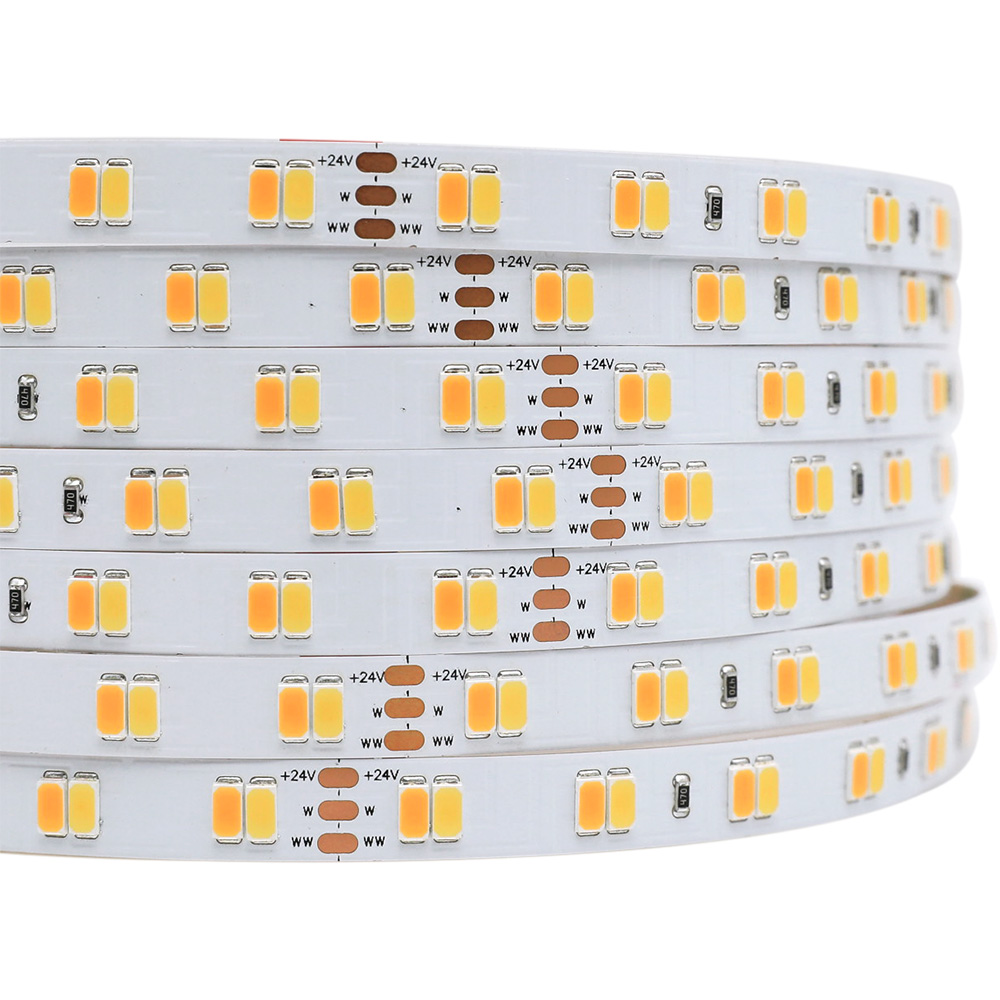

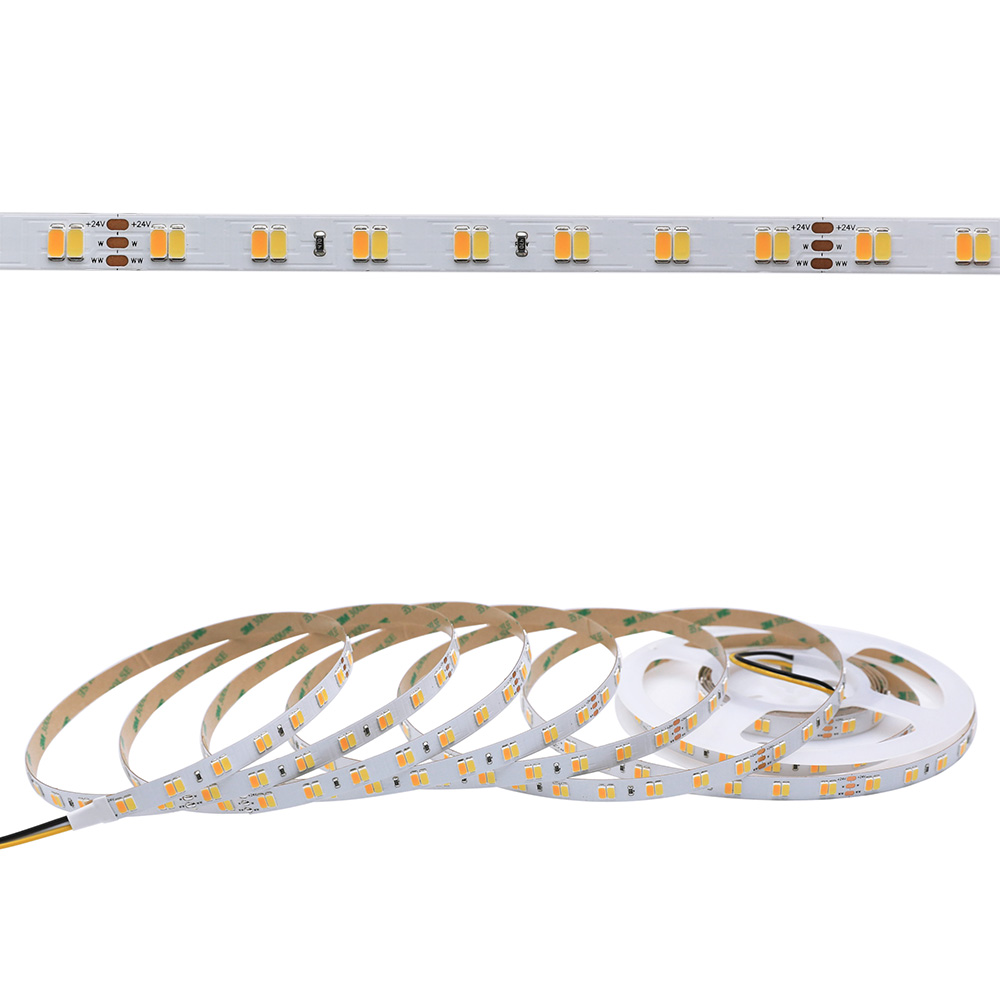

DC24V Super Brightness SMD5730 CCT Dimmable 120LEDs Flexible LED Strip Light Home Lighting 16.4ft Per Reel By Sale

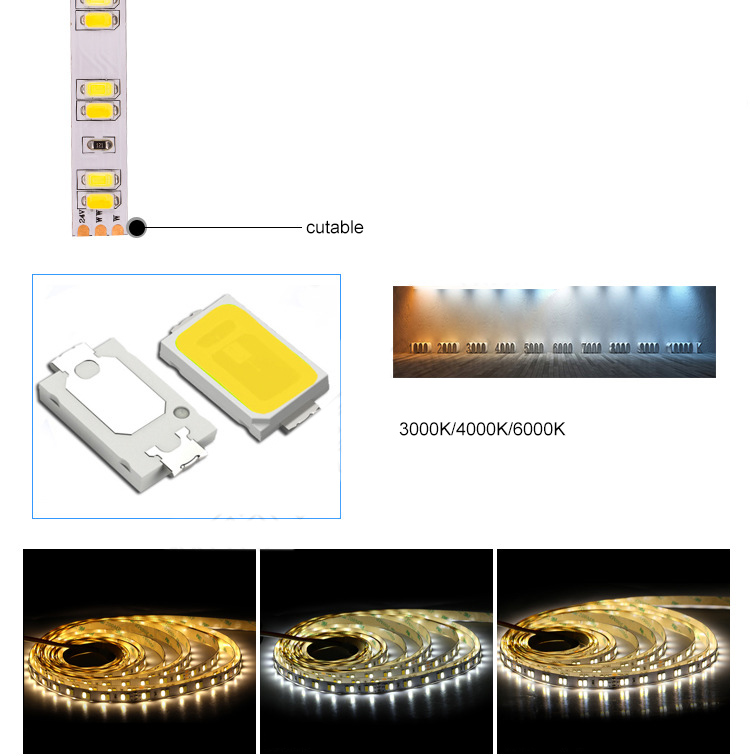

This product is CCT SMD5730 light strip with super brightness characteristics. You can also adjust the color temperature of the light strip according to your needs, 3000K / 4000K / 6000K optional. Every six LEDs can be cut, you can cut any length according to your needs. 24V voltage, safe, stable and efficient, energy-saving, and environmental protection. Color rendering index> 80, can highly restore the original color of the environment. This product is not waterproof, but you can customize other different waterproof grades according to your choice. There are many application scenarios. You can install LED strip lights in ultra-thin light boxes, lighting instructions, advertising signs; landscape decorative lighting, home decoration, urban lighting, handicraft light sources, car decoration, yacht decoration lighting, mid-to-high-end specialty stores, bars, KTV.
Standards and Certifications
LED Strip Type: SMD 5730
LED Chip: Super bright Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White(3000K), Daylight White(4000K),Cool White(6000K)
Dimension: 16.4ft/roll, every 6 PCS LED can be cut
LED Quantity: 120 LEDs per 1meter (3.28 ft)
Warantty: 3 years
Dimensions: L500cm(196.8 in ) x W1.0cm(0.40in ) x H0.25cm(0.10 in )
Input Voltage(V): 24V DC
Working Power: 28.8W/3.28ft, 144W /16.4ft Max
Lamp Luminous Flux(lm): 2760lm/16.4ft
Beam Pattern: 120 degree

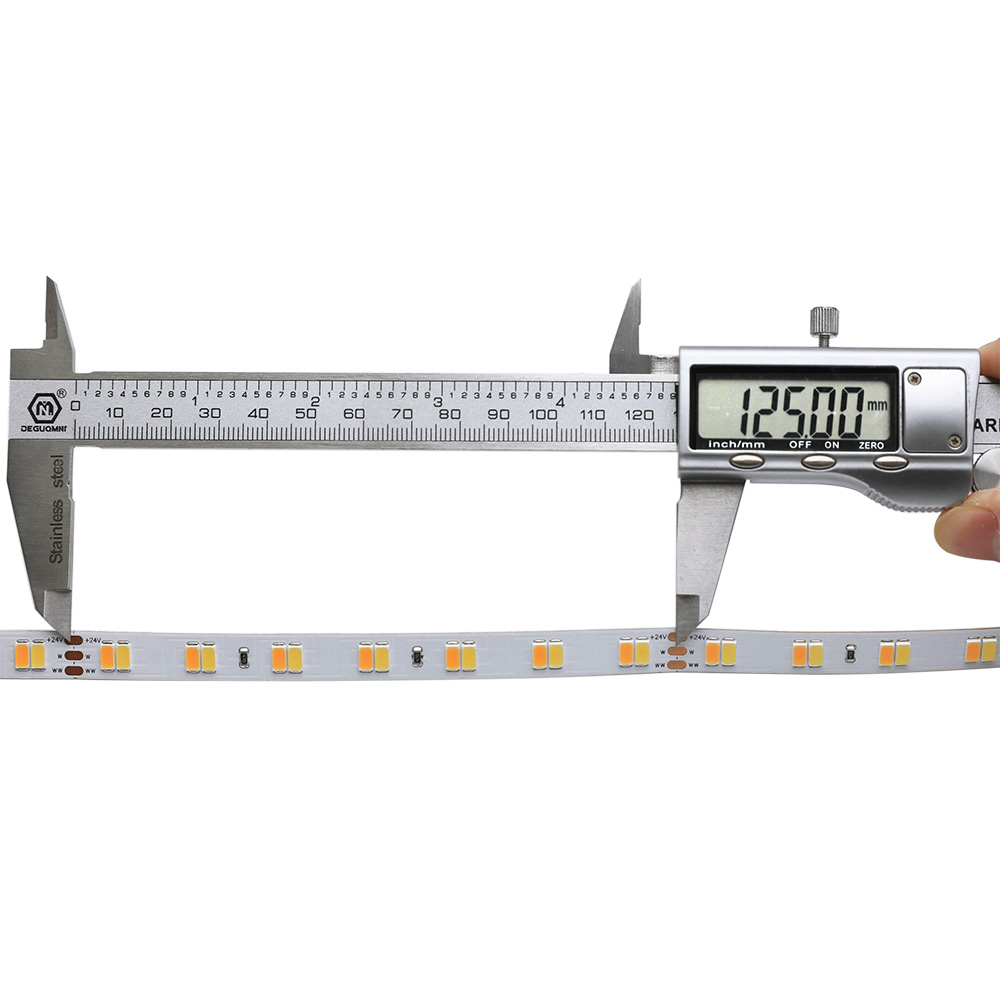

Board Width: 10mm(0.40in)
Water Proof: Non-waterproof;
CRI (Ra>): >80
CertificationL: 3C, CE, ROHS
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.

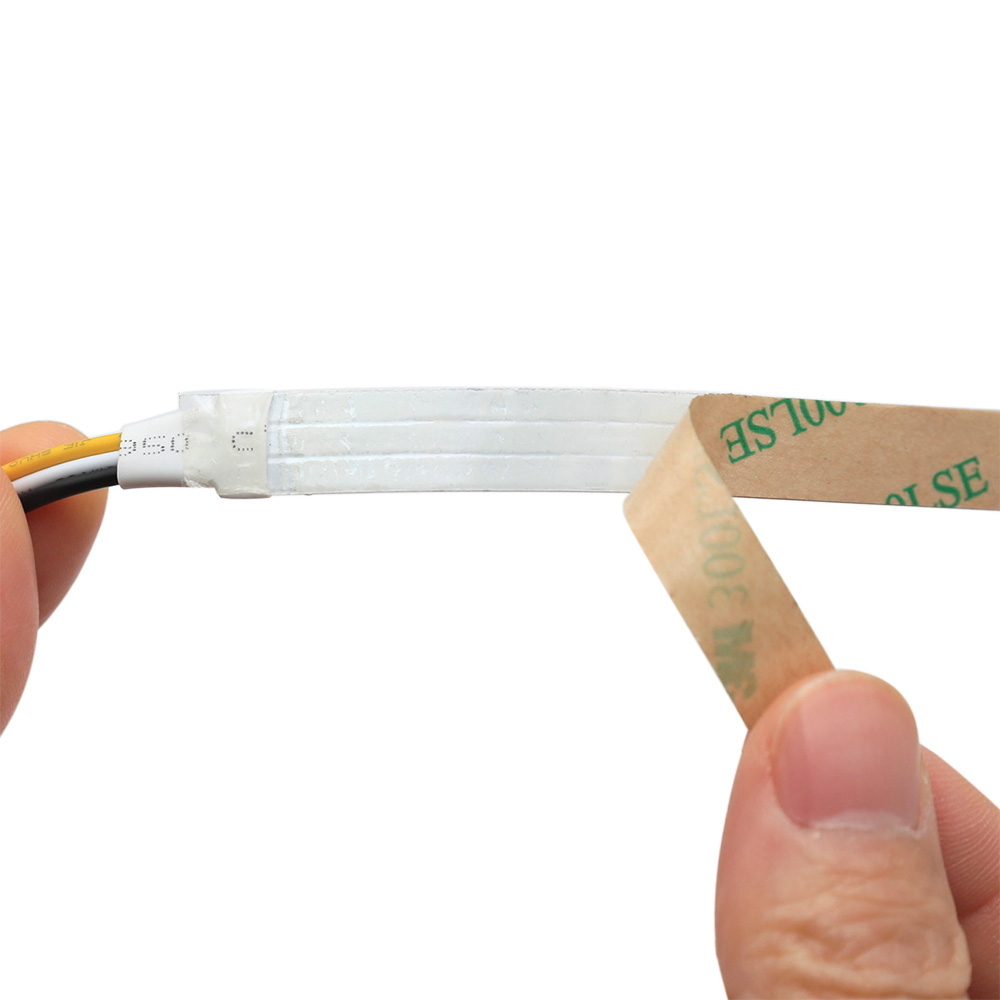

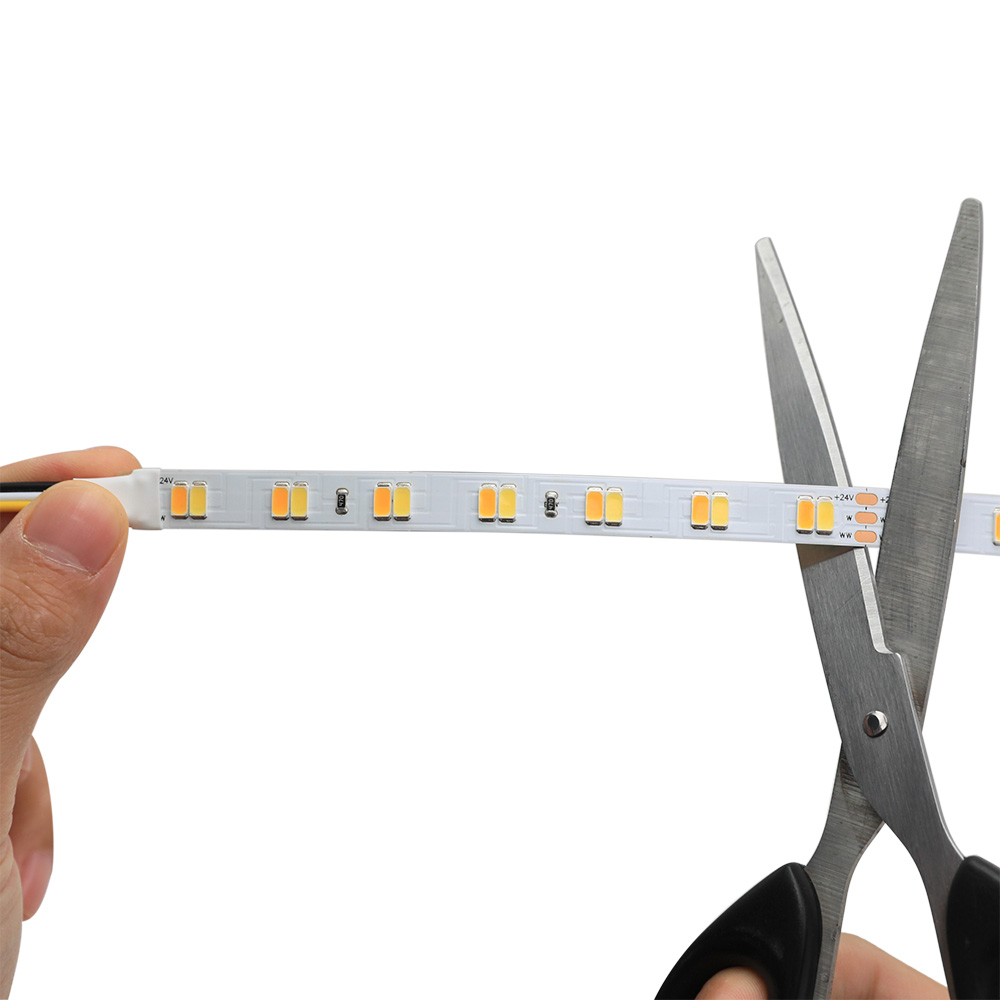

You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will come with
allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements to many different surfaces.
Cove LED lighting
Retail LED lighting
Display case LED lighting
Accent LED lights
Under cabinet lighting
