DC5/12/24V Max 27A 3Ax9CH, 10pin LED Horse Race Controller with 25keys IR Wireless Remote For RGB Marquee Strips light
This 25 Keys Wireless RGB Controller, with IR remote, is used to control 10pin RGB Horse Race LED strips. including the functions of Flash, Running, Static, Fade and Smooth. Take full control over light display up to 5 meters away (30 degree with the lamp); working great with 0.3 meter ~ 5 meters (max.). For SMD Dream Flash RGB LED strips only. You can easily change modes, speed and color brightness to your likings. It's the best mate for your Horse Race LED strips. A controller to connect up to 30 meters DC12V horse race led strips.
Working temperature: -20-60℃
Supply voltage: DC12V
Output: 9 channels
Control mode: IR
Connection mode: common anode (+)
Net weight: 86g
Static power consumption: <1W
Output current: <3A (each channel) 27A Max
Output power: 12V:<324W
Control distance: 8M

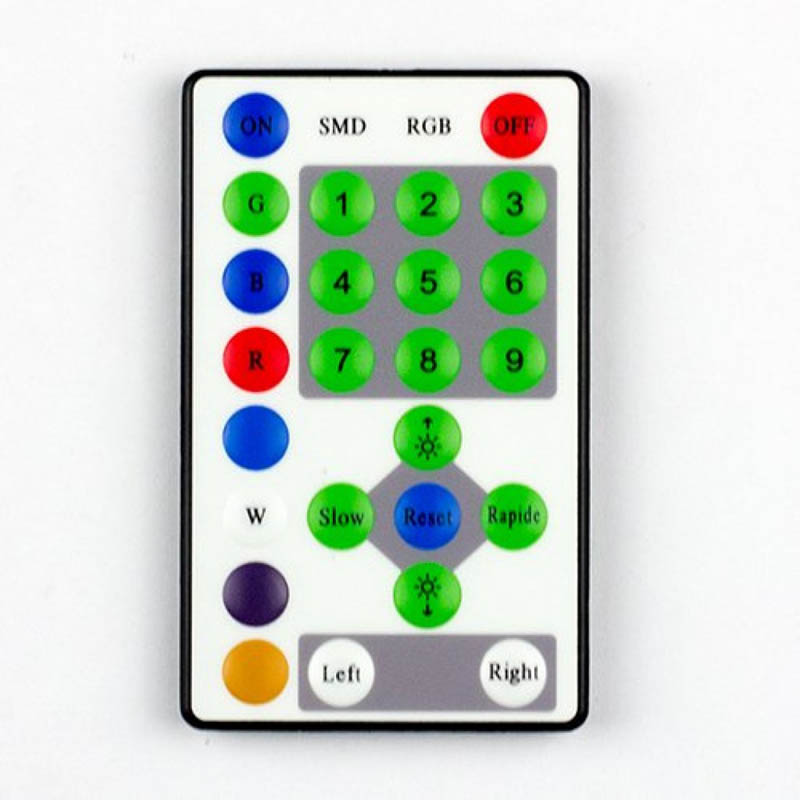

IR Remote Control
Power: CR2025(not included)
Fabrication processing: Multicolor printing & UV varnish
Functions: color changing and brightness dimming

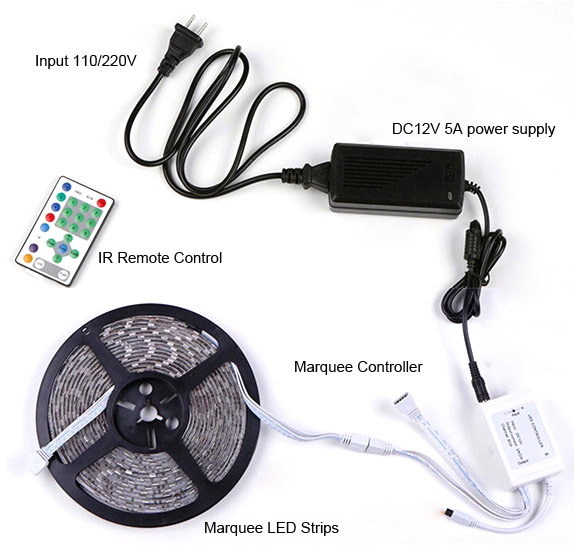

5meter(16.4ft) connection diagram

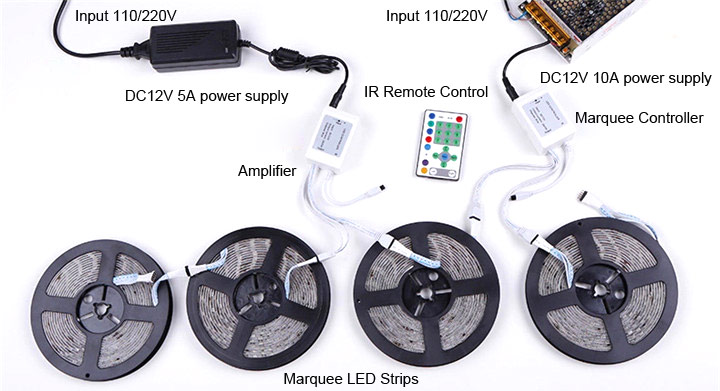

20meter(65ft) connection diagram
Interior Decoration: Club, bar, corridor, room, hotel, led aquarium lighting, museum, christmas, holiday, Retail LED lighting etc.
Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs etc
Supply voltage of this product is 12 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.
Connect according to the Wiring Schematic drawing.
Controller can control a maximum of 30 meters of our Flexible RGBW LED Strip. Over 30 meters, the strips have to connect with an amplifier to reinforce the transmission of signal. Use one Horse Race Amplifier for every 15 meters of additional LED Strips.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
Not suitable for automobile applications.

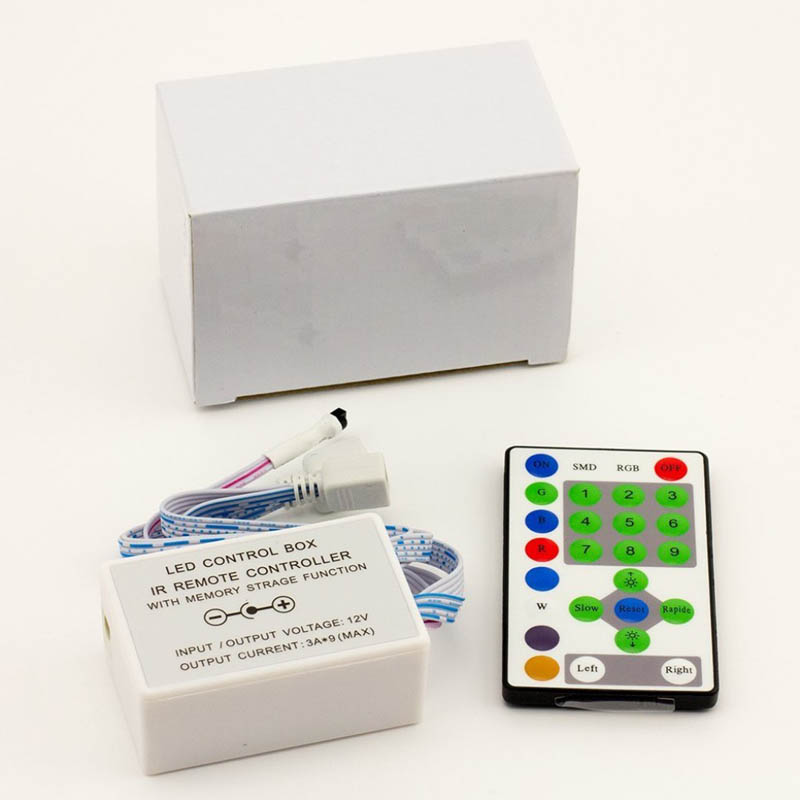

1 x 27A Horse Race LED Controller
1 x RF Remote Control
