RGB+White LED Color Changing Lights - 60LEDs/m 5050 LED Strip - 12V/24V

Name: RGB+White LED Color Changing Lights - 60LEDs/m 5050 LED Strip - 12V/24V
Brand: SuperLightingLED
SKU: FSLRGBW-W12-5050X300
Price: 22.98 CAD
Availability: InStock

Model: FSLRGBW-W12-5050X300 Review stars

0.0 (0 Reviews) Various options in stock

Starting at: Can.$40.93 Can.$32.4521% off

Qty Discounts Off Price
1-9 Can.$32.45	10-99 Can.$31.80	100-199 Can.$30.83	200+ Can.$29.53
* Discounts may vary based on options below

Select Specifications:

Select PCB Width:

10mm (0.39in)

Select Light Color :

Select Operating Voltage:

Select Length:

16.4ft (5 meters)

Select Waterproof Rating:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

Universal RGB+W color changing LED strip lights adapt 5050 LED RGB lights and 5050 white lights to mix to produce a wide variety of colors, suitable for mood lighting and task lighting. Use the RGBW controller to change the LED color, light brightness, and color mode. Provide warm white 3000K, natural 4000K, and daylight white 6000K led color temperatures to choose from.

12/24VDC operation, safe and stable.

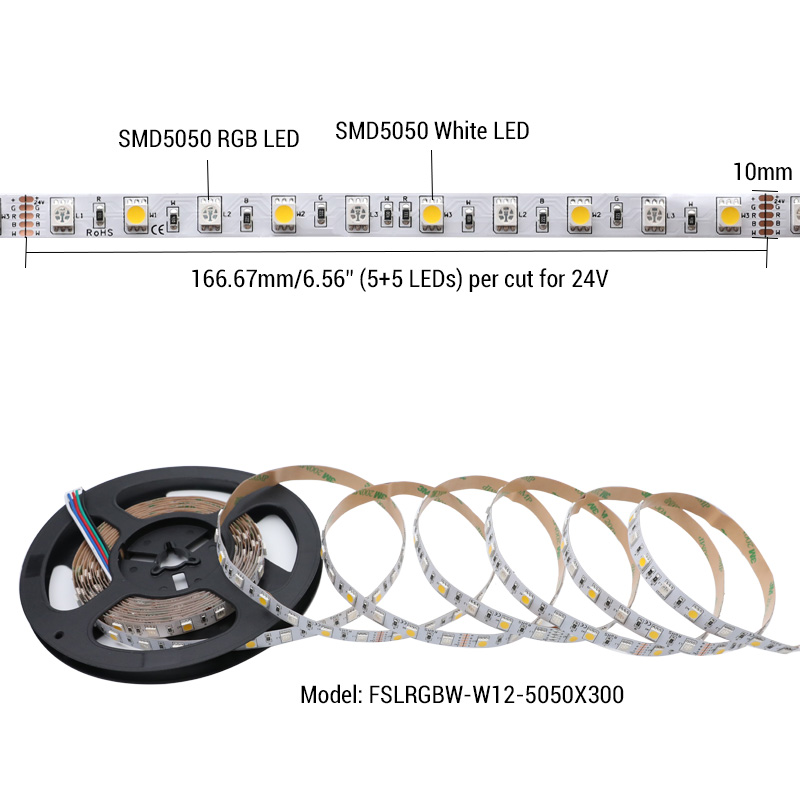

5050 white LEDs + 5050 RGB LEDs

With adhesive backing, soft and easy bent for installation. (IP67/IP68 waterproof led lights type which will come with mounting brackets)
Waterproof optional, suitable for the indoor or outdoor lighting as well as lighting professionals.

Standards and Certifications

DC12/24V

LED Strip Type:	SMD 5050 RGBW 300LEDs/16.4ft
CRI:	95
Light Color:	RGB+W3000K, RGB+4000K, RGB+W6000K
Dimension:	16.4ft/roll
LED Quantity:	60 LEDs per meter (3.28 ft)
Lifespan:	50,000+ hours
Strip Width:	10mm (0.39in)
Input Voltage(V):	12/24 VDC
Working Power:	72W /16.4ft Max
Lamp Luminous Flux(lm):	20-22Lumen 9240lm Max /16.4ft 563lm/feet 69lm/watt
Wavelength NM(RGBY):	2000-2500mcd
Beam Pattern:	120 degree

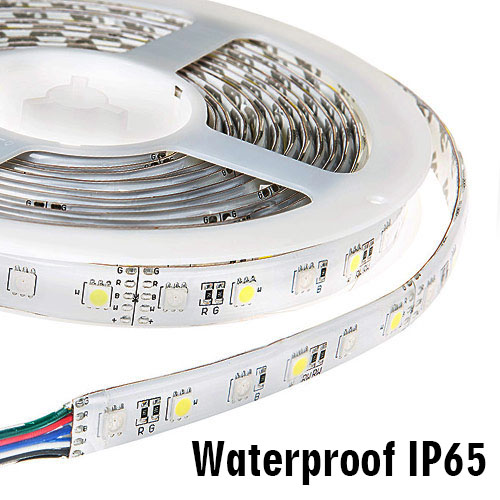

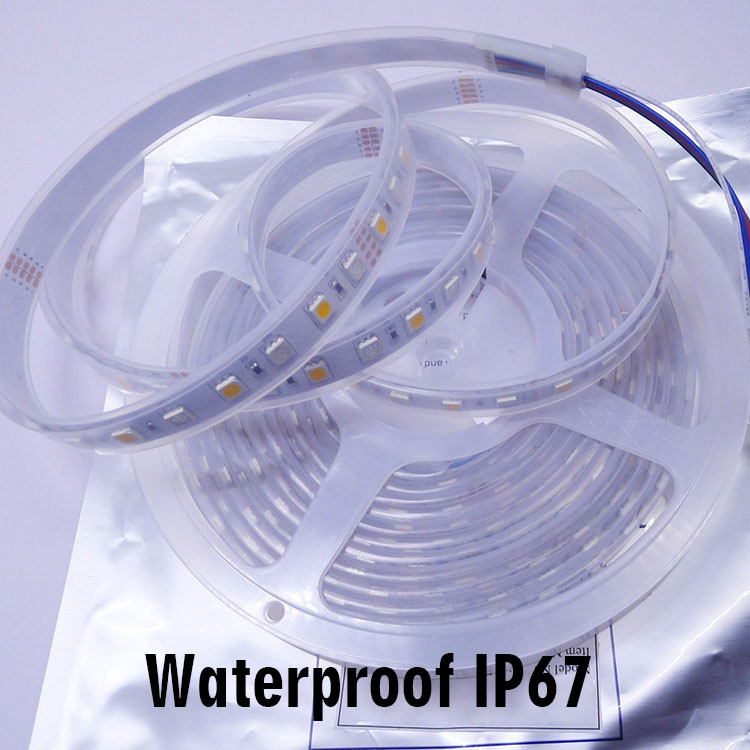

Waterproof Rating:	Non-waterproof IP20, waterproof IP65 IP67 IP68

How To Wire RGBW LED Strips?

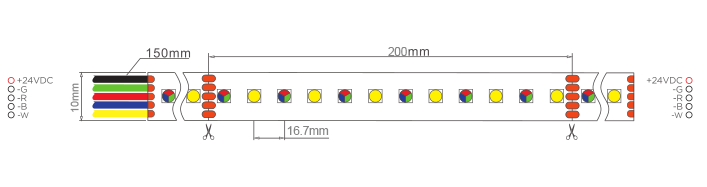

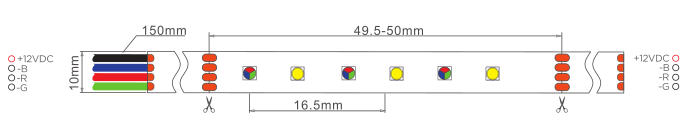

1. RGBW LED strip wiring diagram:

rgbw led strip wiring diagram

2. LED light strip accessories: RGBW led strip matching silicone diffuser or LED channel can achieve a soft, spotless linear light effect.

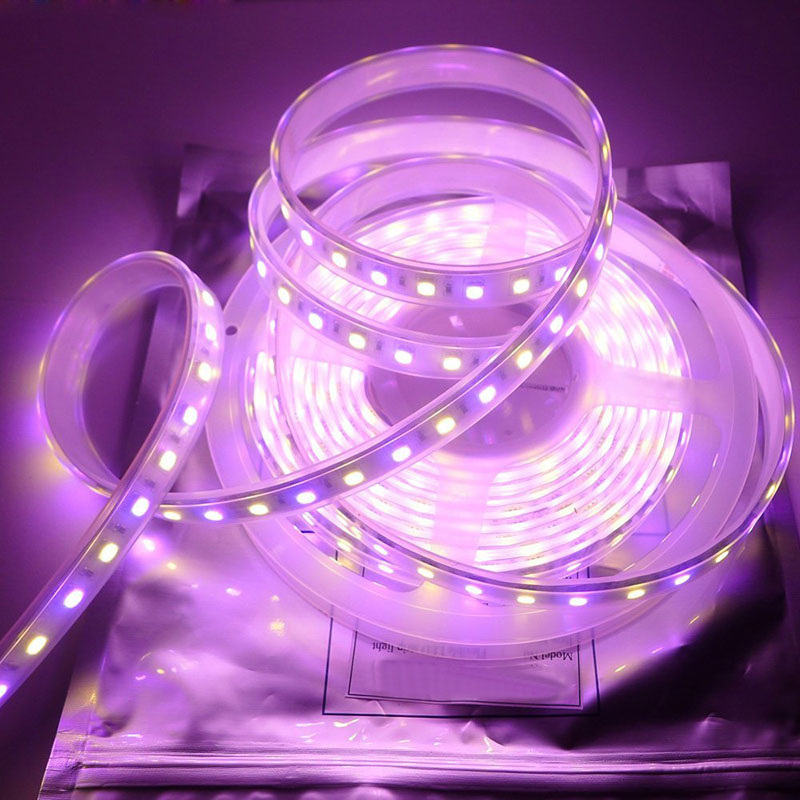

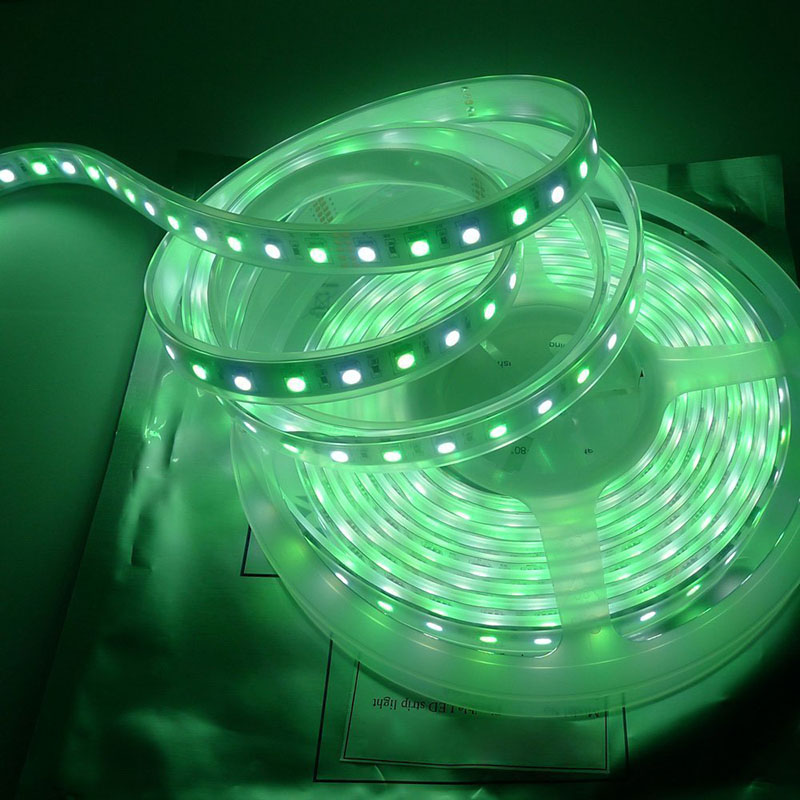

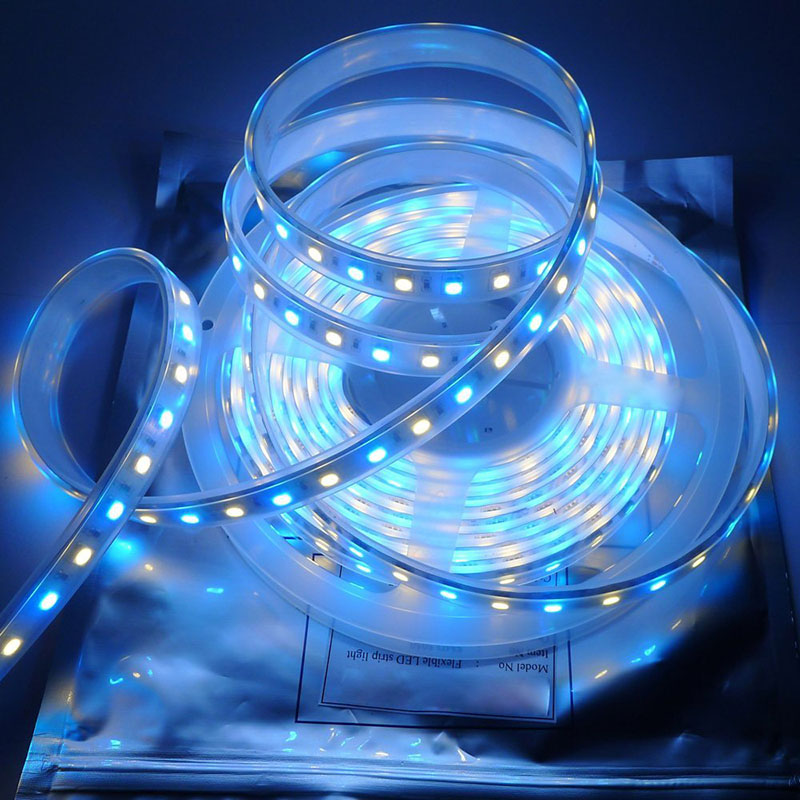

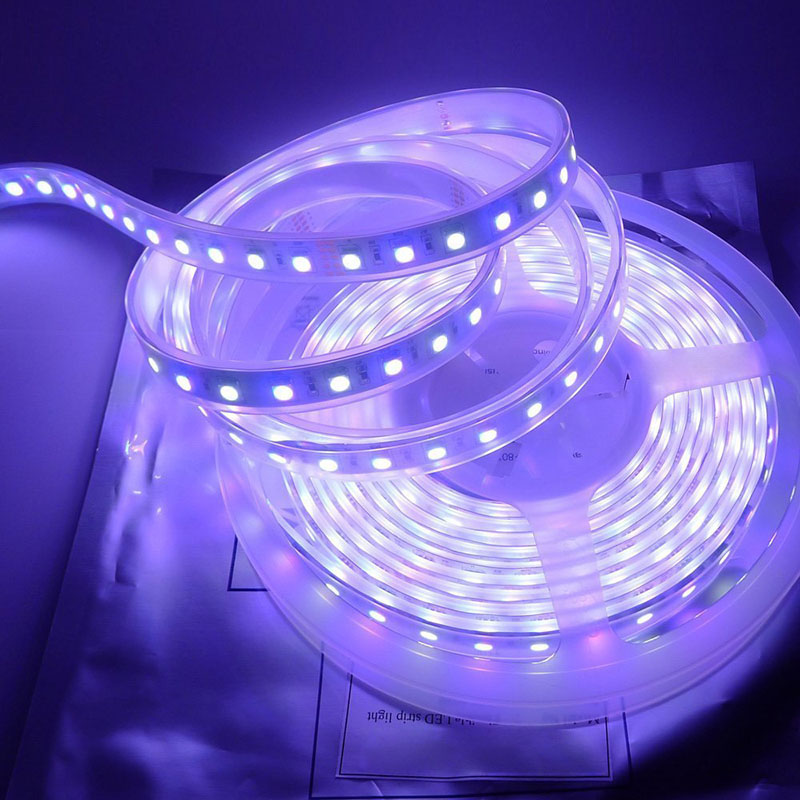

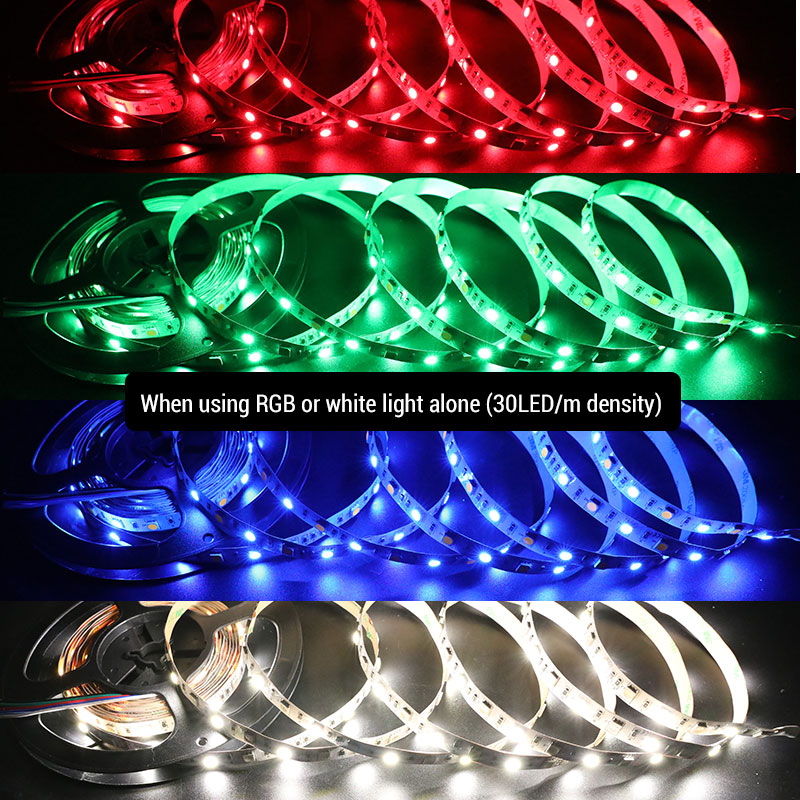

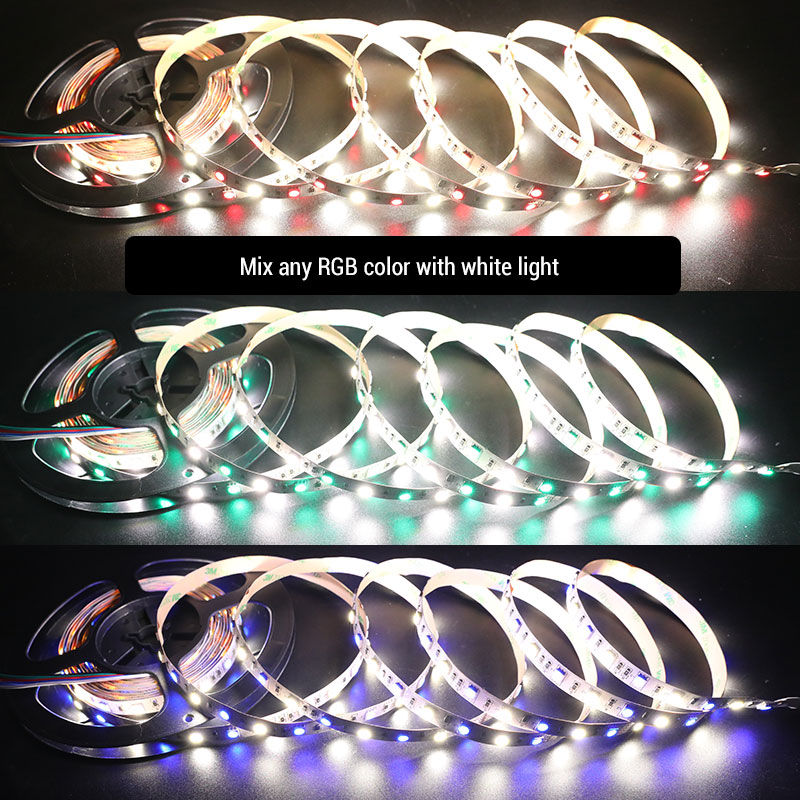

3. Color change RGBW led strip light effects:

RGBW Super Bright Series DC12V 24V 5050SMD 300LEDs Flexible LED Strip Lights Waterproof Optional 16.4ft Per Reel By Sale

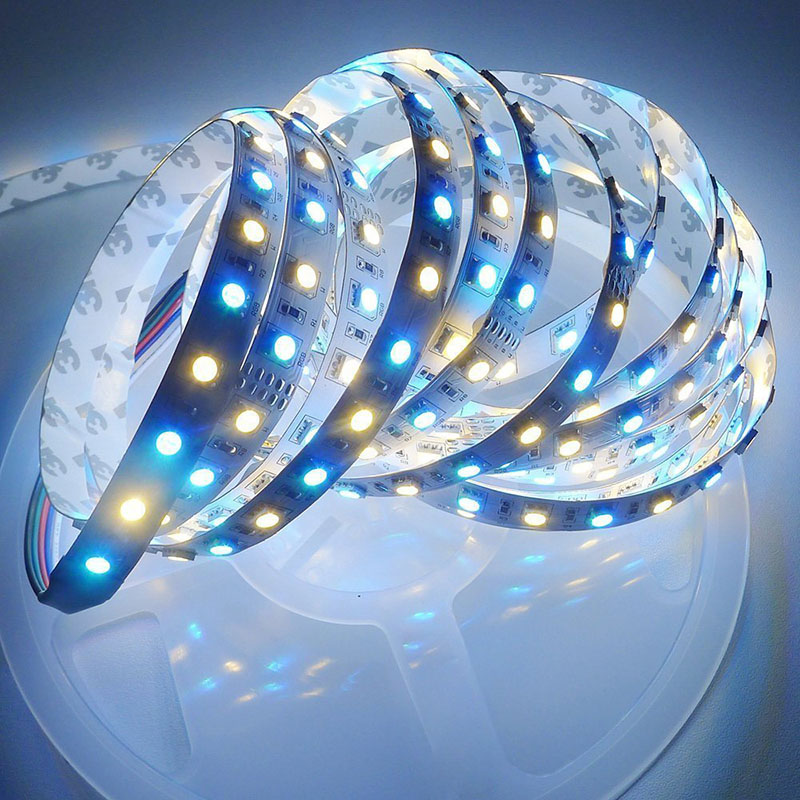

RGBW Super Bright Series DC12V 24V 5050SMD 300LEDs Flexible LED Strip Lights Waterproof Optional 16.4ft Per Reel - photo 8

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for FSLRGBW-W12-5050X300

PDFFSLRGBW-W12-5050X300 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

What voltage does this LED strip light run on?

This model is offered in 12VDC · 24VDC. Lower voltage means a shorter run per feed: at 12 V feed power roughly every 5 m, at 24 V roughly every 10 m. Longer runs get power injected at both ends. Connecting to the power supply

Which controller does it need?

Colour-changing LED strip lights need a controller with one output per colour channel — for this model that is a 4-pin RGB controller at the same voltage. Choosing a controller

Which waterproof rating should I choose?

Available on this model: Underwater IP68 - Adhesive Back · Outdoor Silicone Tube IP67 - With Brackets · Surface Glued IP65 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Will it fit an aluminium profile, and how dense are the LEDs?

PCB width 10mm (0.39in). Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
