Product Information
We currently do not have PCB materials for this 72-LED 4mm LC8805B model; a minimum order of 500 meters is required for production. It can be replaced with the 90-LED 4mm WS2812B lights.
Features:
One data line, two power lines, built-in IC (4 feet), 256 levels of gray, realized by the controller, gradient, water flow, horse racing, text, numbers, English, pictures, animation, etc . any effect.
1. Control principle: One IC controls one LED to form a loop (a group), and the controller controls the circuit in the FPCB through the control IC to control the different effects of the LED light bar changes; such as flicker, chase, jump, Clockwise horse racing, counterclockwise horse racing, monochrome horse racing, color-changing horse racing, single chase from beginning to end, running water, simulated lightning, etc.; the change effect of this light bar is not limited to the multiple effects built in the current controller, and can be based on customer needs, Write by yourself; it can be displayed in the form of a screen, text, letters, pictures, animation, etc.
2. Environmental protection and safety: Use high-quality high-brightness SMD 5050 LED. It has the characteristics of low power consumption, low heat generation, no glare, and impact resistance. Low voltage DC 5V, high safety, and reliability.
3. Rich and diverse colors can be adjusted arbitrarily through the controller according to customer needs.
4. Long life span: the average life span is up to 50,000 hours.
5. Cutting and welding are convenient and free: each group of LEDs can form a loop, which can be arbitrarily cut along the upper tangent and welded to meet the needs of various light strip lengths required by customers.
6. Soft: The soft FPCB board is used as the base plate, which can be docked, bent, cut, and fixed on the uneven surface at will.
7. Light and thin: suitable for installation in narrow spaces.Can be adapted to neon tube.
Product Specification
Input Voltage: DC5V
Lamp Power: 21.6 W/M
Lamp Luminous Flux(lm): 18-20lm/led
CRI (Ra>): 80
Working Temperature: -20 - 50℃
Working Lifetime(Hour): 50000
Lamp Body Material: cooper and silicone
Certification: CE, RoHS

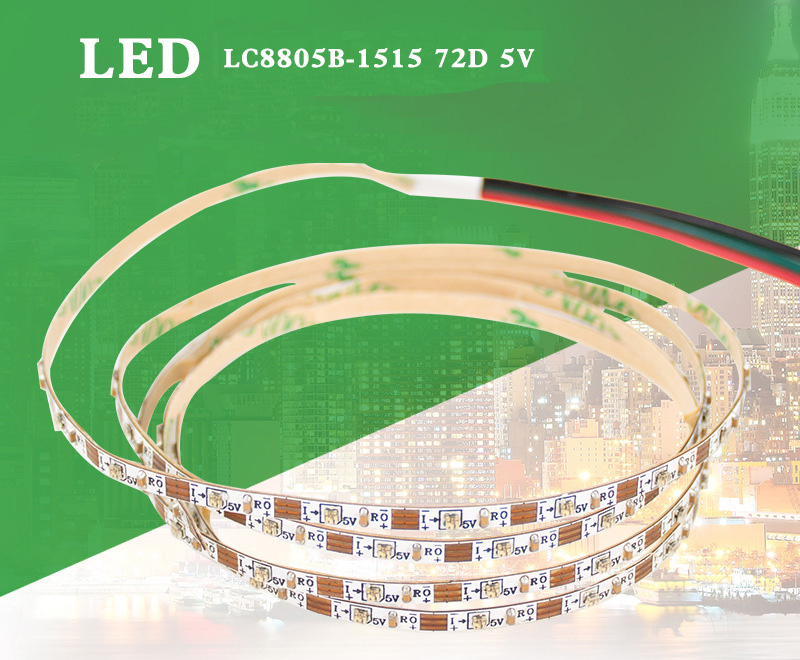

Model: LC-8805B-1515RGBNP72-5V
Warranty(Year): 2 Years
PCB Color: White FPCB
Emitting Color: full color RGB
LED Quantity: 72LEDs/m
PCB Width: 4mm
IP Rating: IP20/IP67
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
Applications
-
LED programmable digital screen
-
Hotels decoration lighting
-
Backlighting decoration
-
Concealed lighting, Cove decoration
-
led wall, advertising board
-
Outdoor advertising signs,
-
Hotel, KTV, bars,
-
Wedding party lighting,

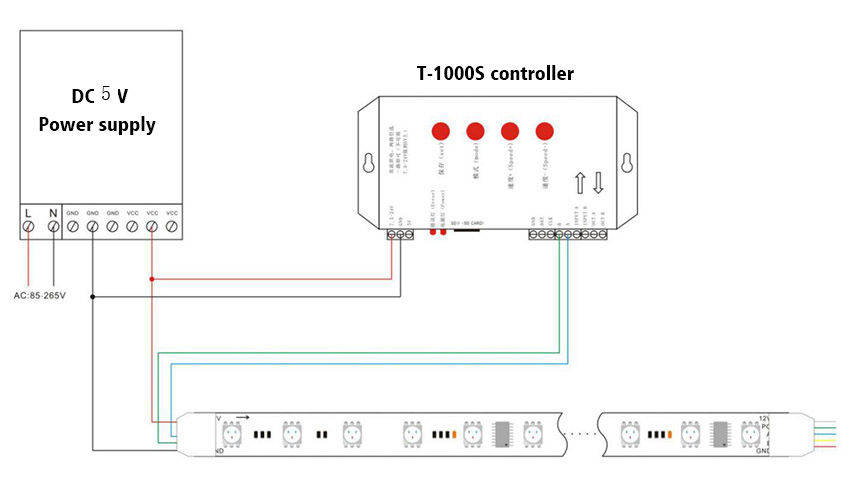

Connection diagram
