Product Information

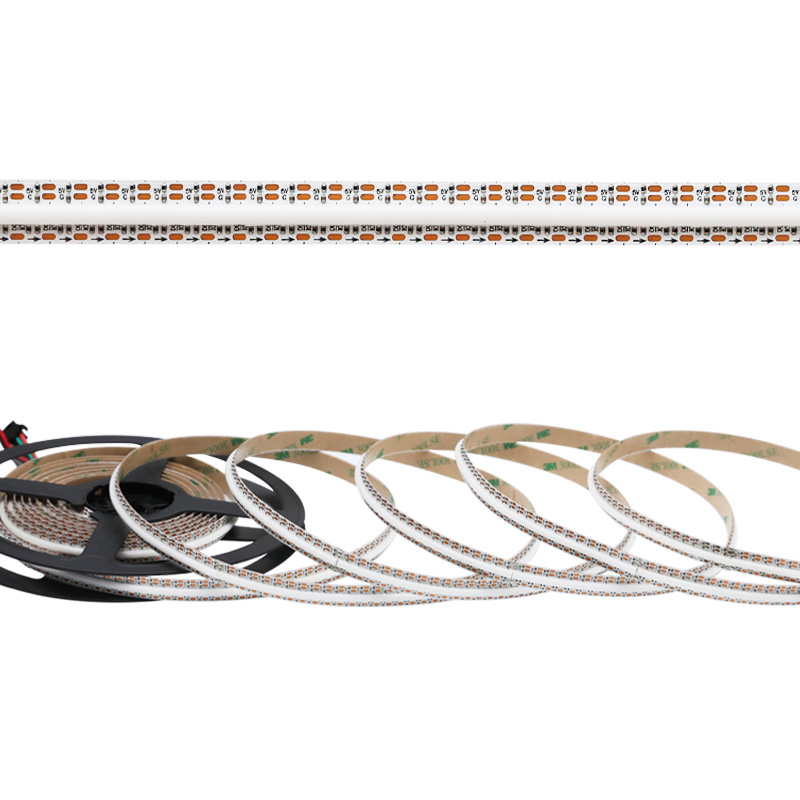

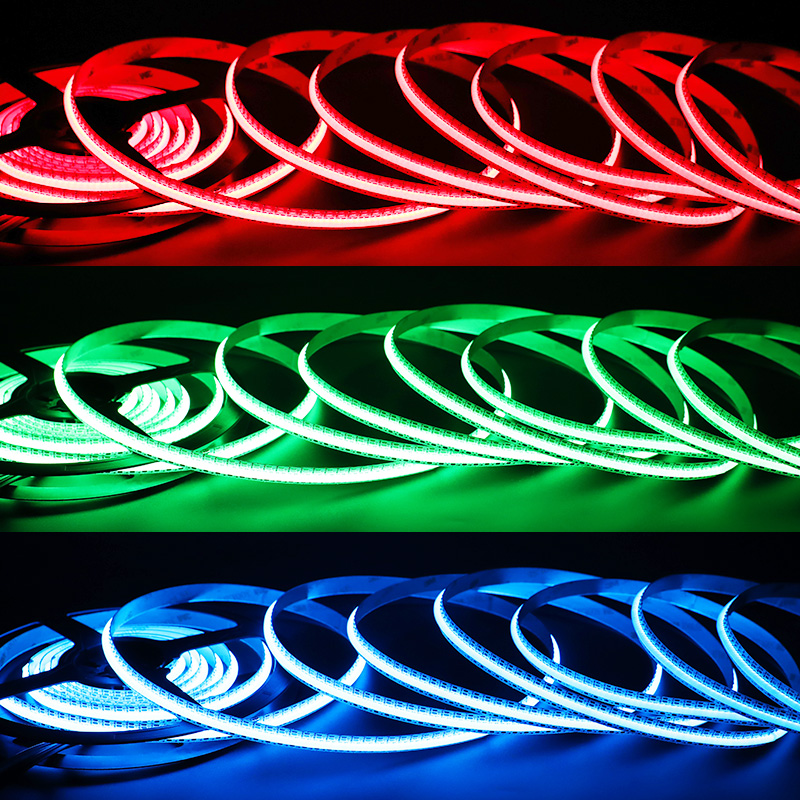

5V rgbic cob led strip light, controlled by ws2812c, is able to accurately display rich RGB color variations. Featuring 10mm/0.4" wide PCB board, this smart cob led tape light adopts chip on board technology, densely setting 400 LEDs across each meter. All LEDs are covered with silicone coating to ensure continuous and smooth illumination without any hot spots.
Programmable cob led strip has 200 ic every meter, and each ws2812c ic controls 2 individual LEDs. With a compatible controller, you can precisely manage the color as well as the brightness of each pair of LEDs, achieving luminous effects of small units such as color gradients or color jumps, perfect for lighting projects with high control requirements. Cob addressable led strip can be cut every 5mm/ 0.19”, and there are black vertical lines marked on the flexible board for easy cut. Using a arduino control board, you can program this seamless led tape to emit unique lights according to your needs.
A 5V power supply is required to run this excellent cob dotless led strip. We offer different waterproof ratings for you to choose, from non-waterproof ip20 to ip67 cob led strip. 3pin led connector is recommended for linking cob led tape to realize long distance lighting.
This 5V dotless WS2812C COB 400-chips/m RGBIC 10mm LED strip shows a failure rate during the IP68 potting process. Therefore, for projects in outdoor damp locations, we recommend selecting the IP67 waterproof rating (transparent hollow tubing).
Features:

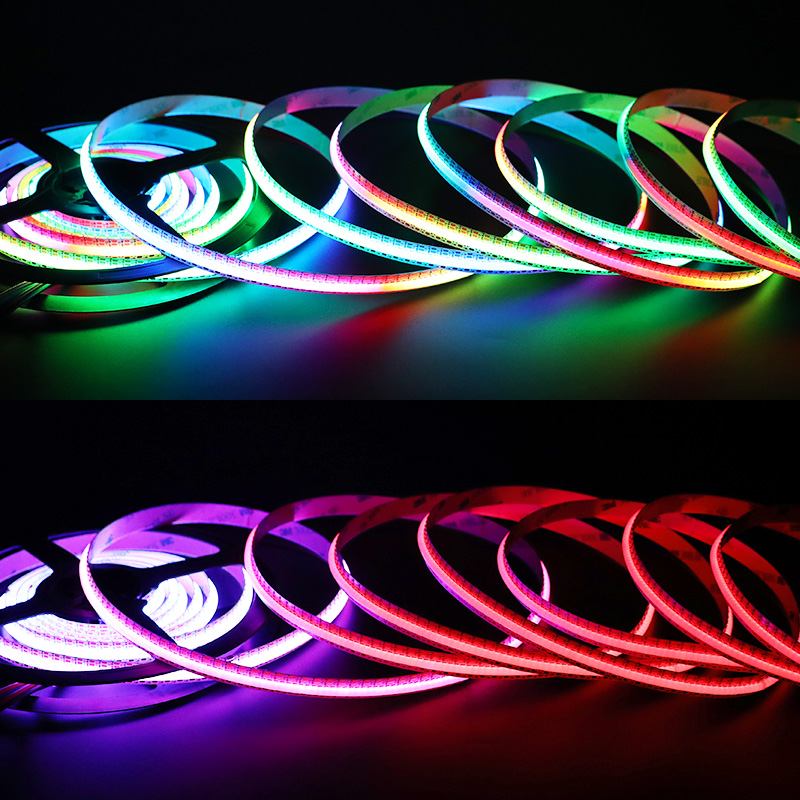

1. 5V cob addressable led strip, dynamic color changing effect, even and bright illumination without any dots.
2. 400 leds and 200 ws2812c chips per meter, single signal transmission, one chip precisely controls two leds.

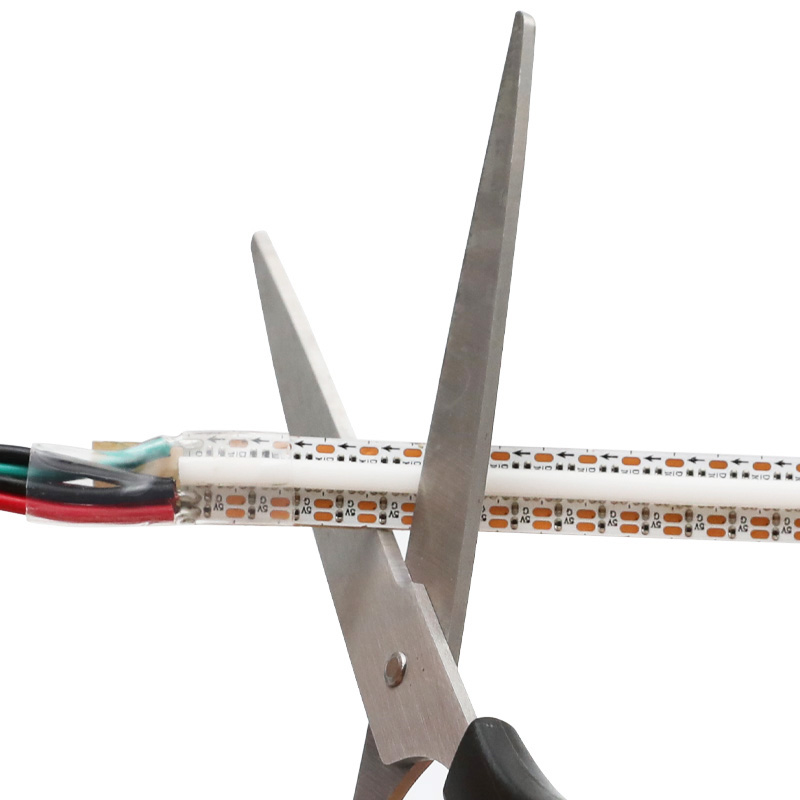

3. Short cutting distance, every 5mm/0.19” is an independent cutting unit, black lines marked on the board to help cutting.

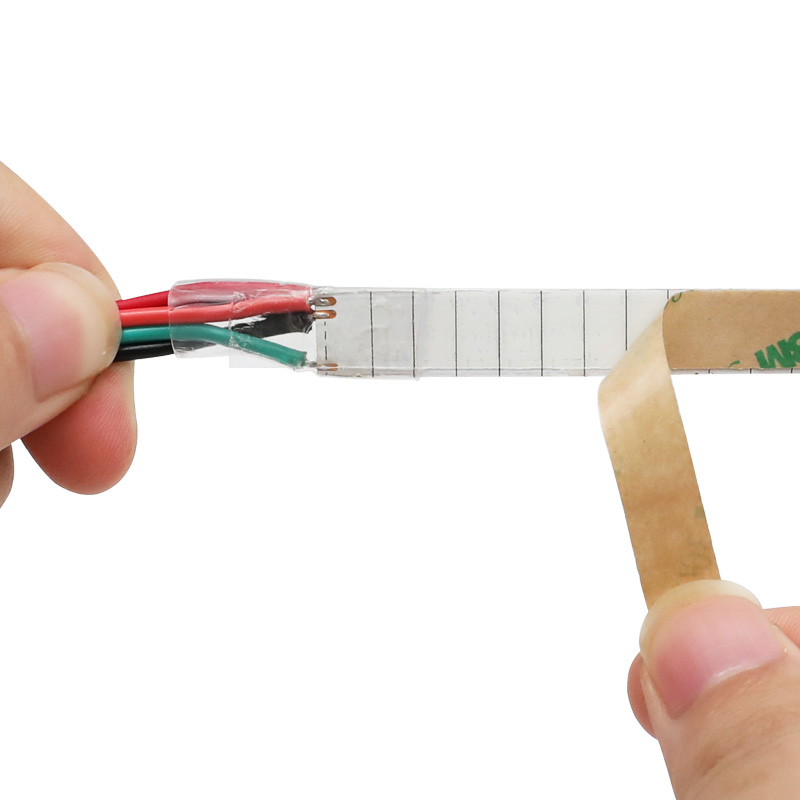

4. Adhesive backing for easy installation, multiple waterproof ratings for selection.
Product Specification
| LED Strip Type: | 5V Programmable RGBIC COB LED Strip Light |
| LED Chip: | COB + WS2812C |
| Input Voltage: | DC 5V |
| Power: | 12W/m, 60W/16.4ft |

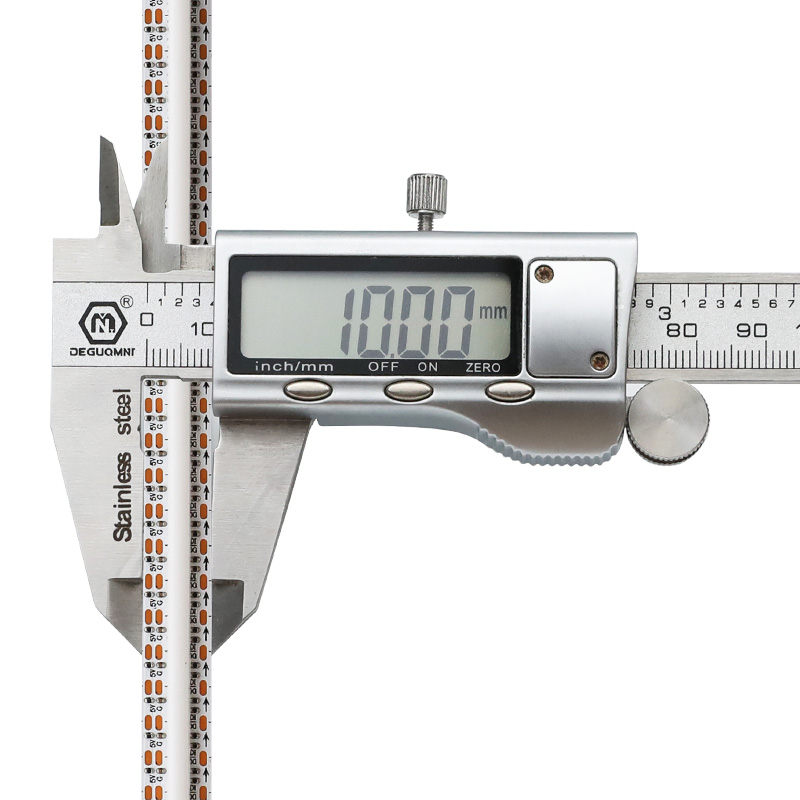

| Size: | 10mm/0.4" Wide, 3.2mm/ 0.12" High |
| LED Quantity: | 400 chips per meter, 2000 chips per roll |
| IC Quantity: | 200 pixels per meter, 1000 pixels per roll |

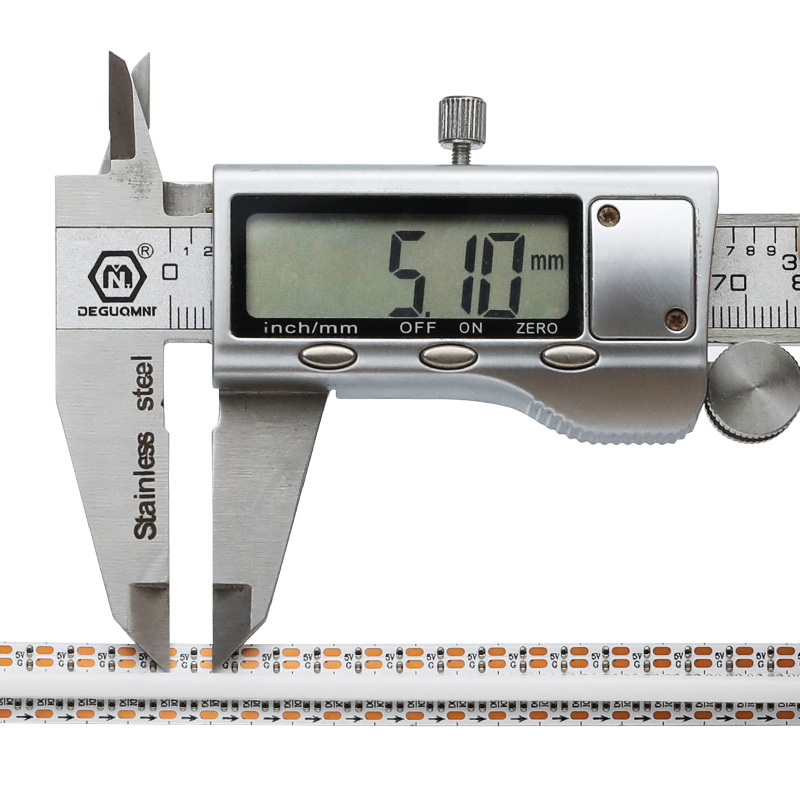

| Cut Unit: | 5mm/0.19" |
| Strip Length: | 5m/16.4ft (3.2mm height) |
| Waterproof Rating: | Non-waterproof IP20 / Outdoor Waterproof IP67/ Underwater IP68 |
| Lumen: | 1000 lumens/m |
| Beam Angle: | 180° |
| Working Temperature: | -20℃~+50℃ |
| Lumen: | 556lm/m |
| Lifespan: | 50,000+ hours |
Wiring Diagram - How To Wire WS2812 COB RGB LED Strip Light?
This pixel WS2812 COB RGBIC led strip needs an SPI controller and a 5V led power supply to work, the wiring is like the below image.
If you choose the kit products, we will send you 1pcs 5m/16.4ft 5V WS2812 COB RGBIC LED Strip Light, 1pcs SP530E Mini LED SPI Controller, and 1pcs Meanwell LRS-100-5 led power supply.
