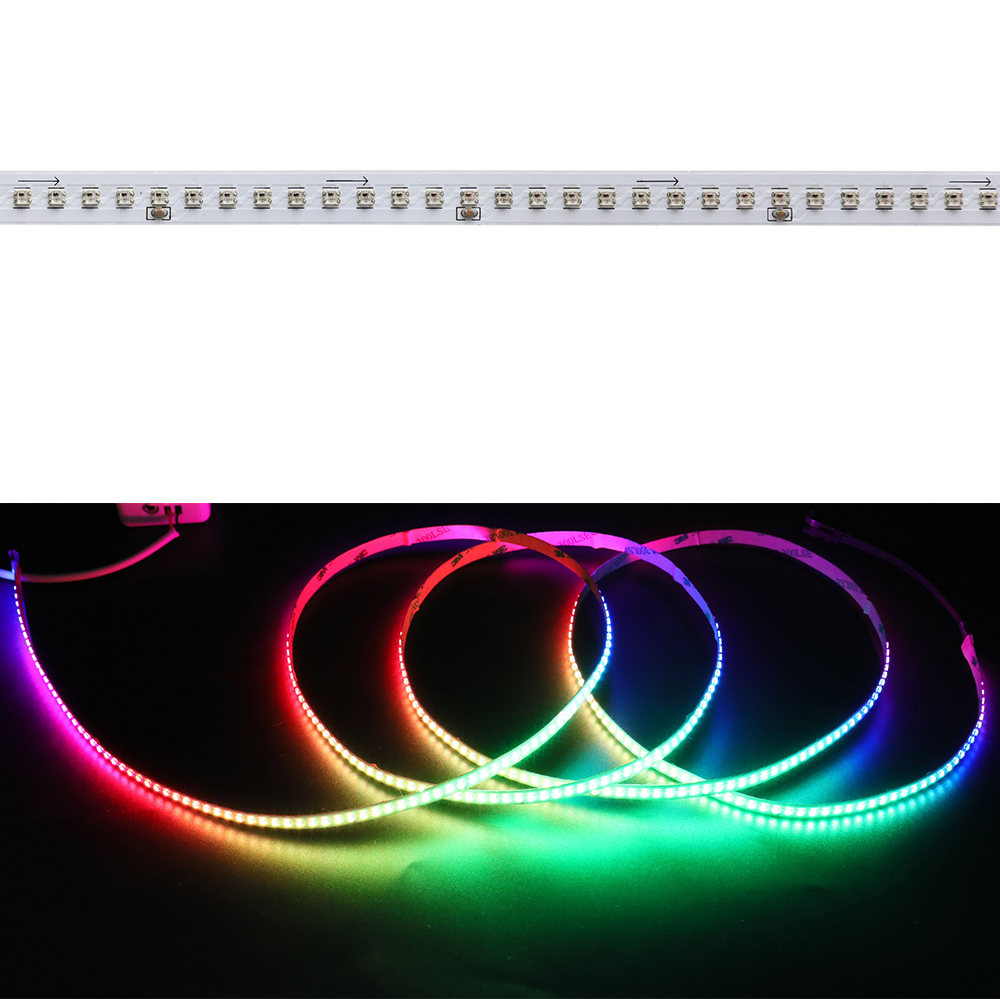

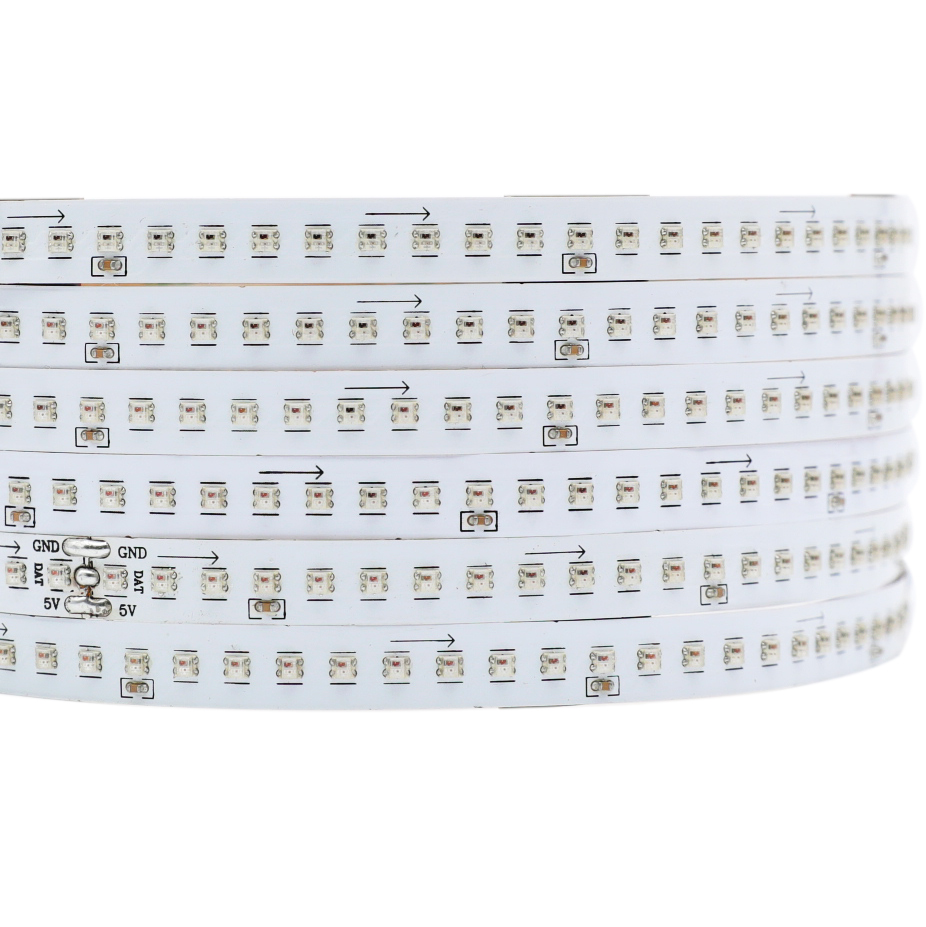

DC5V WS2812C SMD2020 8MM 198LEDs/m Ultra Density Individually Addressable Dream Color Programmable LED Strip Light, 3.28ft/1m per roll by sales
The addressable light strip uses a high-safety DC5V power supply. According to the length of the strip light you choose, we will provide you with a variety of options. You can visit our MeanWell UL certified 5V professional lighting power supply and Waterproof 5V power supply. Our LED light source uses imported chips, which have the advantages of high brightness, low light decay, maintenance-free, energy-saving and environmental protection, and long life.
WS2812 addressable light strips have a data line and characteristics of programmable, suitable for ordinary household lighting, and bring great convenience to users. The light strip is 198LEDs / M ultra-dense high-brightness SMD2020 LED, using FPC as the assembly circuit board, and using SMD LEDs and original parts for assembly. It can be used in a small space environment, if you want to fit in it or not For a waterproof environment, you can choose our customized IP67 waterproof light strips. Built-in IC design, high expectations, neat and beautiful appearance, suitable for advertising, lighting decoration.
Using high-quality chips, the light source brightness is high, the angle is large, the colour brightness is highly consistent, and the performance is stable;

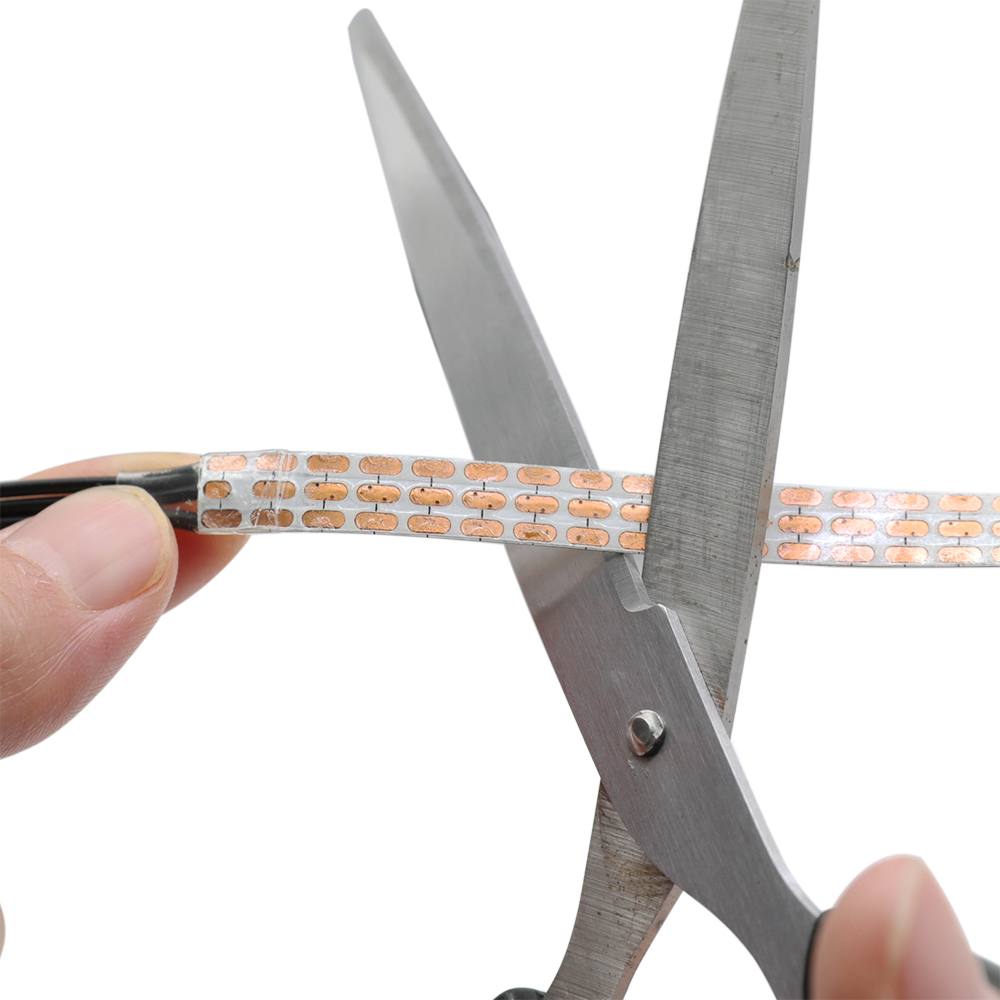

Each LED light forms a loop, which can be cut at the loop according to the required length without damaging other parts;
Easy to install and fix, flexible and convenient to cut to make the construction operation simple, ultra-thin design, low-temperature light source, make the product selection and matching of auxiliary materials more flexible during the installation process;
Energy-saving, high brightness, low heat, low energy consumption, no pollution, beautiful appearance, etc.;
Using DC5V power supply, it is safer to use;
Waterproof grade is optional: non-waterproof (IP20), casing (IP67),
Small size, multiple colours (, no radiation, high shock resistance, is a new generation of green environmental protection high-tech products;
►Everything you need to know before you buying led strip lights
►What you need to know about addressable led strips knowledge
Standards and Certifications
Product Name: WS2812C 198LEDs/m Dream Color LED Strip Light
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Working Voltage: DC5V;
Power: 59.4W /m;
Light Source: SMD 2020 LED;
PCB Color: White

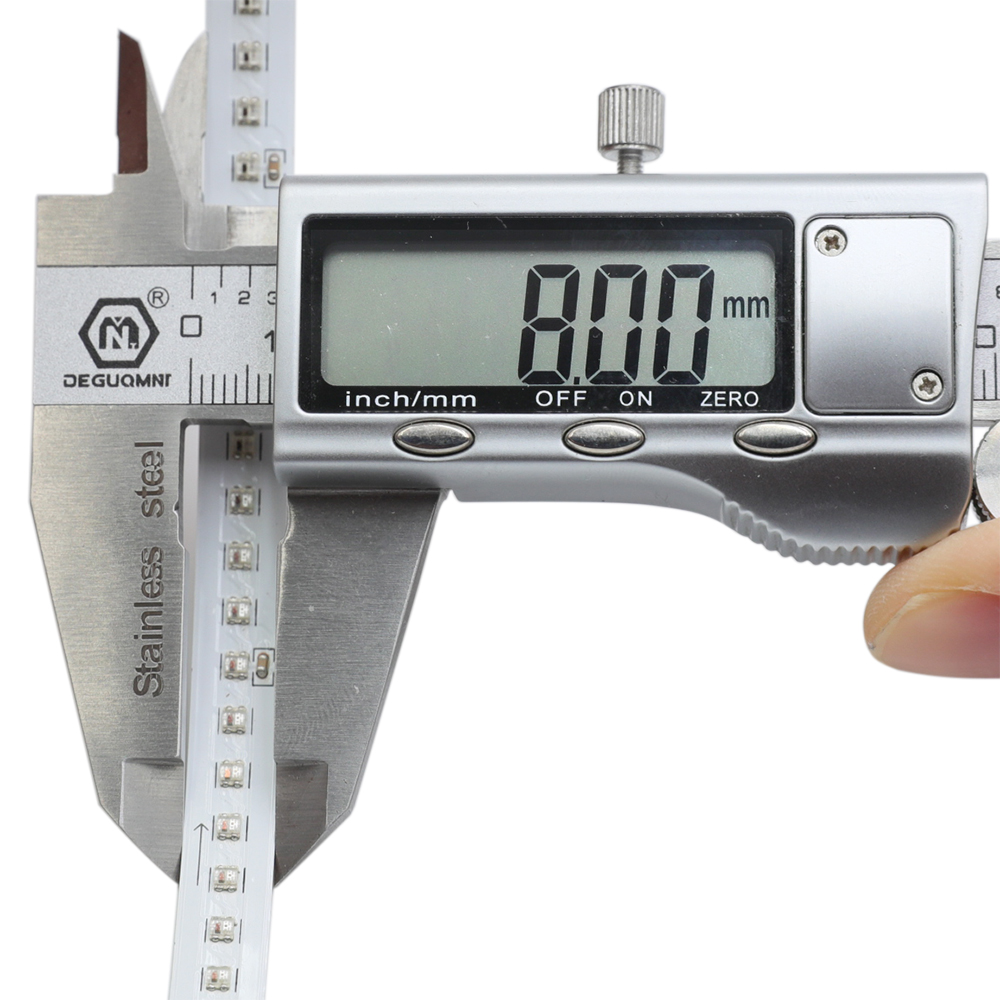

PCB Width: 8mm
IC Model: WS2812C(built-in IC)
Pixel Quantity: 198CS/M;(individual addressable)
LED Quantity: 198LEDs/M, optional
Gray Level: 256 levels;
Beam Angle: 120°;
Waterproof Rating: IP20/IP67

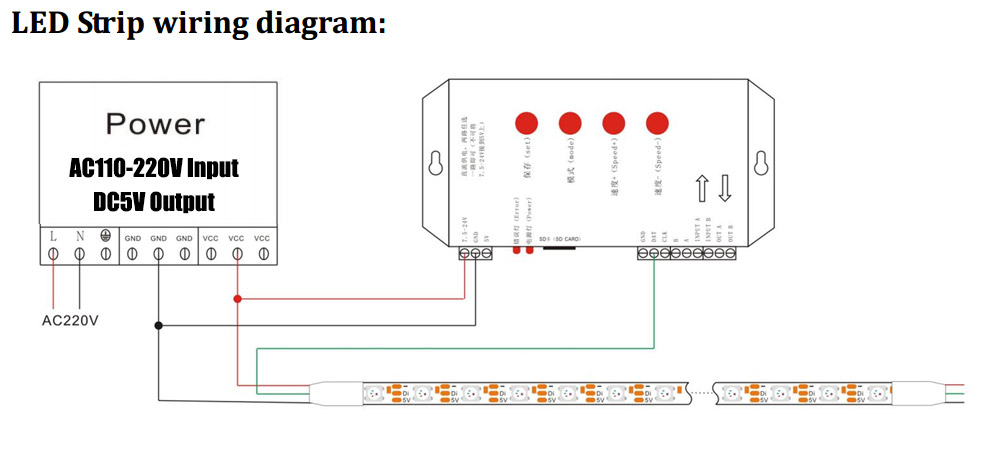

Addressable LED Strip Lights Wiring Diagram
|►Connection method one:|
*SPI LED Strip lights wiring diagram with 5m*
|►Connection method two:|
*SPI LED Strip lights wiring diagram with 10m*
|►How to connect the 3-pin JST connector to the Breakpoint Resume LED strips?|
|►How to power addressable LED strip and SPI controller using different voltage power supply?|
|►How to wire a ultra long addressable led strip lighting?|
*SPI LED Strip lights wiring diagram with 20m+*
1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when the product is working;
6) Installation, repair, and maintenance must be made by a professional Person;
7) Before you use them make sure the power supply voltage meetss the requirements and wire connection correctly.
Urban outline lighting, such as villas, advertising walls, signboards, Christmas landscape decoration;
Irregular design decoration, such as multi-deformable walls in shopping malls, hotels, nightclubs, KTV places, and ceiling groove design lights;
Public lighting, such as hospitals, villas, bridges, parks, stadiums, swimming pools, airports, subway stations, stations, etc.;
Furnishing concealed grooves, such as door frames, bar counters, wine cabinets, wardrobes, TV cabinets, etc.;
Car beauty, such as car body, car bottom, unicycle, balance car, etc.;
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
