HC100 DC5-24V LED Upgraded SPI Symphony Controller, LED RF Remote Control Dimmer
Working Temperature: -40-60℃
Power Supply Voltage: single-phase (AC85-260V), three-phase
Power Supply: single-phase, three-phase four-wire

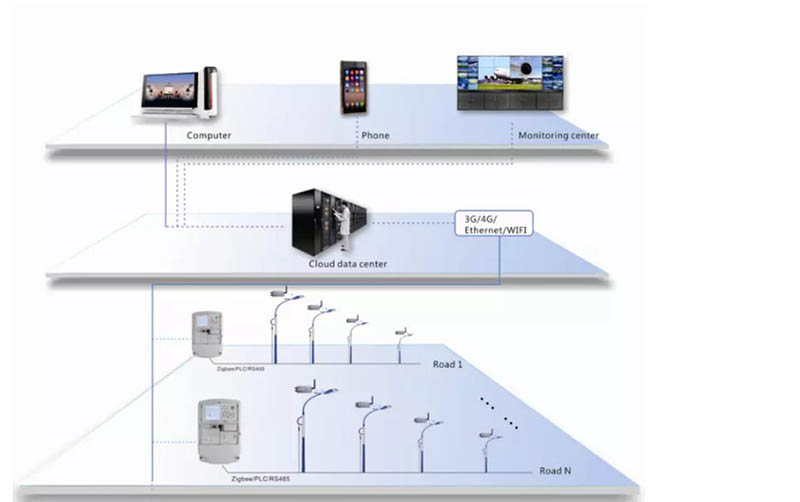

Communication Method: GPRS, WIFI, Ethernet communication with the server;
Wireless Frequency Band: 2.4G
Static Power Consumption: 3.5W
Loop Load: 1～8 loop/5A (intermediate relay, the load must be used with AC contactor)
Communication Interface: GPRS, RJ-NET, 485, USB bus optional
Lightning Protection Level: anti-surge 6000V single-phase
Sensor Access: rain and snow, light, traffic flow, temperature
Acquisition Parameters: voltage, current, power, frequency, temperature
Antenna Gain: 5DB
Antenna Interface: SMA male
SIM Card Voltage: 3V, 1.8V
Net Weight: 1900g
Gross Weight: 2470g
Dimensions: L289*W95*H180 mm
Packing Size: L335*W145*H270mm

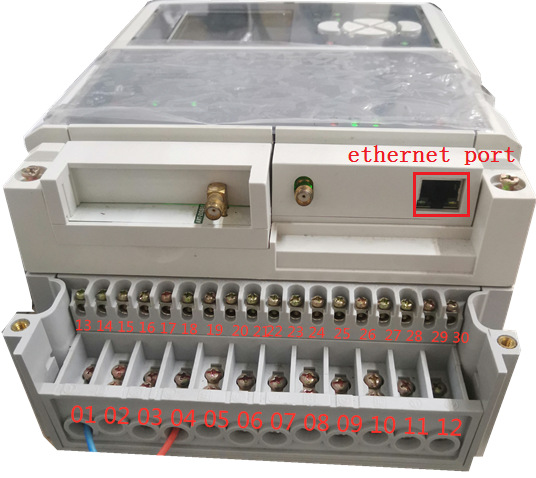

Ethernet Port is a network port

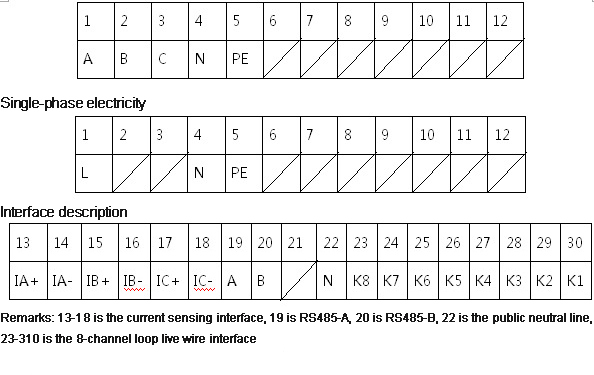

Input interface description
