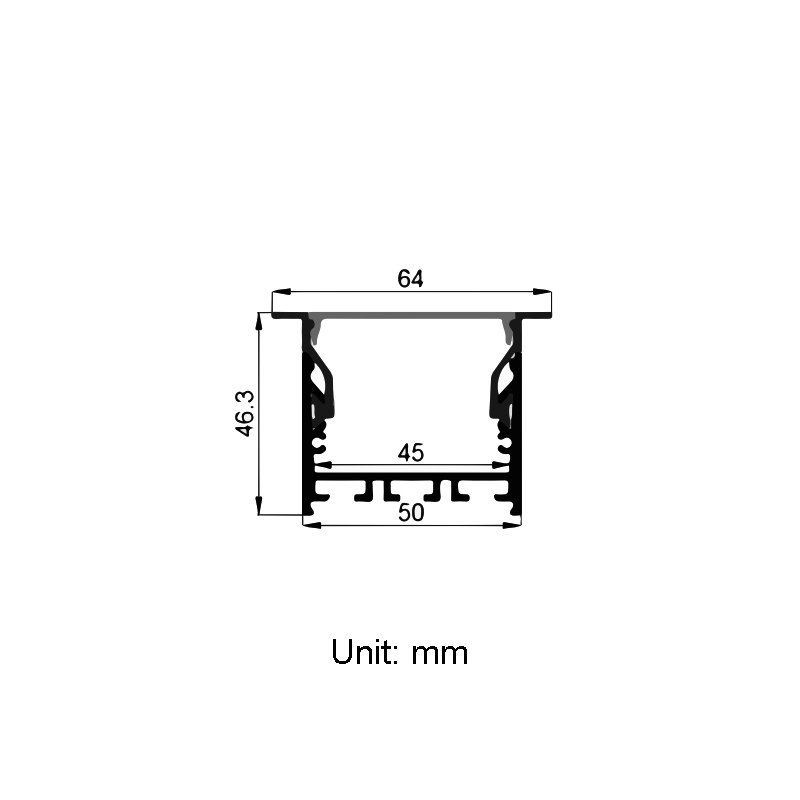

Recessed Aluminum LED Profile Light Diffuser For LED Strip Lights - Inner Width 45mm

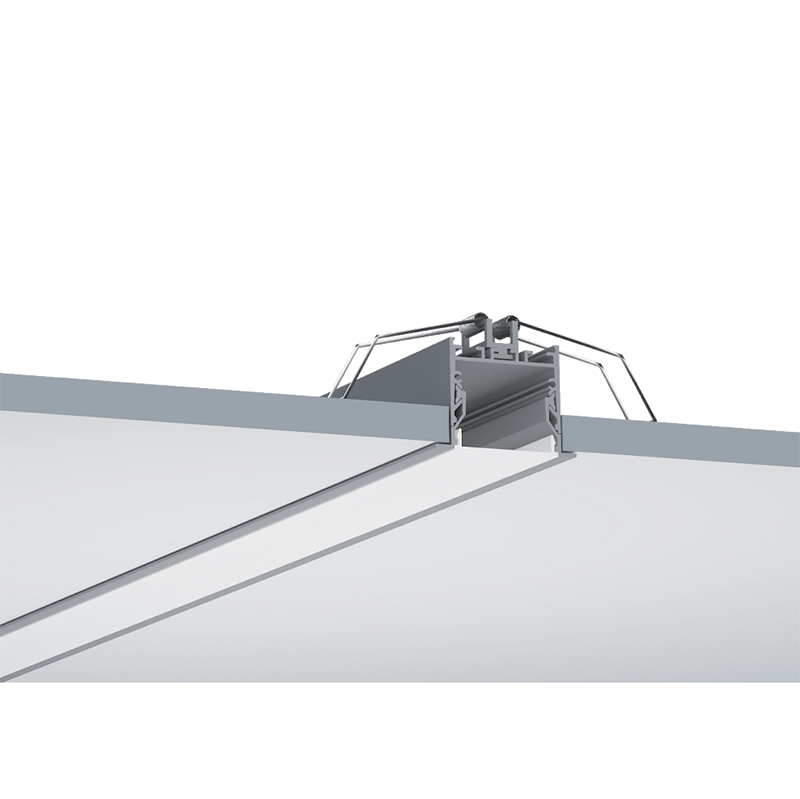

With 45mm/1.77in inner width, this recessed aluminum led profile is made of 6063-T5 high-quality aluminum alloy and provides additional heatsinking and mechanical protection for the 3528 led light strip. Comes with a led diffuser, end caps, and 8cm spring clips, the recessed-mounted aluminum led diffuser channel can be mounted in walls with a flat surface, perfect for your residential and commercial linear lighting LED projects. PC led light diffuser covers make the led lighting more uniform and soft, including PC opal microprism diffuser, PC clear microprism diffuser, and PC semi-clear diffuser. We also provide silver, white, and black aluminum channels to meet your decoration style.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|

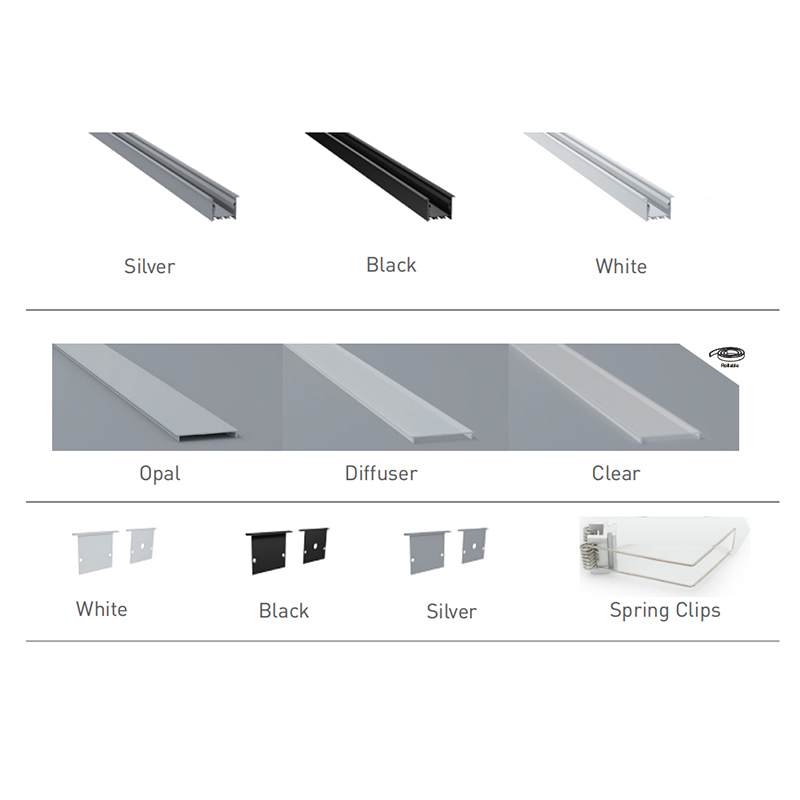

|Aluminum Color||Silver /White /Black|
|LED Diffuser||PC opal microprism diffuser /PC clear microprism diffuser / PC semi-clear diffuser|
|Accessory||End cap without hole, end cap with wire hole, 8cm spring clips|
|Apply to||5050/3014/2110/2216/5630/5730/COB/CCT flexible led strip lights|
Applications - Ultimate Guide to LED Aluminum Channel
Residential lighting: wardrobe, cabinet, kitchen, furniture, etc.
Commercial lighting: office/supermarket/shopping Mall
Stores shelf LED lighting
Heat sink and physical protection to the LEDs
Interior light design (stairs / storage / floor)
Exhibition boot LED lighting
Backlight or supplementary lighting
