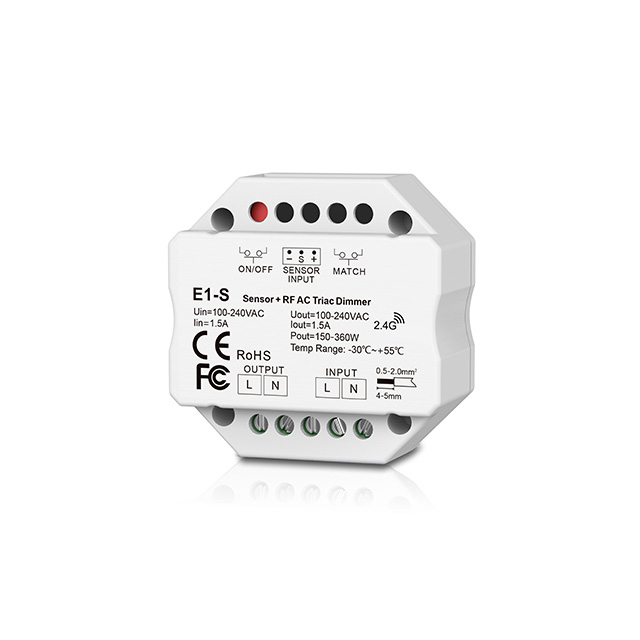

E1-S 1.5A High Voltage Triac Sensor Dimmable LED Controller - RF Smart Switch

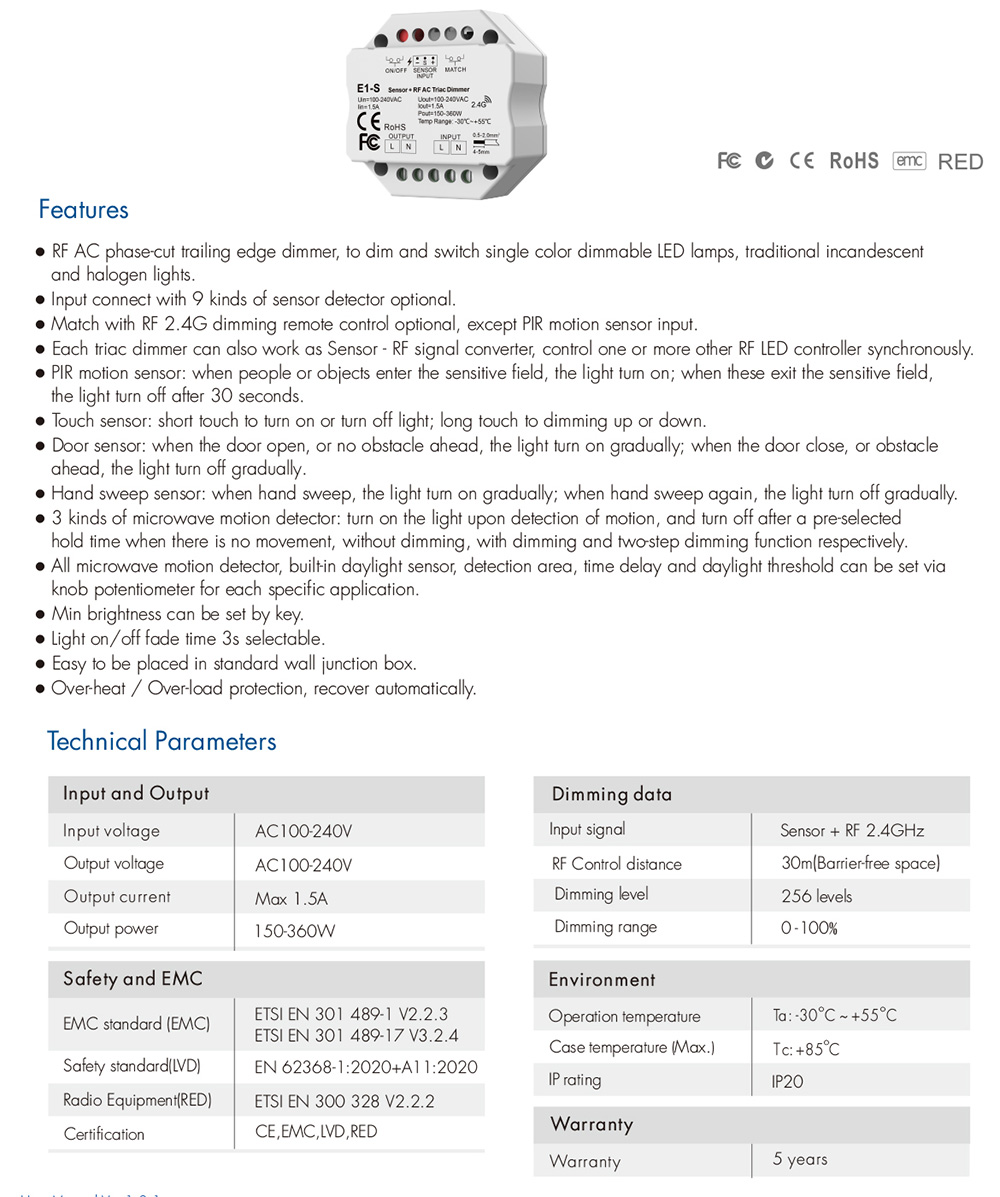

● RF AC phase-cut trailing edge dimmer, to dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
● Input connect with 9 kinds of sensor detector optional.
● Match with RF 2.4G dimming remote control optional, except PIR motion sensor input.
● Each Triac dimmer can also work as Sensor - RF signal converter, controlling one or more another RF LED controller synchronously.

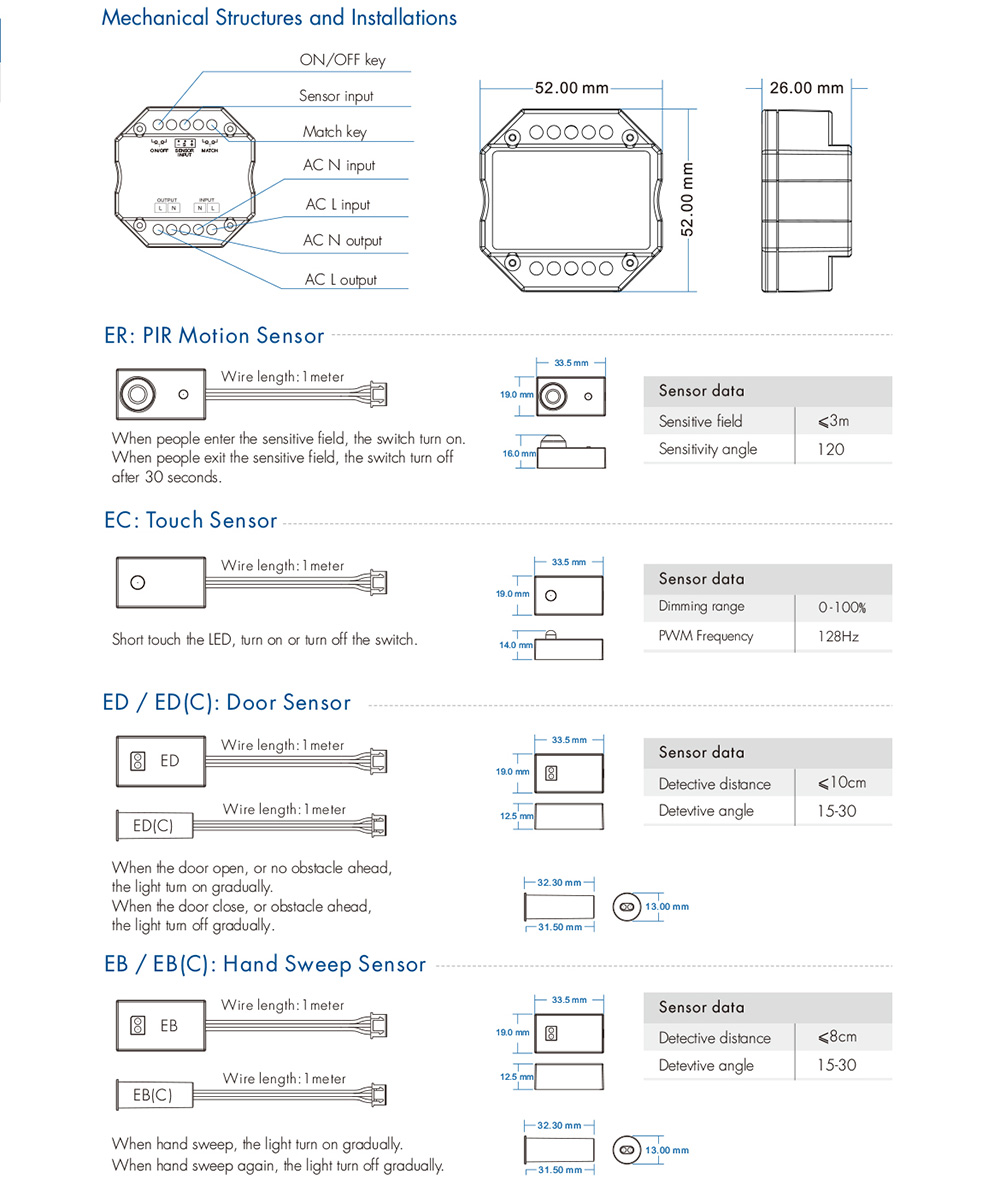

● PIR motion sensor: when people or objects enter the sensitive field, the light turns on; when this exit the sensitive field, the light turns off after 30 seconds.
● Touch sensor: short touch to turn on or turn off light; long touch to dim up or down.
● Door sensor: when the door opens, or no obstacle ahead, the light turn on gradually; when the door close, or obstacle ahead, the light turns off gradually.
● Hand sweep sensor: when hand sweep, the light turn on gradually; when hand sweep again, the light turns off gradually.

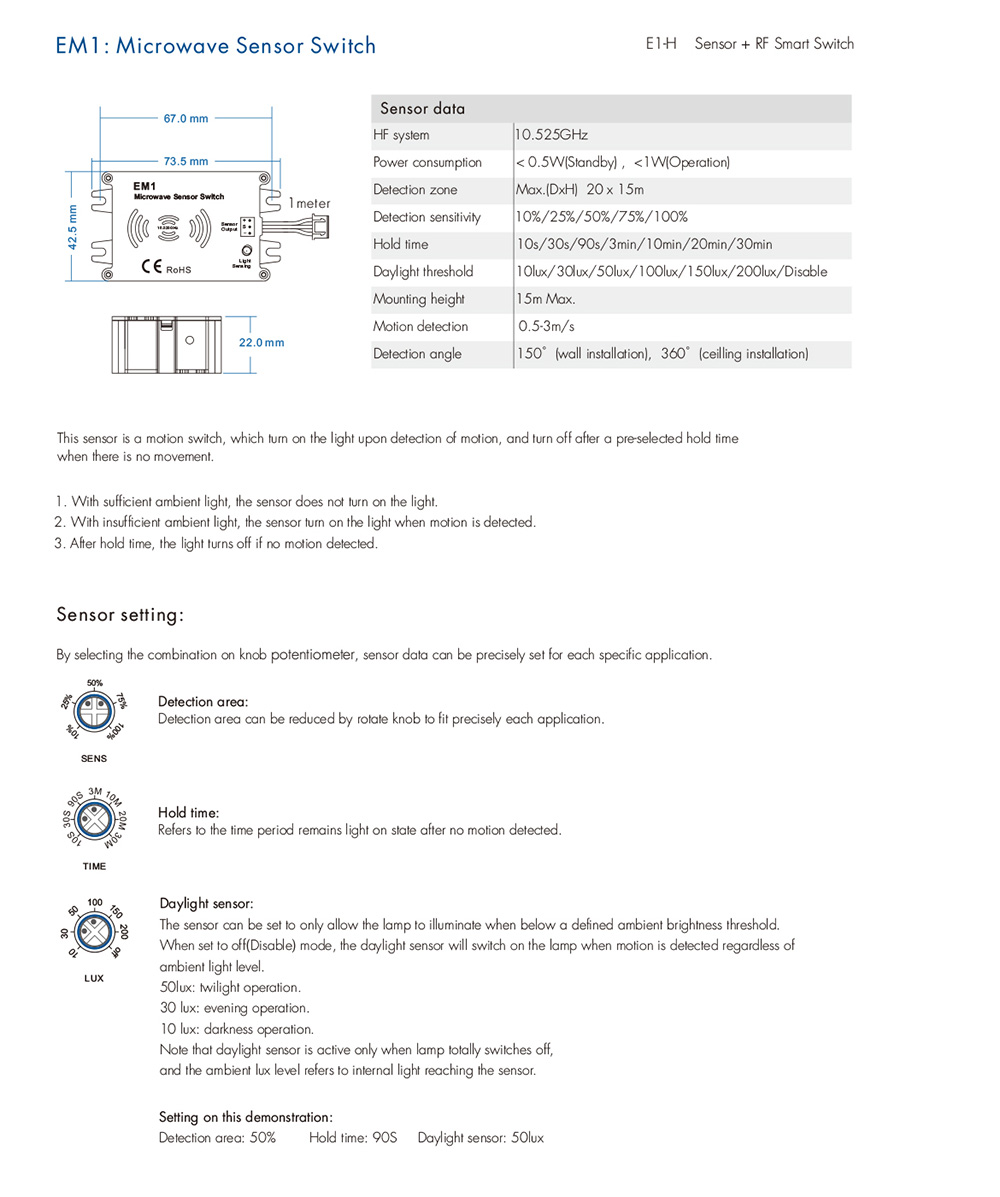

● 3 kinds of microwave motion detector: turn on the light upon detection of motion, and turn off after a pre-selected hold time when there is no movement, without dimming, with dimming and two-step dimming function respectively.
● All microwave motion detectors, built-in daylight sensors, detection area, time delay,s and daylight thresholds can be set via knob potentiometer for each specific application.
● Min brightness can be set by key.
● Light on/off fade time 3s selectable.
● Easy to be placed in a standard wall junction box.
● Over-heat / Over-load protection, recover automatically.
Input and Output
Input Voltage: AC100-240V
Output Voltage: AC100-240V
Output Power: 150-360W
Input Signal: Sensor + RF 2.4GHz
Input Current: Max 1.5A
RF Control Distance: 30m
Warranty and Protection
Warranty: 5 years
Operation Temperature Ta: -30℃~+55℃
Case temperature (Max.): Tc: +85℃
IP Rating: IP20
Safety and EMCW
EMC Standard (EMC): ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4
Safety Standard(LVD): EN 62368-1:2020+A11:2020
Warranty: 5 years
Standards and Certifications
