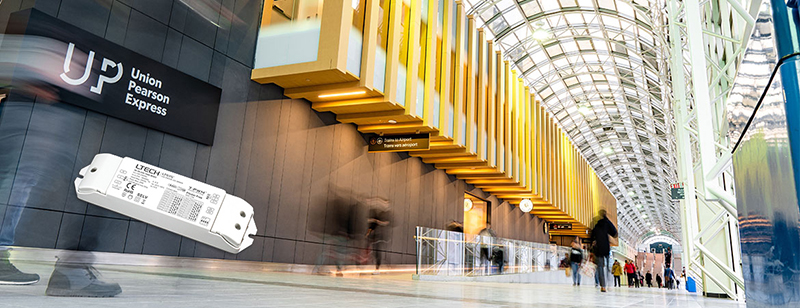

SE-20-250-1000-W2D2 DC9-54V 20W 250-1000mA DT8 CT Driver

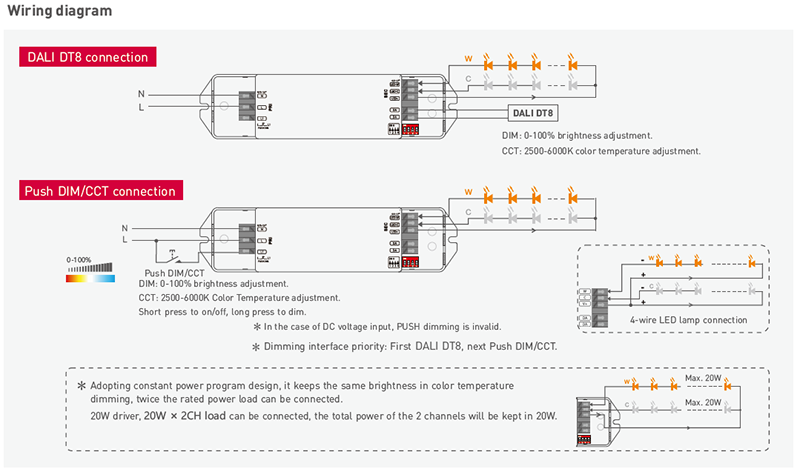

Dimming interface: DALI DT8, Push DIM
T-PWM digital dimming,present a perfect visual experience.
Dimming range: 0~100%, LED start at 0.1% possible.
DALI DT8 CT adjustment driver.
0-100% flicker-free,High frequency exemption level.
Innovative thermal management technology, intelligent power
Over temp. / Over voltage / Over load / Short circuit protection,
In line with the EU energy efficiency ERP directive,
standby power consumption < 0.5W.
DALI bus standard: IEC62386-101,102, 209.
Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
Up to 50000-hour life time.
5 years warranty (Rubycon capacitor).
Dimming interface: DALI DT8, Push DIM
Input voltage: 100-240Vac (120-300Vdc)
Input current: 115Vac≤0.25A, 230Vac≤0.13A
Output current: 250-1000mA
Output power: Max. 20W
Power factor: PF>0.95/115Vac , PF>0.90/230Vac, at full load
Standby power loss: <0.5W
Leakage current: <0.24mA/230Vac
Output voltage: DC9-54V
Max output voltage: DC59V
Dimming range: 0~100%, 0.1% dimming depth
LF current ripple(<120Hz): <1%
Current accuracy: ±5%
PWM dimming frequency: ≤3600Hz
Working temperature: ta: -20 ~ 50°C tc: 75°C
Working humidity: 20 ~ 95%RH, non-condensing
Storage temp., humidity: -40 ~ 80°C, 10~95%RH
Temp. coefficient: ±0.03%/°C(0-50°C)
