Product Information
Engineered for durability, this 16.4ft strip is encased in a protective silicone sleeve, achieving an IP67 or IP68 rating for robust outdoor performance. With 300 reliable 335SMD LEDs and a choice of white color temperatures, you can achieve the precise ambiance for any architectural or decorative project, indoors or out.
IP20 and IP65 versions, and colorful lights are also available.
Key Features

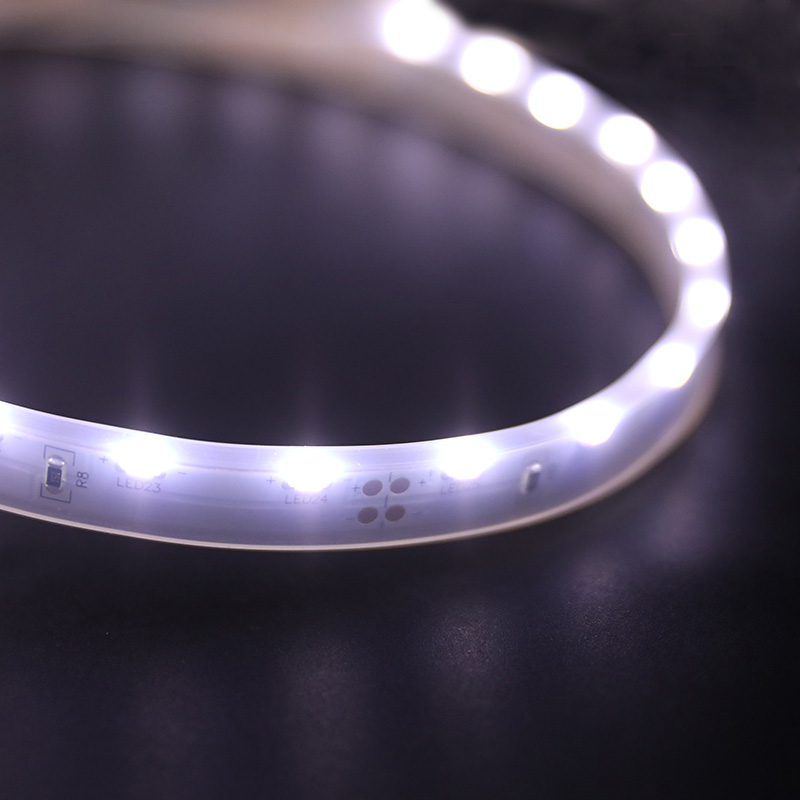

Unique Side-Emitting Design
LEDs shine parallel to the circuit board, ideal for edge-lighting, sign-making, and creating subtle, indirect accent lighting.
Robust Weatherproofing
Features a durable silicone tube for IP67 water resistance, perfect for outdoor applications. An optional fully submersible IP68 version is also available.
Versatile White Color Options
Available in five distinct shades of white, from cozy Warm White (3000K) to crisp Cool White (10000K), to match any environment.
Flexible & Customizable

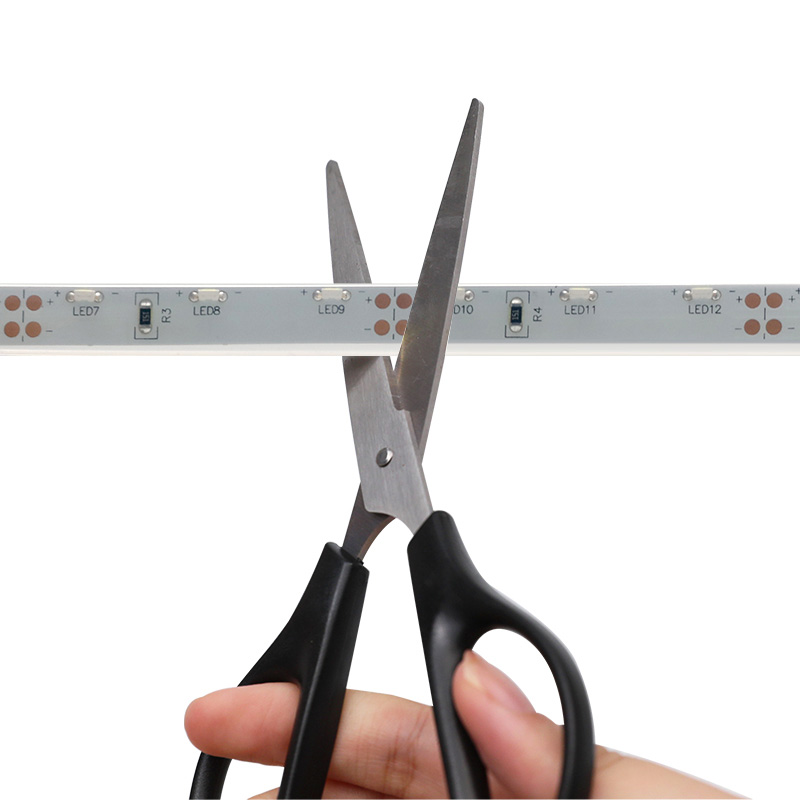

The 16.4ft (5m) strip can be cut every 3 LEDs, allowing you to customize the length for your specific project needs.
Efficient & Bright 335 LEDs
Equipped with 300 high-quality 335 SMD LEDs (60/meter) that offer a great balance of brightness and energy efficiency on a safe DC12V system.
Waterproofing Options
-
Outdoor IP67:
A transparent silicone tube encases the strip, protecting it from dust and water jets. Mounting clips are available for extra security. -
Underwater IP68:
The strip is fully encapsulated in solid silicone, making it completely dust-tight and suitable for continuous submersion in water.
Product Specifications
| Parameter | Details |
|---|---|
| Model | FSLSR-IP67-335X300 |
| Input Voltage | DC 12V |
| Power Consumption | 24W / 16.4ft (5m) Max |
| LED Type | SMD 335 |
| LED Quantity | 300 LEDs / 16.4ft (60 LEDs/m) |
| Light Emission Angle | Side View |
| Luminous Flux | Approx. 6-7 lm per LED |
| Available Colors | Warm White, Natural White, Daylight White, Cool White |
| Color Temperatures (CCT) | 3000K, 4000K, 6000K, 7000K, 9000K-10000K |
| CRI (Ra) | >82 |
| Waterproof Rating | IP67 Silicone Tube / IP68 Silicone Injection (Selectable) |
| Strip Length | 16.4ft (5 meters) |

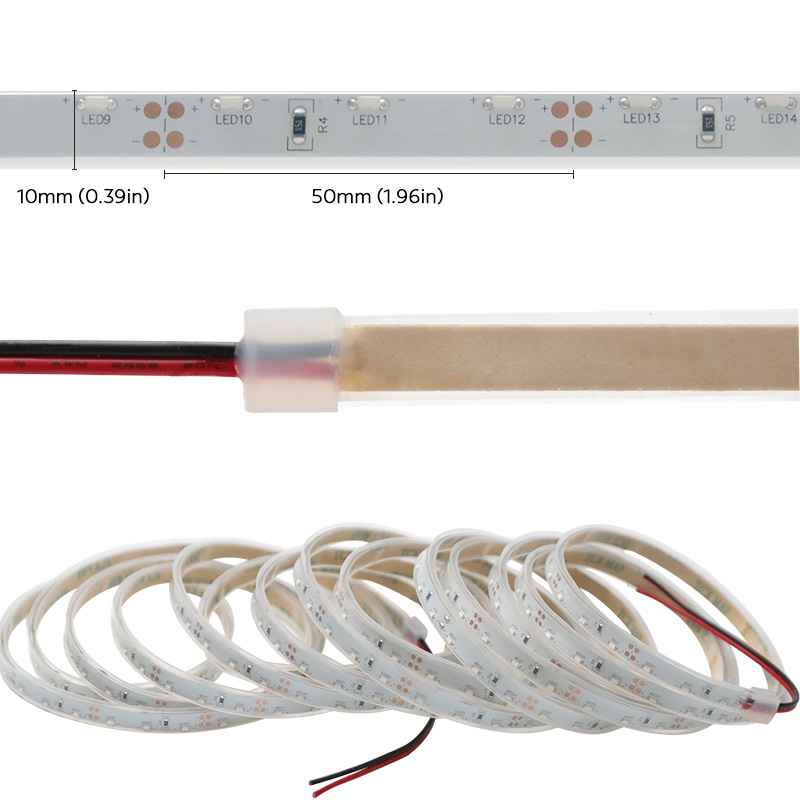

| Strip Width | 10mm (0.39 in) |
| Strip Height | 5mm (0.2 in) |
| Cutting Increments | Every 3 LEDs |
| Dimmable | Yes, with a compatible dimmer |
| Lifespan | 50,000+ hours |
| Warranty | 2 Years |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
Application Scenarios
How to Install & Use This LED Strip
- Ensure the installation surface is clean, dry, and free of dust or oils.
- Measure and cut the strip at the designated cut marks (every 3 LEDs) if a shorter length is needed.
- If using waterproof connectors, attach them now. Otherwise, carefully solder wires to the copper pads.
- Connect the strip to a compatible DC12V power supply. If you wish to dim the lights, connect a single color dimmer between the power supply and the strip.
- Peel the protective layer off the adhesive backing and firmly press the strip onto the surface. Use the mounting clips for added security, especially in outdoor or overhead installations.
- Turn on the power to test the lights.
- Always use a regulated DC12V power supply with a wattage rating at least 20% higher than the strip's total power consumption (24W).
- Do not bend the strip to a sharp angle, as this can damage the circuit.
- While the strip is waterproof, the connection points and power supply must also be properly protected from moisture if used outdoors.
- For runs longer than 16.4ft, power must be supplied from both ends to avoid voltage drop and ensure even brightness.
What's in the Box
- ✓1 x 16.4ft (5m) Side Emitting 335SMD 300LEDs Flexible LED Strip Light
Frequently Asked Questions
Q: What is the main advantage of a side-emitting LED strip?
A:Side-emitting strips project light from their edge (at a 90-degree angle), making them perfect for illuminating thin edges, creating hidden halo effects, and lighting surfaces from the side instead of from above.
Q: What is the difference between the IP67 and IP68 options?
A:IP67 is water-resistant, protected against dust and water jets, making it ideal for most outdoor applications. IP68 is fully waterproof and can be continuously submerged, suitable for pools, ponds, and underwater features.
Q: What kind of power supply do I need for one 16.4ft reel?
A:You will need a DC12V power supply that can provide at least 24 watts. We recommend a 12V 3A (36W) or higher power supply to ensure stable performance.
Q: Can I use this LED strip on my car or boat?
A:Yes, its DC12V input makes it compatible with most automotive and marine electrical systems. Ensure all connections are secure and waterproofed for marine environments.
Q: How do I choose the right white color temperature?
A:Choose 3000K Warm White for a cozy, inviting atmosphere. 4000K Natural White is neutral and good for general tasks. 6000K Daylight White and higher are cool, blue-toned whites best for task lighting and creating a modern, energetic feel.
Q: Is the adhesive tape strong enough for outdoor use?
A:The strip comes with strong double-sided adhesive tape suitable for many surfaces. For long-term outdoor installations, especially on porous or uneven surfaces, we highly recommend using the mounting clips for a secure hold.
