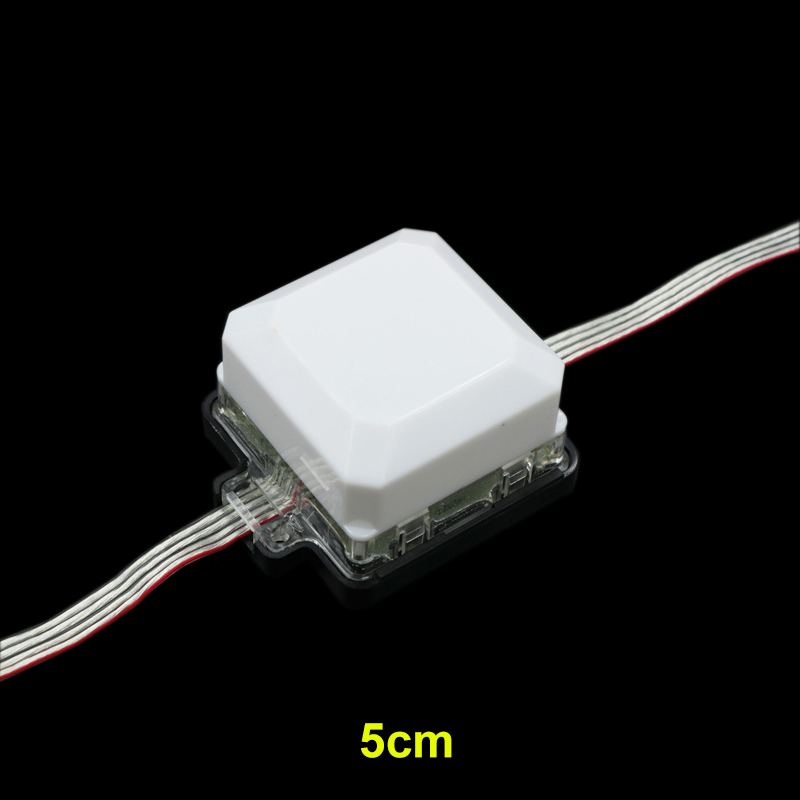

DC5V/12V WS2811 lumineuse luces Outdoor Waterproof 12mm Full Color Digital Diffused Individually Addressable RGB Christmas LED Pixel Modules String Lights
This is Full-color 5V/12V DC Super Bright High-Efficiency SMD5050 WS2811 IC LED Pixel Modules. 1LEDs per piece, 0.3W per piece, 50pcs per string.
Our LED modules adopt TOP SMD5050 LED light source, these pixels use a WS2811 chip for full 24-bit color, constant-current driven light spot, low light decrease, and good consistency. 160 degree wide viewing separable flexible strip to be bent into any shape. Narrow injection molded PVC design has two 4mm/0.15" mounting holes and with double-sided adhesive foam tape for quick installation. single module can be cut, so you could cut a different length for your project and request. 20AWG 3pin cable, Red cable to connect 12v Positive / +, Green cable to connect Data Signal, Yellow cable to connect Clk Signal, Blue cable to connect 12v Negative /-, over-current capability, lower attenuation. The shell is made of the injection molding process, aesthetic appearance, unique and excellent, aluminum PCB, good heat dissipation, heat dissipation. The LED strips Suitable for the commercial lighting as well as lighting professionals, Waterproof IP65, Suitable for both indoor & outdoor decorative application. 12VDC low voltage input operation, Low power consumption, high brightness, long lifespan, maintenance-free, safe and reliable. Quantity ordered will be wired together on a string with 50 modules maximum per strand.
Working with WS2811 full controller can download the programs in SD card, control Max 2048 Pixel, It has a single color running scene. 5V/12V DC power supply Link.
The differences between WS2801 and WS2811 led modules
WS2811: 3 wires, (V+,DATA,GND/V-),DC12V,SMD5050,0.96W/PCS, use WS2811 IC, the controller do not need to supply power separately.
WS2801: 4 wires, (V+,DATA,CLOCK,GND/V-),DC12V,SMD5050,0.96W/PCS, use WS2801 IC, the controller and modules need to supply power seperately.
On the whole, their appearance, material, weight, brightness, power, function, waterproof rating are the same, Just IC and wire number are different.
WS2811 suitable for general lighting projects, such as luminous characters, signs lighting, high CPU occupancy, cheap price
WS2801 suitable for large-scale lighting projects, such as architectural lighting, led screen, Can cascade, low CPU occupancy, Expensive than WS2811
Standards and Certifications
LED Module Type: Full Color 5050 LED Pixel Module
IC type: WS2811(high mode)
LED quantity: SMD5050 4pcs
Working Temperature: -4°F (-20°C) ~ 149°F (65°C)
Number of lights: 50pcs per string
Standards And Certifications: CE/FCC/ISA Approved/ROHS
Red Wiring colors: 5v/12V DC Positive / +
Green Wiring colors: Data Signal
Black Wiring colors: 5v/12V DCNegative /-
Wire Length: 75mm(2.95in)
Dimensions: L35mm(1.38") x W35mm(1.38") x H5mm(0.20")
Input Voltage(V): DC5V/12V
Working Current: 80mA / piece
Output power: 0.3W / piece
Grey scale: 256 levels
Wavelength: R 470 nm/G 520 nm/B 620 nm
Lumen: 7 Lumen
Warantty: 3 years
Beam Pattern: 160 degree
MCD Per Foot: 6500 mcd/ft
With Controller: Full Controller T-1000S/T-4000/T-8000
three-dimensional light-emitting word
Channel letters lighting
Landscape layout lighting
Stage decoration lighting
Cove LED lighting
