What makes this strip IP67 waterproof?

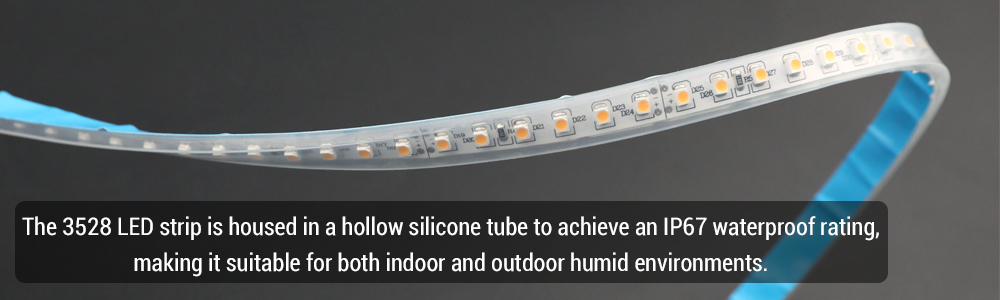

The LED strip is fully encased in a durable, hollow silicone tube, which protects it from dust and temporary water immersion up to 1 meter.

Can I cut this strip and will it still be waterproof?

Yes, you can cut the strip at the designated marks. However, to maintain the IP67 rating, you must seal the cut end with an appropriate end cap and silicone adhesive.

Will I see individual LED dots?

With a high density of 120 LEDs per meter, this strip provides a very smooth and continuous line of light, minimizing the 'dotted' effect common in lower-density strips.

What are the dimensions of the end cap? I need to fit it in a channel.

The strip's silicone tube is 10mm wide, but the end cap where the wires exit is larger, measuring 12mm x 7mm. Please ensure your channel can accommodate this size before installation.

Single Row Series DC12/24V 3528SMD 600LEDs Flexible LED Strip Lights, Outdoor Lighting, Waterproof IP67, 16.4ft Per Reel By Sale

Name: Single Row Series DC12/24V 3528SMD 600LEDs Flexible LED Strip Lights, Outdoor Lighting, Waterproof IP67, 16.4f
Brand: SuperLightingLED
SKU: FSLSR-IP67-3528X600
Price: 18.98 GBP
Availability: InStock

Model: FSLSR-IP67-3528X600 Review stars

0.0 (0 Reviews) Various options in stock

Starting at: £34.89 £14.4059% off

Qty Discounts Off Price
1-4 £14.40	5-49 £14.11	50-99 £13.68	100+ £13.11
* Discounts may vary based on options below

Select Specifications:

Select Light Color :

Select PCB Color :

Select Operating Voltage:

Select Connector Type:

Select Length:

16.4ft (5 meters)

CRI (Only For White):

Select Installation:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

Achieve brilliant, continuous linear lighting in any environment with our FSLSR-IP67-3528X600 single-row LED strip. This 16.4ft strip is fully encased in a durable, hollow silicone tube, providing an IP67 waterproof rating that makes it perfect for outdoor architectural accents, landscape lighting, and humid indoor spaces like bathrooms and kitchens. Featuring a high density of 120 3528 SMDs per meter (600 per reel), it produces a smooth line of light for a professional finish. Customize your project with a vast selection of 12 vibrant colors, 12V or 24V operation, and high-CRI options (Ra 80+ or 90+) for superior color accuracy. This strip offers the perfect blend of robust durability and aesthetic flexibility for demanding lighting applications. The strip has wire outlets on both ends, with options for red and black bare wires, transparent waterproof wires, and transparent waterproof connectors.

Key Features

IP67 Waterproof Silicone Tube

A hollow silicone sleeve (W10mm*H4mm) encases the strip, offering robust protection against water, dust, and moisture for reliable outdoor and wet-location use. Do not submerge in water for extended periods.

High-Density Seamless Lighting

With 120 LEDs per meter, this strip creates a smooth, continuous line of light, eliminating the spotting effect seen in lower-density strips.

Flexible & Secure Installation

Mount with ease using the optional adhesive backing for flat surfaces or the included mounting brackets for added security and stability.

3528SMD 600LEDs Flexible Waterproof IP67 LED Strip

Product Specifications

Parameter	Details
Model	FSLSR-IP67-3528X600
LED Type	3528 SMD
Input Voltage	12V DC / 24V DC (Selectable)
Power Consumption	9.6 W/meter (48W / 5m reel)
LED Quantity	120 LEDs/meter (600 LEDs/reel)
Reel Length	16.4ft (5 meters)
Luminous Flux	Approx. 7-8 lm/LED
Light Colors	Yellow, Blue, Green, Amber, Ice Blue, Pink, Red, Purple, Cool White(7000K), Daylight White(6000K), Natural White(4000K), Warm White(3000K)
CRI	Ra 80+ / Ra 90+ (Selectable)
Beam Angle	120°
Waterproof Rating	IP67 (Hollow Silicone Tube)

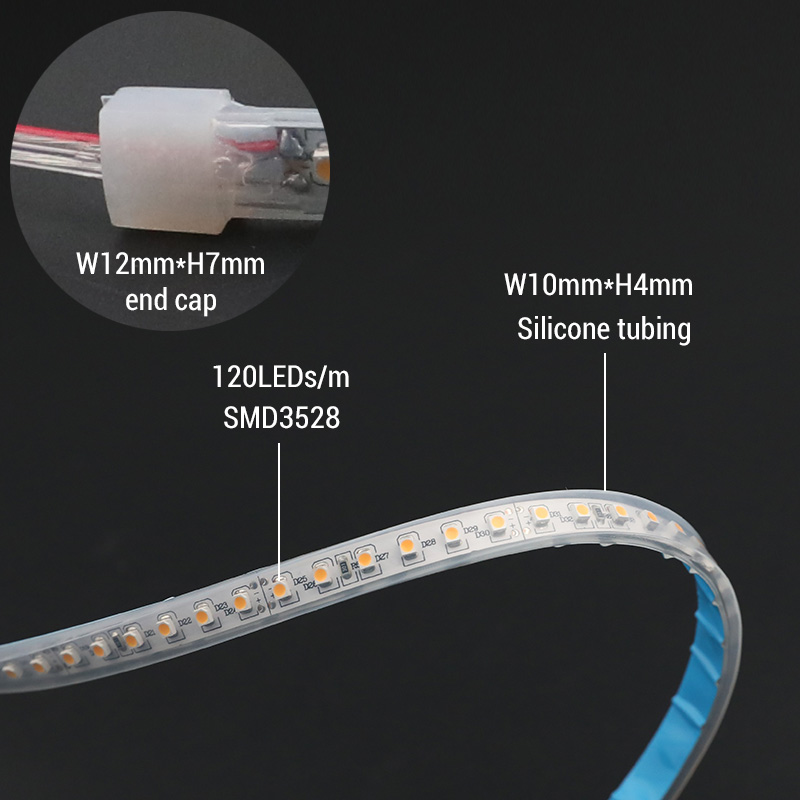

Strip Dimensions (Tube)	10mm (Width) x 4mm (Height)
End Cap Dimensions	12mm (Width) x 7mm (Height)
PCB Color	White, Black, Copper (Selectable)
Cutting Increments	Every 3 LEDs (25mm) for 12V, Every 6 LEDs (50mm) for 24V
Working Temperature	-20°C ~ 50°C (-4°F ~ 122°F)
Storage Temperature	-40°C ~ 80°C (-40°F ~ 176°F)

Application Scenarios

Outdoor Architectural & Landscape Lighting Ideal for outlining building facades, garden pathways, decks, and patios. The IP67 rating ensures long-lasting performance in rain, snow, and humidity, providing reliable outdoor accent lighting.

Bathroom & Kitchen Accent Lighting Safely install beautiful, continuous light in humid environments. Use it for backsplashes, under-cabinet task lighting, toe-kicks, and even inside shower niches for a modern, high-end feel.

Signage & Display Lighting Create bright, durable, and weather-resistant outdoor signs and displays. The high LED density and wide range of vibrant color options ensure your message stands out, day or night.

⚠ Precautions

Always use a power supply that matches the strip's voltage (12V or 24V) to avoid damage.
When installing inside an aluminum channel, verify the channel's internal space can accommodate the 12mm x 7mm end cap.
To maintain the IP67 rating after cutting, the new end MUST be properly sealed with a compatible end cap and silicone glue.

Frequently Asked Questions

Q: What is the difference between the 12V and 24V versions?

A:The 24V version allows for longer continuous runs with less voltage drop compared to the 12V version. For installations longer than 5 meters, the 24V version is recommended for more consistent brightness.

Q: What is the difference between Ra 80+ and Ra 90+ CRI?

A:CRI measures how accurately light reveals colors. Ra 90+ provides superior color rendering, making objects appear more natural and vibrant, which is ideal for retail displays or task lighting.

Q: What else do I need to power this strip?

A:You will need a 12V or 24V DC power supply (matching your strip) with enough wattage for your desired length (48W for a full 5m reel). For brightness control, you can add a compatible LED Smart Dimmers.

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for FSLSR-IP67-3528X600

PDFFSLSR-IP67-3528X600 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

What voltage does this LED strip light run on?

This model is offered in 12VDC · 24VDC. Lower voltage means a shorter run per feed: at 12 V feed power roughly every 5 m, at 24 V roughly every 10 m. Longer runs get power injected at both ends. Connecting to the power supply

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Connector options on this model: Waterproof IP67 (Indoor/Outdoor use) · 2-pin Bare Wire · Waterproof Wires. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Which colour is right?

This model comes in Yellow(585-595nm) · Blue(465-475nm) · Green(515-525nm) · Amber · Ice Blue · Pink. Warmer whites suit living spaces, cooler whites suit task and display lighting. Screens do not show colour temperature accurately — order a sample if the room matters. Warm white vs cool white
