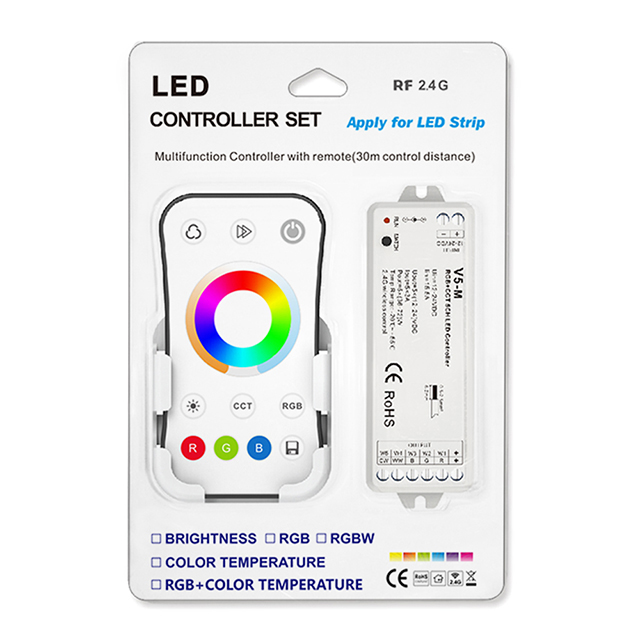

3A*5CH RGB+Color Temperature LED Controller Set V5-M+R17
The RGB+CCT five-color LED controller set is designed with an ultra-sensitive touch color wheel to adjust static RGB color or color temperature fast and accurately, Independent dimming function of each R, G, B channel to achieve millions of colors. Built-in 10 dynamic modes can create fancy lighting effects, also you can save scenes that you like.
● Mini-style controller with 5 channel constant voltage output (R/G/B/WW/CW).
● Smooth dimming and switch without any flickering.
● Built-in 10 dynamic modes include jump or gradual change style.
● Adopt 2.4GHz wireless technology, remote distance up to 30m.

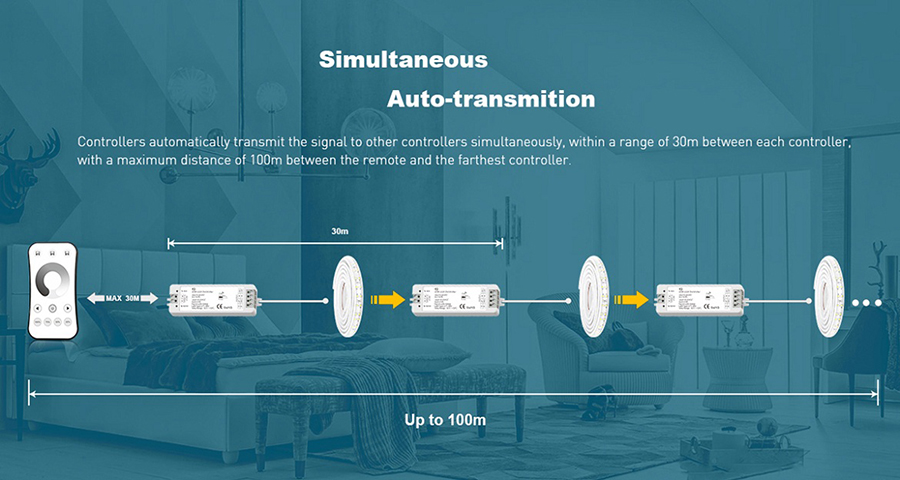

● Auto-transmitting function, one receiver can transmit the signal from the remote to another receiver within 15m, so the remote control distance can be beyond 100m.

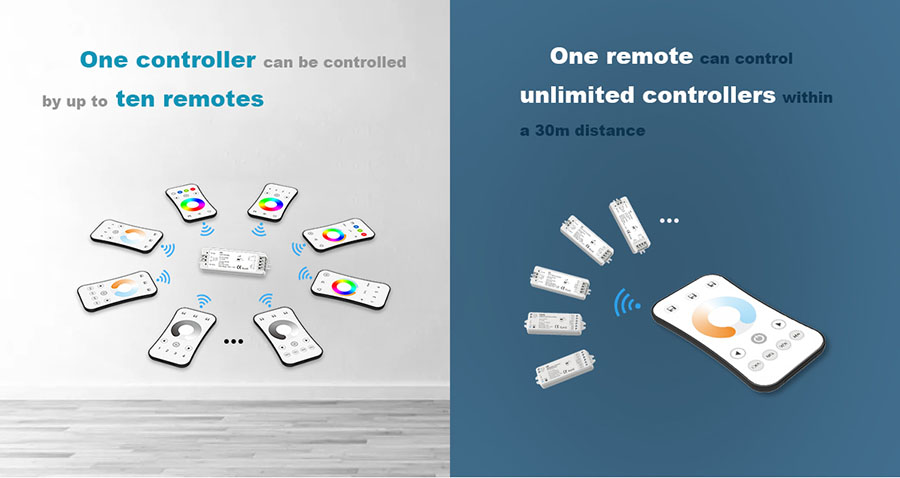

● Auto-synchronization function, different receivers can work synchronously when they are controlled by the same remote, under the same dynamic mode, and same speed.
● Work with power repeater to expand output unlimitedly.

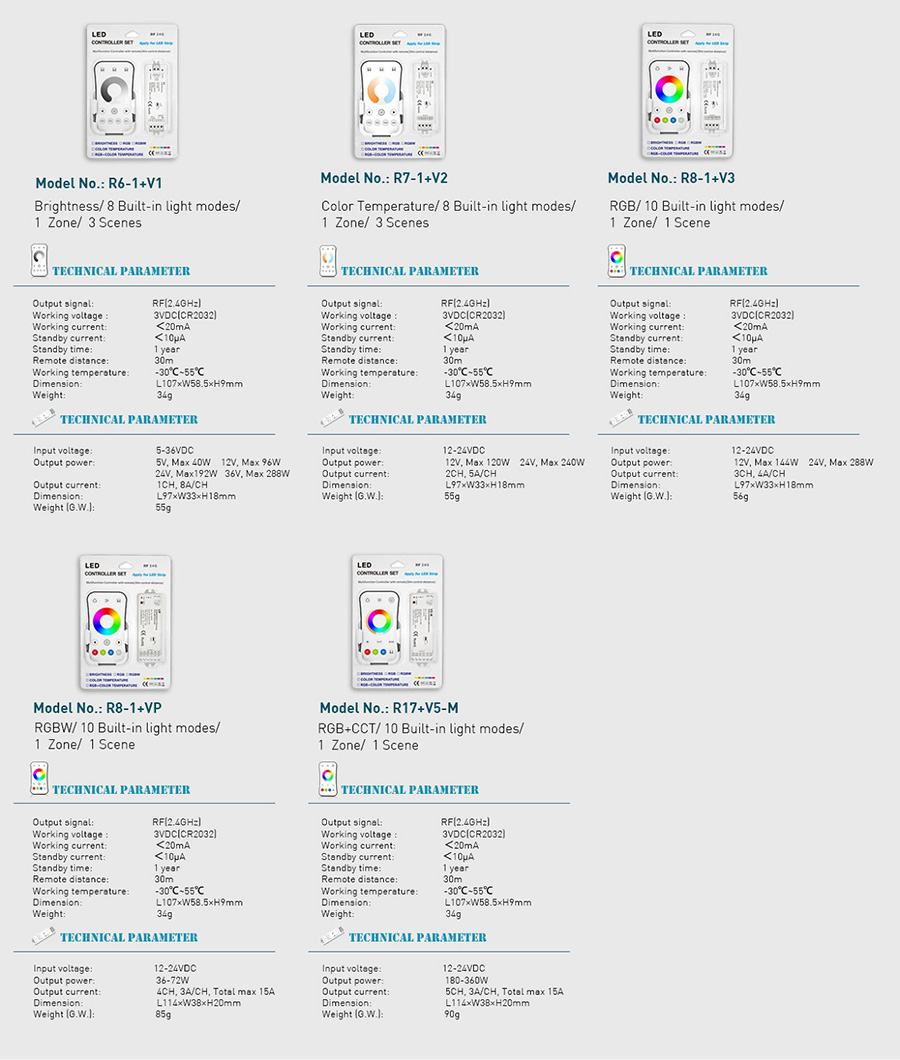

● Output signal: RF(2.4GHz)

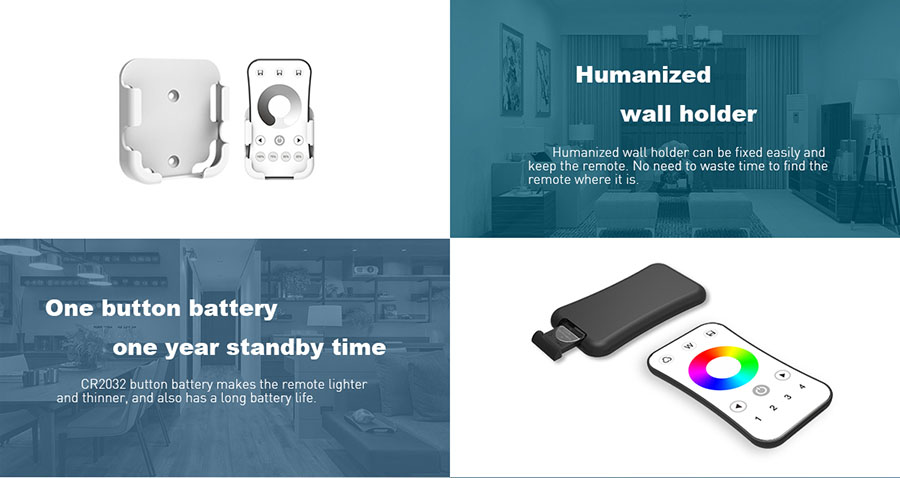

● Working voltage: 3VDC(CR2032)
● Standby time: 1 year
● Remote distance: 30m

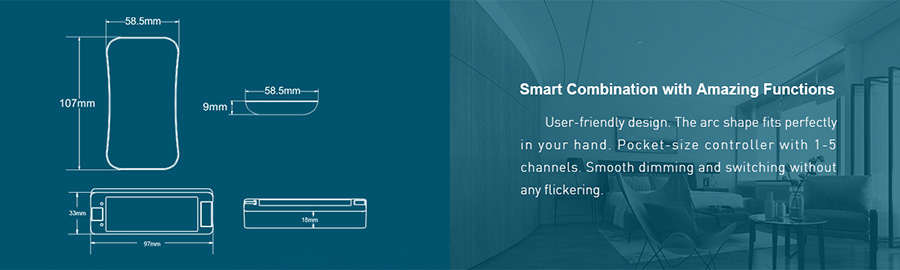

● Size: L107×W58.5×H9mm
● Input voltage: 12-24VDC
● Output type: PWM constant voltage
● Output current: 5CH, 3A/CH, Total max 15A
● Output power: 180-360W
● Size: L114×W38×H20mm
1. The product shall be installed and serviced by a qualified person.
2. This product is non-waterproof. Please avoid the sun and rain.
3. Good heat dissipation will prolong the working life of the controller, please ensure good ventilation.
4. Please check if the output voltage of any power supplies used to comply with the working voltage of the product.
5. Ensure all wire connections and polarities are correct and secure before applying power to avoid any damages to the LED lights.
6. If a fault occurs please return the product to your supplier. Do not attempt to fix this product by yourself.
