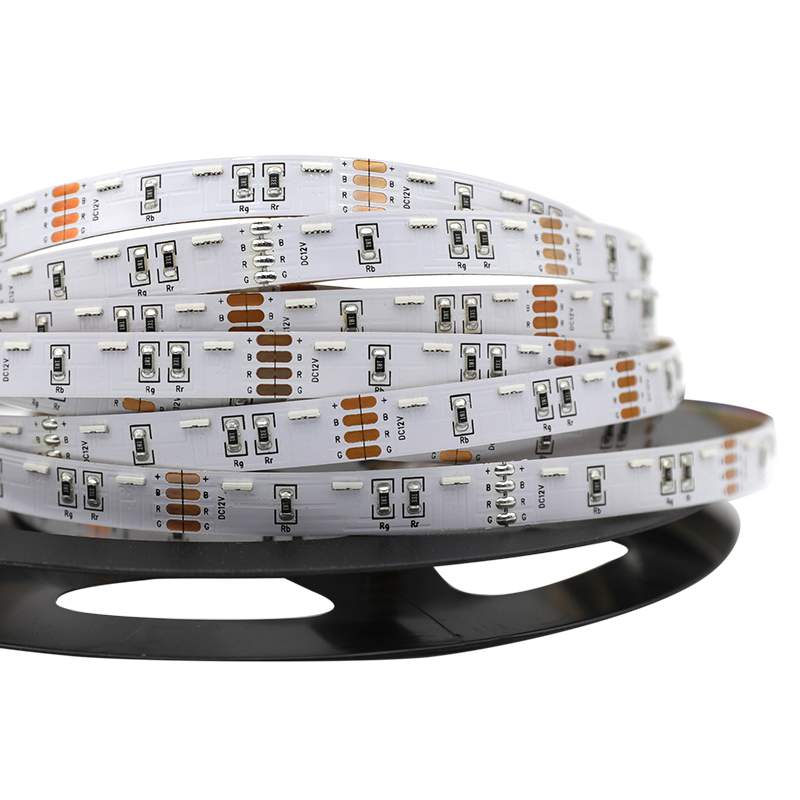

RGB Multi Color Side Emitting LED Strip - DC12V 300LEDs 16.4ft

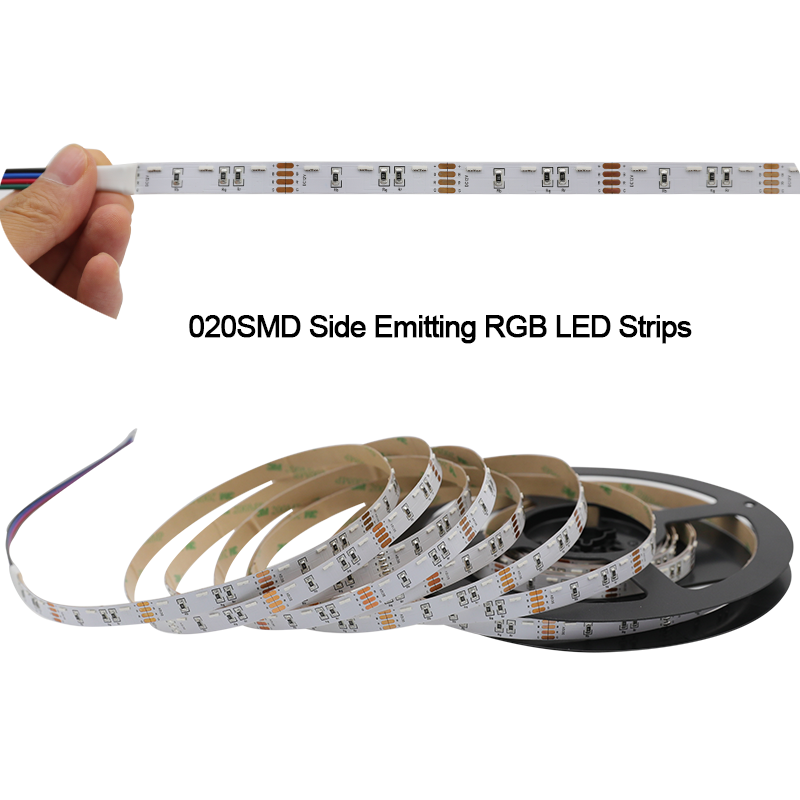

The side emitting led strip changes the way that the ordinary light strip emits light upward, but emits light parallel to the PCB surface, which is better used to outline the edge.

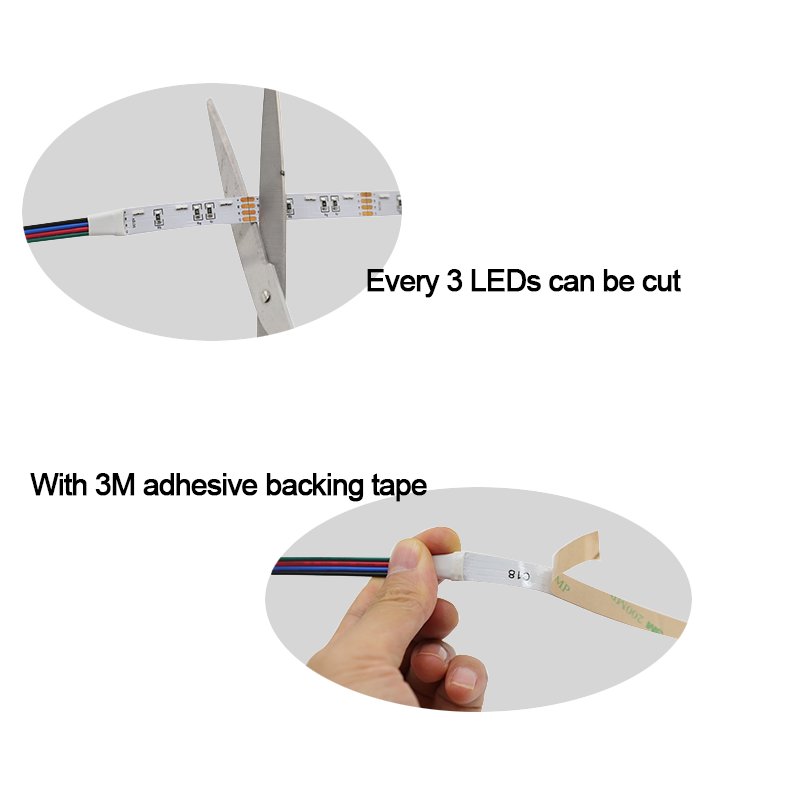

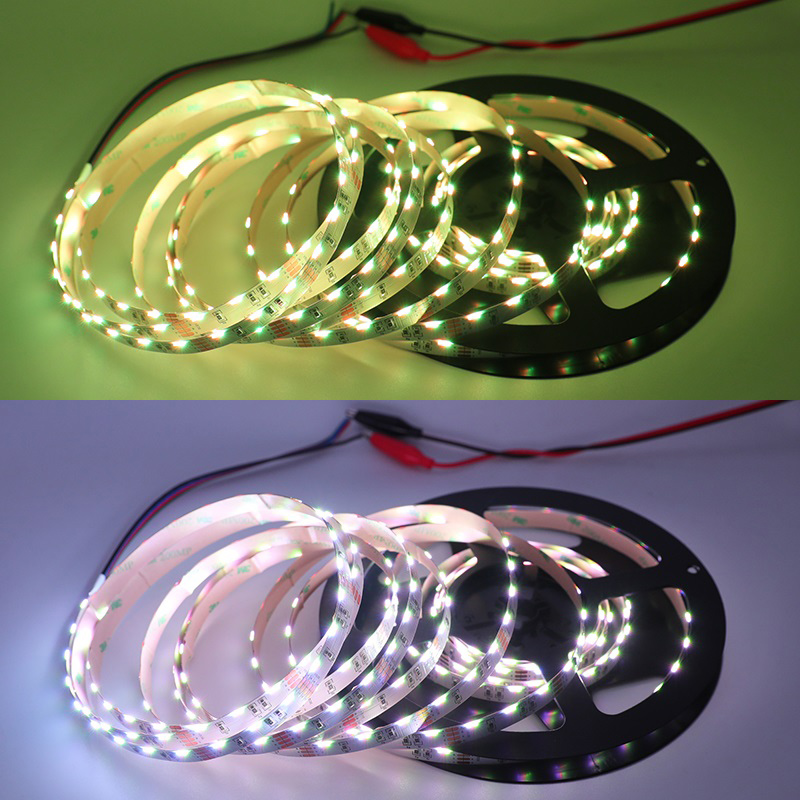

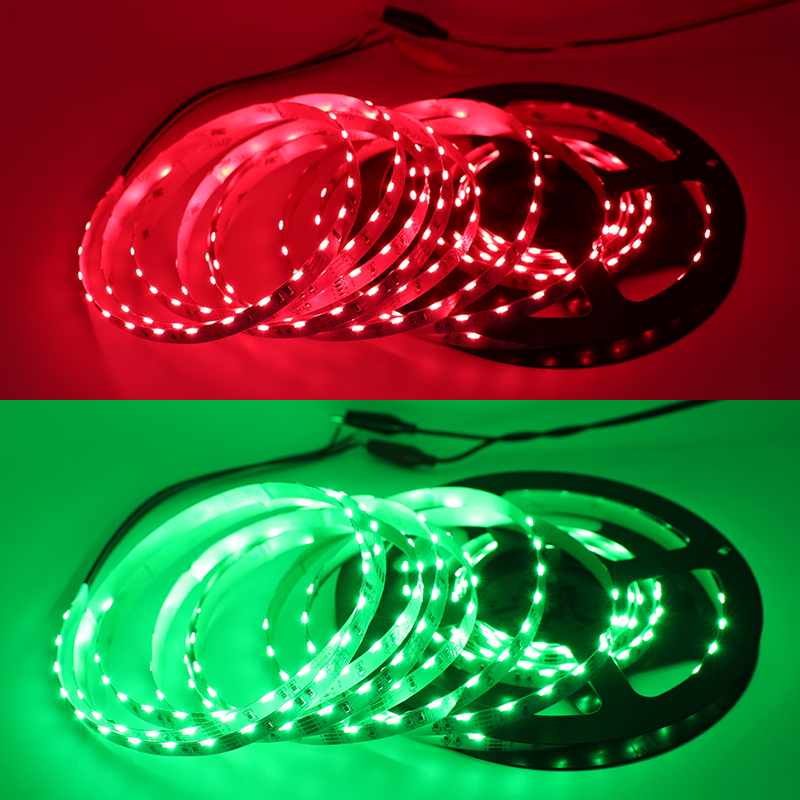

12V DC operation, 3 side emitting LEDs can be cut. Adapt RGB lights, it can appear multi color light effects via an RGB controller.
IP20 and IP67 waterprof rating are optional, IP20 side emiting RGB led strip is for indoor lighting, while IP67 for outdor lighitng.
This RGB light strip is soft and easy bent for installation, with adhesive backing and can be stuck just about anywhere (IP67 type which will come with mounting brackets).
Standards and Certifications
|LED Strip Type:||SMD 020 300PCS/16.4ft|
|LED Chip:||Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Dimension:||16.4ft/roll, every 3 PCS LED can be cut|
|LED Quantity:||60 LEDs per 1meter (3.28 ft)|
|Dimensions:||L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.20cm(0.08 in )|
|Working Power:||5A 60W /16.4ft Max|
|Lamp Luminous Flux(lm):||5-6lm/LEDs 1800lm/16.4ft|
|Wavelength NM(RGBY):||Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)|
|Beam Pattern:||120 degree|
|Waterproof:||Non-Waterproof IP20, waterproof IP67|
|Warantty:||3 years( ELT certification)|
Applications - How To Wire RGB LED Strip Lights?
Cove LED lighting
Retail LED lighting
Display case LED lighting
Accent LED lights
Under cabinet lighting
