Product Information

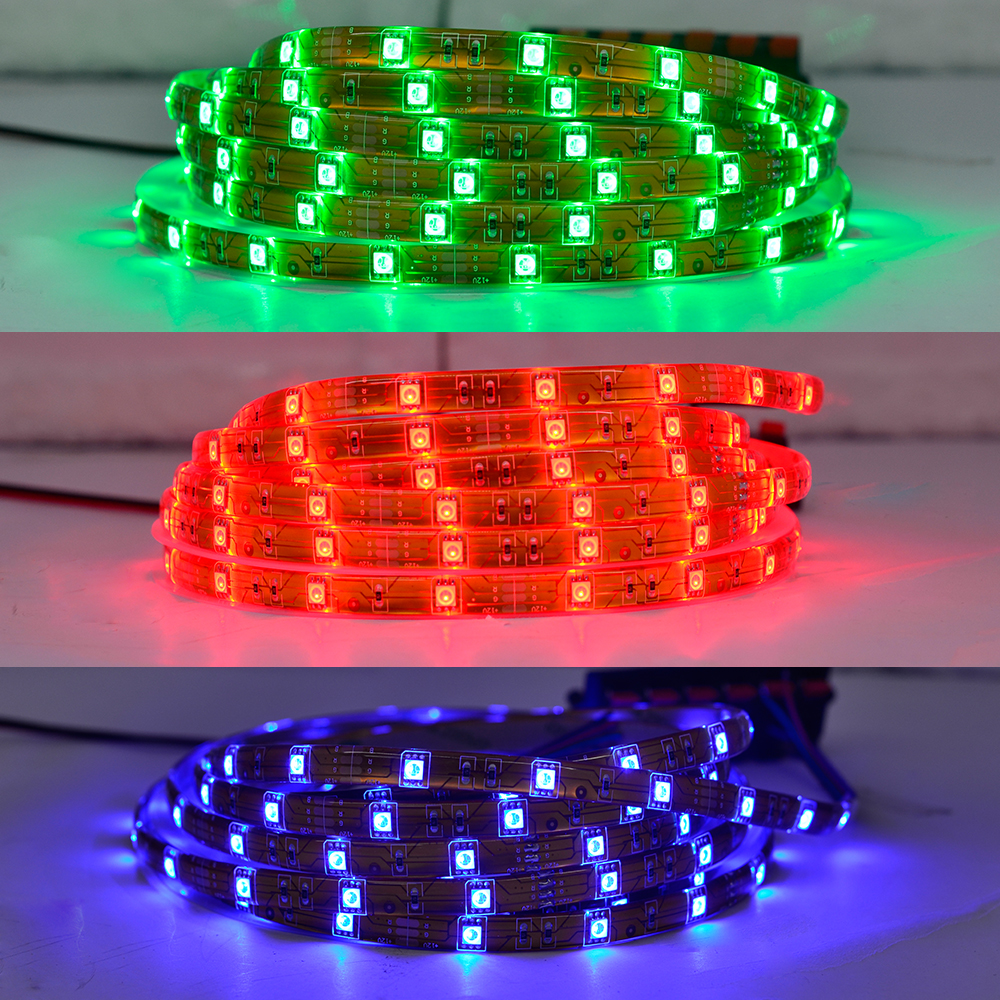

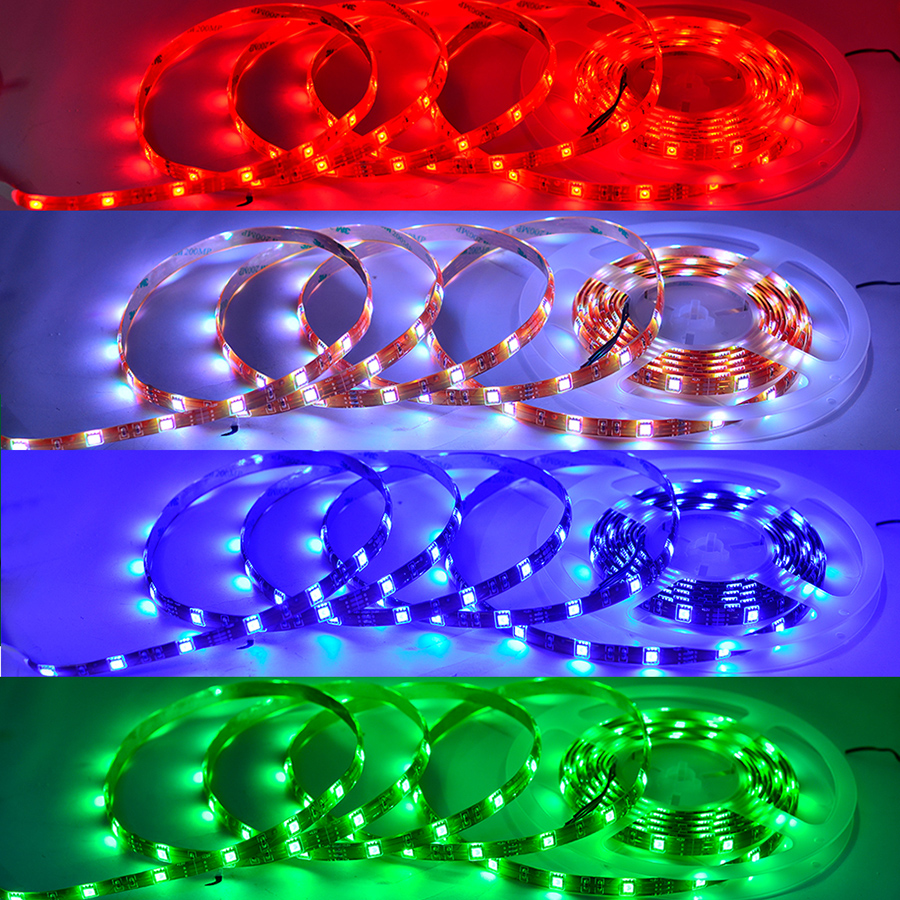

Color changing RGB led strip lights use 3-in-1 RGB LEDs, which can display a variety of static colors and dynamic color effects through the control of the RGB controller. You can use mobile APP, remote control, or voice control to change the light colors, brightness, and color modes. It is the best item to use lights to create an entertainment atmosphere or mood lighting. This RGB led strip uses 12V/24V safe low voltage and needs to be driven by an 12V/24V LED power supply.
-

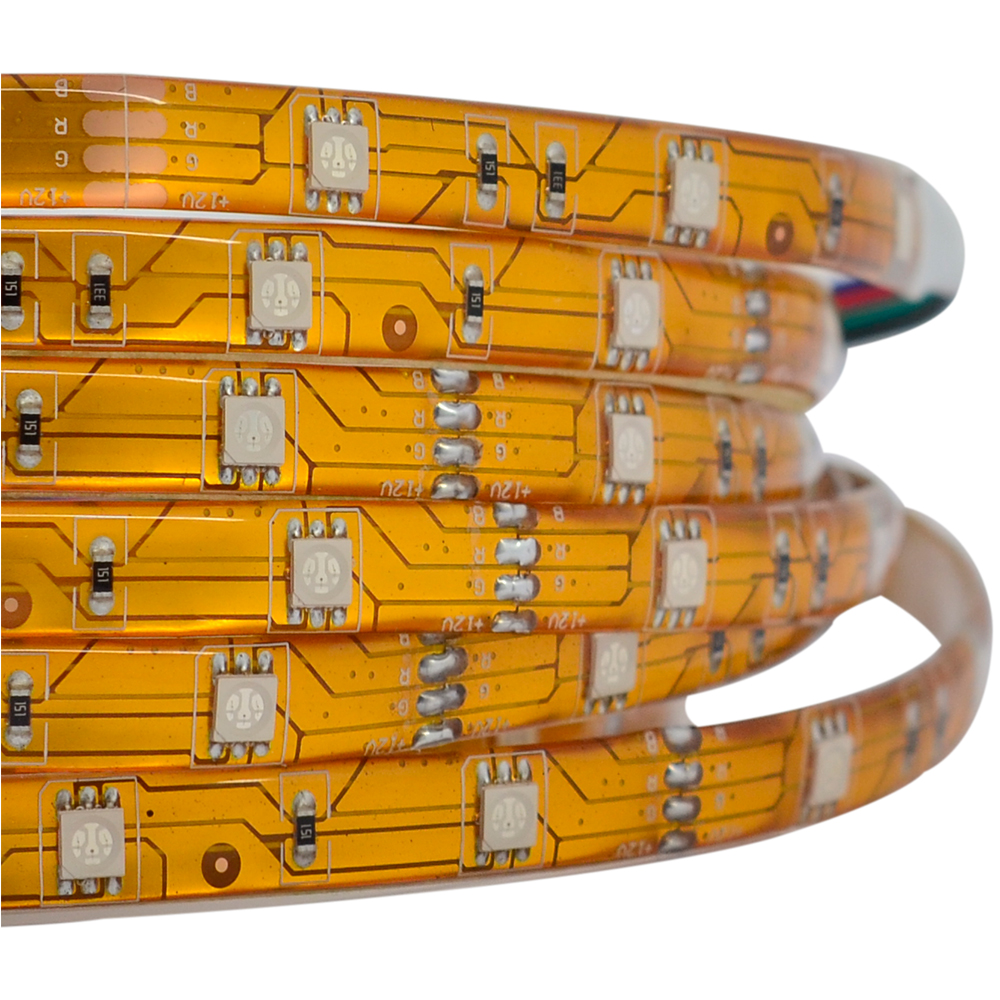

RGB LED Chip 3in1 packaged in the SMD5050 component, multiple RGB colors change
-
Input Voltage is DC12/24V optional, safety and stability
-

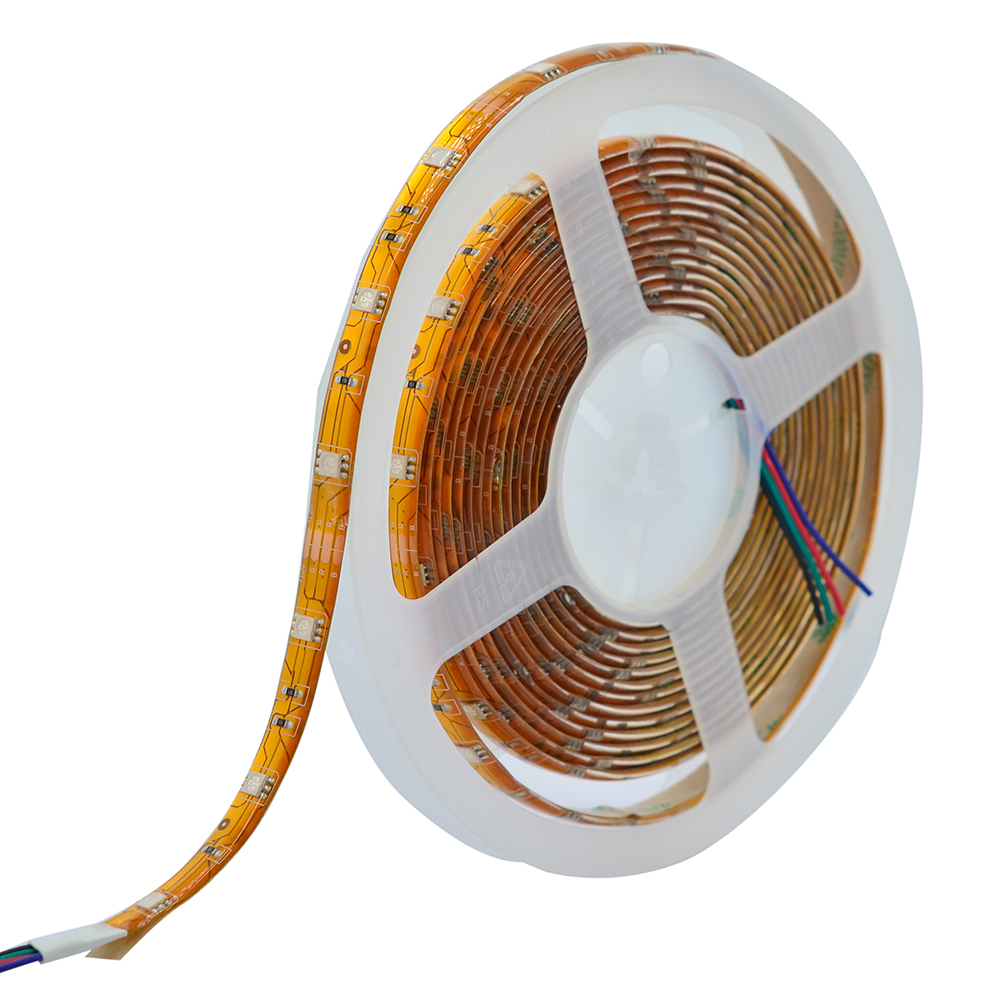

1m or 5m strip length, white PCB or copper PCB
-
IP65/IP67/IP68 waterproof ratings for indoor and oiutdoor lighting
-
High-quality 3M tape on the back, easy to install
If you need Copper PCB background, the MOQ is 1,000 meters. Or you can consider 60LEDs/m version.
12V RGB LED Strip vs 24V RGB LED Strip:
DC12V: 3LEDs cuttable, the min-cut size is 100mm, 5m no voltage drop, more than 5m requires a power supply at both ends
DC24V: 6LEDs cuttable, the min-cut size is 200mm, 10m no voltage drop, more than 10m requires a power supply at both ends
Standards and Certifications
| LED Strip Type: | SMD 5050 RGB 150LEDs/16.4ft |
| LED Chip: | Epistar Chip |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
| Light Color: | RGB Color |
| Dimension: | 16.4ft/roll, every 3/6 PCS LED can be cut |
| LED Quantity: | 30 LEDs per 1meter (3.28 ft) |
| Lifespan: | 50,000+hours |
| Strip Width: | 10mm/0.39in |
| Input Voltage(V): | 12/24 VDC |
| Working Power: | 36W /16.4ft Max |
| Lamp Luminous Flux(lm): | 24~26Lumen 3900lm Max /16.4ft |
| Wavelength NM(RGBY): | Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm) |
| Beam Pattern: | 120 degree |
| Waterproof Rating: | Waterproof IP65; Waterproof IP67; Waterproof IP68 optional |
How To Wire RGB LED Strip Lights?
1. RGB led strip wiring diagram:
Applications
-
Back lighting
-
LED task Lighting
-
Retail LED lighting
-
Sign illumination LEDs
-
Automotive accent lighting
-
Display case and accent lighting
Reviews
Customer Experience
Your feedback is important to us! Share your thoughts and photos with other customers.
Downloads
Files for FSLRGB-IP65-5050X150Images
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
LED Strip Light Guide
Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.
