3CH 4A Constant Voltage RF 2.4G Receiver V3 For RGB led strip light

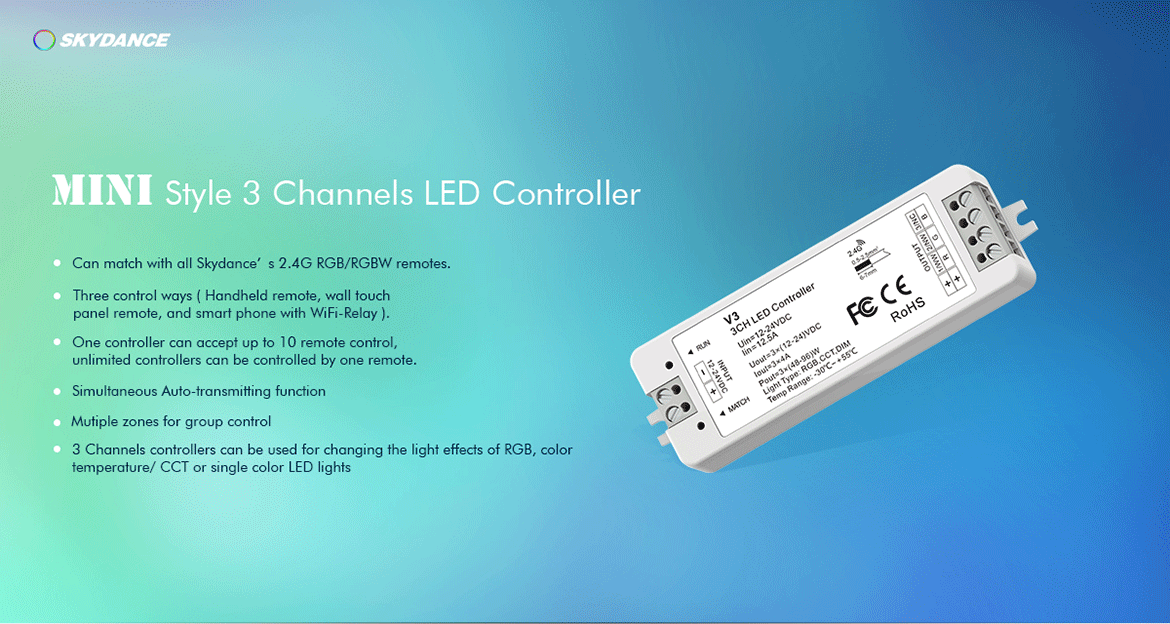

Mini style 4A 3CH PWM constant voltage controller.

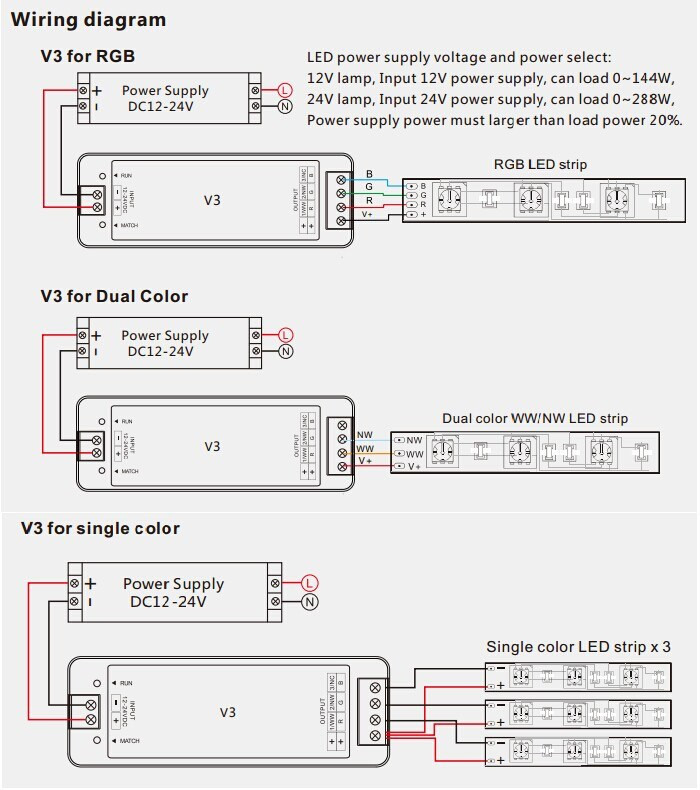

Default as RGB controller, need match RGB remoter, create colorful static or dynamic effect.
Can also be used as color temperature or dimming controller, good compatibility.
Full compatibility with a variety of single color, dual color and RGB remoters.
PWM achieve 4096 levels flicker-less dimming.
When control RGB lamp, built in 30 change mode optional.

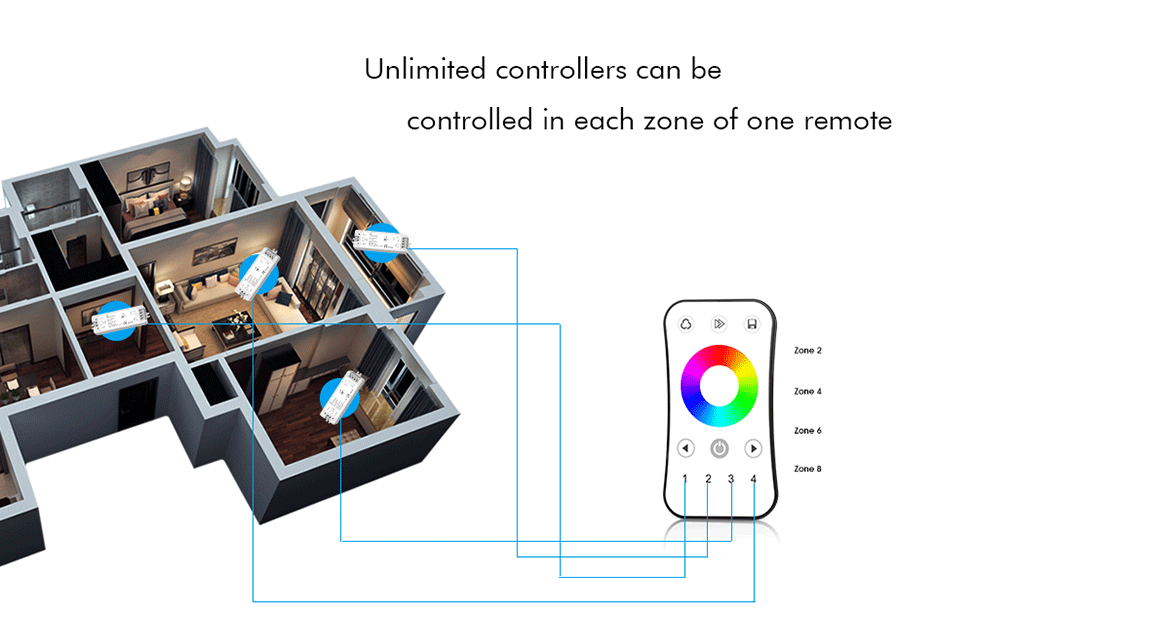

Adopt 2.4GHz wireless technology, can accept up to 10 remoters control.

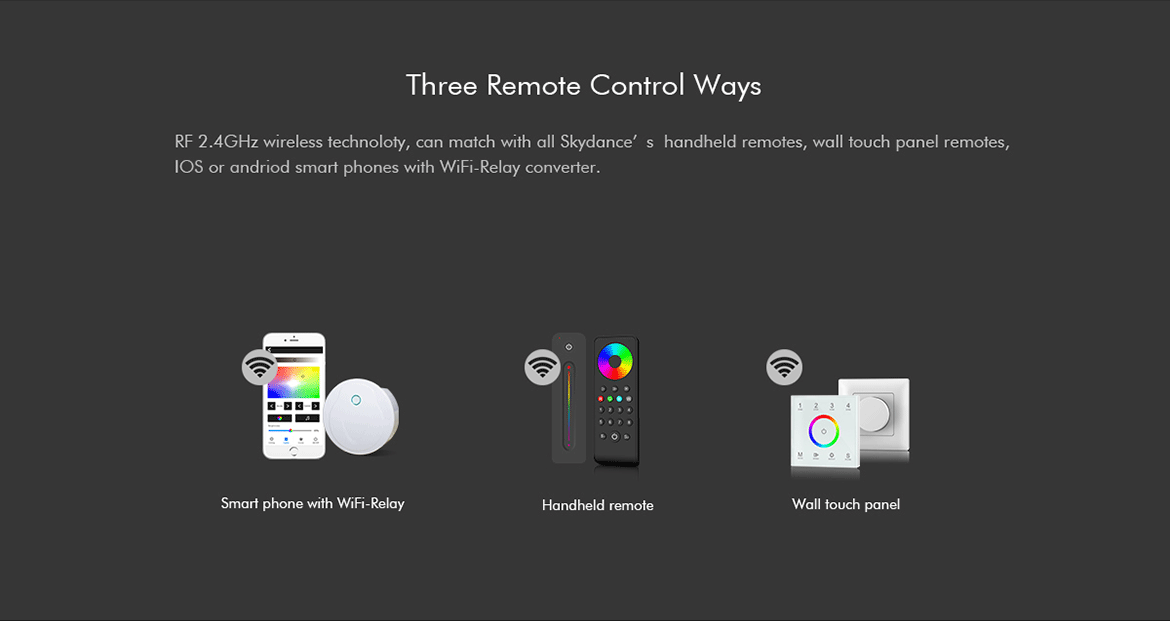

Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.

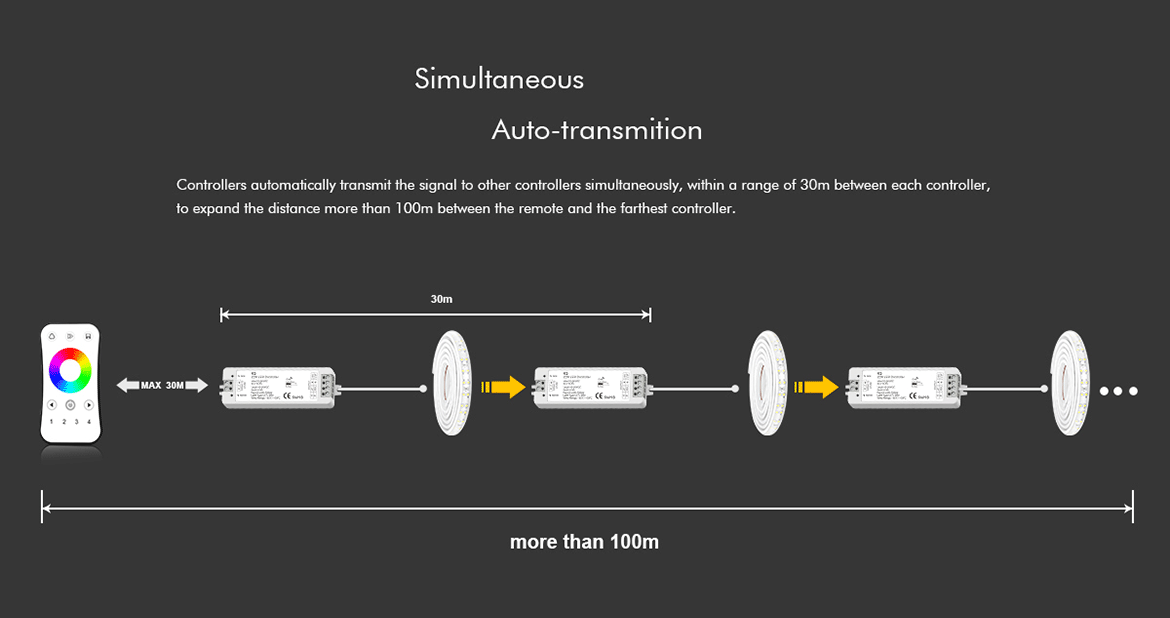

Work with power repeater to expand output unlimitedly.
Standards and Certifications
Input voltage: 12-24VDC
Output type: PWM constant voltage
Output current: 3CH, 4A/CH
Output power: 144-288W
Grey levels: 4096/CH
Dimming range: 0-100%
Remote distance: 30m
Working temperature: -30℃~55℃

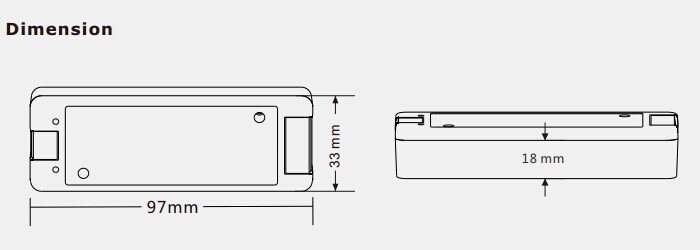

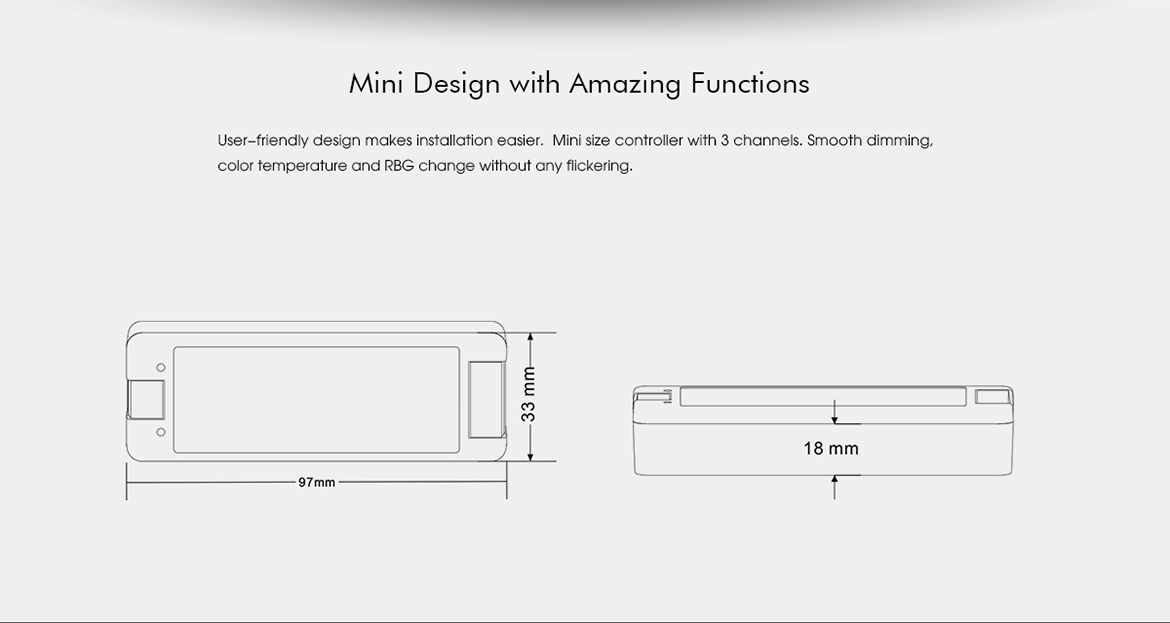

Product size: L97×W33×H18mm
Net weight: 38g

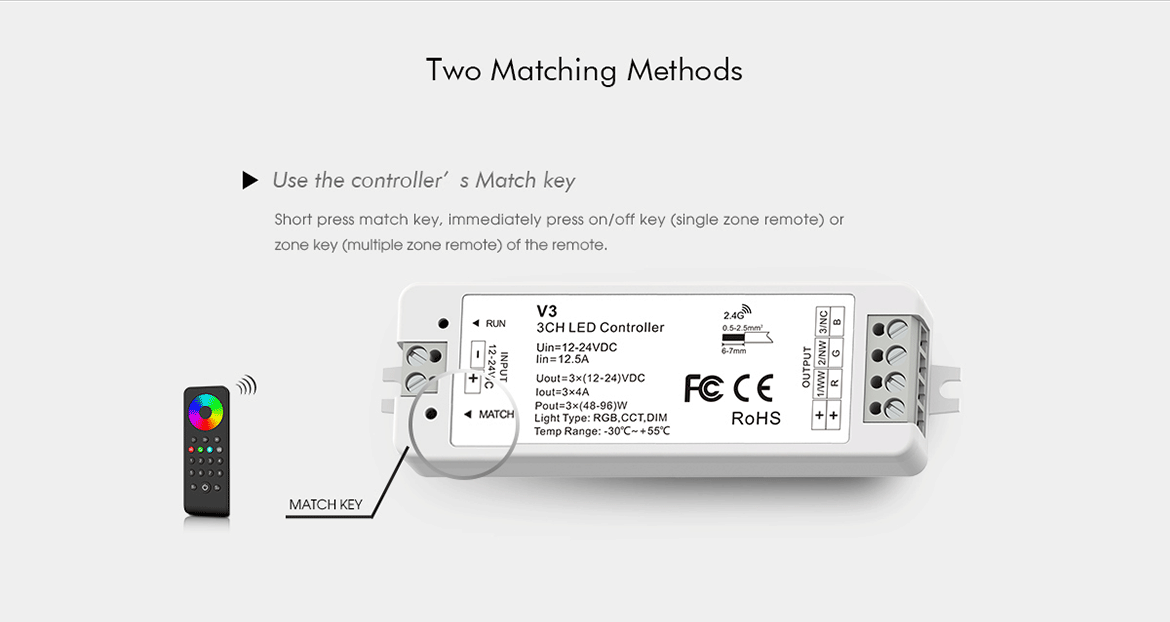

Use the controller’s Match key
Short press match key, immediately press on/off key (single zone remote) or zone key (multiple zone remote) of the remote.
Press and hold match key for 5s to delete all match, The light blinks 5 times means all matched remotes were deleted.
Use Power Restart
Switch off the power, then switch on power again, immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 3 times on the remote.The light blinks 3 times means match is successful.
Switch off the power, then switch on power again, immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 5 times on the remote. The light blinks 5 times means all matched remotes were deleted.
