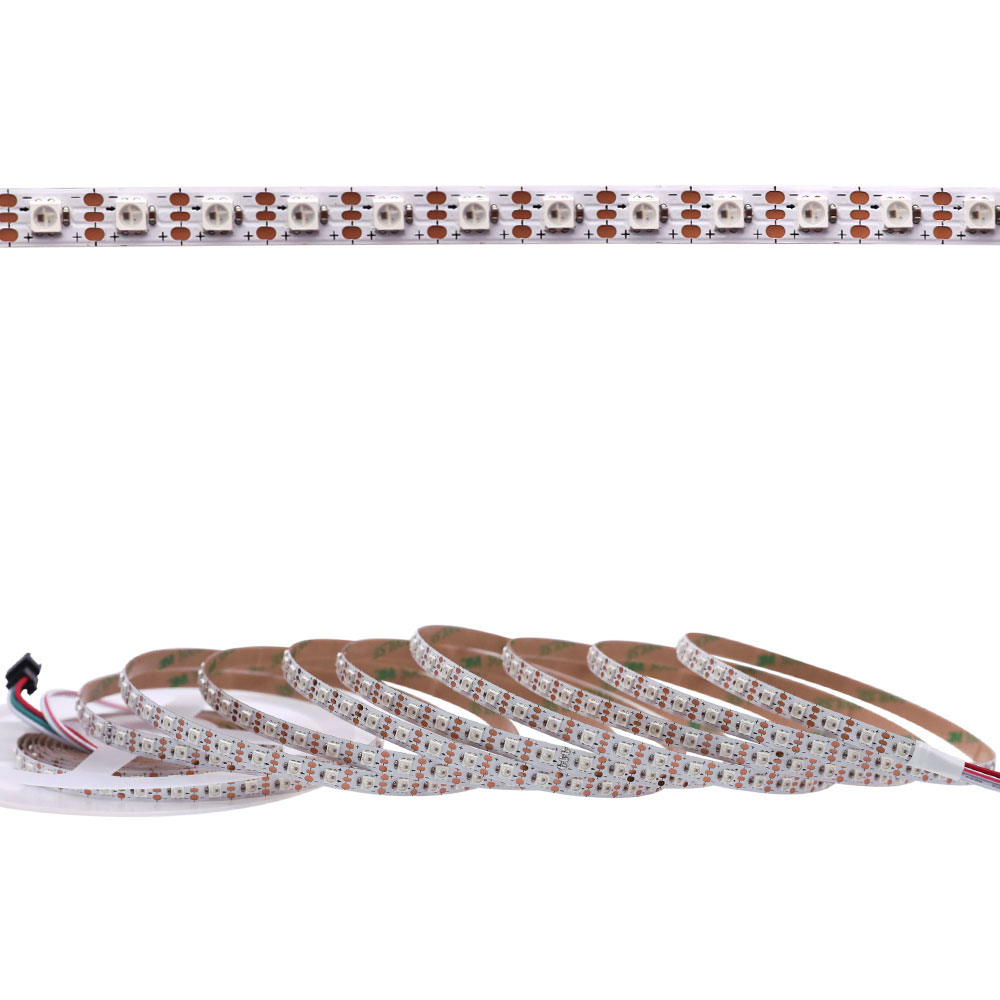

SK6813 12V SK6812 5V 7mm Individually Addressable RGB Light Strip SMD3535 96LEDs/m
Use this addressable RGB led strip to light up your home, bringing you dream color lights. There are available different strip lengths to suit your smalll and large LED projects.

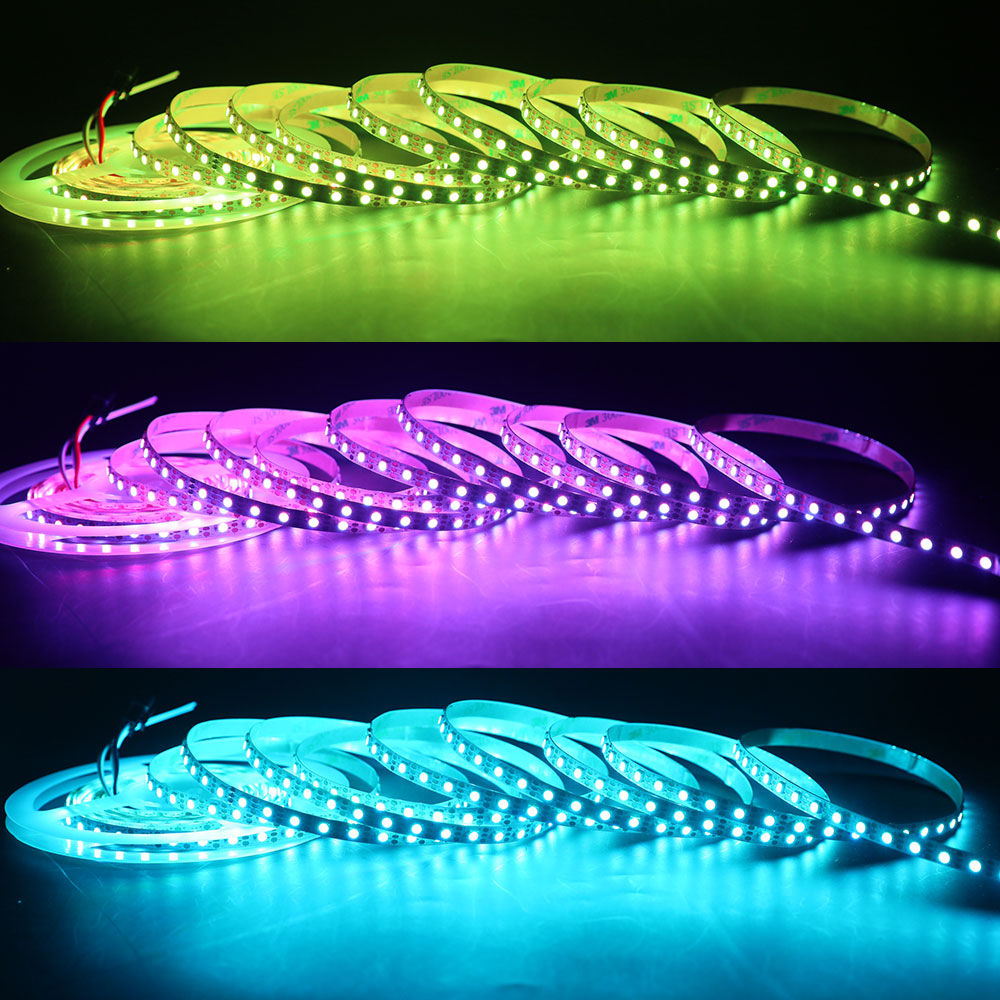

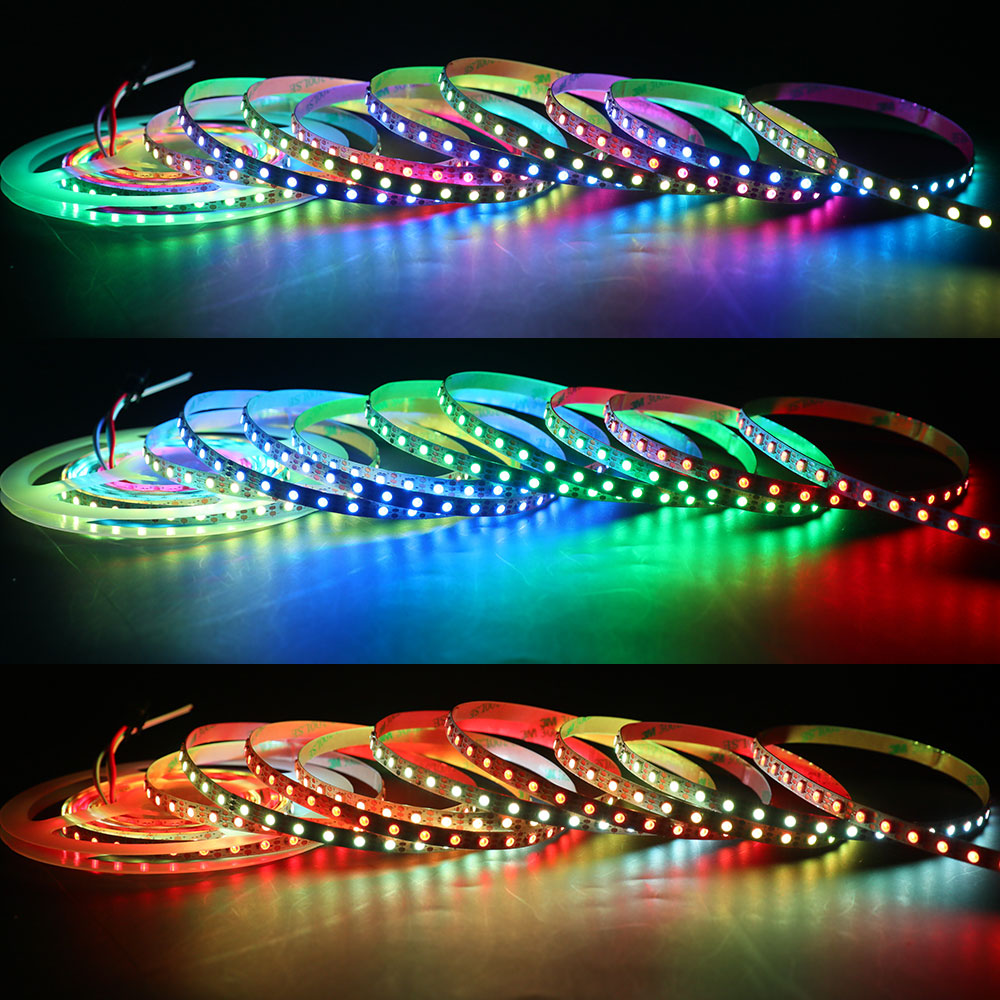

With an addressable RGB controller, you can DIY the light color, and choose to show static colors or dynamic light effects like color chasing, jumping, and more.
Low voltage DC12V or DC5V input, safe to use and less power consumption, friendly to your wallet.

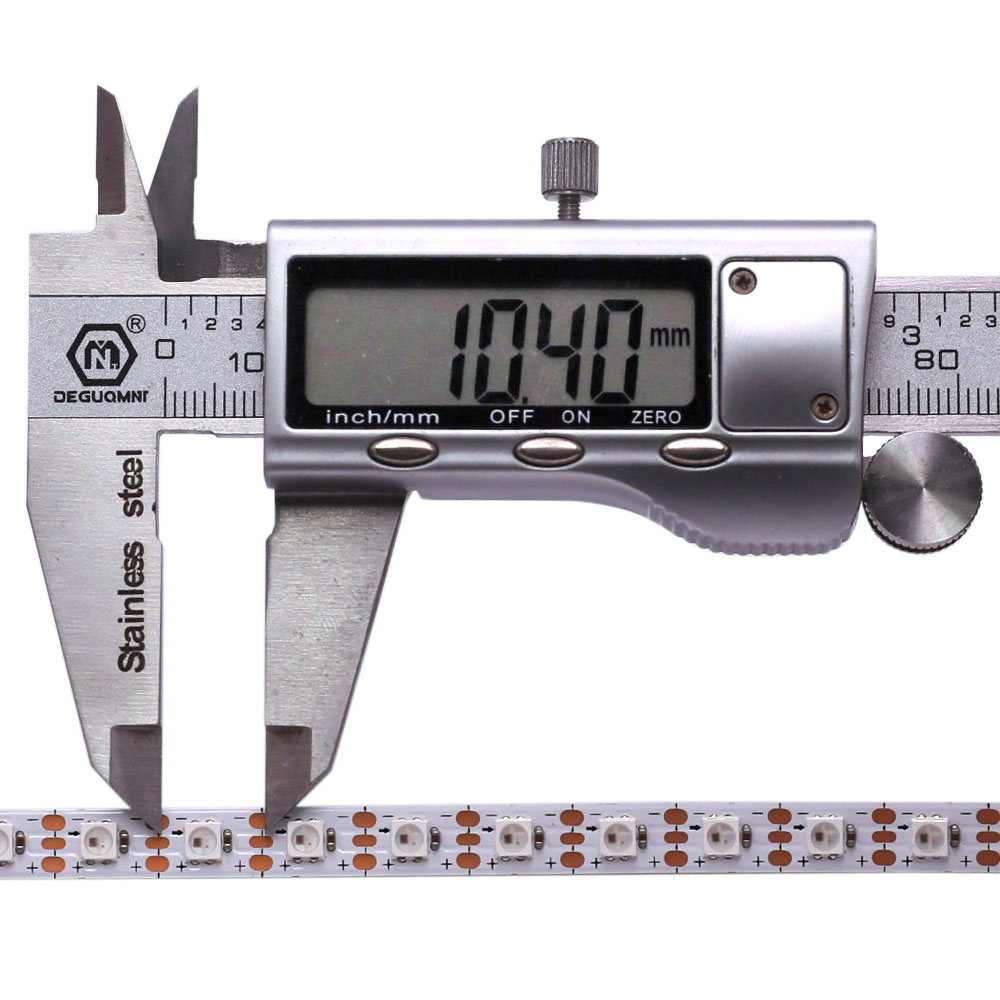

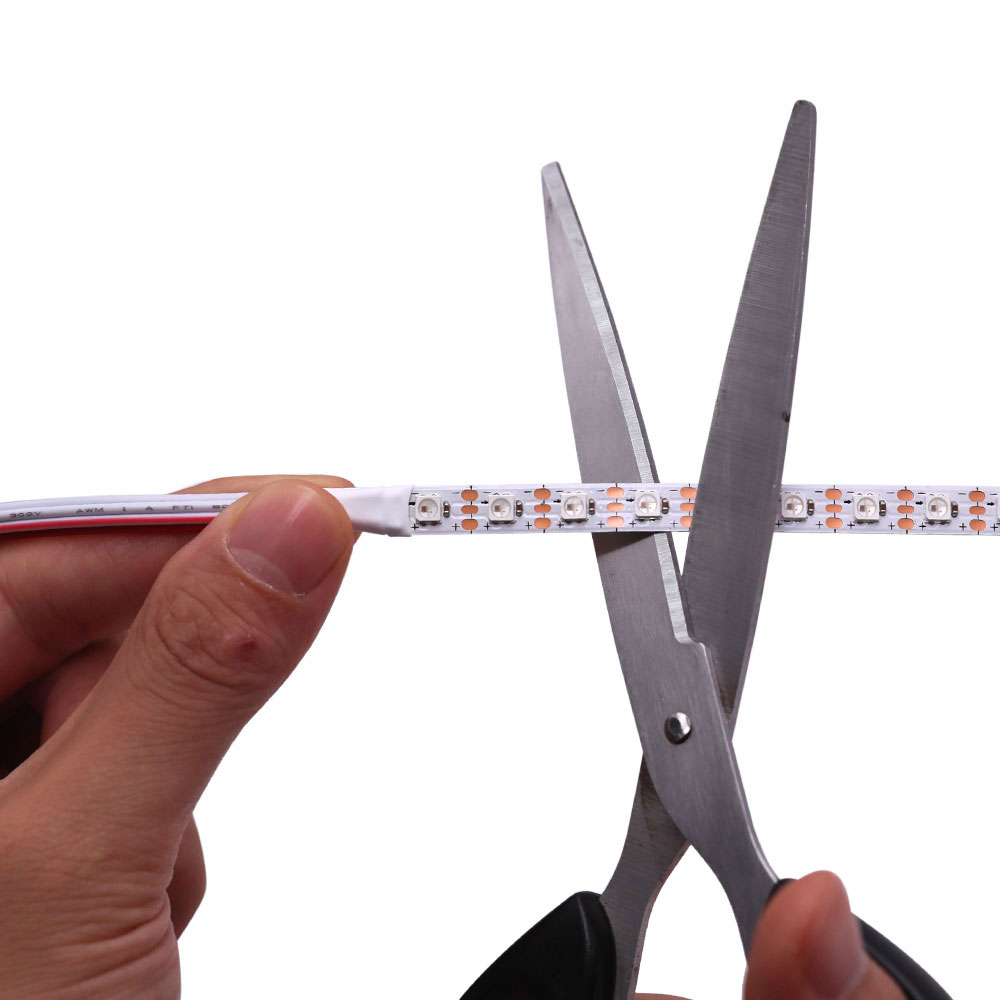

High density, 96 pixels per meter, 480 pixels per roll. Every LED is a segment, easy to cut and get the length you want.

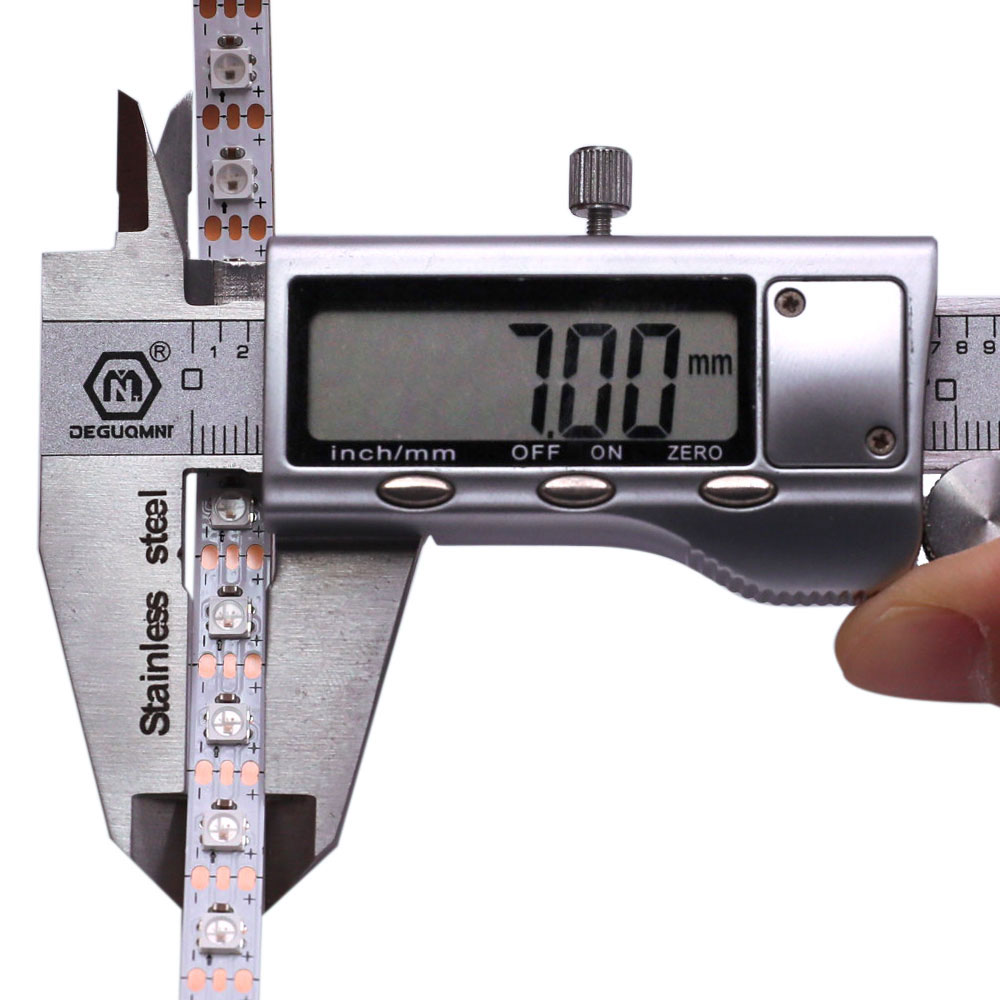

7mm thin PCB width, popularly applies for under cabinets and other narrow places.
If you want to create a light show in your homes or clubs, use DMX control to program the light effects by yourself.
Standards and Certifications
|LED Strip Type:||SK6812 SK6813 Addressable RGB LED Strip Lights|
|Input Voltage:||DC5V - SK6812 / DC12V - SK6813|
|LED Color Temperature:||Addressable RGB|
|LED Quantity:||96 LEDs/m, each LED is a pixel|
|Waterproof Rating:||Non-waterproof IP20|
|Bits/color:||8-bits/color;total 24bit for RGB color|
3-Pin Addressable RGB LED Light Strip Wiring Diagram:
Light effects of controlled by SP107E bluetooth controller:
Available Strip Light Fixtures:
Silicone LED diffuser is flexible and waterproof, there are different internal structures, allowing you to change the light-emitting angle and luminous type.
Aluminum LED channel also has multiple types to create linear lighting, surface mount, recessed mount, or suspended mount, etc. And they all evenly diffuse the LED strip lighting and protect the strip lights.
