Product Information

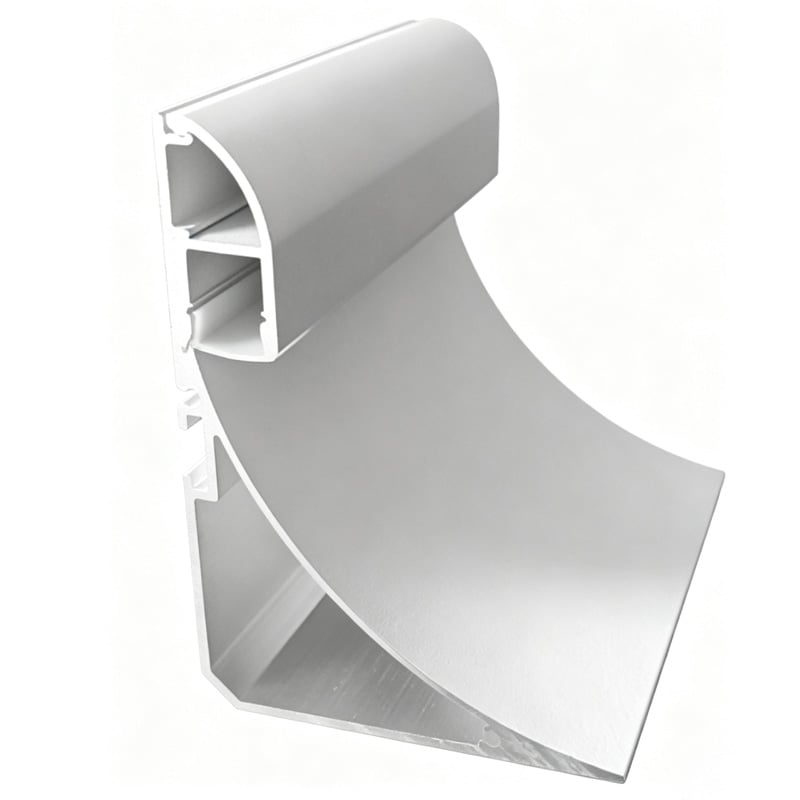

Achieve sophisticated, glare-free indirect ceiling lighting with the SLL-ALU-XT-482 Cornice Moulding. This profile features a specialized design that directs light from an 8mm COB LED strip or tunable white LED strip upwards towards the ceiling, bathing the room in soft, diffuse illumination without harsh glare. Its clean, white powder-coated finish integrates seamlessly into modern interiors, creating elegant cove lighting or a contemporary crown moulding effect. Constructed from high-grade 6063-T5 aluminum, it also ensures excellent heat dissipation for your LED strip lights, promoting longevity and consistent performance. Available in multiple sizes and lengths, it's the ideal ceiling molding solution for creating ambient, architectural lighting in residential and commercial spaces.
Key Features
Glare-Free Indirect Illumination
Uniquely shaped to cast light upward, creating a soft, comfortable ambiance by eliminating direct eye contact with the light source.
Modern Minimalist Design
The simple, powder-coated white profile provides a clean, contemporary look that blends perfectly with ceilings and walls for a built-in appearance.
Seamless Continuous Runs

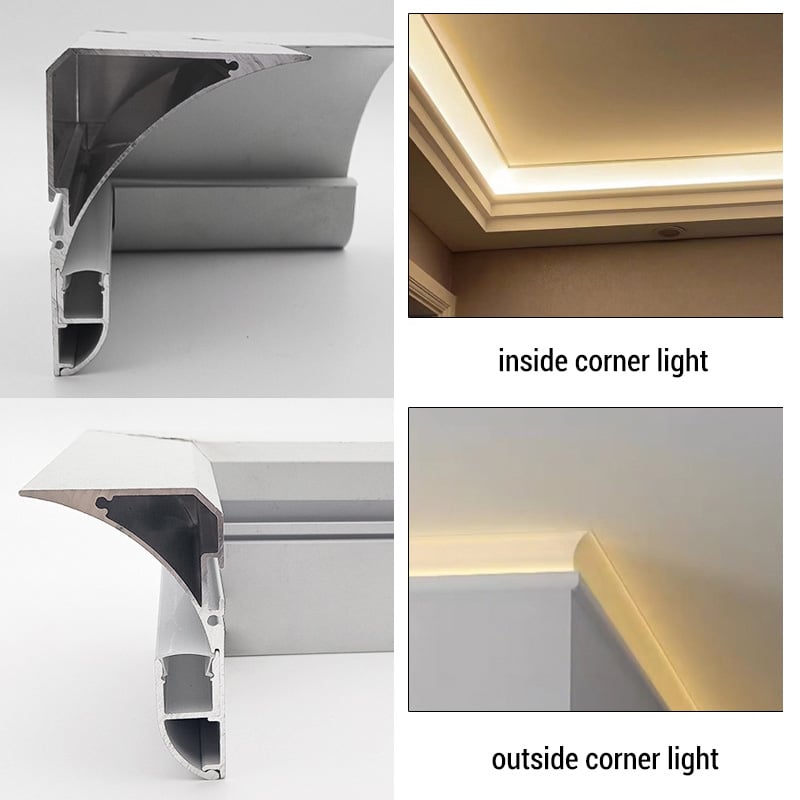

Compatible with channel connectors (sold separately) and corner molding connectors (sold separately), allowing you to join multiple sections for long, unbroken lines of light perfect for large rooms.
Product Specifications
| Parameter | Details |
|---|---|
| Model | SLL-ALU-XT-482 |
| Product Type | Sleek Aluminum LED Cornice Moulding |
| Material | 6063-T5 Aluminum Alloy |
| Finish | Powder-Coated White |
| Diffuser | PC Opal Diffuser |

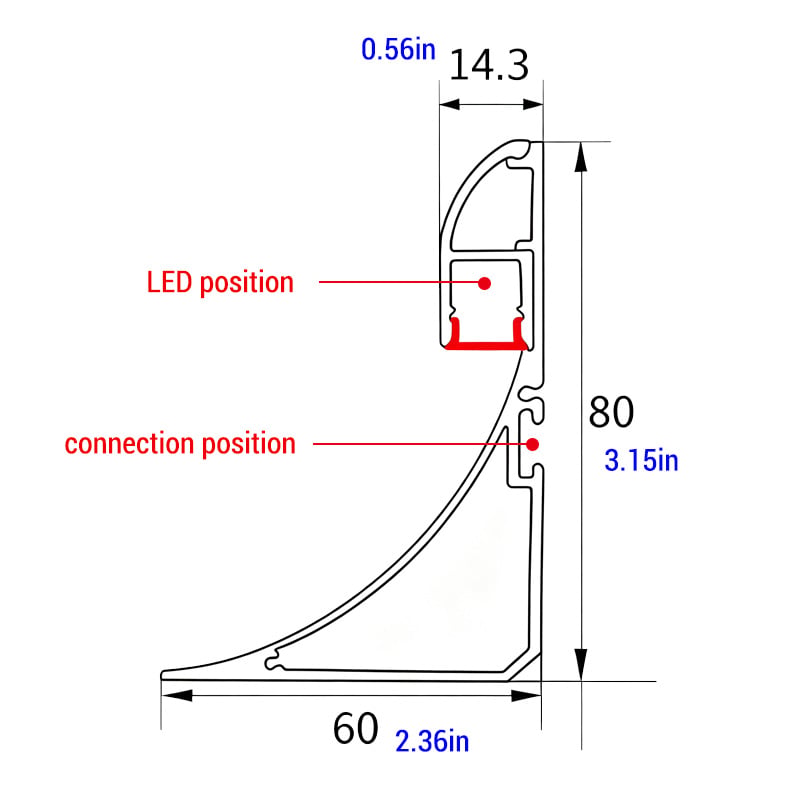

| Available Sizes | W36.5mm x H60mm / W60mm x H80mm |
| Inner Width | 9mm (0.35") |
| Compatible LED Strip Width | Up to 8mm |
| Available Lengths | 1m (3.28ft), 2m (6.56ft), 2.44m (8ft), 20cm (7.87in) Sample |
| Installation | Surface Mount (Direct Screw-In) |
Ideal Applications for Indirect Lighting

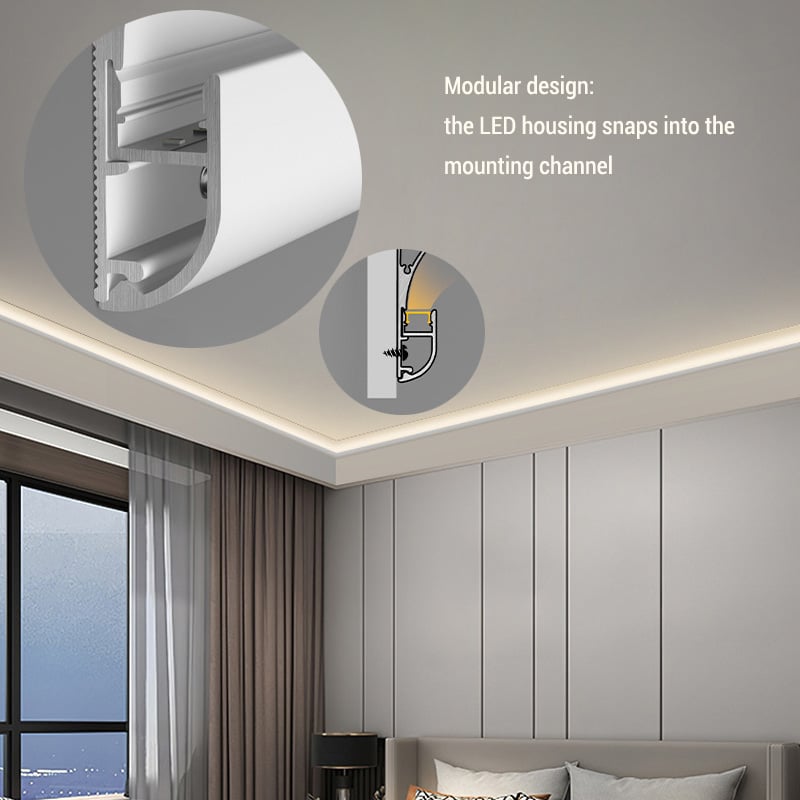

How to Install This Aluminum Profile
- Position the profile on the wall where desired and mark the locations for screws. Drill pilot holes if necessary.
- Securely mount the aluminum profile directly to the wall surface using appropriate screws (not included).
- Cut your 8mm LED strip light to length, peel off the adhesive backing, and press it firmly into the inner channel of the profile.
- Snap the PC opal diffuser cover into place along the length of the channel.
- Please note this product includes only the aluminum profile and its diffuser. LED strip lights, power supplies, and screws are sold separately.
- This model is designed for a minimalist installation and does not include end caps or mounting clips.
- Ensure the profile is clean and dry before installing the LED strip to ensure proper adhesion.
What's in the Box
- ✓1 x White Aluminum Profile (in selected size and length)
- ✓1 x PC Opal Diffuser
