Suspended LED Aluminum Channel For 28mm Quad Row LED Strips

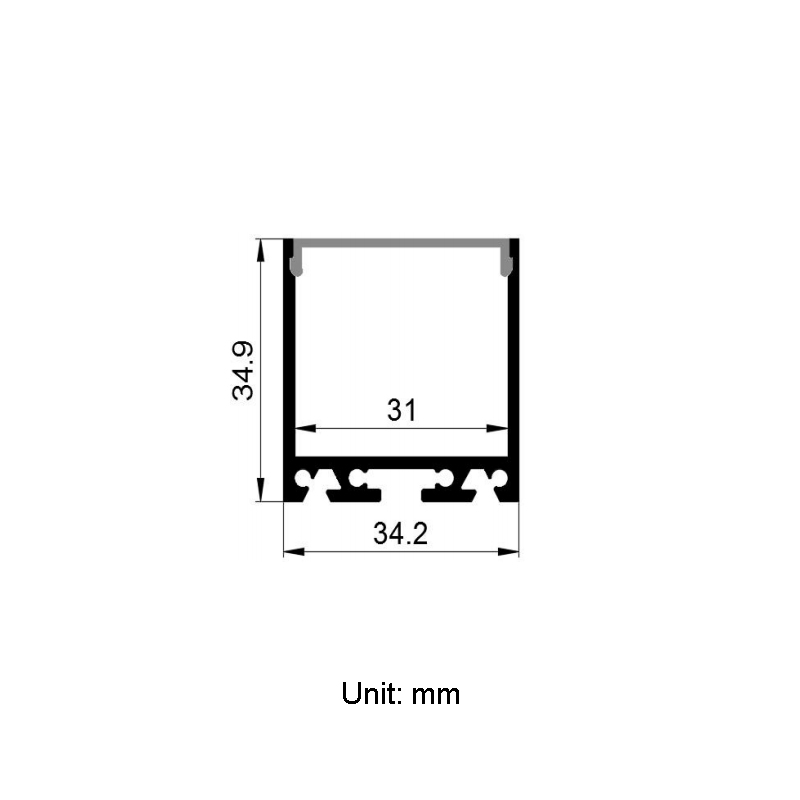

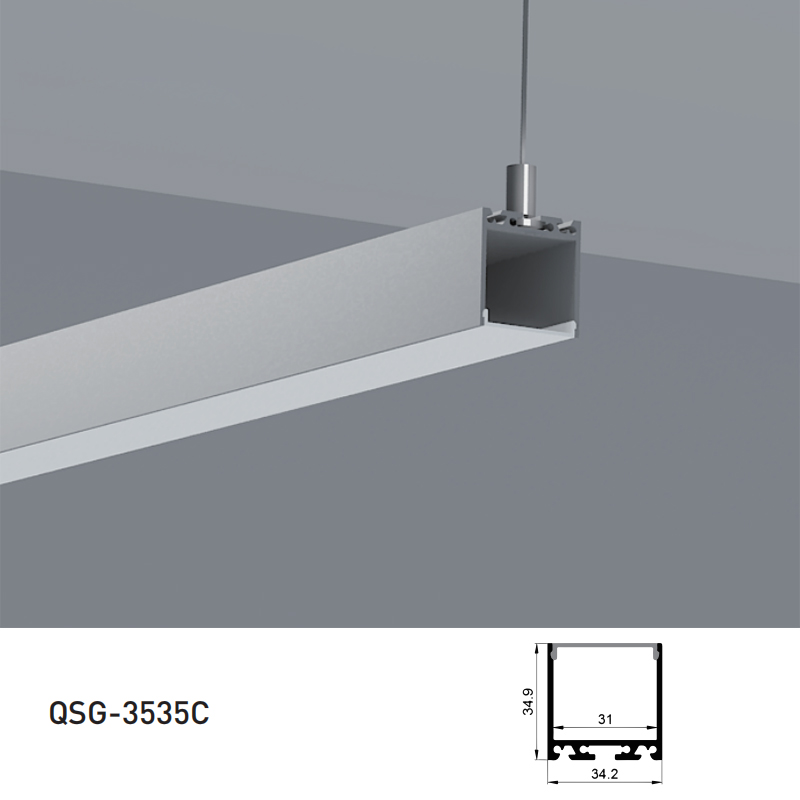

This led aluminum U channel with a 31mm/1.22in inner width, made of high-quality 6063-T5 aluminum alloy, can be suspended as a linear pendant light. Compatible with low-voltage 3528 quad row led strip lights, the aluminum LED diffuser channel plays a role in led heat dissipation, led strip protection, and better led lighting distribution. We offer 3 kinds of led light diffusers in PC material, PC opal microprism diffuser, PC clear diffuser, and PC semi-clear-microprism diffuser, to get various led lighting effects.

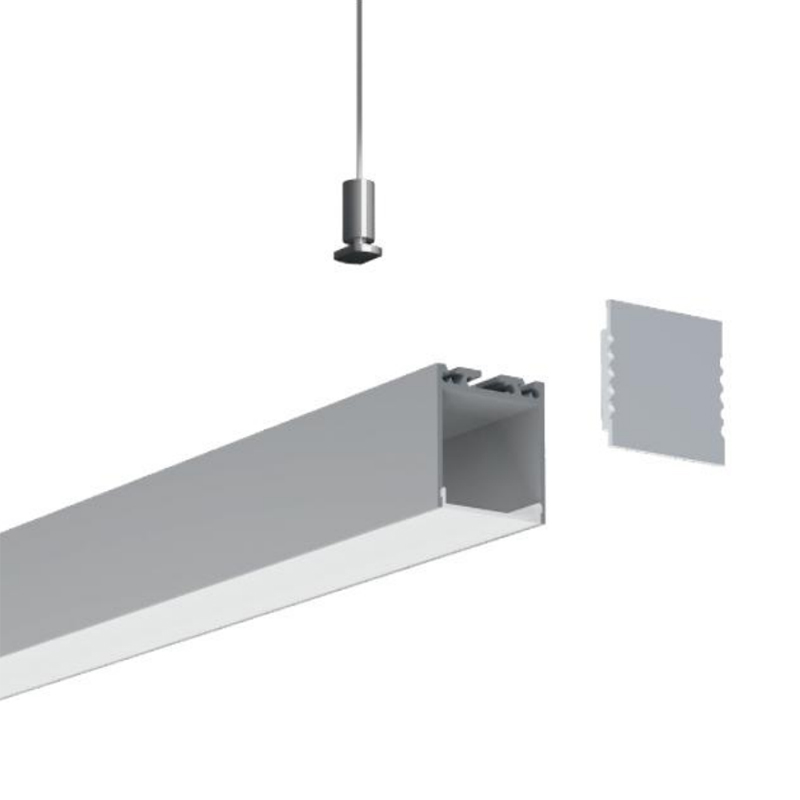

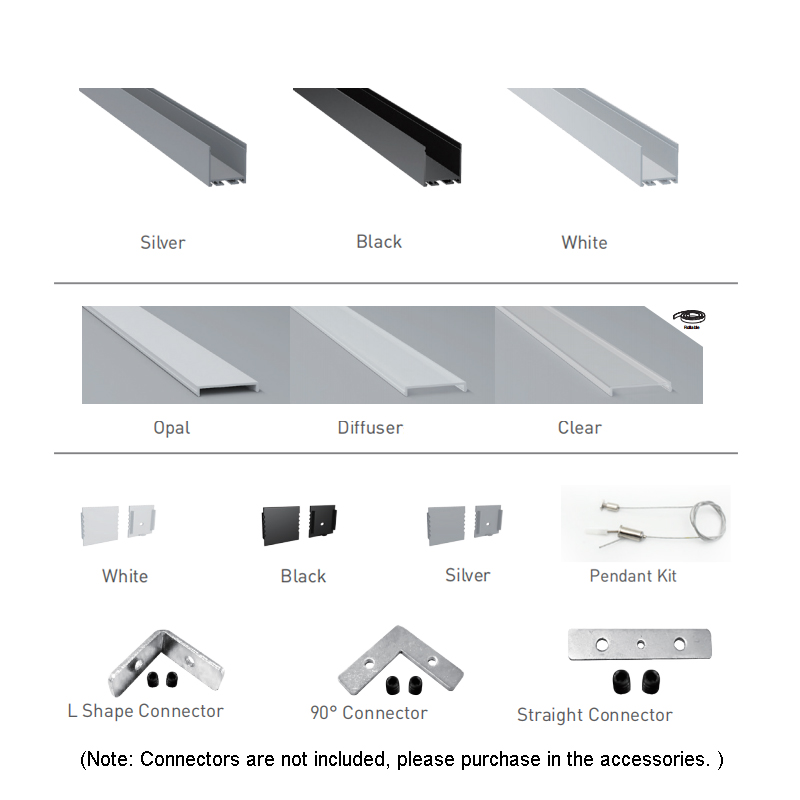

Comes with end caps and suspended steel cables, the suspended led profile is available in silver, white, and black finishes to suit your decoration style, widely used in home lighting and commercial lighting projects such as ceilings, kitchens, dining rooms, offices, etc. End cap with wire hole lets the led light strip through the led channel to connect to the led controller or led dc power supply. 1m and 2m led aluminum profiles are available. (Note: 90°/L/- connectors are not included, please purchase in the aluminum channel accessories. )
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|
|LED Diffuser||PC opal microprism diffuser /PC clear microprism diffuser / PC semi-clear-microprism diffuser|
|Accessory||End cap without hole, end cap with wire hole, suspended steel cables, 90°/L/- connectors(not included)|
|Apply to||3528 quad-row led strip lights|
Applications - Ultimate Guide to LED Aluminum Channel
1. Furniture production (kitchen/office)
2. Stores shelf LED lighting
3. Heat sink and physical protection to the LEDs
4. Independent LED lamp
5. Interior light design (stairs / storage / floor)
6. Exhibition boot LED lighting
