Small Size 2/3/4/5 Pin Waterproof 1-to-2 Y Splitter Cable Connector

Model: WC-1-TO-2-S Review stars 0.0 (0 Reviews) Various options in stock
Starting at: $5.00
Qty Discounts Off Price
1-99
$5.00
100+
$4.90
* Discounts may vary based on options below
Select Specifications:
Qty: -+
❓ Ask a question about this item — an engineer replies within 12 hours
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Lights Guide

Product Information

The model WC-1-TO-2-S small size waterproof 1-to-2 Y splitter cable connector distributes power and control signals from one source line to two separate lighting runs. This dedicated Y wire connector features one male plug on the primary input trunk and two female sockets on the branching legs, creating a secure, sealed parallel junction without manual wire stripping or soldering.

This Small Size Waterproof 1-to-2 Y Splitter Cable Connector can be ONLY used with these three objects: WP-2/3/4/5PIN-CON female and male connectors , WC-EXTENSION-CABLE cable extensions , and WT-1-TO-3-S small size 1-to-3 cable splitter . It is available in 4 choices: 2 Pin, 3 Pin, 4 Pin, and 5 Pin. Each configuration utilizes standardized copper conductors tailored for specific continuous currents, ranging from 2A for 4-pin and 5-pin assemblies to 3A for 2-pin and 3-pin formats.

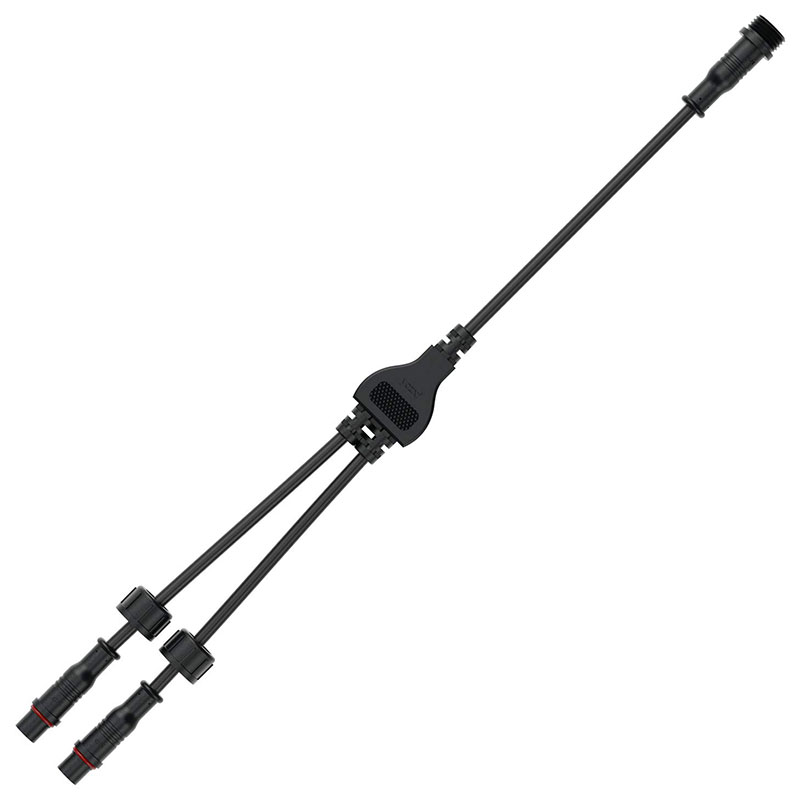

2 3 4 5 Pin Waterproof 1 to 2 Y Splitter Cable Connector - photo 2
Threaded locking collar and rubber O-ring seal ensuring IP68 waterproof protection

Key Features

1 Male to 2 Female Branching

Splits a single DC power or signal feed into two parallel outputs with integrated molded junctions.

Four Pin Count Options

Available in 4 choices: 2 Pin for single color, 3 Pin for CCT or SPI, 4 Pin for RGB, and 5 Pin for RGBW LED strip lights.

IP68 Submersible Sealing

Threaded screw rings and internal elastomeric O-rings prevent moisture ingress under outdoor rainfall or wet soil exposure.

Copper Conductor Cores

Constructed with 22AWG (0.3mm²) or 24AWG (0.2mm²) tinned copper wires to maintain electrical conductivity across both branches.

Small Profile Outer Molding

Slim connector barrel diameters fit into narrow architectural channels, tight conduits, and compact landscape junction boxes.

Polarized Alignment Keyway

Internal indexing grooves guarantee correct pin mating every time, preventing reverse-polarity short circuits.

Technical Highlights

  • Constructed as a dedicated waterproof wire splitter that joins directly to our small-format connector family.
  • Engineered for parallel electrical distribution: voltage remains identical on both female legs while input current splits across branches.
  • Molded heavy-duty PVC jacket provides ultraviolet resistance, flame retardancy, and flex endurance from -20°C to +80°C.
  • Gold-flashed brass contacts maintain low contact resistance below 5mΩ per pin under repeated mating cycles.
  • Operates safely on low-voltage direct current systems including DC 5V, DC 12V, DC 24V, and DC 36V circuits.
2 3 4 5 Pin Waterproof 1 to 2 Y Splitter Cable Connector
Small size waterproof 1-to-2 Y splitter cable overview with male input and dual female outputs

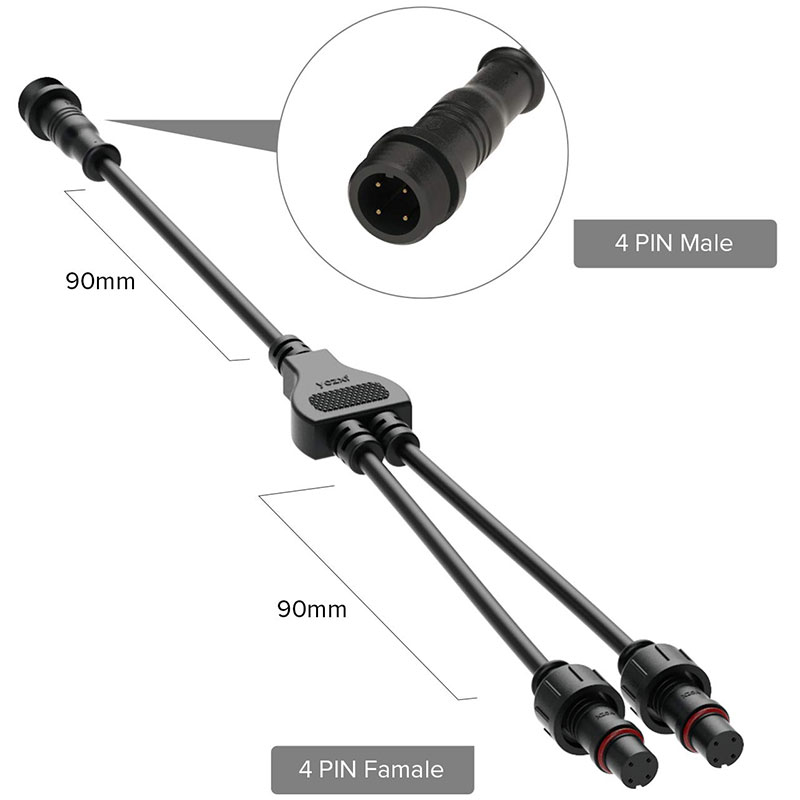

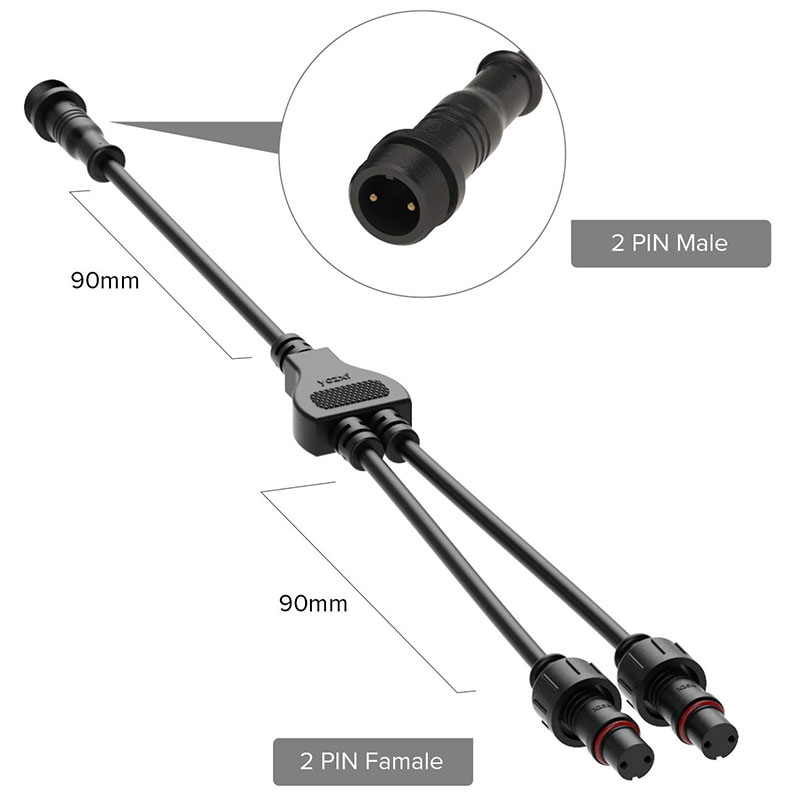

2 3 4 5 Pin Waterproof 1 to 2 Y Splitter Cable Connector - photo 1
Pin configuration details showing 2-pin, 3-pin, 4-pin, and 5-pin internal copper terminals

Product Specifications

ParameterDetails
Product ModelWC-1-TO-2-S
Connector Configuration1 Male Input to 2 Female Outputs (Y-Splitter)
Available Pin Configurations2 Pin, 3 Pin, 4 Pin, 5 Pin
2-Pin Wire Gauge & Current2-Pin: 0.3mm² (22AWG), Rated 2A to 3A
3-Pin Wire Gauge & Current3-Pin: 0.3mm² (22AWG), Rated 3A
4-Pin Wire Gauge & Current4-Pin: 0.2mm² (24AWG), Rated 2A
5-Pin Wire Gauge & Current5-Pin: 0.2mm² (24AWG), Rated 2A
Operating Voltage RangeDC 5V to DC 36V
Ingress Protection RatingIP68 (when fully threaded and tightened)
Contact Pin MaterialCopper Alloy with Gold/Tin Plating
Outer Insulation MaterialMolded UV-Resistant PVC
Operating Temperature-20°C to +80°C (-4°F to +176°F)
Junction TypeSolid Overmolded Y-Junction
Total LengthApprox. 300mm (Trunk ~100mm, Branches ~200mm each)
ColorBlack
Strict CompatibilityOnly mates with WP-2/3/4/5PIN-CON, WC-EXTENSION-CABLE, and WT-1-TO-3-S

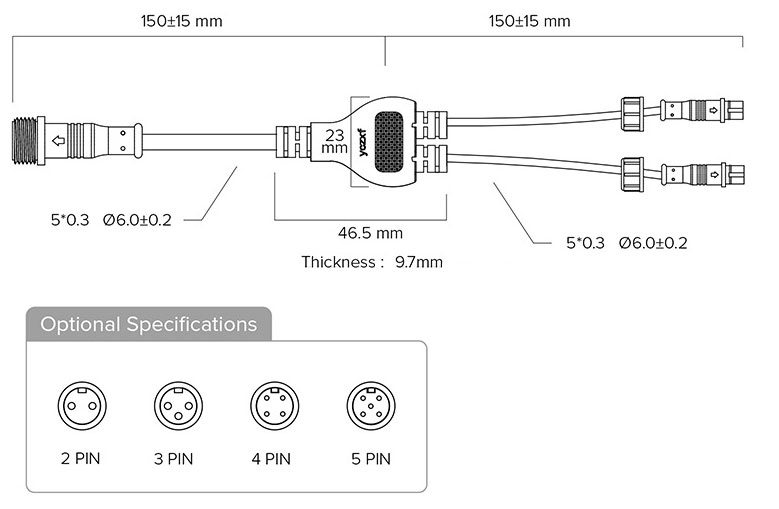

2 3 4 5 Pin Waterproof 1 to 2 Y Splitter Cable Connector - photo 3
Cable dimension measurements and wire gauge specifications for small size series

Application Scenarios

Garden Pathway and Patio Accent Runs Use the 2 pin led connector version to split a main 24V supply line toward dual garden border fixtures. The sealed IP68 housing withstands direct lawn sprinkler spray and wet mulch contact.
Outdoor Architectural RGB Facade Accents Deploy the 4 pin led connector variant to feed symmetrical left and right runs of color-changing exterior accent tape. This four pin led connector setup synchronizes color data without running separate feed lines back to the controller.
Signage and Commercial Display Branching Position the 5 pin option to split power and control to twin RGBW LED strip lights inside waterproof backlit sign boxes. The compact molding conceals easily behind framing channels.
2 3 4 5 Pin Waterproof 1 to 2 Y Splitter Cable Connector - photo 4
Wiring layout connecting one power or controller feed to two outdoor LED strip runs

How to Install and Wire This Y Splitter Connector

  1. Verify your pin requirements before ordering: 2-pin for monochrome, 3-pin for dynamic white or 3-wire digital, 4-pin for RGB, or 5-pin for RGBW LED strip lights.
  2. Check that the mating pigtails and extension cords belong to the matching small size connector series (WP-2/3/4/5PIN-CON, WC-EXTENSION-CABLE, or WT-1-TO-3-S).

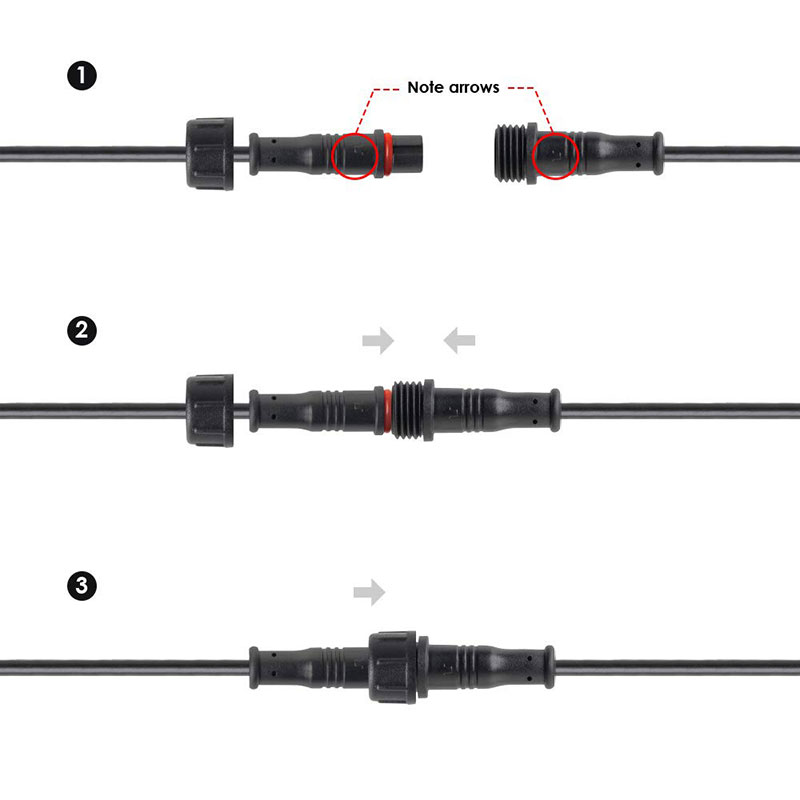

  3. Align the male input plug of the Y splitter with the female feed connector coming from your LED power supply or controller, matching the internal alignment notch.
  4. Push the connector halves firmly together until the rubber O-ring is compressed into the socket seat.
  5. Thread the outer locking nut clockwise until snug. Hand-tighten firmly to ensure the IP68 moisture seal is fully engaged; do not over-tighten with metal pliers.
  6. Connect the two female branching legs to your two destination LED strip runs using identical alignment and locking procedures.
  7. Power on the low-voltage circuit to verify uniform illumination across both split branches.
⚠ Precautions
  • This connector series is strictly compatible only with small size series parts: WP-2/3/4/5PIN-CON, WC-EXTENSION-CABLE, and WT-1-TO-3-S. It does NOT mate with standard M19, M15, or large-size barrel connectors.
  • Do not exceed the maximum current limits: 2-pin supports 2A to 3A (22AWG); 3-pin supports 3A (22AWG); 4-pin supports 2A (24AWG); 5-pin supports 2A (24AWG). Calculate the total amperage of both branches combined.
  • Ensure all unused female outlets are capped with compatible waterproof blanking caps if one leg is left disconnected in wet environments.
  • Disconnect DC input power before mating or uncoupling connectors to prevent contact arcing.

What is in the Box

  • ✓1 x Small Size 1-to-2 Y Splitter Cable Connector (selected pin count: 2, 3, 4, or 5 Pin)
2 3 4 5 Pin Waterproof 1 to 2 Y Splitter Cable Connector - photo 5
Coupling the Y splitter with compatible extension cables and waterproof male female pigtails

Frequently Asked Questions

Q: Can this Y splitter connector be used with standard off-the-shelf waterproof connectors?

A:No. This small size Y splitter connector can be ONLY used with three specific objects: WP-2/3/4/5PIN-CON female and male connectors, WC-EXTENSION-CABLE cable extensions, and WT-1-TO-3-S small size 1-to-3 cable splitters. It will not mate with M15, M19, or generic third-party fittings.

Q: What is the maximum current load for each pin version?

A:The 2-pin model uses 22AWG (0.3mm²) wire rated for 2A to 3A; the 3-pin model uses 22AWG (0.3mm²) wire rated for 3A; the 4-pin model uses 24AWG (0.2mm²) wire rated for 2A; and the 5-pin model uses 24AWG (0.2mm²) wire rated for 2A total combined load through the main trunk.

Q: Are led light strips waterproof when connected with this splitter?

A:Yes, when paired with compatible IP68 mating pigtails and securely hand-tightened against the internal rubber O-rings, the connection joint maintains an IP68 waterproof rating suitable for wet and outdoor environments.

Q: How to connect led light strips with connectors like this Y splitter?

A:Align the internal alignment keyway on the male plug with the mating female socket, push together until the rubber seal seats, and tighten the threaded collar by hand. Repeat on both female branching output legs.

Q: Can you cut waterproof led strips and wire them to this splitter?

A:Yes. Cut the waterproof LED strip along designated cut marks, solder a compatible WP series waterproof pigtail to the copper pads, seal the cut end with silicone glue and heat shrink tubing, and then screw into this Y splitter.

Q: Does this splitter divide voltage or current?

A:Because the branches are wired in parallel, the DC voltage remains identical on both output legs, while the total load current is shared between the two connected LED strip runs.

Q: How to choose LED strip light connectors between 2, 3, 4, and 5 pin types?

A:Select 2 Pin for single-color LED strip lights, 3 Pin for CCT tunable white or single-signal digital strips, 4 Pin for RGB color changing strips, and 5 Pin for RGBW tape with independent white channels.
