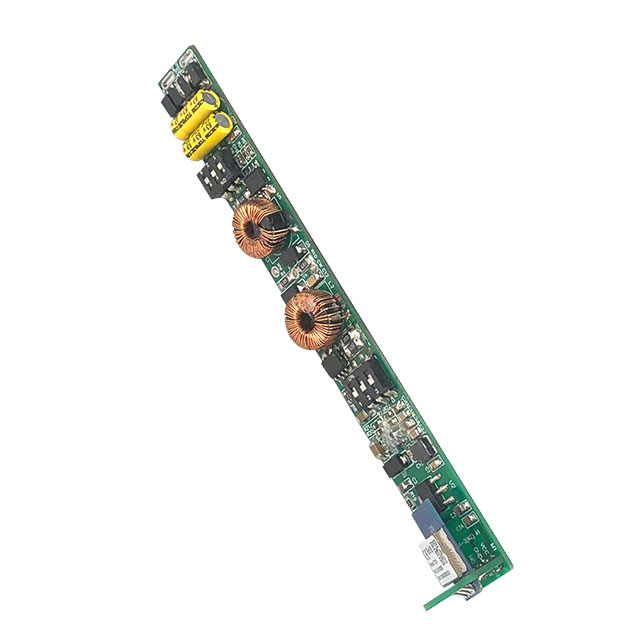

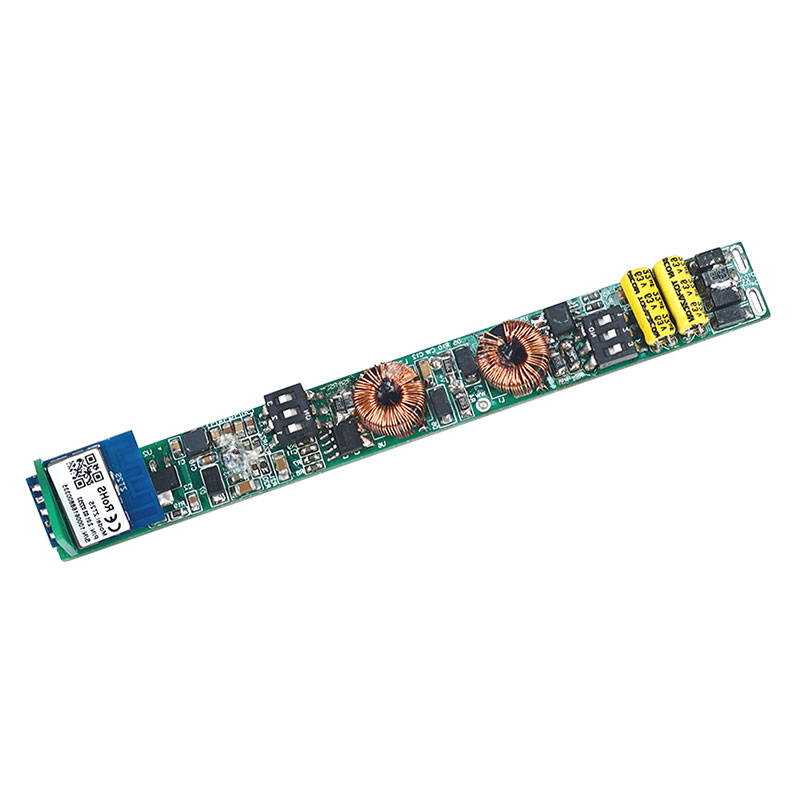

10-42VDC 2CH*( 350-700mA) 3.5-29.4W Zigbee CCT Magnetic Light Constant Current LED Driver CXR-28A-2(WZS)

Model: CXR-28A-2(WZS)
10-42VDC 2CH*( 350-700mA) 3.5-29.4W Zigbee CCT Magnetic Light Constant Current LED Driver CXR-28A-2(WZS)
  • 10-42VDC 2CH*( 350-700mA) 3.5-29.4W Zigbee CCT Magnetic Light Constant Current LED Driver CXR-28A-2(WZS)
  • 10-42VDC 2CH*( 350-700mA) 3.5-29.4W Zigbee CCT Magnetic Light Constant Current LED Driver CXR-28A-2(WZS)

$10.98

Free worldwide shipping on orders over $199

Various options in stock
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    When controlled by a Zigbee dimmable LED driver, the CCT adjustable magnetic lights can be even more versatile and convenient. Zigbee is a low-power, wireless communication standard that enables the control of LED lights through a compatible smartphone app.

    By using a Zigbee LED driver, the magnetic lights can be controlled and adjusted remotely. The ability to adjust the light brightness and color temperature as desired allows for the creation of different lighting scenes to match different activities or moods, making the environment more comfortable and visually appealing.

    It's a great solution for homes, offices, retail spaces, hospitality environments, museums, and other environments where adjustable lighting is desired.



    Product Features

    ● Special for magnetic & linear lamps, magnetic installation.

    ● Suitable for STUCCHI standard housings.

    ● No input polarity.

    ● DC to DC constant current output, multiple output current settings.

    ● Smooth dimming without flicker, quiet without noise.

    ● Tuya APP control, support color temperature and brightness adjustment, delay turn on/off, timer run, scene edit, sleep wake-up, and biorhythms functions.

    ● Voice control, support Alexa, Google, Amazon ECHO, and TmallGenie smart speakers.

    ● Match with Zigbee 3.0 remote or scene panel control.

    ● Can relay and route to each other, up to 15 hops.

    ● Short circuit, overload, no-load, and anti-reverse protection.

    ● 5-year warranty.



    CXR-28A-2(WZS) Manual Download PDF



    Standards and Certifications

    CE FCC  RoHS ISA SGS ISO

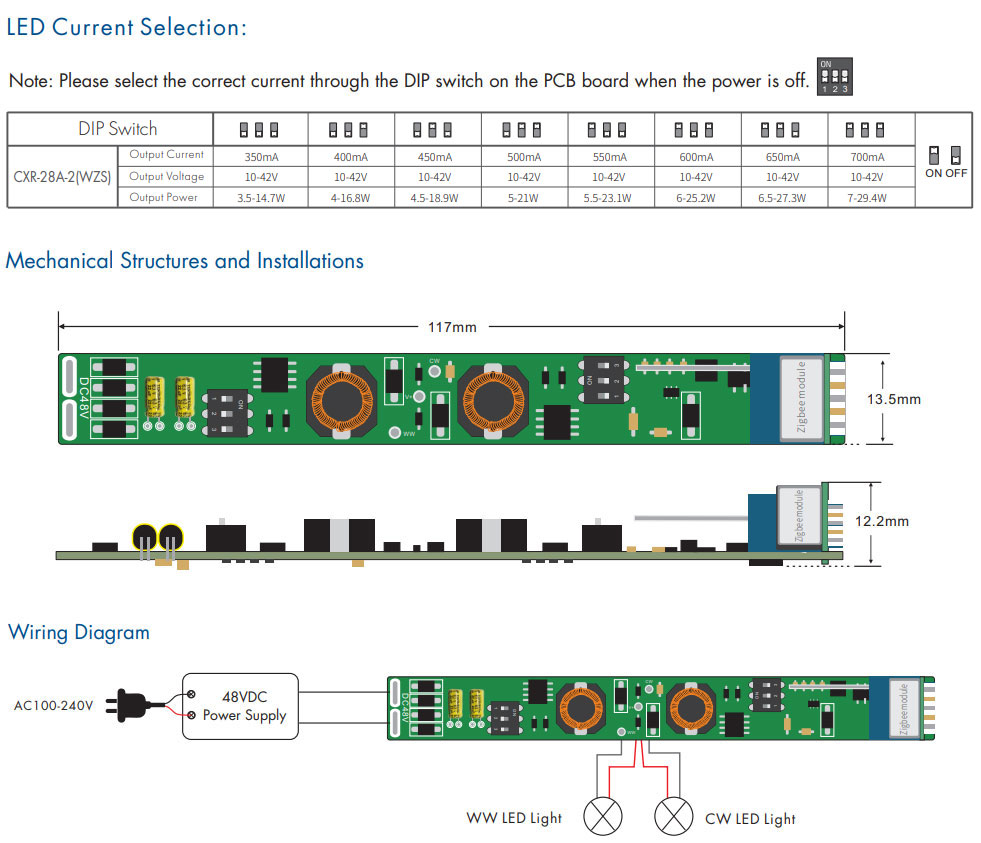

    Product Specification

    Model:  CXR-28A-2(WZS)
    Output Voltage:  10~42Vdc
    Output Current:  2x(350-700)mA
    Output Power:  3.5W- 29.4W
    Current Accuracy:

    ±5%

    Dimming Range:  0~100%
    Output channel:  2
    Dimming Interface:  Zigbee 3.0
    Input Voltage:  48Vdc±5% ( No polarity)
    Input Current:  Max. 0.65A
    Efficiency:  95%
    Size:  L117×W13.5×H12.2mm
    Standby Power:  <0.5W
    Woking Temperature:  -20℃~50℃



    10-42VDC 2CH*( 350-700mA) 3.5-29.4W Zigbee CCT Magnetic Light Constant Current LED Driver CXR-28A-2(WZS)



    App Operating Instructions

    1. Network pairing

    ● Download the Tuya APP and register an account, search and add the Tuya Zigbee gateway device.

    ● Quickly press the "RESET" button five times or repeat power on and off five times to clear the previous network connection, and enter pairing mode with the output light breathes blinking.

    ● Under the Zigbee gateway, search and add a new device. If the network connection is successful, you can find ZBS-CCT devices in Tuya APP.

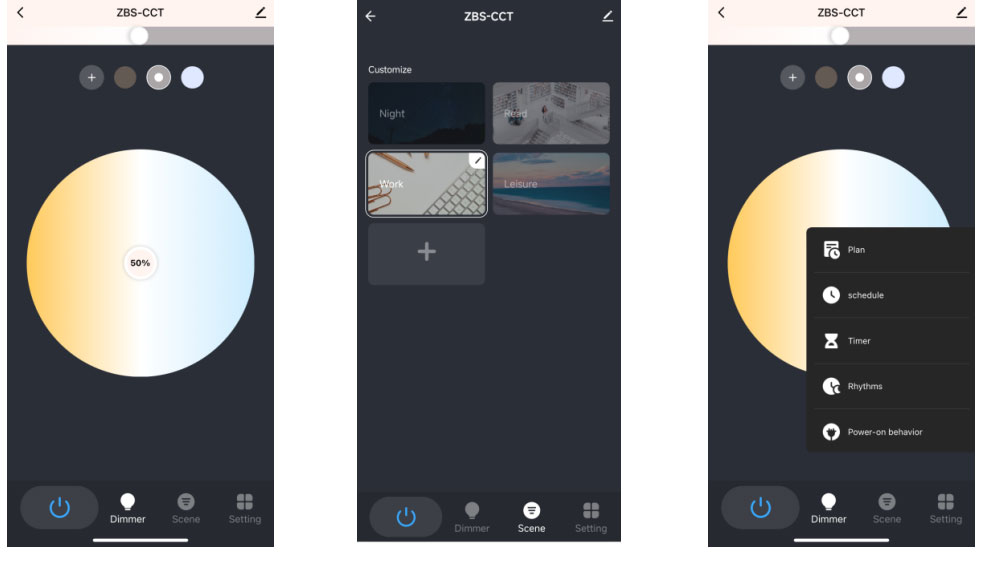

    2. Lighting control settings

    After pairing the light device, click the device and change brightness and color temperature by touching the brightness slide and color wheel.

    In “Scene”, there are 4 scenes that can be recalled or customized.

    In “Setting”, there are Plan, Schedule, Timer, Rhythms, and Power-on behavior functions.

    10-42VDC 2CH*( 350-700mA) 3.5-29.4W Zigbee CCT Magnetic Light Constant Current LED Driver CXR-28A-2(WZS)



    10-42VDC 2CH*( 350-700mA) 3.5-29.4W Zigbee CCT Magnetic Light Constant Current LED Driver CXR-28A-2(WZS)

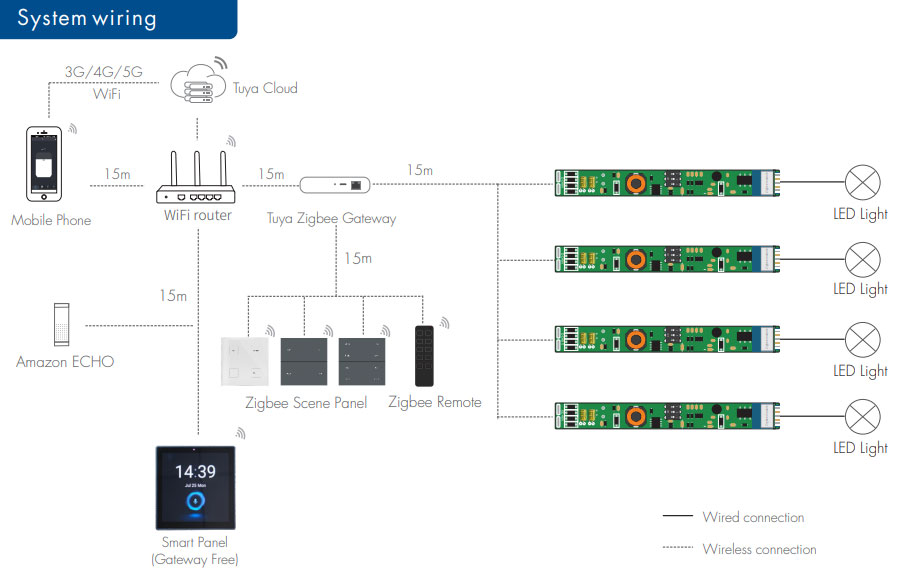

    Note:

    1. The above distance is measured in a spacious (no obstacle) environment, Please refer to the actual test distance before installation.

    2. Please check if the WiFi router net is in the 2.4G band, the 5G band is not available, and do not hide your router network.

    3. Please keep the distance between the LED driver and router close, and check the WiFi signals.

    4. Users must use the Tuya ZigBee gateway to realize remote control and voice control (The smart panel integrates the Zigbee gateway function).

    10-42VDC 2CH*( 350-700mA) 3.5-29.4W Zigbee CCT Magnetic Light Constant Current LED Driver CXR-28A-2(WZS)

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    10-42VDC 2CH*( 350-700mA) 3.5-29.4W Zigbee CCT Magnetic Light Constant Current LED Driver CXR-28A-2(WZS)10-42VDC 2CH*( 350-700mA) 3.5-29.4W Zigbee CCT Magnetic Light Constant Current LED Driver CXR-28A-2(WZS)
