12W 12VDC CV Wireless Dim &switchDim LED Driver PB-12-12

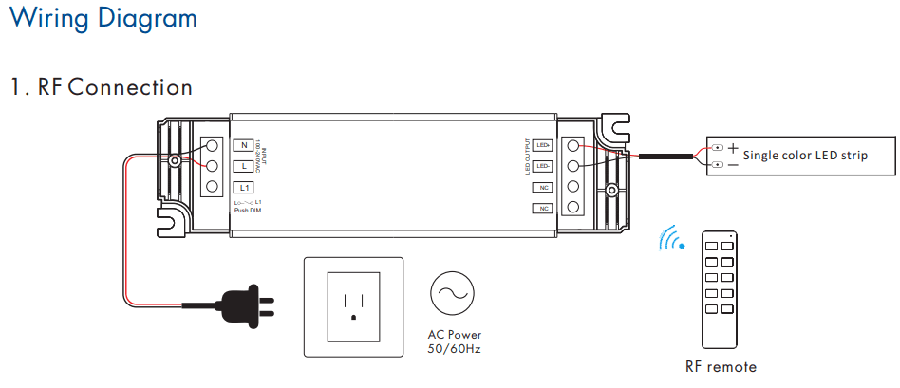

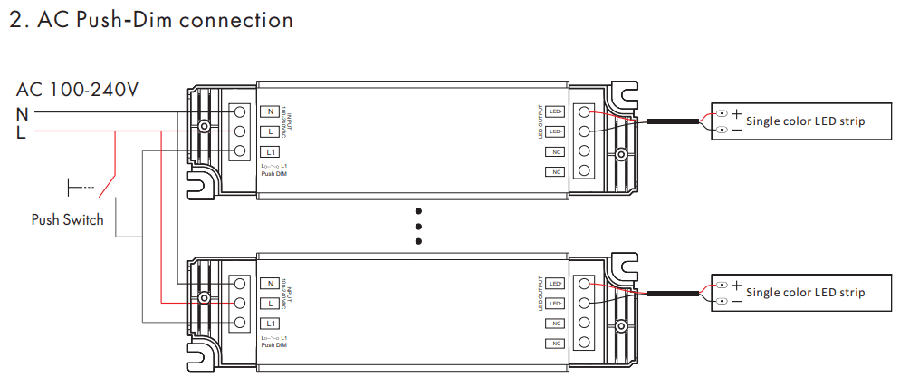

● Dimming interface: RF Wireless, AC Push-Dim.
● Match with Skydance’s 2.4G single color remote control, one RF LED driver to accept up to 10 remote control.
● Universal AC input / Full range.
● 1 channel constant voltage output, Max. total output power 12W.

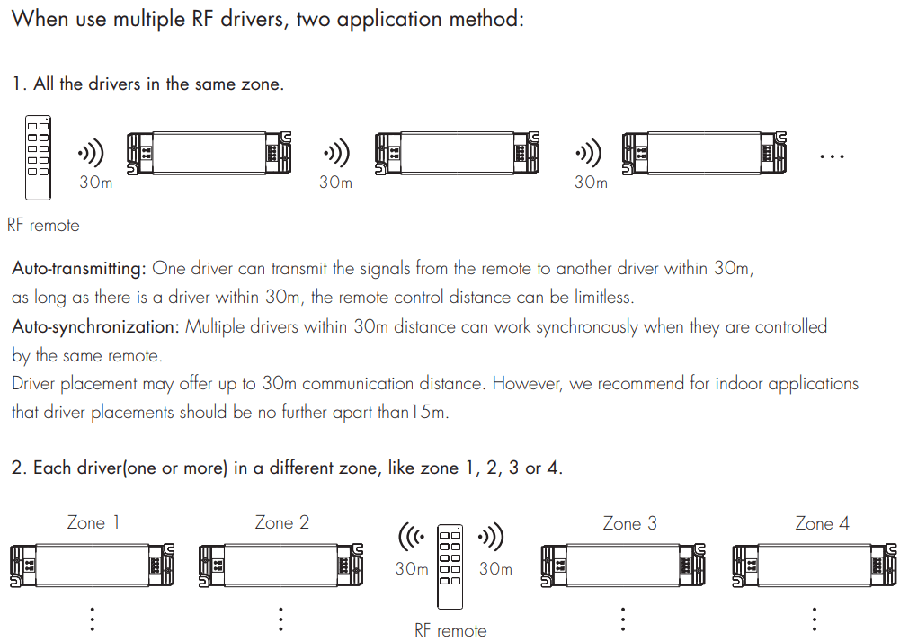

● Auto-transmitting function: LED driver automatically transmit a signal to another LED driver with 30m control distance.
● Synchronize on the multiple numbers of LED drivers.
● Over-heat / Overload / Short circuit protection, recover automatically.

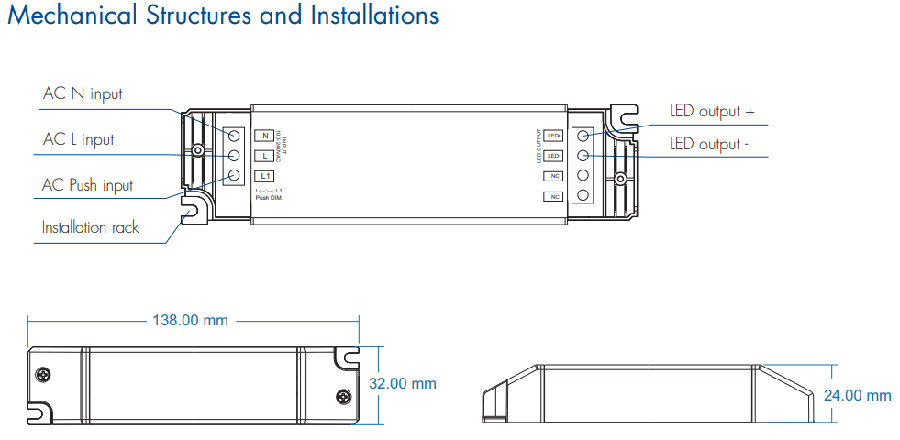

● Full protective plastic case.
● Suitable for indoor LED lighting application.
● 5 Year, 50,000hr warranty.
Output Voltage: 12VDC
Output Current: Max. 1A
Output Power: Max. 12W
Dimming Range: 0～100％
Ripple & Noise: <=200mV
PWM Frequency: 500Hz
Rise Time: 650ms/115VAC, 650ms/230VAC
Hold Time: 1.6ms/115VAC, 1ms/230VAC
Input Voltage Range: 100VAC～240VAC
Frequency Range: 50/60Hz
Alternating Current: 0.26A/115VAC, 0.13A/230VAC
Inrush Current: 5A/230VAC
Leakage Current: ＜0.5mA/230VAC
No Load Power: 0.8W/115VAC, 1.2W/230VAC
