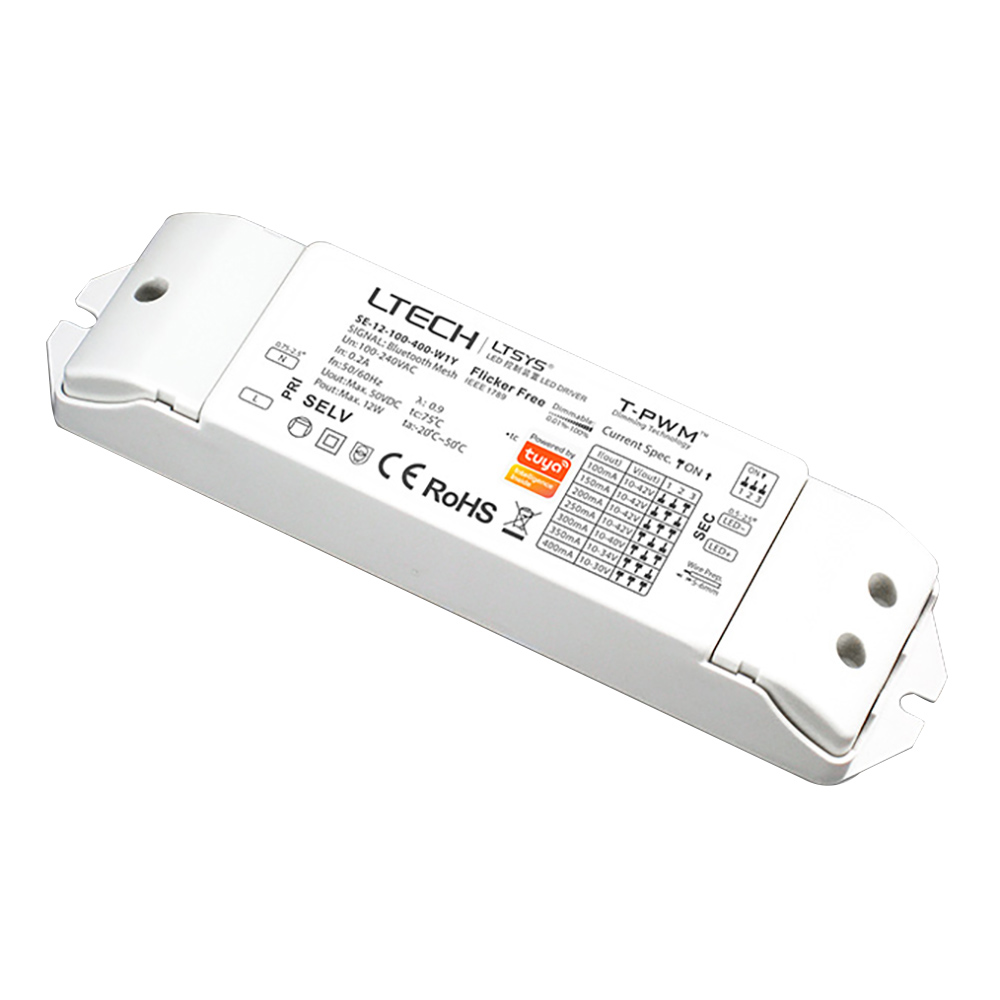

12W Constant Current Dimmable Driver SE-12-100-400-W1Y
The 100-240V LED dimming driver is designed with 1 channel 100-240V input and 1 channel PWM constant current output. By dip switch.
0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes.
Besides the 100-240V signal, the dimming driver can be controlled by push switch and potemtiometer as well.

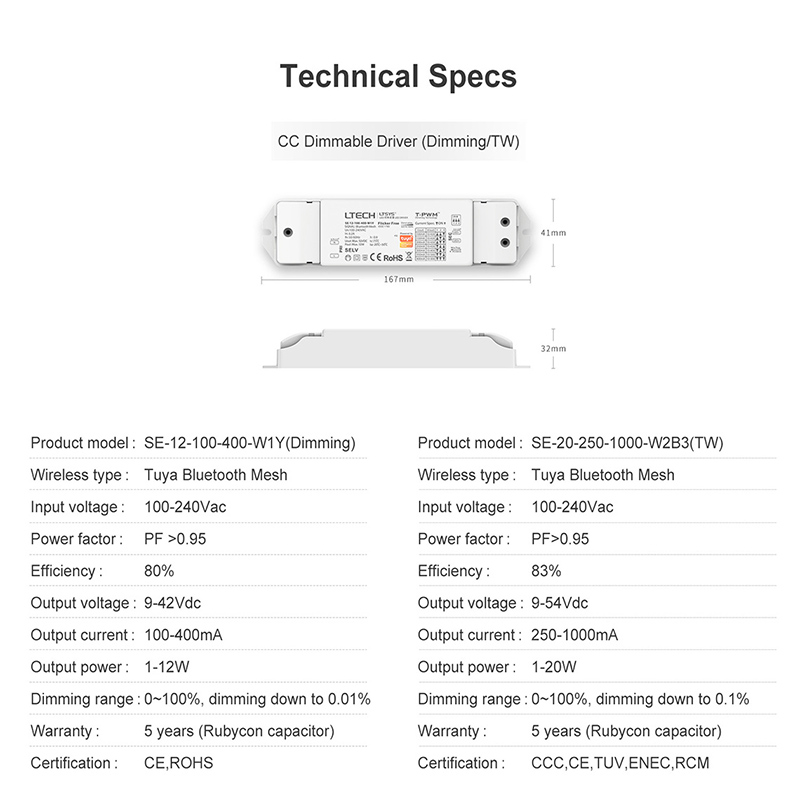

Product model: SE-12-100-400-W1Y(Dimming)
Wireless type: Tuya Bluetooth Mesh
Input voltage: 100-240Vac
Power factor: PF>0.95
Output voltage: 9-42Vdc
Output current: 100-400mA
Output power: 1-12W
Dimming range: 0~100%,dimming down to 0.01%
Certification: CE ROHS
Standards and Certifications
