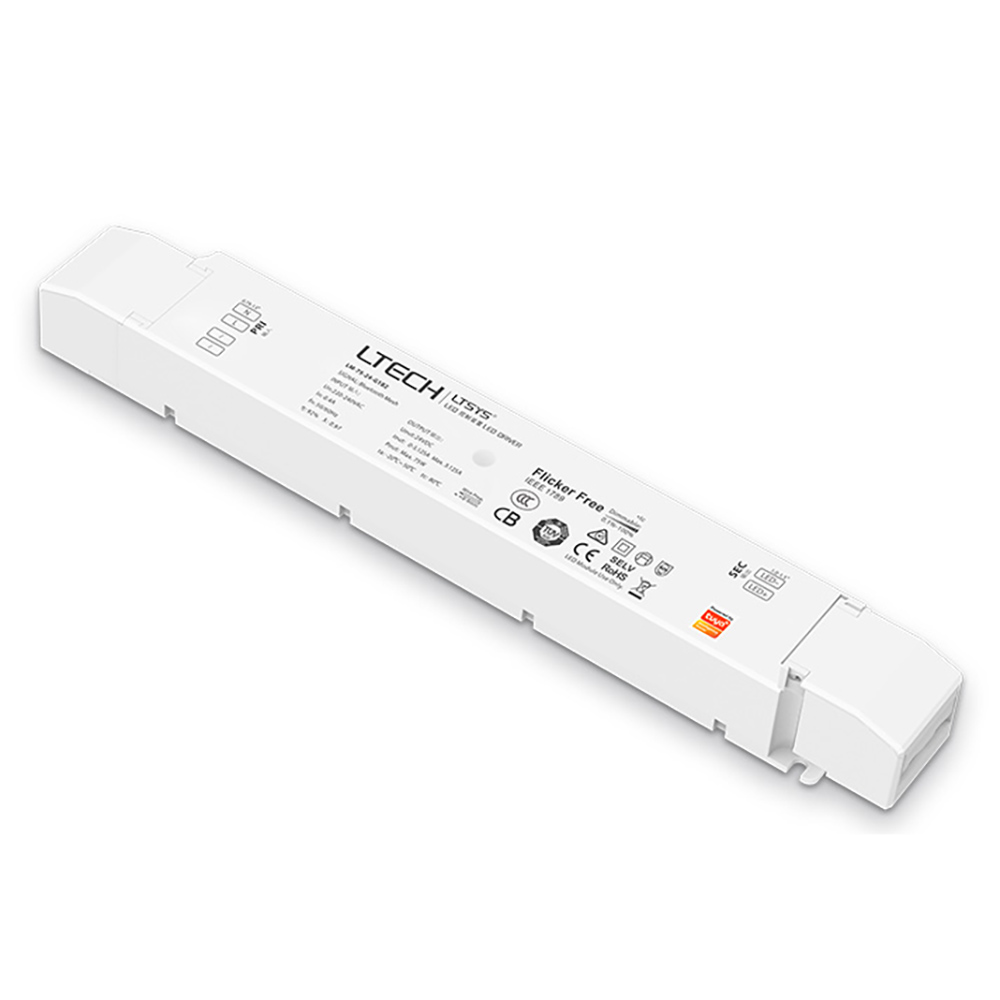

75W Constant Voltage Dimmable Driver LM-75-24-G1B2
The 220-240V LED dimming driver is designed with 1 channel 220-240V input and 1 channel PWM constant current output. By dip switch.
0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes.
Besides the 220-240V signal, the dimming driver can be controlled by push switch and potemtiometer as well.

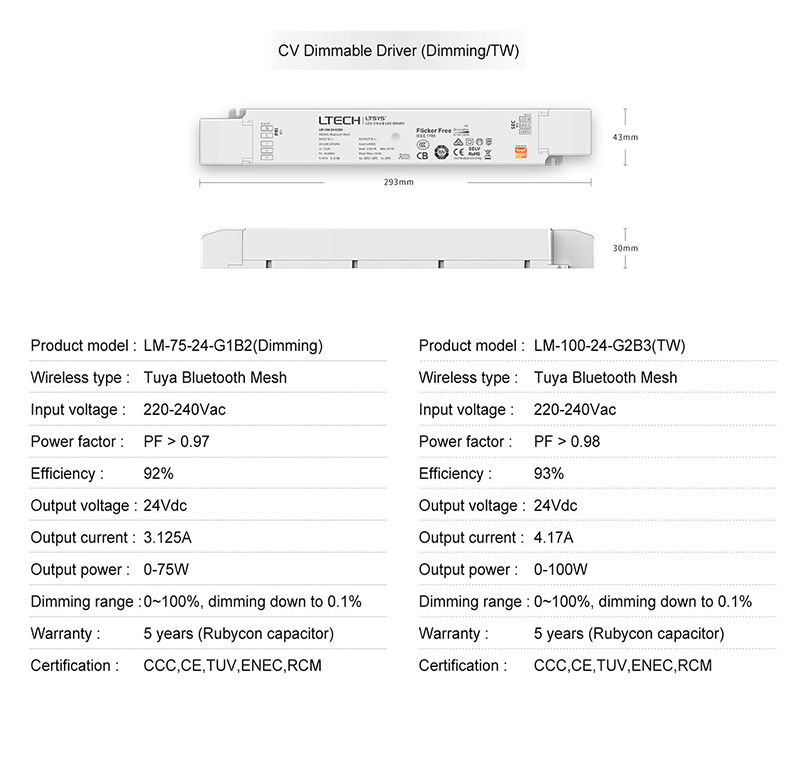

Product model: LM-75-24-G1B2(Dimming)
Wireless type: Tuya Bluetooth Mesh
Input voltage: 220-240Vac
Power factor: PF>0.95
Output voltage: 24Vdc
Output current: 3.125A
Output power: 0-75W
Dimming range: 0~100%,dimming down to 0.1%
Certification: CCC,CE TUV,ENEC,RCM
Standards and Certifications
