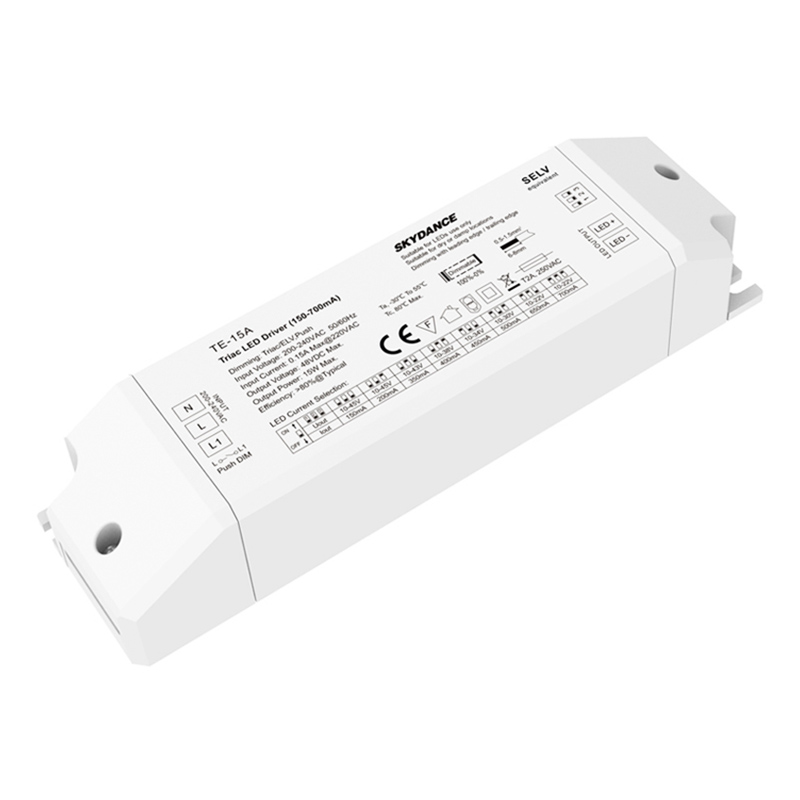

15W 150-700mA Multi-Current switchDim Triac Dimmable LED Driver TE-15A
● Dimming interface: Triac/ELV
● 1 channel constant current output, configurable current via DIP switch
● Apply to lead edge/trailing edge Triac dimmers and dimming system
● PWM digital dimming, no alter LED color rending index
● Over-heat / Over-load / Short circuit protection, recover automatically
● Full protective plastic case
● Suitable for indoor LED lighting application
● 5 Year, 50,000hr warranty
Standards and Certifications
● Suitable for LED related fixture or appliance which use LED light bar and LED tape (like LED Decoration or Advertisement devices).
● Office / Commercial / Domestic Lighting, Hotels, Retail and Display.
● Use for retrofit upgrades & new luminaire designs.
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
