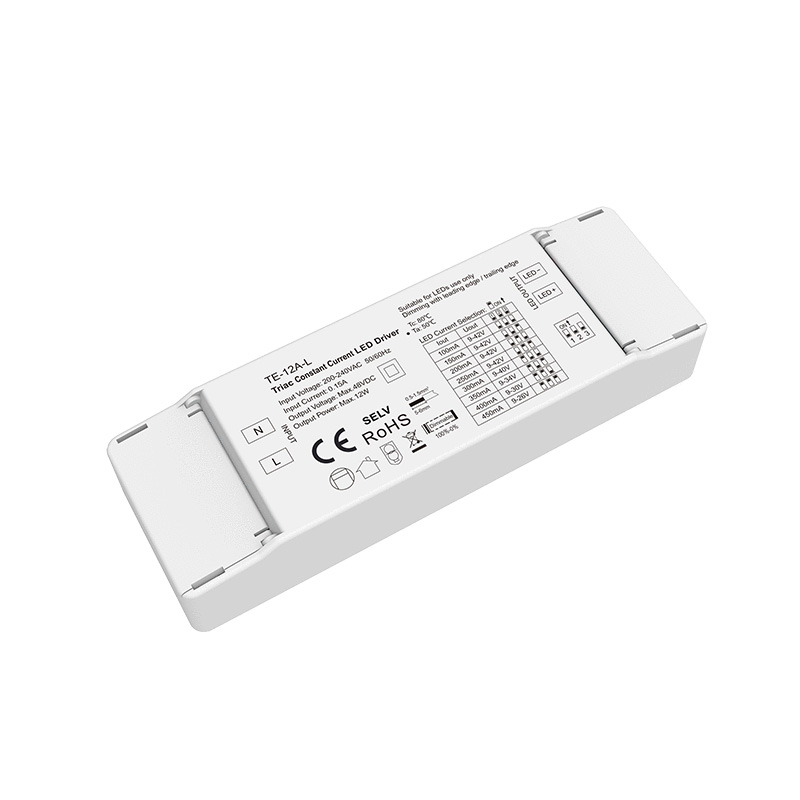

200-240VAC 12W 100-450mA Constant Current Triac LED Driver TE-12A-L
200-240VAC 12W 100-450mA Constant Current Triac LED Driver TE-12A-L. Connect to Triac dimmer to control your home lights.
● Dimming interface: Triac/ELV
● Apply to leading edge/trailing edge Triac dimmers and dimming system
● PWM digital dimming, no alter LED color rending index
● 1 channel constant current output, configurable current via DIP switch
● Over-heat / Over-voltage / Over-load / Short circuit protection, recover automatically
● Full protective plastic case
● Suitable for indoor LED lighting application
● 5 Year, 50,000hr warranty
Standards and Certifications
|Max Output Voltage:||48VDC|
|Dimming Range:||0～100％, dimming depth:0.1%|
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
