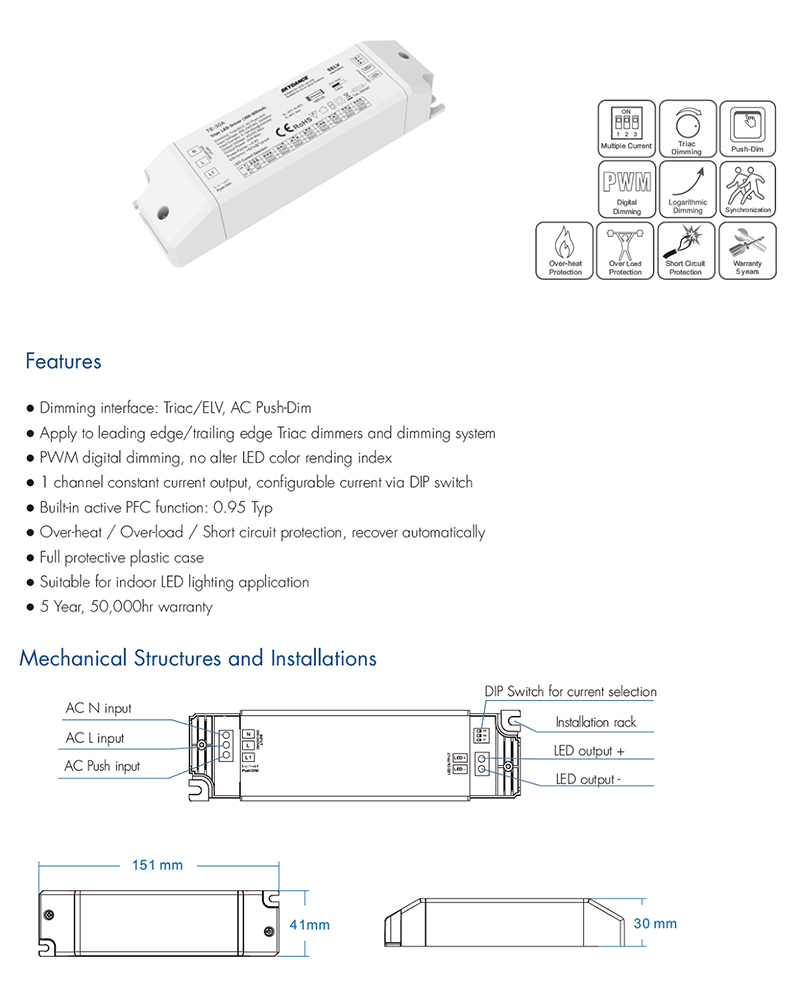

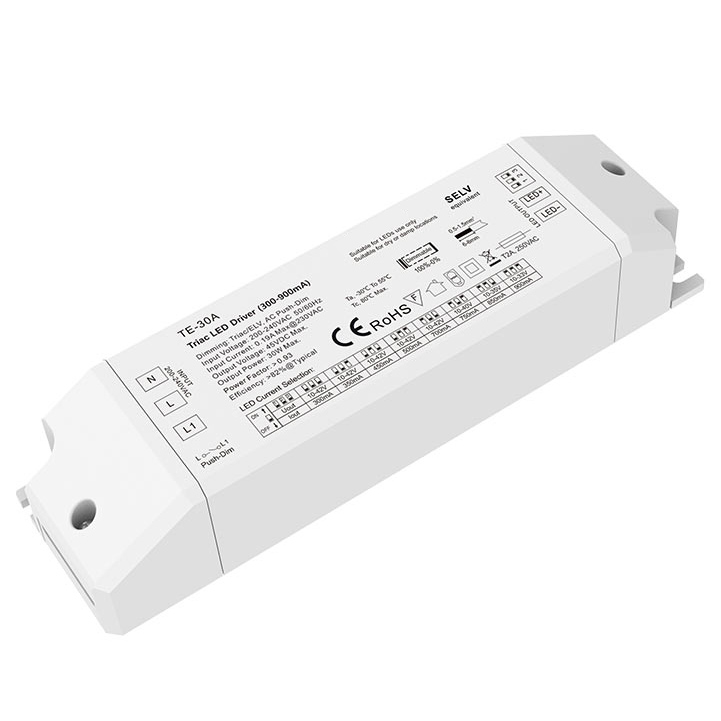

30W 300-900mA Triac Dimmable LED Driver TE-30A

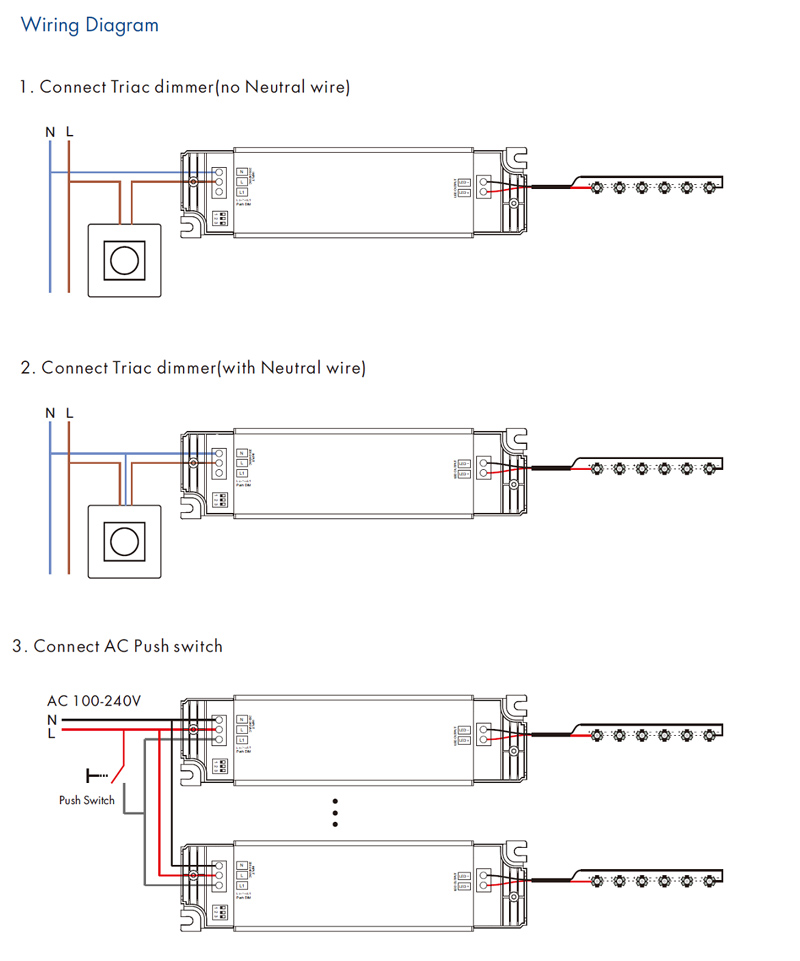

● Apply to lead edge/trailing edge Triac dimmers and dimming system
● PWM digital dimming, no alter LED color rending index
● 1 channel constant current output, configurable current via DIP switch
● Built-in active PFC function:0.95 Typ
● Over-heat / Over-load / Short circuit protection, recover automatically
● Full protective plastic case
● Suitable for indoor LED lighting application
● 5 Year, 50,000hr warranty
Standards and Certifications
● Suitable for LED related fixture or appliance which use LED light bar and LED tape (like LED Decoration or Advertisement devices).
● Office / Commercial / Domestic Lighting, Hotels, Retail and Display.
● Use for retrofit upgrades & new luminaire designs.
