16 sliders for channel,1 slider for speed control,1600 chase steps, Professional Sunny DMX512 international DJ Lighting Disco Lighting Controller Console
Product details :
The combination of various scenes, chase, and manual control to the light can be applied to the environment very quickly.
The music signal can be got from audio frequency circuitry input or internal mike adaptor.
Data can be saved after powering off.
Green switch power supply installed internally with high performance
and the harmonic distortion with low power supply and big applicable scope of voltage
is suitable for all the power supply in the world.
1) 512 DMX channels with 2 optical isolated output.
2) 32 units with 16 DMX channels each.LCD display.
3) 16 channel faders, 1 chase speed fader, 2 modulation Wheel for 16 bit of Tilt / Pan.
4) 48 chases, total 1600 steps. Each step contains its speed and cross time, can be set respectively.48 scenes.
5) 15 environment programs to output the combination, which are composed of different scenes, chases and manual output quickly.
6) 8 chases, 48 scenes can be run simultaneously. At most 32 unit can be Manual operate.
7) Backup or restore with USB Flash drive.
8) Music trigger function for Chase.
9) The Data auto-saves.
10) Option: 12V Gooseneck lamp with BNC Socket
11) Power supply: AC 100-240V, 50-60Hz.
12) Size: 483mm*400mm*105mm
13) Weight: 8Kg

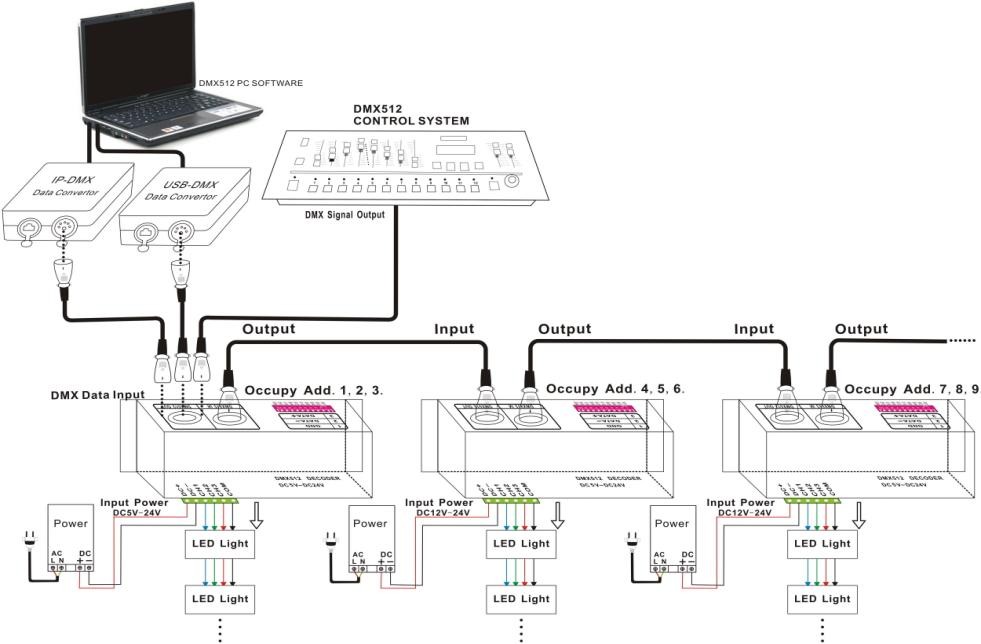

Connection way :
