SUITE2-FC Sunlite2 Sunlite DMX512 Master LED Stage Lighting Dimming Controller

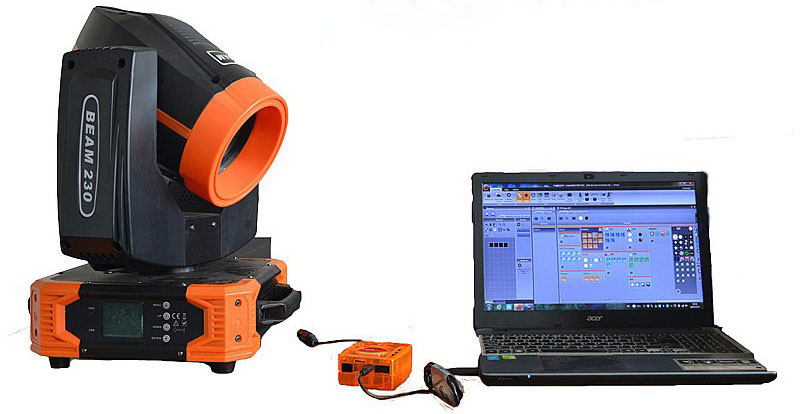

This SUITE2-FC Sunlite2 Sunlite DMX512 Master LED Stage Lighting Dimming Controller control software that is easy for novices to use. The led controller can be directly connected to the computer to control the lighting. The DMX Master controller has built-in intuitive lighting effects and programs with icons. The mouse is click-and-use, simple, convenient and fast. And all LED lighting effects are included, such as colours, patterns, pattern rotation, prisms, etc. You can synchronize audio and video and lighting effects to make a music show. You can drag and drop on the audio and video time scale, move, and expand to arrange the start and end times of the lighting effects. The controller supports PC working mode and offline working mode selection can work independently from the computer and is equipped with memory with SD memory function. Equipped with Ethernet communication connection, supports WiFi, and can be operated remotely by WINDOWS, IOS or Andriod tablet or mobile phone.
Standards and Certifications
Product Technical Specifications
1. When editing a program in independent mode, there is a built-in program that can be used to edit
2. The shape of the object can be seen when the object is called up on the 3D stage
3. Minimum requirements for computer configuration
①A computer running Windows XP
②Processor frequency: 800Mhz
③256Mb memory (RAM)
④Video card with 32Mb memory that supports Microsoft Direct 3D
⑤8000 x 600 pixel screen
4. Recommended computer configuration conditions
①A computer running Windows 10
②Processor frequency: 2Ghz
④Video card with 128M memory and supporting Microsoft Direct 3D
⑤1280 x 1024 pixel screen
⑥Requirements for the external power supply of the USB-DMX decoder when working offline
5. Voltage: 5V
6. Current: ＞300mA
DMX512 signal decoder, single PC supports multiple USB-DMX decoding, stable output
USB-BOX has standard 3 X DMX512 output (1536 channels)
A single PC software is equipped with 50 DMX domains, which can be expanded to 50 x DMX512 output (25600 channels)

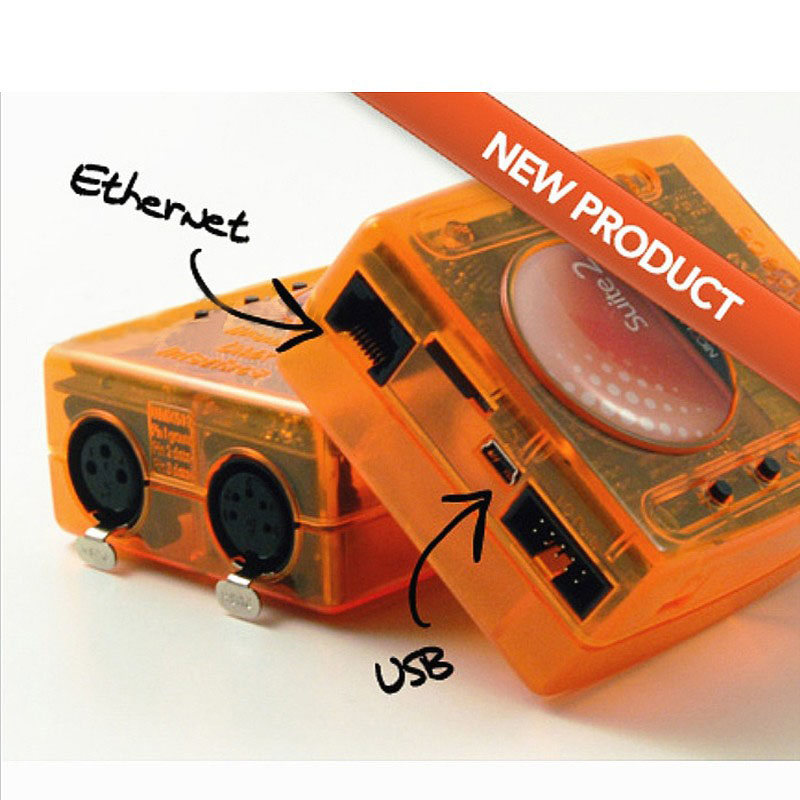

Equipped with Ethernet communication connection, supports WiFi, and can be operated remotely by WINDOWS, IOS or Andriod tablet or mobile phone
Support PC work and offline work mode selection, equipped with SD memory function memory, can work in "independent romance" mode, can work independently from the computer
Computer 3D stage establishment, the real-time display effect of computer 3D effect and live lighting synchronization
Synchronize audio-visual and lighting effects to make a music show. You can drag and drop on the audio-visual time scale, move, and expand to arrange the start and end times of the lighting effects.
When separated from the computer, it can support 3 DMX outputs
Create your own lighting data or modify existing lighting data, all lighting effects are included, such as colours, patterns, pattern rotation, prisms, etc.
Built-in intuitive effects and programs with icons, the mouse click and use method;
AVI export of 3D lighting effects
Support WINDOWS XP/Windows 7 32 bit/Windows 10 64 bit operating system
