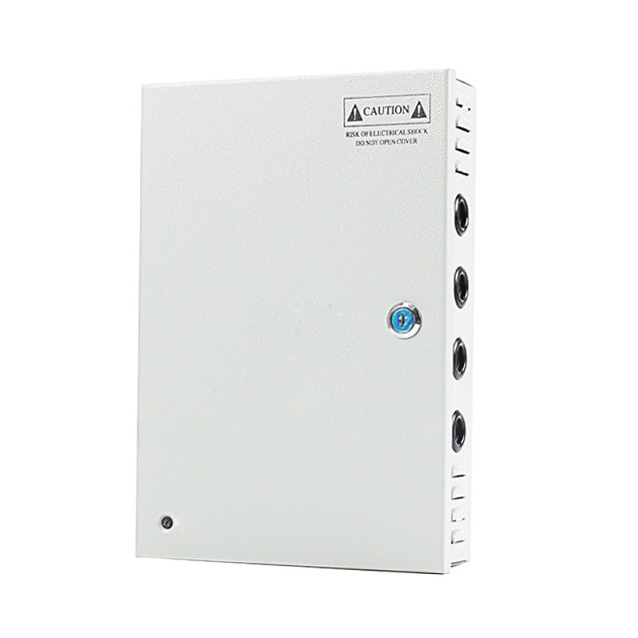

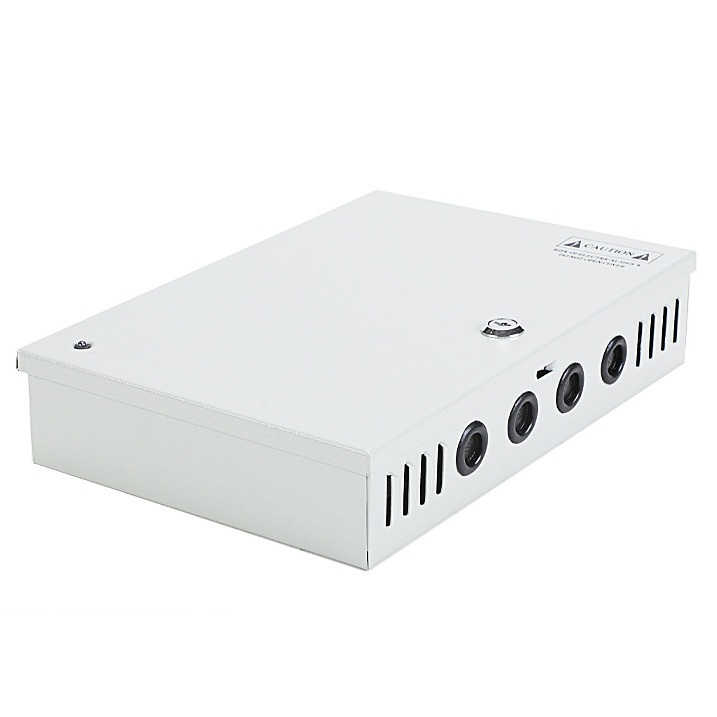

480W 20A 18CH DC24V Output Switch Mode CCTV Distribution Box Portable Power Supply For IR Camera Monitoring Equipment LED Tape Lights
This 18 ways CCTV Distribution Box power supply panel is specially designed for multiple Monitoring equipment cameras system installers. Power supply panels for up to 18 cameras offer a more professional alternative to individual power adapters, , allowing you to consolidate Camera Power in a central location. Powering multiple cameras could not be easier! The most special feature is that each outlet is individually fused protected, with LED indicators. Additionally, this is a 24V DC 18 cameras panel, 18 ports power supply comes with a locker & keys. Output 20 amp Max.
This CCTV Distribution Box Low price and high reliability, Compact size, light weight, Universal AC input, Soft-start current can reduce the AC input impact effectively, Automatic Overload cut-off, Over Voltage cut-off, Automatic Thermal cut-off, Short circuit protection. built-in EMI filter, 100% full-load burn-in test ,Full range of input voltage, output voltage accurate and stable, Output over-voltage, over-current and short-circuit protection, Output low ripple and noise. Our line of Professional CCTV Power Supplies give installers what they expect when it comes to power supplies, quality and reliability. Every channel is protected with Auto-Reset PTC fuses, which means these fuses will not blow.
This item is power adapter (transformer) of Low Voltage for 24V multiple Mini Dome IR Camera, HD-CVI Cameras, HD-CVI DVR, Monitoring equipment, security equipment, Wireless router, modem, Single color RGB or dream color LED strip lights and led module string.
Please be kindly informed that the total wattage of LED strip lights should not exceed the max wattage of this adaptor.
Standards and Certifications
|Power Supply Type||LED CCTV Distribution Box Power Supplies|
|Input Voltage AC||100~260V|
|Input Frequency Range||47 ~ 63 Hz|
|Output Voltage DC||24 VDC|
|Output voltage accuracy||±2%|
|Voltage adjustment range||-5%~+10% of rated output voltage|
|Output Power||24V/20A 480Watts|
|Output Channels||18 channel|
|Working temperature||- 40° ~ 60 ° c / 20% ~ 90% RH (no frost)|
|Average working no trouble||＞50, 000 hours|
|Overload protection||105% - 150% rated power, automatic recovery|
|Over-voltage protection||100% - 135% of the rated voltage|
|Product accessories||Safety key, installation screw|
How to use CCTV Power Supply?
CCTV camera power supply diagram:

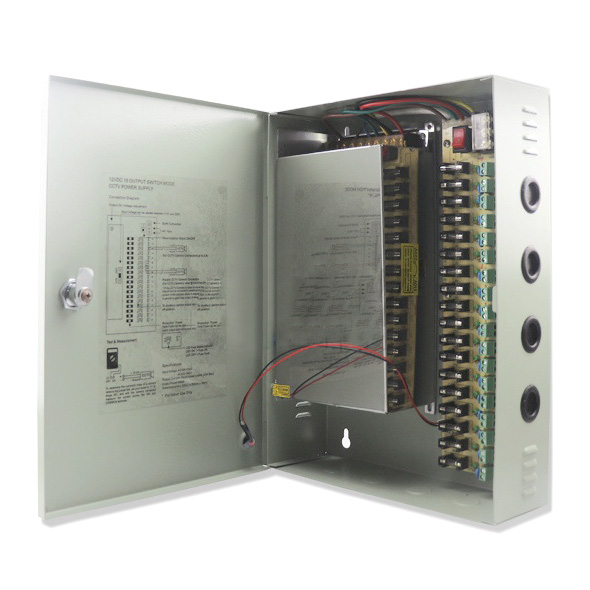

1 x 24V 18-Way CCTV Power Supply Distribution Box for CCTV Cameras
2 x Keys
