180W 15A 9CH DC12V Output Switch Mode CCTV Distribution Box Portable Power Supply For IR Camera Monitoring Equipment LED Tape Lights
►This 9 channel CCTV Distribution Box power supply panel is specially designed for multiple Monitoring equipment cameras system installers. Power supply panels for up to 9 cameras offer a more professional alternative to individual power adapters, allowing you to consolidate Camera Power in a central location. Powering multiple cameras could not be easier! The most special feature is that each outlet is individually fused protected, with LED indicators. Additionally, this is a 12V DC 9 cameras panel, 9 ports power supply comes with a locker & keys. Output 15 amp Max.
This CCTV Distribution Box Low price and high reliability, Compact size, light weight, Universal AC input, Soft-start current can reduce the AC input impact effectively, Automatic Overload cut-off, Over Voltage cut-off, Automatic Thermal cut-off, Short circuit protection. built-in EMI filter, 100% full-load burn-in test ,Full range of input voltage, output voltage accurate and stable, Output over-voltage, over-current and short-circuit protection, Output low ripple and noise. Our line of Professional CCTV Power Supplies give installers what they expect when it comes to power supplies, quality and reliability. Every channel is protected with Auto-Reset PTC fuses, which means these fuses will not blow.
►This item is power adapter (transformer) of Low Voltage for 12V multiple Mini Dome IR Camera, HD-CVI Cameras, HD-CVI DVR, Monitoring equipment, security equipment, Wireless router, modem, Single color RGB or dream color LED strip lights and led module string.
Please be kindly informed that the total wattage of LED strip lights should not exceed the max wattage of this adaptor.

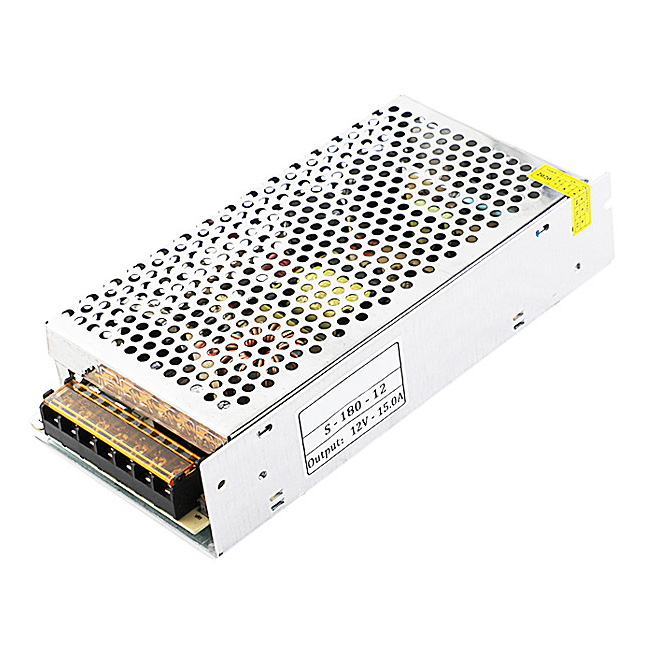

1. Switching power supply
Built-in original power module, with short circuit and overload protection.
Double filter capacitor, small ripple, stronger filter magnetic ring capacitor power is bigger and more powerful.
Copper coil design, control the resistance to increase the durability, stability, and greater carrying capacity of the product.
2. Multiple channels
The use of double-cap core fuse and enclosed terminal blocks can effectively prevent electric shock.
When the protection is started, the fuse is damaged and does not affect the performance of other output lines. At this time, you only need to replace the fuse for that road DC to return to normal.

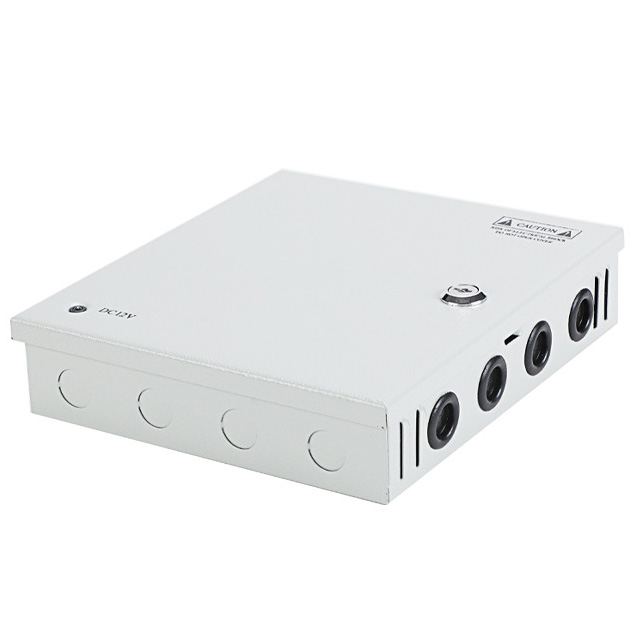

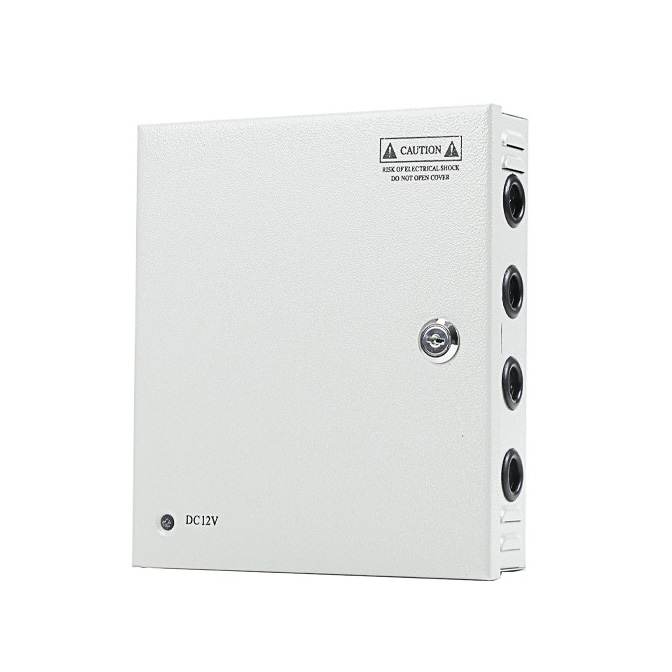

3. Metal case
It adopts all-metal baking paint chassis design, which is anti-fall and impact-resistant, and better protects the internal components of the machine.
The power box is equipped with an independent lock and key, which can lock the case, which can better prevent rain and theft and prevent electric shock.
Both sides are equipped with downward rain-proof cooling vents, which effectively improve the heat dissipation function of the power supply and make the power supply more durable.
Standards and Certifications
|Power Supply Type||LED CCTV Distribution Box Power Supplies|
|Input Voltage AC||100~260V|
|Input Frequency Range||47 ~ 63 Hz|
|Output Voltage DC||12 VDC|
|Output voltage accuracy||±2%|
|Voltage adjustment range||-5%~+10% of rated output voltage|
|Output Power||12V/15A 180Watts|
|Output Channels||9 channel|
|Working temperature||- 15 ° ~ 70 ° c / 20% ~ 90% RH (no frost)|
|Average working no trouble||＞50, 000 hours|
|Overload protection||115% - 135% rated power, automatic recovery|
|Over-voltage protection||100% - 135% of the rated voltage|
|Product accessories||Safety key, installation screw|
How to Use CCTV Power Supply?
CCTV camera power supply diagram:
