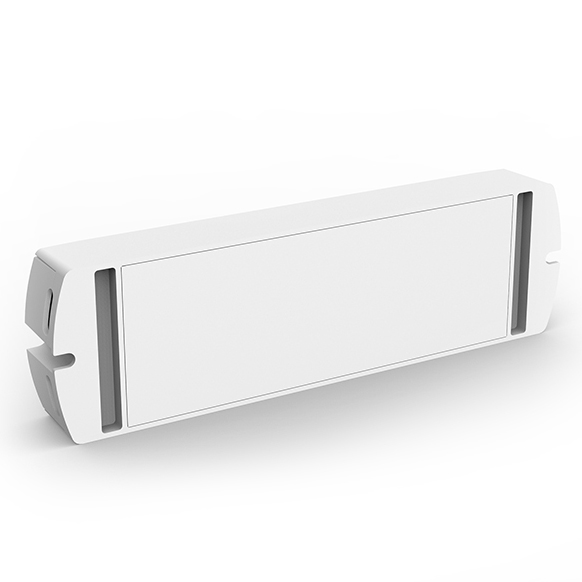

4CH Constant Current DMX512 & RDM Decoder D4C-L(700mA)
Comply with the DMX512 standard protocols.
Digital numeric display set DMX to decode start address by buttons.
RDM function can realize intercommunication between DMX master and decoder.
For example, DMX decoder address can be set by DMX master console.
1/2/4 DMX channel output selectable.
PWM frequency 2000/500Hz is selectable.
Logarithmic or linear dimming curve selectable.
Stand-alone RGB/RGBW mode and 4 channel dimmer mode selectable,
which be controlled by buttons with built-in programs, instead of DMX signal.

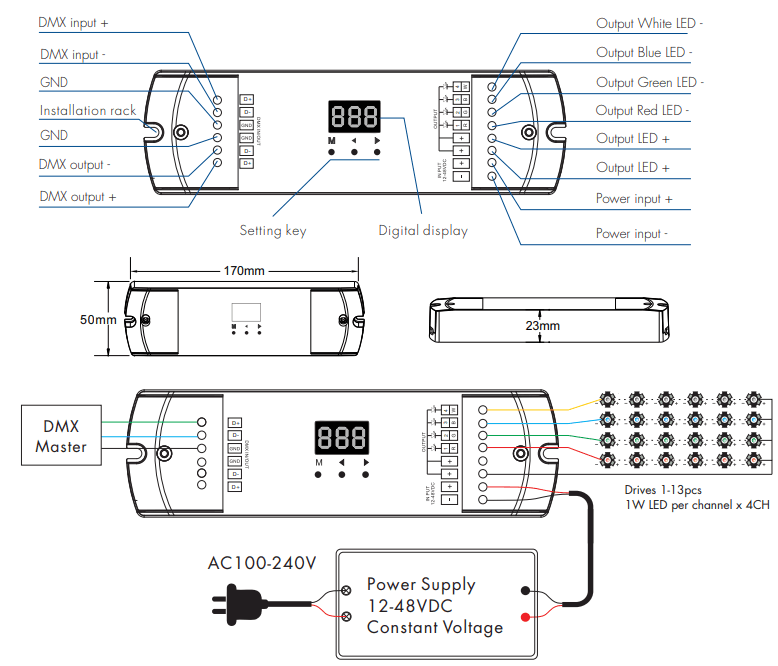

Input and Output
Input voltage: 12-48VDC
Output voltage: 4 x (3-46)VDC
Output current: 4CH,350mA or 700mA/CH
Output power: 4 x (1.05-16.1)W (350mA)
4 x (2.1-32.2)W (700mA)
Output type: Constant current
Standards and Certifications
