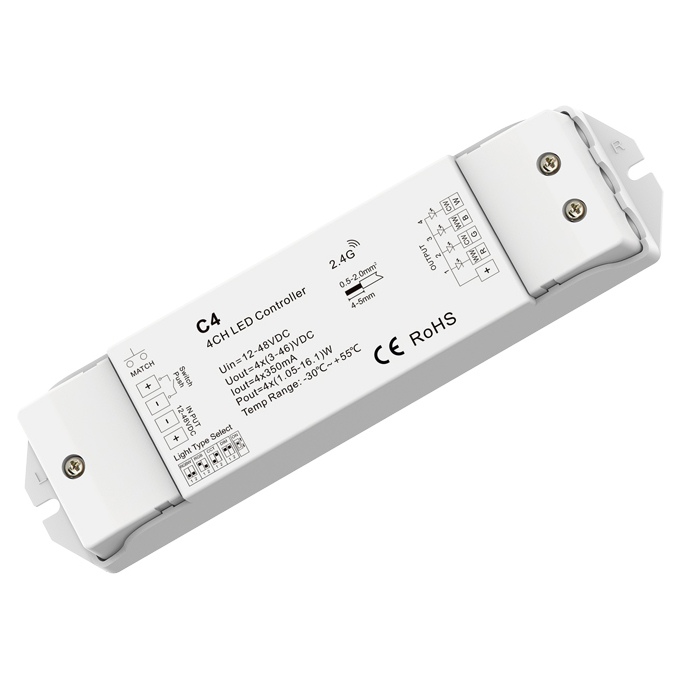

4CH*350mA 12-48VDC CC Controller (Push Dim) C4
Match with Skydance’s 2.4G single color, dual color and RGB/RGBW remote control.
● One RF controller accepts up to 10 remote control.

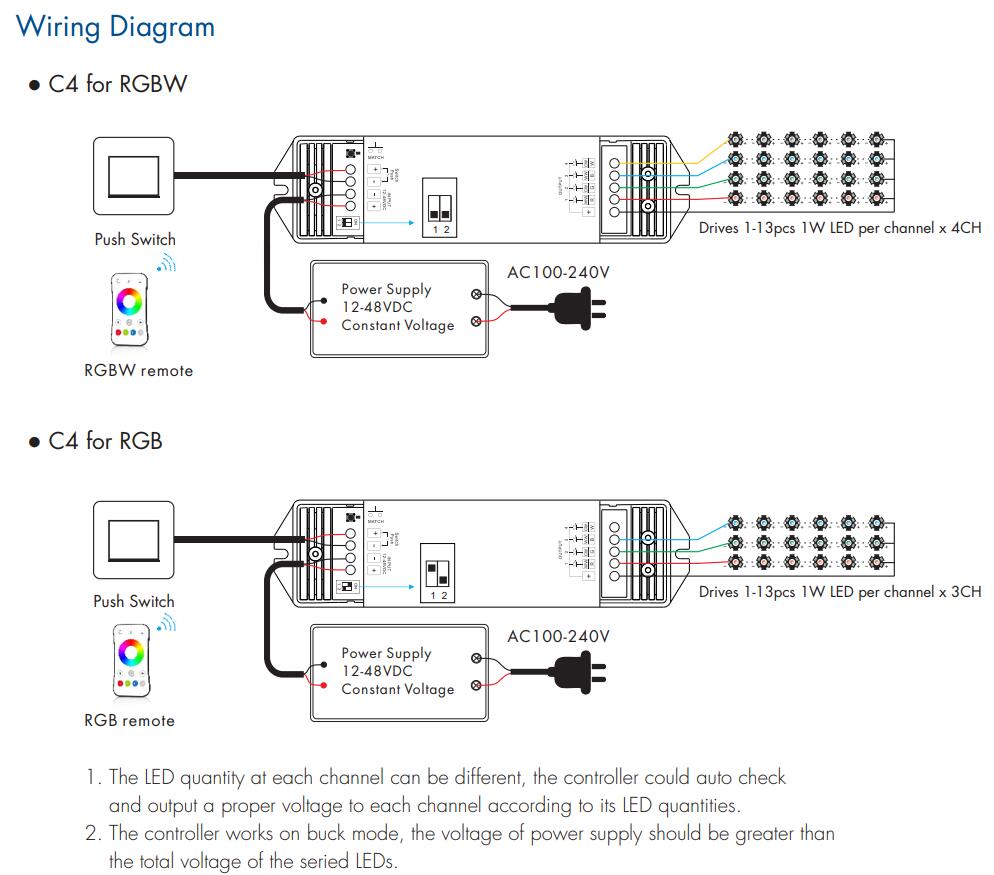

● When using with RGB/RGBW light, built in 10 dynamic modes, include a jump or gradual change style.
● Auto-transmitting function: Controller automatically transmits a signal to another controller with 30m control distance.
● Synchronize on multiple numbers of controllers.

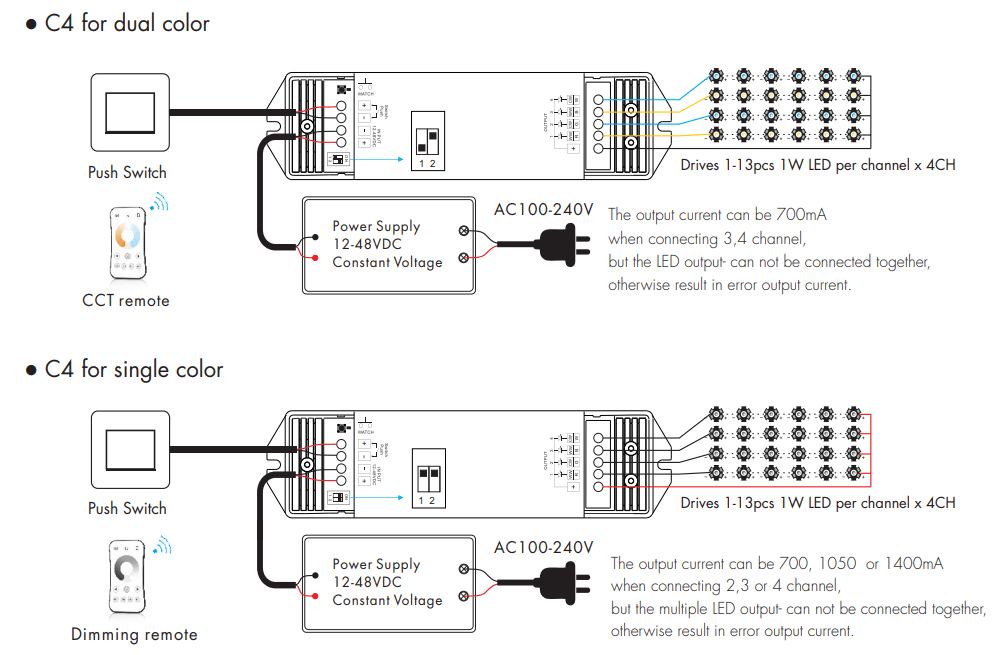

● Connect with external push switch to achieve on/off and dimming function.
Standards and Certifications
Input and Output
Input voltage: 12-48VDC
Output voltage: 4 x (3-46)VDC
Output current: 4CH,350mA/CH
Output power: 4 x (1.05-16.1)W
Output type: Constant current
Input signal: RF 2.4GHz + Push Dim
Control distance: 30m
Dimming leve: 4096 levels
Dimming range: 0 -100%
Dimming curve: Logarithmic
Safety and EMC
EMC standard (EMC): EN301 489,EN 62479
Safety standard(LVD): EN60950
Radio Equipment(RED): EN300 328
