1CH*350mA 12-48VDC CC Dimming Controller (Push Dim) C1
● Match with Skydance’s 2.4G dimming remote control,
one RF controller accept up to 10 remote control.

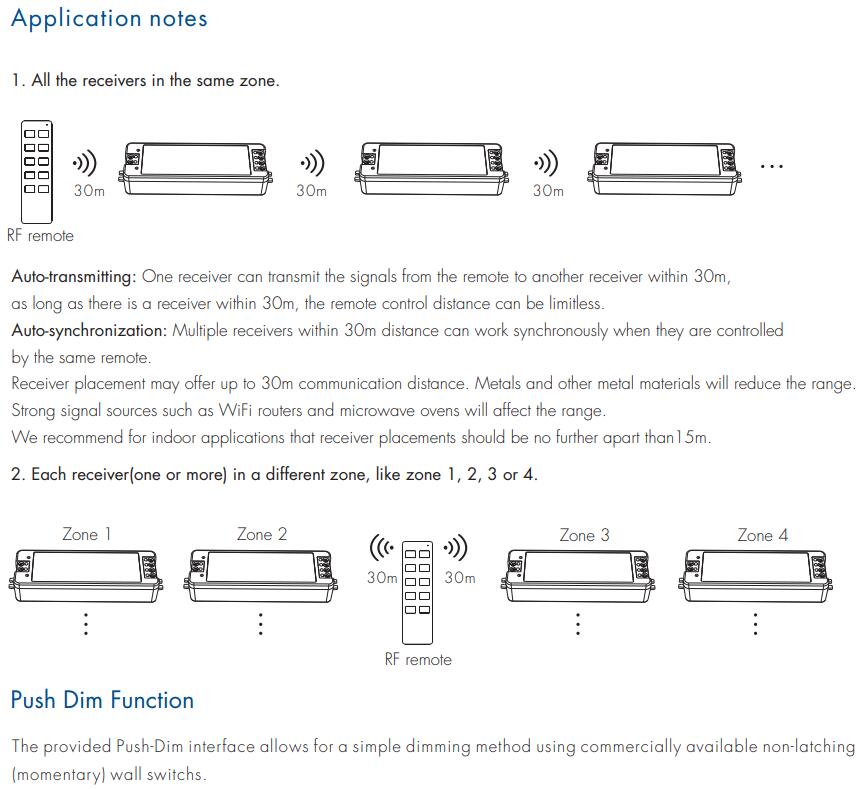

● Auto-transmitting function: Controller automatically transmits the signal to another controller with 30m control distance.
● Synchronize on the multiple numbers of controllers.

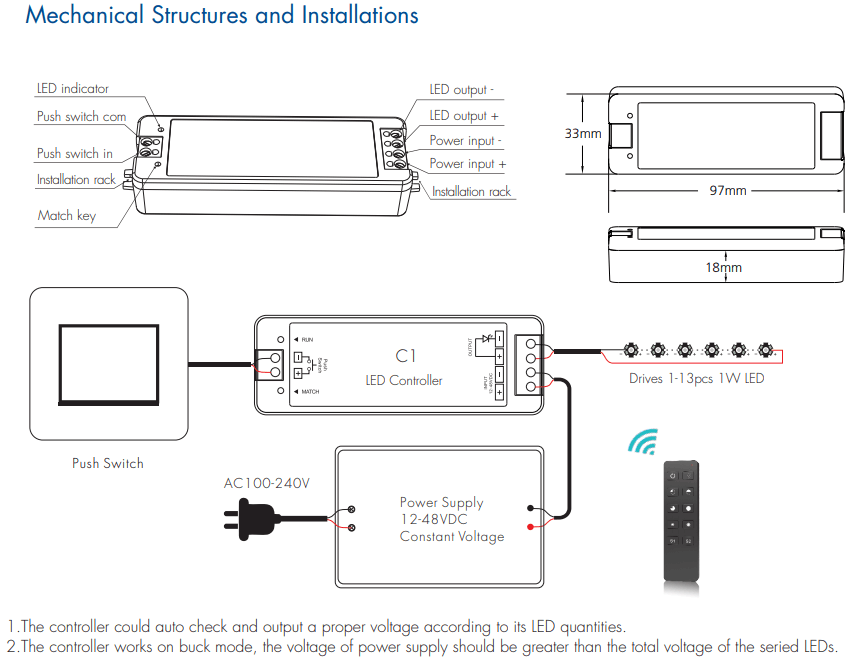

● Connect with external push switch to achieve on/off and dimming function.
Input and Output
Input voltage: 12-48VDC
Output voltage: 3-46VDC
Output current: 1CH,350mA/700mA
Output power: 1.05W-16.1W (350mA)
Output type: Constant current
Input signal: RF 2.4GHz + Push Dim
Control distance: 30m
Dimming level: 4096 levels
Dimming range: 0 -100%
Dimming curve: Logarithmic
Safety and EMC
EMC standard (EMC): EN301 489,EN 62479
Safety standard(LVD): EN60950
Radio Equipment(RED): EN300 328
