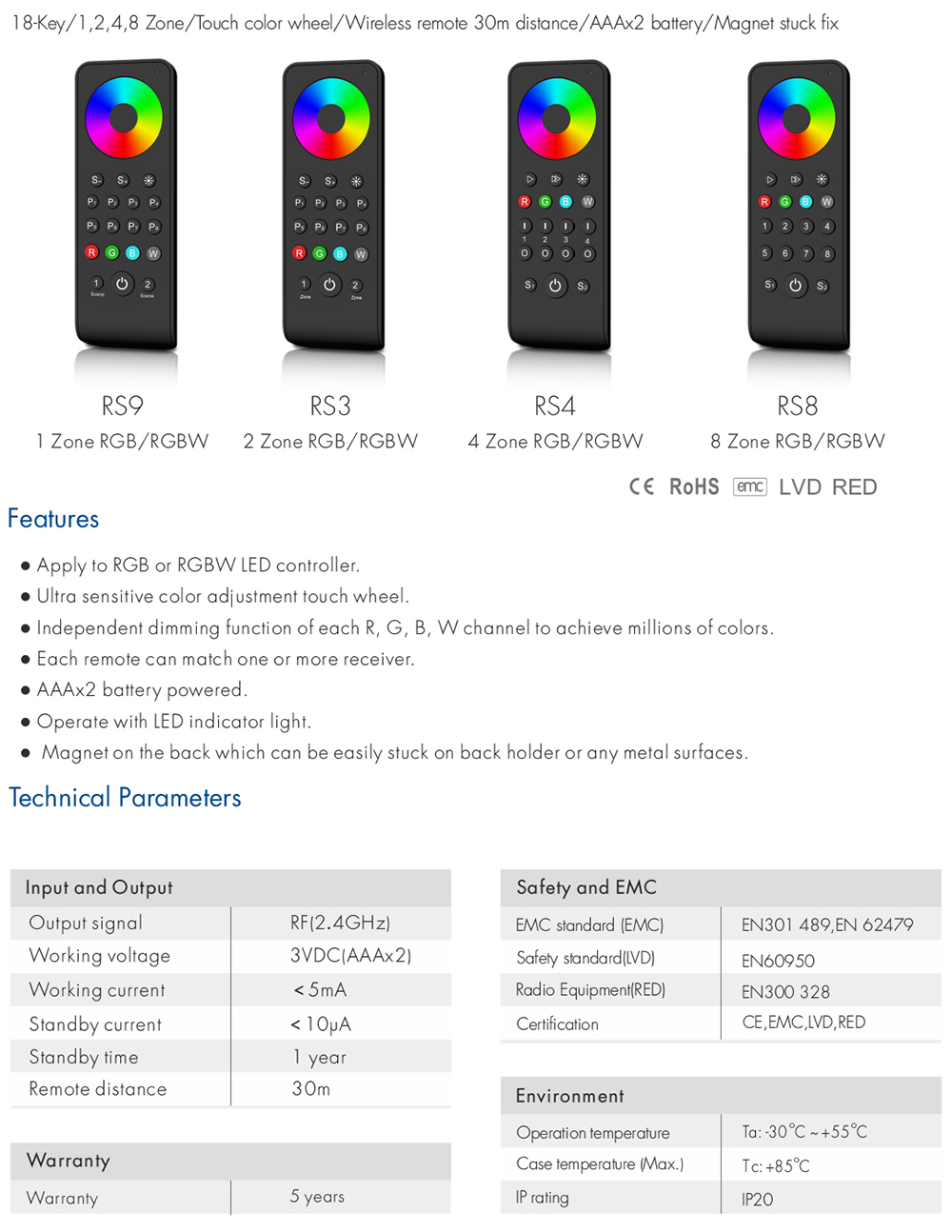

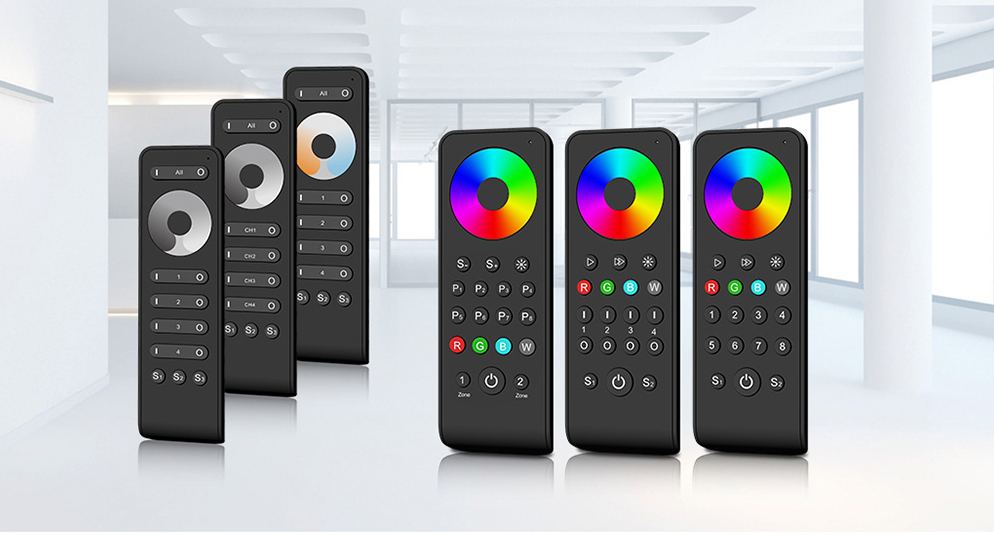

1 Zones 2.4G RGB/RGBW Remote Control RS9 For RGB LED Strips
18-Key/1,2,4,8 Zone/Touch color wheel/Wireless remote 30m distance/AAAx2 battery/Magnet stuck fix

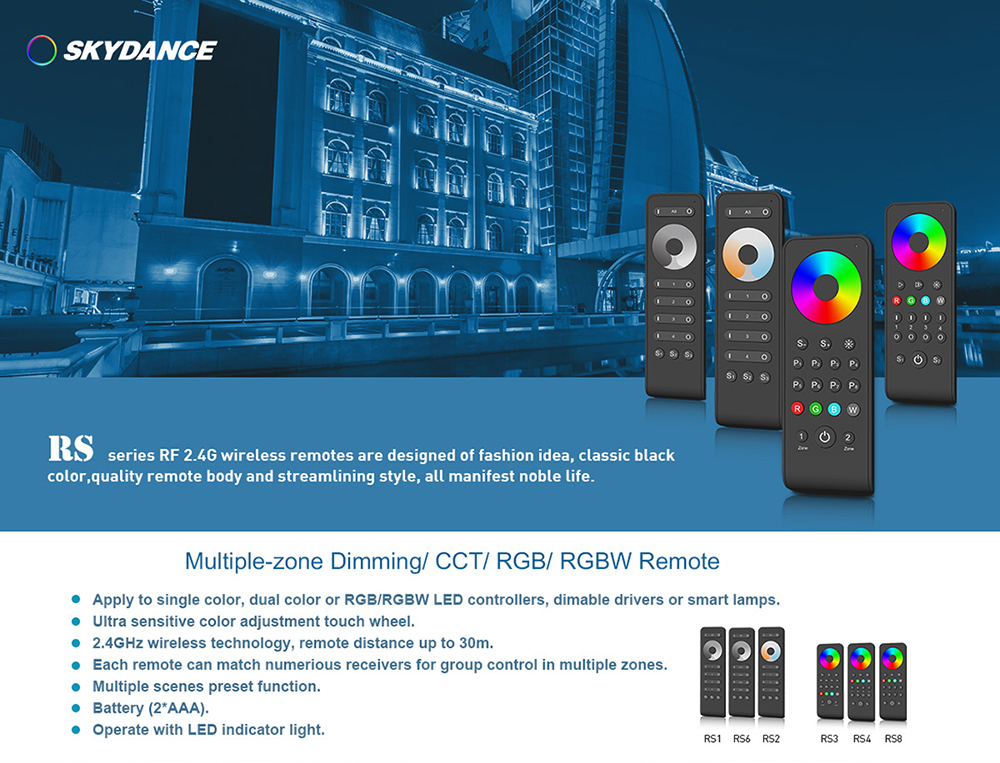

Apply to RGB or RGBW LED controller.

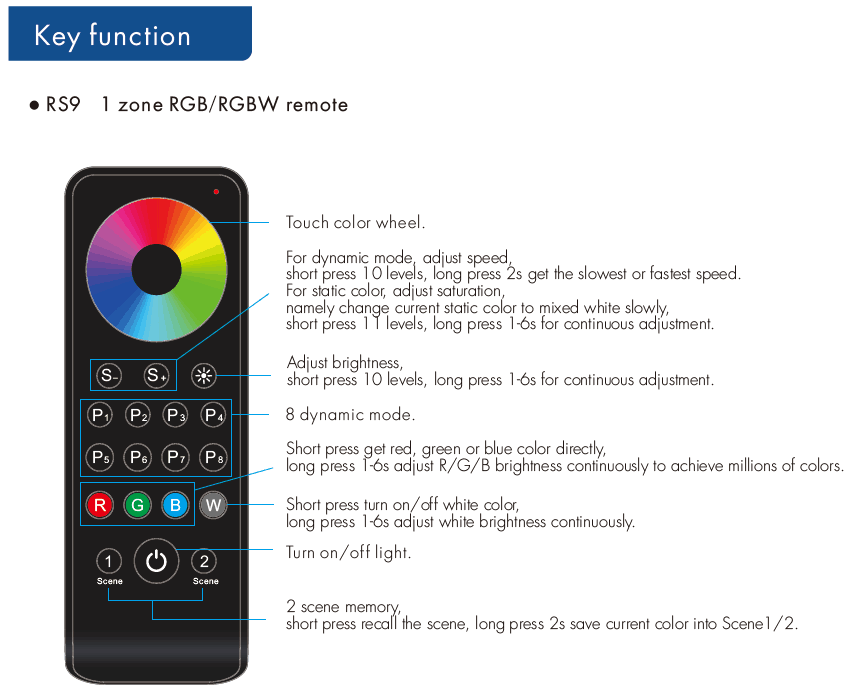

Ultra-sensitive color adjustment touch wheel.
Independent dimming function of each R, G, B, W channel to achieve millions of colors.

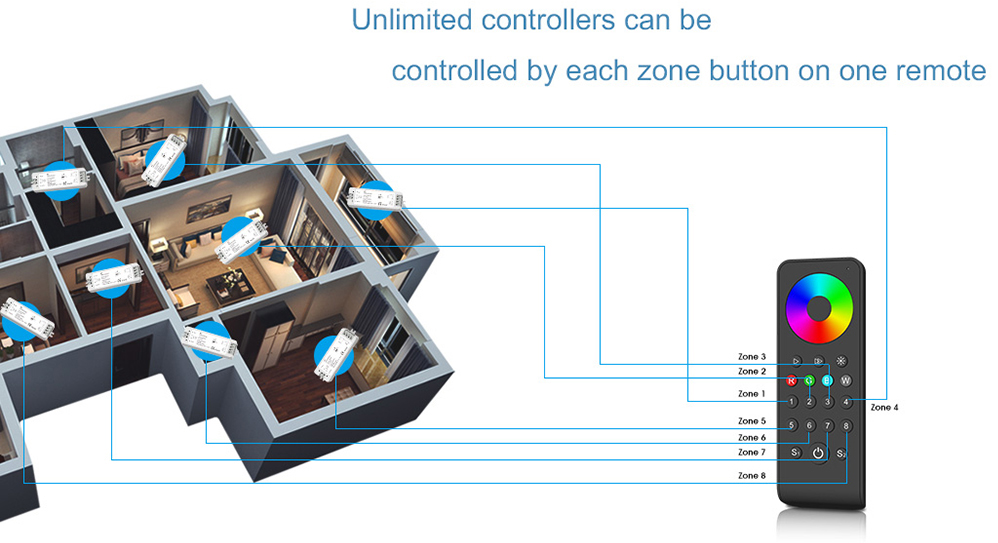

Each remote can match one or more receiver.
AAAx2 battery powered.
Operate with LED indicator light.

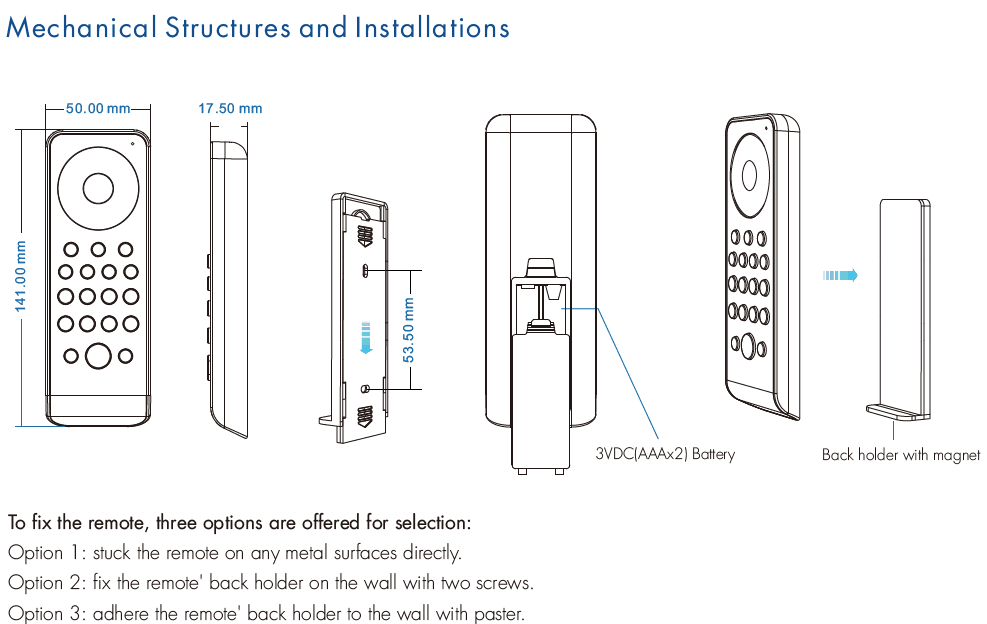

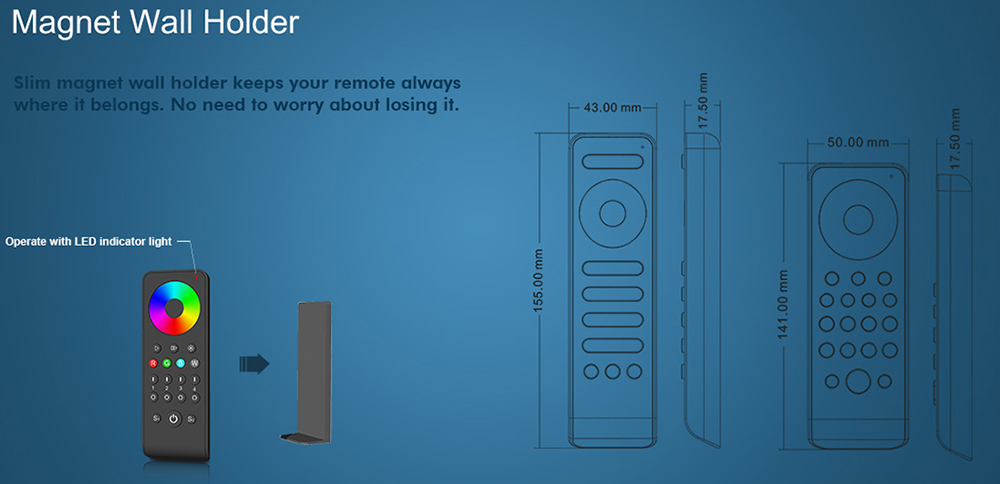

Magnet on the back which can be easily stuck on the back holder or any metal surfaces.
Input and Output
Output signal: RF(2.4GHz)
Working voltage: 3VDC(AAAx2)
Working current: ＜5mA
Standby time: 1 year

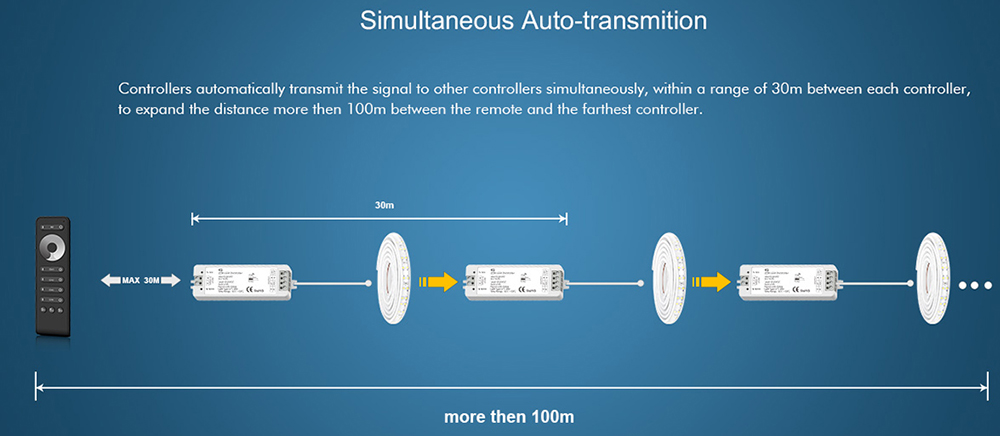

Remote distance: 30m
Safety and EMC
EMC standard (EMC): EN301 489,EN 62479
Safety standard(LVD): EN60950
Radio Equipment(RED): EN300 328
Standards and Certifications
